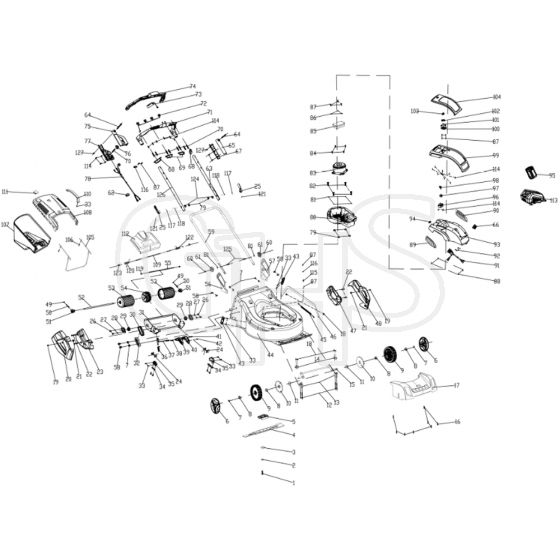

Cobra RM4140V Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800601701 Available to backorder	Bolt	£2.40 £2.00
2	CO26800800202 Available to backorder	Washer	£2.52 £2.10
3	CO26800700201 Available to backorder	Washer	£2.52 £2.10
4	CO26300349801 In stock	Blade	£18.48 £15.40
5	CO25296000102 Available to backorder	Blade Support	£8.09 £6.74
6	CO23600301801 Available to backorder	Wheel Cover	£2.52 £2.10
7	CO26800502801 Available to backorder	Nut	£1.44 £1.20
8	CO26800401601 In stock	Angle Bearing	£4.00 £3.33
9	CO25400203901 Available to backorder	Wheel Assy	£11.95 £9.96
10	CO25287000101 Available to backorder	Dustproof Wheel Cover	£2.52 £2.10
11	CO26800706202 Available to backorder	Washer	£2.52 £2.10
12	CO26800611901 Available to backorder	Bolt	£2.52 £2.10
13	CO25315800102 Available to backorder	Lower Base For Wheel Hub	£5.96 £4.97
14	CO25315900102 Available to backorder	Upper Base For Wheel Hub	£5.96 £4.97
15	CO23600402201 Available to backorder	Front Wheel Axle Assy	£14.68 £12.23
17	CO23600307701 Available to backorder	Front Panel	£22.39 £18.66
18	CO26800500501 Available to backorder	Screw	£2.40 £2.00
21	CO25320500101 Available to backorder	Fixed Plug Block	£2.52 £2.10
22	CO26800612201 Available to backorder	Hexagon Flange Bolts	£2.40 £2.00
23	CO25319800101 In stock	Right Rear Protecting Cover	£5.18 £4.32
24	CO25320700101 Available to backorder	Push Rear Axle Sleeve	£2.52 £2.10
25	CO25236401501 Available to backorder	Locking Handle	£2.52 £2.10
26	CO26800204201 Available to backorder	Screws	£1.26 £1.05
27	CO26800800303 Available to backorder	Washer	£2.40 £2.00
28	CO26300283801 Available to backorder	Bearing Block	£2.40 £2.00
29	CO26800407301 In stock	Bearing	£3.24 £2.70
31	CO26300302501 Available to backorder	Rear Axle Assembly	£20.80 £17.33
32	CO23600403801 Available to backorder	Position Plate	£4.26 £3.55
33	CO26800104601 In stock	Tapping Screw	£1.20 £1.00
34	CO26300282801 Available to backorder	Pressure Plate	£2.40 £2.00
35	CO2101100028A Available to backorder	Wheel Hub	£2.40 £2.00
38	CO26800500201 Available to backorder	Nut	£2.52 £2.10
39	CO25400107503 Available to backorder	Left Handle Shell	£2.52 £2.10
40	CO25400107603 Available to backorder	Right Handle Shell	£2.52 £2.10
41	CO26800200301 Available to backorder	Screw	£2.52 £2.10
42	CO26800106202 Available to backorder	Screw	£2.52 £2.10
43	CO25320600101 Available to backorder	Clamp	£2.52 £2.10
45	CO26801103904 Available to backorder	Rod Spring	£2.83 £2.36
46	CO26300335501 Available to backorder	Rod	£7.45 £6.21
47	CO25319700101 Available to backorder	Left Rear Protecting Cover	£4.81 £4.01
49	CO26800501101 Available to backorder	Nut	£1.20 £1.00
50	CO26800315101 Available to backorder	Bolt	£1.26 £1.05
51	CO25320200101 In stock	Connecting Knob	£2.40 £2.00
52	CO26300302601 Available to backorder	Connecting Link	£6.22 £5.18
53	CO21011001890001A In stock	Roller	£13.08 £10.90
54	CO25320100101 In stock	Connecting Wheel	£3.72 £3.10
55	CO26300301801 Available to backorder	Long Bar	£2.52 £2.10
56	CO23601045501 Available to backorder	Right Handle Bracket	£11.20 £9.33
57	CO23601045401 Available to backorder	Left Handle Bracket	£11.20 £9.33
58	CO26800606401 Available to backorder	Bolt	£2.62 £2.18

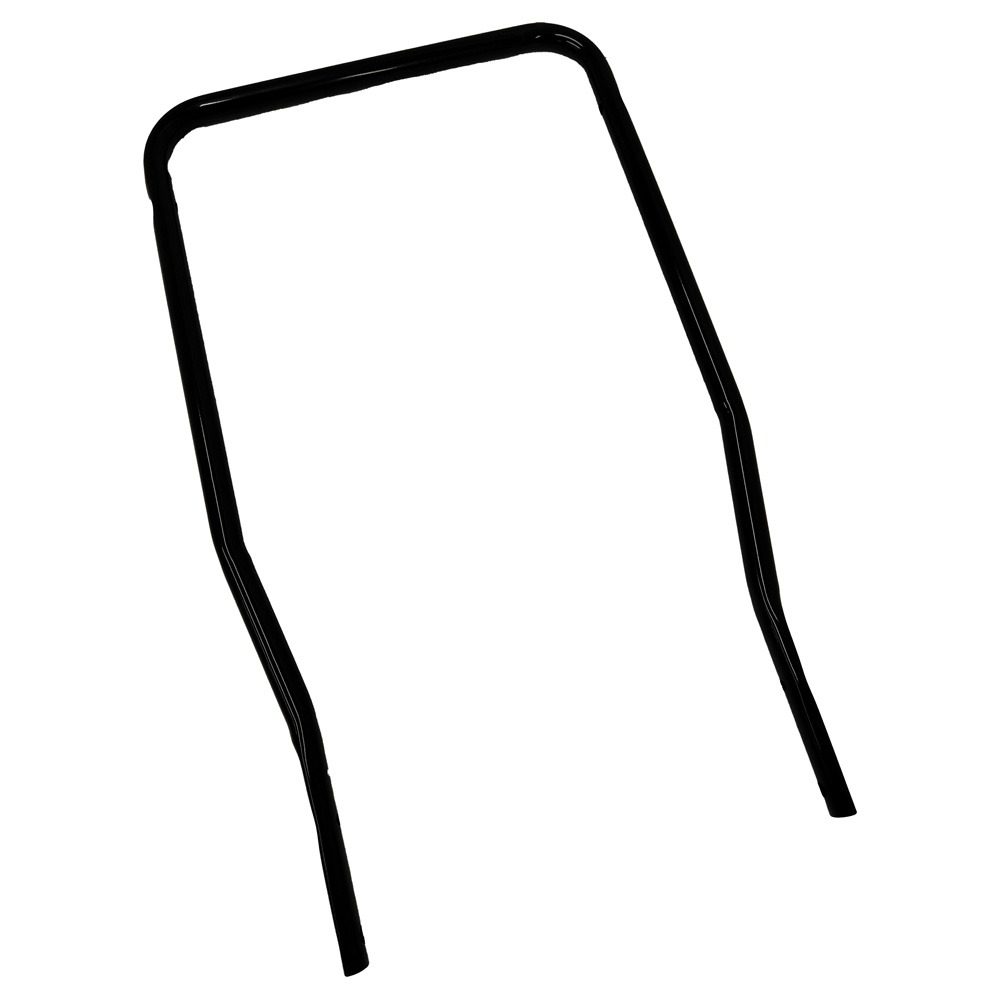

59	CO23601026701 Available to backorder	Lower Handle	£26.10 £21.75
60	CO26800502301 In stock	Nut	£1.20 £1.00
61	CO25236501801 Available to backorder	Lower Arm Knob	£2.52 £2.10
62	CO25261100102 In stock	Wire Clamp	£2.40 £2.00
63	CO23601035801 Available to backorder	Left Upper Handle	£11.34 £9.45
65	CO25339300101 Available to backorder	Left Hand Glove Cover	£2.52 £2.10
66	CO25330100101 Available to backorder	Battery Socket	£2.52 £2.10
67	CO25339200101 Available to backorder	Left Hand Glove Cover	£2.52 £2.10
70	CO26801126601 Available to backorder	Spring	£2.52 £2.10
71	CO25400114001 In stock	Handle Plastic Sleeve	£7.00 £5.83
72	CO27100118401 Available to backorder	Switching Line	£8.46 £7.05
73	CO28600102901 Available to backorder	Battery Pack Power Display Panel	£9.16 £7.63
74	CO25400114101 In stock	Handle Plastic Sleeve	£7.00 £5.83
75	CO25339100101 Available to backorder	Switch Box Cover	£2.52 £2.10
76	CO25339400301 Available to backorder	Trigger Button	£2.52 £2.10
77	CO25339000101 Available to backorder	Switch Box Cover	£2.52 £2.10
78	CO27100118301 Available to backorder	Control Line	£11.98 £9.98
79	CO26800500801 Available to backorder	Nut	£1.26 £1.05
81	CO26800700701 Available to backorder	Flat Washer	£2.40 £2.00
83	CO27400101602 Available to backorder	Motor	£95.88 £79.90
85	CO2108900028C Available to backorder	Control Unit	£36.00 £30.00
86	CO26800701201 Available to backorder	Washer	£2.52 £2.10
87	CO26800100302 Available to backorder	Tapping Screw	£1.44 £1.20
89	CO25248900201 Available to backorder	Right Wind Plate	£2.52 £2.10
90	CO25248900101 Available to backorder	Left Wind Plate	£2.77 £2.31
91	CO27100118501 Available to backorder	Battery Socket Welding Wire	£18.65 £15.54
92	CO26801128501 Available to backorder	Spring	£2.52 £2.10
93	CO25340100301 Available to backorder	Motor Cover Base	£41.04 £34.20
94	CO25228400102 Available to backorder	Wire Jacket	£2.52 £2.10
95	CO40V4AHLI Available to backorder	Battery	£165.96 £138.30
97	CO27600103501 Available to backorder	Switch	£6.86 £5.72
98	CO25328300201 Available to backorder	Key	£2.52 £2.10
99	CO25340000301 Available to backorder	Motor Cover Handle	£41.04 £34.20
100	CO25338500101 Available to backorder	Button Base	£2.52 £2.10
101	CO26801100301 Available to backorder	Spring	£2.52 £2.10
102	CO25338400101 Available to backorder	Button Slider	£2.52 £2.10
103	CO25338300301 Available to backorder	Button	£2.52 £2.10
104	CO25339900101 Available to backorder	Cover	£8.09 £6.74
105	CO26300345101 Available to backorder	Grass Bag Bracket	£15.73 £13.11
106	CO26800103202 In stock	Screw	£1.20 £1.00
107	CO25100183901 Available to backorder	Grass Bag	£24.25 £20.21
108	CO25317700101 Available to backorder	Grass Bag Cover	£14.30 £11.92
109	CO26300281301 Available to backorder	Long Bar	£2.52 £2.10
110	CO25316700101 Available to backorder	Grass Bag Handle	£2.52 £2.10
111	CO21071000080108A In stock	Wind Shutters	£2.40 £2.00
112	COT23001429501 Available to backorder	Grass Bag Rear Cover	£20.05 £16.71
113	CO40V2AHCHARGER Available to backorder	Charger	£61.68 £51.40
114	CO26800100501 Available to backorder	Screw	£1.26 £1.05
115	CO25226000101 Available to backorder	Pressing Line Plate Bracket	£2.52 £2.10
117	CO26300142002 Available to backorder	Clamp Plate	£2.62 £2.18
118	CO26300124501 Available to backorder	Bolt	£2.62 £2.18
119	CO26800506001 Available to backorder	Nut	£1.26 £1.05
120	CO26801112701 Available to backorder	Torsional Spring	£2.52 £2.10
121	CO26809004801 Available to backorder	Pin	£2.40 £2.00
122	CO26801112601 Available to backorder	Torsional Spring	£2.52 £2.10
123	CO26800502401 Available to backorder	Nut	£1.26 £1.05
124	CO26300118902 Available to backorder	Washer	£2.40 £2.00
125	CO26800611802 Available to backorder	Bolt	£2.52 £2.10
126	CO23601049401 Available to backorder	Right Upper Handle	£10.67 £8.89
127	CO26800502201 Available to backorder	Nut	£2.52 £2.10
