Cobra RM40SPC - Lawn Mower Revised June 2020 Main Diagram

Description

Cobra RM40SPC Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800606501 In stock	Bolt	£2.40 £2.00
2	CO2105200245A In stock	Pressing Plate Of Blade	£2.40 £2.00
2	CO26300107302 In stock	Washer	£2.40 £2.00
3	CO21052003052000A In stock	Blade	£15.60 £13.00
3	CO26300267001 Available to backorder	Blade	£15.60 £13.00
4	CO2105200251A Available to backorder	Blade Support	£7.54 £6.28
4	CO26300152502 Available to backorder	Blade Holder	£7.20 £6.00
5	CO2105400024A Available to backorder	Bushing Of Blade Support	£2.52 £2.10
5	CO26900209201 Available to backorder	Blade Holder Bushing	£2.52 £2.10
6	CO26809000201 In stock	Pin	£2.40 £2.00
7	CO26800300502 Available to backorder	Screw	£1.26 £1.05
8	CO26300403401 Available to backorder	Drive Belt	£7.84 £6.53
9	CO25100207301 In stock	V-Belt	£8.40 £7.00
10	CO26800103701 Available to backorder	Screw	£1.44 £1.20
11	CO26800202001 Available to backorder	Screw	£1.26 £1.05
12	CO25211800101 Available to backorder	Belt-Protect Cover	£6.50 £5.42
13	CO26800502401 Available to backorder	Nut	£1.26 £1.05
14	CO23600304501 Available to backorder	Wheel Cover	£2.62 £2.18
15	CO26800502801 Available to backorder	Nut	£1.44 £1.20
16	CO26800401601 Available to backorder	Bearing	£4.00 £3.33
17	CO25318800101 Available to backorder	Wheel	£11.40 £9.50
18	CO25319000101 Available to backorder	Dust Proof Wheel Cover	£2.52 £2.10
19	CO26800100501 Available to backorder	Screw	£1.26 £1.05
20	CO26800701201 Available to backorder	Washer	£2.52 £2.10
21	CO23600303101 Available to backorder	Front Veil	£9.54 £7.95
22	CO26800706202 Available to backorder	Washer	£2.52 £2.10
23	CO26800204201 Available to backorder	Screw	£1.26 £1.05
24	CO26300134202 Available to backorder	Fixing Block	£2.62 £2.18
25	CO26300301501 Available to backorder	Front Axle Complete	£16.18 £13.48
26	CO25202600101 In stock	Fixing Washer	£2.40 £2.00
27	CO29000300101 Available to backorder	Hight-Adjusting Handle	£2.62 £2.18
28	CO26801124501 Available to backorder	Spring	£5.04 £4.20
29	CO26300301701 Available to backorder	Rod	£3.78 £3.15
30	CO26800500501 Available to backorder	Nut	£2.40 £2.00
31	CO26800104601 In stock	Screw	£1.20 £1.00
32	CO25342100101 Available to backorder	Panel	£5.96 £4.97
33	CO25320500101 Available to backorder	Fixing Block	£2.52 £2.10
34	CO26800612201 Available to backorder	Bolt	£2.40 £2.00
35	CO25319700101 Available to backorder	Protecting Panel	£4.81 £4.01
36	CO25320600101 Available to backorder	Clip	£2.52 £2.10
37	CO26800611201 Available to backorder	Bolt	£2.62 £2.18
38	CO26300311201 Available to backorder	Position Plate	£2.52 £2.10
39	CO25217800104 Available to backorder	Protective Sleeve	£2.52 £2.10
41	CO26800201002 Available to backorder	Screw	£1.20 £1.00
42	CO26800800402 Available to backorder	Washer	£2.40 £2.00
43	CO26800706301 Available to backorder	Washer	£1.20 £1.00
44	CO26900211301 Available to backorder	Bearing Cover	£2.96 £2.47
45	CO26800402301 Available to backorder	Bearing	£2.64 £2.20
46	CO26800705102 In stock	Washer	£2.40 £2.00
47	CO26300230101 In stock	B Pin	£2.40 £2.00
48	CO2100200173 Available to backorder	48A Gearbox Spring	£2.40 £2.00
48	CO23050205701 Available to backorder	Gear Box	£46.56 £38.80
49	CO26300282801 Available to backorder	Pressing Plate	£2.40 £2.00
51	CO25342200101 Available to backorder	Panel	£6.22 £5.18
52	CO25319800101 In stock	Protecting Panel	£5.18 £4.32
53	CO2109900032 In stock	Chain	£5.42 £4.52

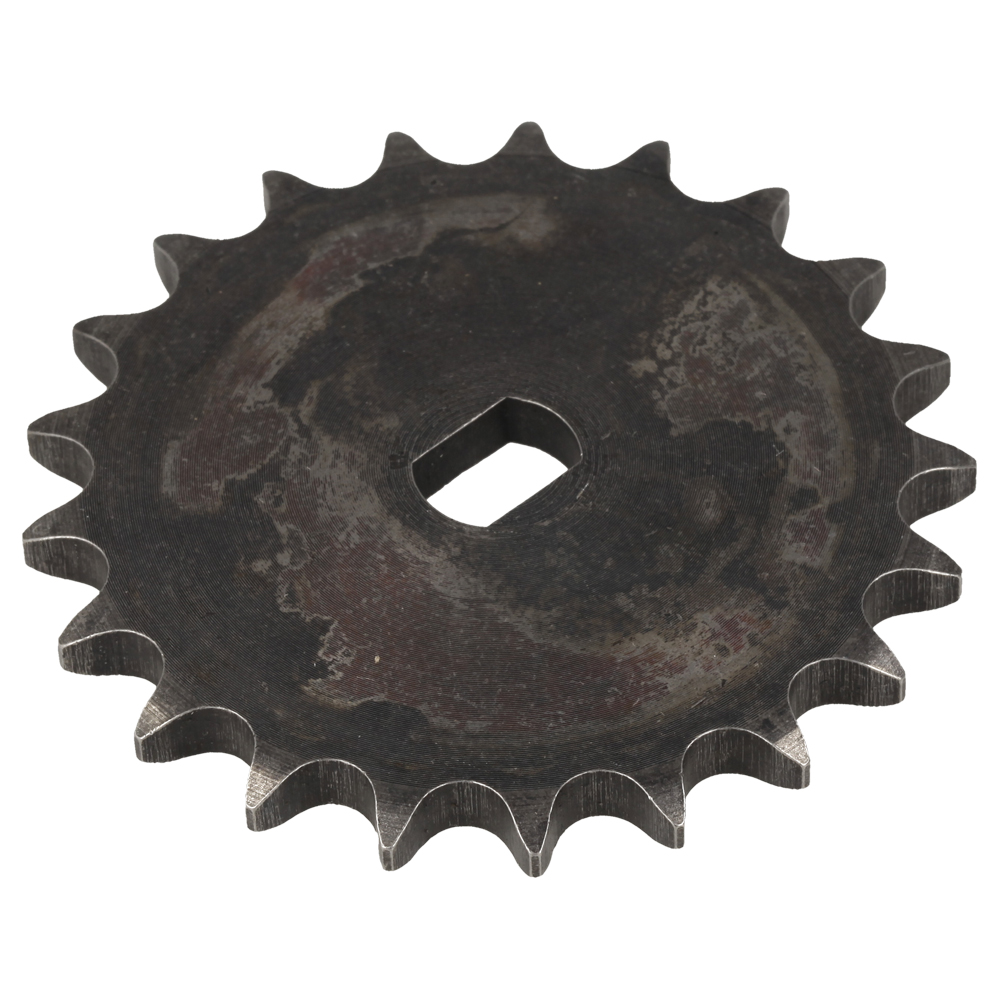

54	CO26300283201 In stock	Big Chain Wheel	£7.48 £6.23
55	CO26300283101 In stock	Small Chain Wheel	£5.76 £4.80
56	CO26800606401 Available to backorder	Bolt	£2.62 £2.18
57	CO23600403801 Available to backorder	Position Plate	£4.26 £3.55
58	CO26801124401 Available to backorder	Spring	£2.62 £2.18
59	CO23600403001 Available to backorder	Hight-Adjusting Handle	£5.26 £4.38
60	CO26800500201 Available to backorder	Nut	£2.52 £2.10
61	CO25400107503 Available to backorder	Left Shell Cover	£2.52 £2.10
62	CO25400107603 Available to backorder	Right Shell Cover	£2.52 £2.10
63	CO26800200301 Available to backorder	Screw	£2.52 £2.10
64	CO26800106202 Available to backorder	Screw	£2.52 £2.10
65	CO26800800303 Available to backorder	Washer	£2.40 £2.00
66	CO26300283801 Available to backorder	Washer	£2.40 £2.00
67	CO26800407301 In stock	Bearing	£3.24 £2.70
68	CO23100110001 Available to backorder	Panel	£2.52 £2.10
69	CO26300301401 Available to backorder	Back Wheel Axel Complete	£23.74 £19.78
70	CO26800501101 Available to backorder	Nut	£1.20 £1.00
71	CO26800315101 Available to backorder	Screw	£1.26 £1.05
72	CO25320200101 In stock	Connecting Butten	£2.40 £2.00
73	CO26300302001 Available to backorder	Rod	£6.22 £5.18
74	CO21011001890001A In stock	Roller	£13.08 £10.90
75	CO25320100101 In stock	Connecting Roller	£3.72 £3.10
76	CO26800506001 Available to backorder	Nut	£1.26 £1.05
77	CO26300301801 Available to backorder	Long Rod	£2.52 £2.10
78	CO23601028601 Available to backorder	Right Handle Support	£3.59 £2.99
79	CO26801112701 Available to backorder	Right Handed Spring	£2.52 £2.10
80	CO26300174402 Available to backorder	Long Rod	£2.52 £2.10
81	CO26801112601 Available to backorder	Left Handed Spring	£2.52 £2.10
82	CO23601028701 Available to backorder	Left Handle Support	£3.59 £2.99
83	CO26800602501 Available to backorder	Bolt	£2.52 £2.10
84	CO26300210602 Available to backorder	Squeer Washer	£2.52 £2.10
85	CO60400102201 Available to backorder	Engine Complete	£146.88 £122.40
86	CO26800501502 Available to backorder	Nut	£1.20 £1.00
87	CO26800800202 Available to backorder	Washer	£2.52 £2.10
88	CO26800700701 Available to backorder	Washer	£2.40 £2.00
89	CO26800601903 Available to backorder	Bolt	£2.62 £2.18
90	CO23000491301 Available to backorder	Back Cover Complete	£6.86 £5.72
91	CO26300177201 Available to backorder	Lower Handle	£15.04 £12.53
92	CO25261100101 Available to backorder	Clamp	£2.52 £2.10
93	CO26809004801 Available to backorder	Pin	£2.40 £2.00
94	CO25236401501 Available to backorder	Locking Handle	£2.52 £2.10
95	CO26300142002 Available to backorder	Pressing Plate	£2.62 £2.18
96	CO26300124501 Available to backorder	Bolt	£2.62 £2.18
97	CO26300118902 Available to backorder	Washer	£2.40 £2.00
98	CO26800500801 Available to backorder	Nut	£1.26 £1.05
99	CO29100115801 In stock	Break Control Rope Complete	£9.60 £8.00
100	CO29100134001 In stock	Drive Control Rope Complete	£10.80 £9.00
101	CO26800501603 Available to backorder	Nut	£1.20 £1.00
102	CO26800700801 Available to backorder	Washer	£1.20 £1.00
103	CO26300168401 Available to backorder	Rope Guider	£2.52 £2.10
104	CO26800607701 Available to backorder	Bolt	£2.62 £2.18
105	CO25233600102 Available to backorder	Rope Fixing Block	£2.40 £2.00

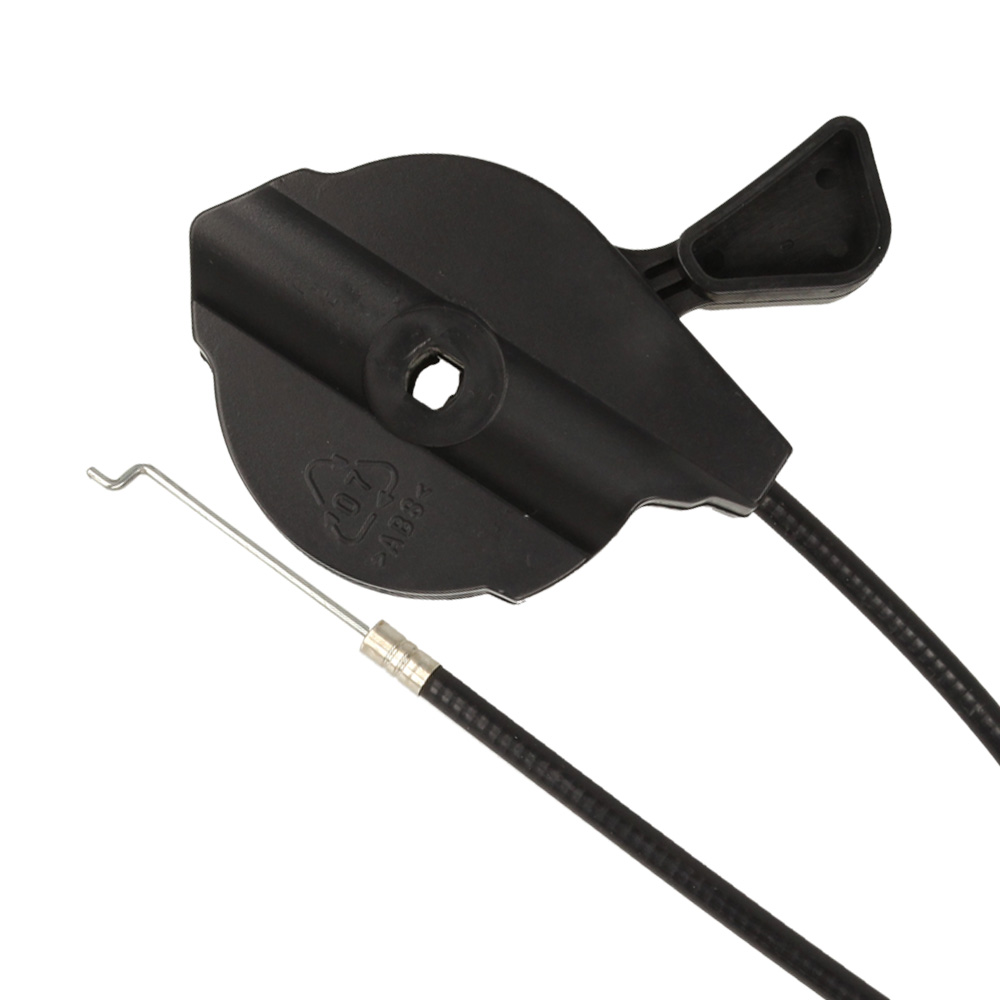

106	CO29100138003 In stock	Throttle Handle Complete	£6.30 £5.25
107	CO26800603601 Available to backorder	Bolt	£2.62 £2.18
108	CO23600163001 Available to backorder	Upper Handle	£20.72 £17.27
109	CO25600102201 In stock	Handle Jacket	£4.44 £3.70
110	CO23600135201 Available to backorder	Drive Control Handle	£5.40 £4.50
111	CO23601015001 Available to backorder	Break Control Handle	£4.26 £3.55
112	CO21071000080108A In stock	Wind Window Panel	£2.40 £2.00
113	CO25275500201 In stock	Handle On Grass Catcher	£2.40 £2.00
114	CO25342700101 Available to backorder	Uppper Cover	£21.42 £17.85
115	CO26800103202 In stock	Screw	£1.20 £1.00
116	CO26300301601 Available to backorder	Grass Catcher Handle	£15.00 £12.50
117	CO21077000872006A Available to backorder	Grass Catcher	£34.42 £28.68
118	CO26300107801 Available to backorder	Wrench	£2.52 £2.10
119	CO26300107901 Available to backorder	Wrench Handle	£2.52 £2.10
