Cobra RM40SPB - Lawn Mower Revised June 2020 Main Diagram

Name: Cobra RM40SPB - Lawn Mower Revised June 2020 Main Diagram
SKU: rm40spb_lawn_mower_revised_june_2020_main-group
Price: 1.03 GBP
Availability: InStock

Part No. rm40spb_lawn_mower_revised_june_2020_main-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra RM40SPB - Lawn Mower Revised June 2020 Main Diagram

Description

Cobra RM40SPB Rotary Mower Parts Diagram

	Part No.	Details
1	CO26800606501 Available to backorder	Bolt	£2.58 £2.15
2	CO26300107302 In stock	Washer	£2.58 £2.15
2	CO2105200245A In stock	Pressing Plate Of Blade	£2.58 £2.15
3	CO26300267001 In stock	Blade	£16.69 £13.91
3	CO21052003052000A In stock	Blade	£16.69 £13.91
4	CO26300152502 In stock	Blade Holder	£7.70 £6.42
4	CO2105200251A In stock	Blade Support	£7.70 £6.42
5	CO26900209201 Available to backorder	Blade Holder Bushing	£2.48 £2.07
5	CO2105400024A Available to backorder	Bushing Of Blade Support	£2.48 £2.07
6	CO26809000201 In stock	Pin	£2.58 £2.15
7	CO26800300502 Available to backorder	Screw	£1.24 £1.03
8	CO26300403401 Available to backorder	Drive Belt	£8.11 £6.76
9	CO25100207301 In stock	V-Belt	£8.98 £7.48
10	CO26800103701 In stock	Screw	£1.28 £1.07
11	CO26800202001 Available to backorder	Screw	£1.24 £1.03

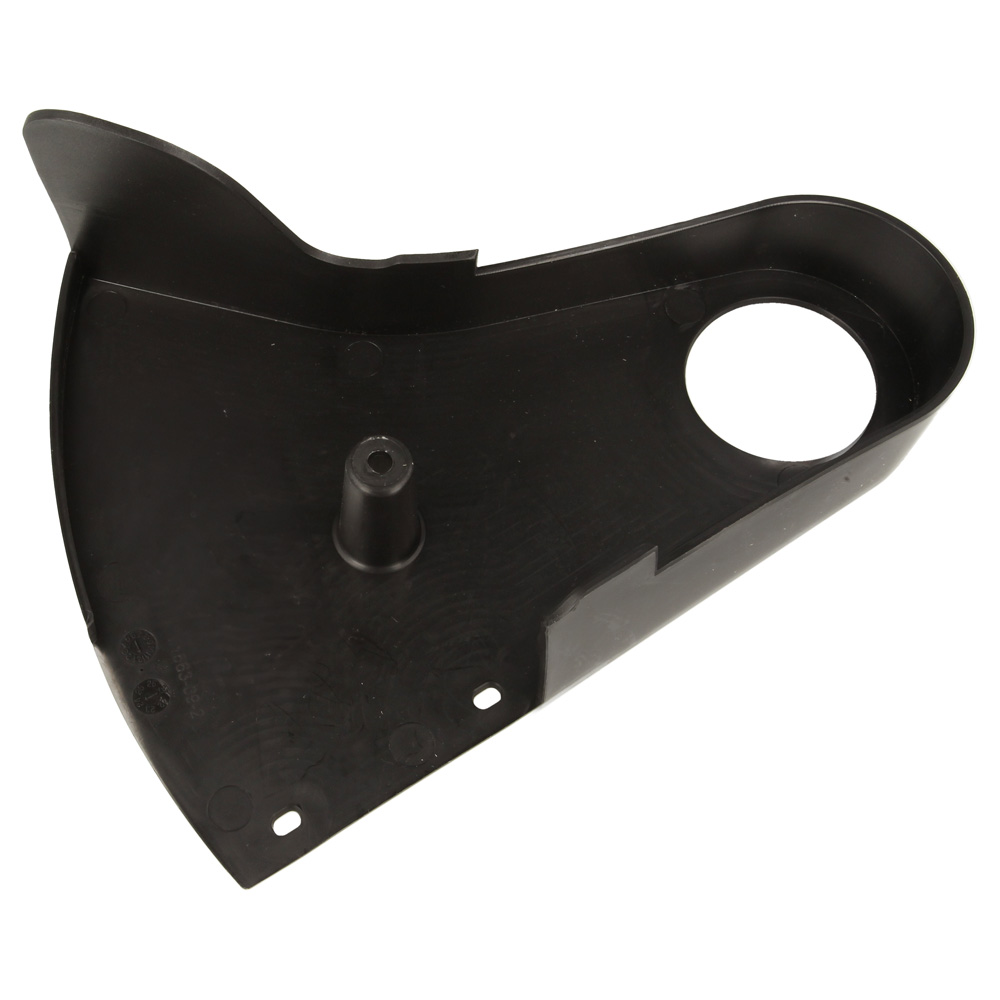

12	CO25211800101 In stock	Belt-Protect Cover	£6.96 £5.80
13	CO26800502401 Available to backorder	Nut	£1.24 £1.03
14	CO23600304501 Available to backorder	Wheel Cover	£2.48 £2.07
15	CO26800502801 Available to backorder	Nut	£1.24 £1.03
16	CO26800401601 In stock	Bearing	£4.30 £3.58
17	CO25318800101 Available to backorder	Wheel	£11.77 £9.81
18	CO25319000101 Available to backorder	Dust Proof Wheel Cover	£2.48 £2.07
19	CO26800100501 In stock	Screw	£1.28 £1.07
20	CO26800701201 Available to backorder	Washer	£2.48 £2.07
21	CO23600303101 Available to backorder	Front Veil	£9.40 £7.83
22	CO26800706202 In stock	Washer	£2.48 £2.07
23	CO26800204201 Available to backorder	Screw	£1.24 £1.03
24	CO26300134202 Available to backorder	Fixing Plate	£2.48 £2.07
25	CO26300301501 Available to backorder	Front Axle Complete	£16.74 £13.95
26	CO25202600101 In stock	Washer	£2.58 £2.15
27	CO29000300101 Available to backorder	Heat-Shrinkable Tube	£2.48 £2.07
28	CO26801124501 Available to backorder	Spring	£5.21 £4.34
29	CO26300301701 Available to backorder	Rod	£3.72 £3.10
30	CO26800500501 Available to backorder	Nut	£2.48 £2.07
31	CO26800104601 In stock	Screw	£1.28 £1.07
32	CO25342100101 Available to backorder	Panel	£5.88 £4.90
33	CO25320500101 Available to backorder	Fixing Block	£2.48 £2.07
34	CO26800612201 Available to backorder	Bolt	£2.48 £2.07
35	CO25319700101 Available to backorder	Protecting Panel	£7.80 £6.50
36	CO25320600101 Available to backorder	Clip	£2.48 £2.07
37	CO26800611201 Available to backorder	Bolt	£2.48 £2.07
38	CO26300311201 Available to backorder	Position Plate	£2.34 £1.95
39	CO25217800104 Available to backorder	Protective Sleeve	£2.48 £2.07
41	CO26800201002 Available to backorder	Screw	£1.24 £1.03
42	CO26800800402 Available to backorder	Washer	£2.48 £2.07
43	CO26800706301 Available to backorder	Washer	£1.24 £1.03
44	CO26900211301 In stock	Bearing Cover	£3.18 £2.65
45	CO26800402301 In stock	Bearing	£2.84 £2.37
46	CO26800705102 In stock	Washer	£2.58 £2.15
47	CO26300230101 In stock	B Pin	£2.58 £2.15
48	CO23050205701 Available to backorder	Gear Box	£45.86 £38.22
48	CO2100200173 Available to backorder	48A Gearbox Spring	£2.48 £2.07
49	CO26300282801 Available to backorder	Pressing Plate	£2.48 £2.07
50	CO2101100028A Available to backorder	Wheel Axel Holder	£2.48 £2.07
51	CO25342200101 Available to backorder	Panel	£6.12 £5.10
52	CO25319800101 In stock	Protecting Panel	£5.56 £4.63
53	CO2109900032 In stock	Chain	£5.81 £4.84
54	CO26300283201 In stock	Big Chain Wheel	£8.03 £6.69
55	CO26300283101 In stock	Small Chain Wheel	£6.18 £5.15
56	CO26800606401 Available to backorder	Bolt	£2.48 £2.07
57	CO23600403801 Available to backorder	Position Plate	£4.20 £3.50
58	CO26801124401 Available to backorder	Spring	£2.48 £2.07
59	CO23600403001 Available to backorder	Hight-Adjusting Handle	£5.17 £4.31
60	CO26800500201 Available to backorder	Nut	£2.48 £2.07
61	CO25400107503 Available to backorder	Left Shell Cover	£2.52 £2.10
62	CO25400107603 Available to backorder	Right Shell Cover	£2.52 £2.10
63	CO26800200301 Available to backorder	Screw	£2.48 £2.07
64	CO26800106202 Available to backorder	Screw	£2.48 £2.07
65	CO26800800303 Available to backorder	Washer	£2.48 £2.07
66	CO26300283801 Available to backorder	Washer	£2.48 £2.07
67	CO26800407301 In stock	Bearing	£3.47 £2.89
68	CO23100110001 Available to backorder	Panel	£2.48 £2.07
69	CO26300301401 Available to backorder	Back Wheel Axel Complete	£47.94 £39.95
70	CO26800501101 Available to backorder	Nut	£1.24 £1.03
71	CO26800315101 Available to backorder	Screw	£1.24 £1.03
72	CO25320200101 In stock	Connecting Butten	£2.58 £2.15
73	CO26300302001 Available to backorder	Rod	£9.41 £7.84
74	CO21011001890001A In stock	Roller	£14.00 £11.67
75	CO25320100101 In stock	Connecting Roller	£3.97 £3.31
76	CO26800506001 Available to backorder	Nut	£1.24 £1.03
77	CO26300301801 Available to backorder	Long Rod	£2.48 £2.07
78	CO23601028601 Available to backorder	Right Handle Support	£3.54 £2.95
79	CO26801112701 Available to backorder	Right Handed Spring	£2.48 £2.07
80	CO26300174402 Available to backorder	Long Rod	£2.48 £2.07
81	CO26801112601 Available to backorder	Left Handed Spring	£2.48 £2.07
82	CO23601028701 Available to backorder	Left Handle Support	£3.54 £2.95
83	CO26800602501 Available to backorder	Bolt	£2.48 £2.07
84	CO26300210602 Available to backorder	Squeer Washer	£2.48 £2.07
86	CO26800501502 Available to backorder	Nut	£1.24 £1.03
87	CO26800800202 Available to backorder	Washer	£2.48 £2.07
88	CO26800700701 Available to backorder	Washer	£2.48 £2.07
89	CO26800601903 Available to backorder	Bolt	£2.48 £2.07
90	CO23000491301 Available to backorder	Back Cover Complete	£6.77 £5.64
91	CO26300177201 In stock	Lower Handle	£15.56 £12.97
92	CO25261100101 Available to backorder	Clamp	£2.48 £2.07
93	CO26809004801 Available to backorder	Pin	£2.48 £2.07
94	CO25236401501 Available to backorder	Locking Handle	£2.48 £2.07
95	CO26300142002 Available to backorder	Pressing Plate	£2.48 £2.07
96	CO26300124501 Available to backorder	Bolt	£2.48 £2.07
97	CO26300118902 Available to backorder	Washer	£2.48 £2.07
98	CO26800500801 Available to backorder	Nut	£1.24 £1.03
99	CO29100117201 In stock	Break Control Rope Complete	£10.27 £8.56
100	CO29100134001 In stock	Drive Control Rope Complete	£11.56 £9.63
101	CO26800501603 In stock	Nut	£1.28 £1.07
102	CO26800700801 In stock	Washer	£1.28 £1.07
103	CO26300168401 Available to backorder	Rope Guider	£2.48 £2.07
104	CO26800607701 Available to backorder	Bolt	£2.48 £2.07
105	CO25233600102 In stock	Rope Fixing Block	£2.58 £2.15
106	CO29100132301 Available to backorder	Throttle Handle Complete	£11.15 £9.29
107	CO26800603601 Available to backorder	Bolt	£2.48 £2.07
108	CO23600163001 Available to backorder	Upper Handle	£20.42 £17.02
109	CO25600102201 In stock	Handle Jacket	£4.70 £3.92
110	CO23600135201 Available to backorder	Drive Control Handle	£5.57 £4.64
111	CO23601015001 Available to backorder	Break Control Handle	£4.20 £3.50
112	CO21071000080108A In stock	Wind Window Panel	£2.58 £2.15
113	CO25275500201 In stock	Handle On Grass Catcher	£2.58 £2.15
114	CO25342700101 Available to backorder	Uppper Cover	£22.24 £18.53
115	CO26800103202 In stock	Screw	£1.28 £1.07
116	CO26300301601 Available to backorder	Grass Catcher Handle	£15.49 £12.91
117	CO21077000872006A Available to backorder	Grass Catcher	£35.60 £29.67
118	CO26300161201 Available to backorder	Wrench	£2.48 £2.07
119	CO26300107901 Available to backorder	Wrench Handle	£2.48 £2.07
