Cobra RM40C - Lawn Mower Revised June 2020 Main Diagram

Name: Cobra RM40C - Lawn Mower Revised June 2020 Main Diagram
SKU: rm40c_lawn_mower_revised_june_2020_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra RM40C - Lawn Mower Revised June 2020 Main Diagram

Description

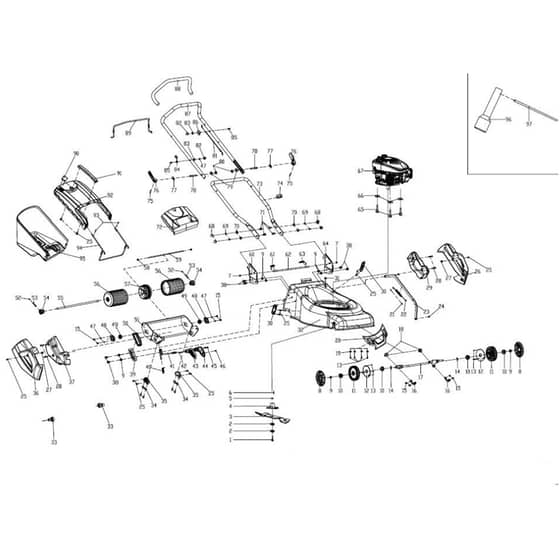

Cobra RM40C Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800606501 In stock	Bolt	£2.40 £2.00
2	CO2105200245A In stock	Pressing Plate Of Blade	£2.40 £2.00
2	CO26300107302 In stock	Washer	£2.40 £2.00
3	CO21052003052000A In stock	Blade	£15.60 £13.00
3	CO26300267001 Available to backorder	Blade	£15.60 £13.00
4	CO26300152502 Available to backorder	Blade Holder	£7.20 £6.00
4	CO2105200251A Available to backorder	Blade Support	£7.54 £6.28
5	CO26900209201 Available to backorder	Blade Holder Bushing	£2.52 £2.10
5	CO2105400024A Available to backorder	Bushing Of Blade Support	£2.52 £2.10
6	CO26809000201 In stock	Pin	£2.40 £2.00
7	CO26800502401 Available to backorder	Nut	£1.26 £1.05
8	CO23600304501 Available to backorder	Wheel Cover	£2.62 £2.18
9	CO26800502801 Available to backorder	Nut	£1.44 £1.20
10	CO26800401601 Available to backorder	Bearing	£4.00 £3.33
11	CO25318800101 Available to backorder	Wheel	£11.40 £9.50
12	CO25319000101 Available to backorder	Dust Proof Wheel Cover	£2.52 £2.10
13	CO26800100501 Available to backorder	Screw	£1.26 £1.05
14	CO26800706202 Available to backorder	Washer	£2.52 £2.10
15	CO26800204201 Available to backorder	Screw	£1.26 £1.05
16	CO26300134202 Available to backorder	Wheel Axel Fixing Plate	£2.62 £2.18
17	CO26300301501 Available to backorder	Front Wheel Axel Complete	£16.18 £13.48
18	CO25202600101 In stock	Front Wheel Fixing Washer	£2.40 £2.00
19	CO26800701201 Available to backorder	Washer	£2.52 £2.10
20	CO23600303101 Available to backorder	Front Veil	£9.54 £7.95
21	CO29000300101 Available to backorder	Heat-Shrinkable Tube	£2.62 £2.18
22	CO26801124501 Available to backorder	Spring	£5.04 £4.20
23	CO26300301701 Available to backorder	Rod	£3.78 £3.15
24	CO26800500501 Available to backorder	Nut	£2.40 £2.00
25	CO26800104601 In stock	Screw	£1.20 £1.00
26	CO25342100101 Available to backorder	Panel	£5.96 £4.97
27	CO25320500101 Available to backorder	Fixing Block	£2.52 £2.10
28	CO26800612201 Available to backorder	Bolt	£2.40 £2.00
29	CO25319700101 Available to backorder	Protecting Panel	£4.81 £4.01
30	CO25320600101 Available to backorder	Clip	£2.52 £2.10
31	CO25217800104 Available to backorder	Protecting Sleeve	£2.52 £2.10
33	CO25320700101 Available to backorder	Back Wheel Axelhousing	£2.52 £2.10
34	CO26300282801 Available to backorder	Pressing Plate	£2.40 £2.00
35	CO2101100028A Available to backorder	Wheel Axel Holder	£2.40 £2.00
36	CO25342200101 Available to backorder	Panel	£6.22 £5.18
37	CO25319800101 In stock	Protecting Panel	£5.18 £4.32
38	CO26800606401 Available to backorder	Bolt	£2.62 £2.18
39	CO23600403801 Available to backorder	Position Plate	£4.26 £3.55
40	CO26801124401 Available to backorder	Spring	£2.62 £2.18
41	CO23600403001 Available to backorder	Hight-Adjusting Handle	£5.26 £4.38
42	CO26800500201 Available to backorder	Nut	£2.52 £2.10
43	CO25400107503 Available to backorder	Left Shell Cover	£2.52 £2.10
44	CO25400107603 Available to backorder	Right Shell Cover	£2.52 £2.10
45	CO26800200301 Available to backorder	Screw	£2.52 £2.10
46	CO26800106202 Available to backorder	Screw	£2.52 £2.10
47	CO26800800303 Available to backorder	Washer	£2.40 £2.00
48	CO26300283801 Available to backorder	Washer	£2.40 £2.00
49	CO26800407301 In stock	Bearing	£3.24 £2.70
50	CO23100110001 Available to backorder	Panel	£2.52 £2.10
51	CO26300302501 Available to backorder	Back Wheel Axel Complete	£20.80 £17.33
52	CO26800501101 Available to backorder	Nut	£1.20 £1.00
53	CO26800315101 Available to backorder	Screw	£1.26 £1.05
54	CO25320200101 In stock	Connecting Butten	£2.40 £2.00
55	CO26300302601 Available to backorder	Rod	£6.22 £5.18
56	CO21011001890001A In stock	Roller	£13.08 £10.90
57	CO25320100101 In stock	Connecting Roller	£3.72 £3.10
58	CO26800506001 Available to backorder	Nut	£1.26 £1.05
59	CO26300301801 Available to backorder	Long Rod	£2.52 £2.10
60	CO23601028601 Available to backorder	Right Handle Support	£3.59 £2.99
61	CO26801112701 Available to backorder	Right Handed Spring	£2.52 £2.10
62	CO26300174402 Available to backorder	Long Rod	£2.52 £2.10
63	CO26801112601 Available to backorder	Left Handed Spring	£2.52 £2.10
64	CO23601028701 Available to backorder	Left Handle Support	£3.59 £2.99
65	CO26800602501 Available to backorder	Bolt	£2.52 £2.10
66	CO26300210602 Available to backorder	Squeer Washer	£2.52 £2.10
67	CO60400103402 Available to backorder	Engine Complete	£148.92 £124.10
68	CO26800501502 Available to backorder	Nut	£1.20 £1.00
69	CO26800800202 Available to backorder	Washer	£2.52 £2.10
70	CO26800700701 Available to backorder	Washer	£2.40 £2.00
71	CO26800601903 Available to backorder	Bolt	£2.62 £2.18
72	CO23000491301 Available to backorder	Back Cover Complete	£6.86 £5.72
73	CO26300177201 Available to backorder	Lower Handle	£15.04 £12.53
74	CO25261100101 Available to backorder	Clamp	£2.52 £2.10
75	CO26809004801 Available to backorder	Pin	£2.40 £2.00
76	CO25236401501 Available to backorder	Locking Handle	£2.52 £2.10
77	CO26300142002 Available to backorder	Pressing Plate	£2.62 £2.18
78	CO26300124501 Available to backorder	Bolt	£2.62 £2.18
79	CO26300118902 Available to backorder	Washer	£2.40 £2.00
80	CO26800500801 Available to backorder	Nut	£1.26 £1.05
81	CO29100115801 In stock	Break Control Rope Complete	£9.60 £8.00
82	CO26800501603 Available to backorder	Nut	£1.20 £1.00
83	CO26800700801 Available to backorder	Washer	£1.20 £1.00
84	CO26300168401 Available to backorder	Rope Guider	£2.52 £2.10
85	CO26800607701 Available to backorder	Bolt	£2.62 £2.18
86	CO25233600102 Available to backorder	Rope Fixing Block	£2.40 £2.00
87	CO23600163001 Available to backorder	Upper Handle	£20.72 £17.27
88	CO25600102201 In stock	Handle Jacket	£4.44 £3.70
89	CO23601015001 Available to backorder	Break Control Handle	£4.26 £3.55
90	CO21071000080108A In stock	Wind Window Panel	£2.40 £2.00
91	CO25275500201 In stock	Handle On Grass Catcher	£2.40 £2.00
92	CO25342700101 Available to backorder	Uppper Cover	£21.42 £17.85
93	CO26800103202 In stock	Screw	£1.20 £1.00
94	CO26300301601 Available to backorder	Grass Catcher Handle	£15.00 £12.50

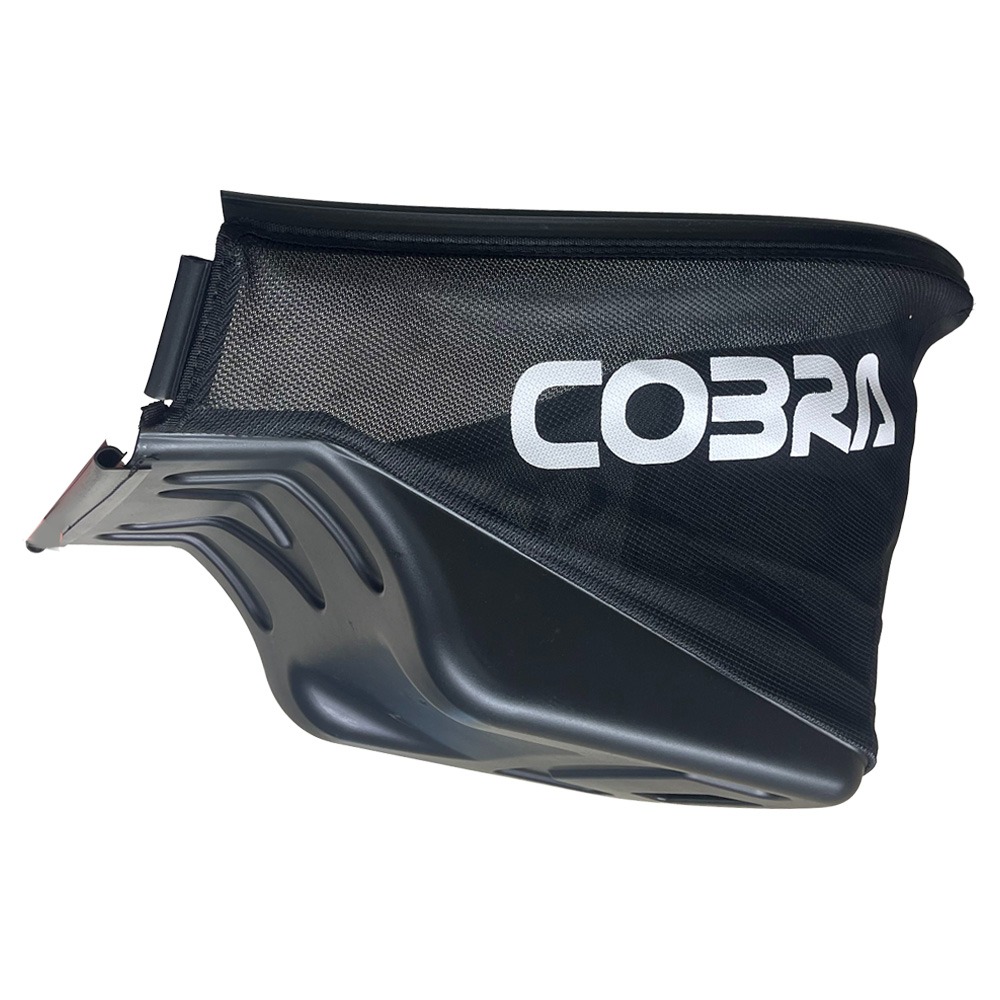

95	CO21077000872006A Available to backorder	Grass Catcher	£34.42 £28.68
96	CO26300161201 Available to backorder	Wrench	£2.52 £2.10
97	CO26300107901 Available to backorder	Wrench Handle	£2.52 £2.10
