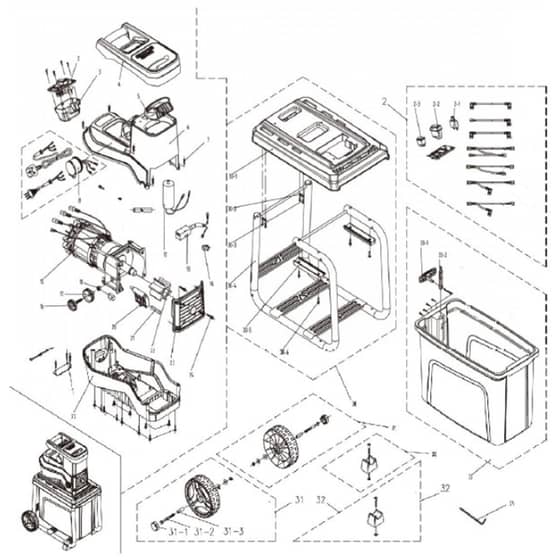

Cobra QS2500 - Shredder Main Diagram

Ref. Img. Part No. Details

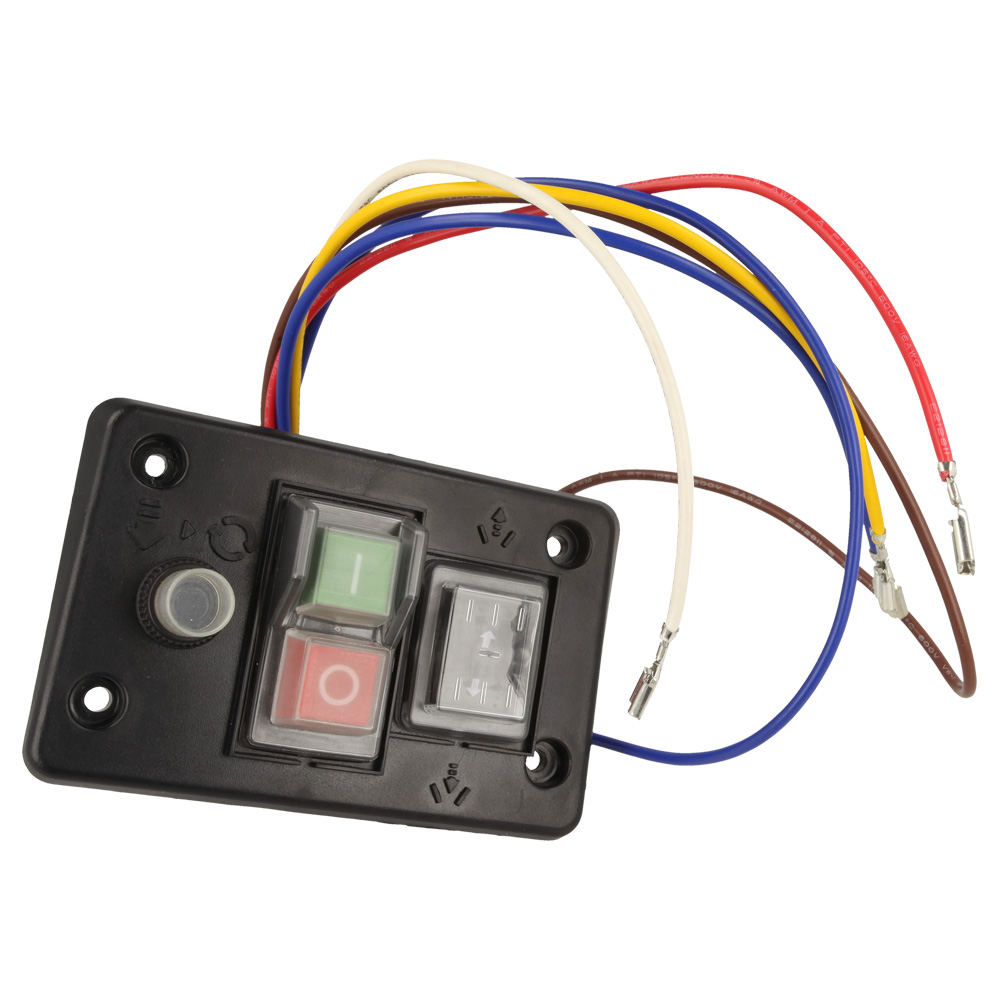

  2 Electrical Control Components CO8440-546101-0000110
Electrical Control Components
Out of stock
£34.94 £29.12

  3 Switch Box CO8020-546302-0000110
Switch Box
Out of stock
£2.52 £2.10

  4 Fuse CO8001-546102-0000110
Fuse
Out of stock
£3.92 £3.27

  7 Self Tapping Screw CO8SNAB50-25D
Self Tapping Screw
Out of stock
£2.52 £2.10

  12 Capacitive Component CO8440-546316-0000010
Capacitive Component
Out of stock
£17.87 £14.89

  14 Microswitch CO8042-481601-0100010
Microswitch
Out of stock
£2.52 £2.10

  15 Driving Part CO8440-546102-0000010
Driving Part
Out of stock
£171.12 £142.60

  16 Adjusting Knob CO8313-546101-0121210
Adjusting Knob
Out of stock
£2.52 £2.10

  17 Locking Knob CO8313-546301-0000110
Locking Knob
Out of stock
£2.52 £2.10

  18 Nut CO8NA-10B
Nut
Out of stock
£1.26 £1.05

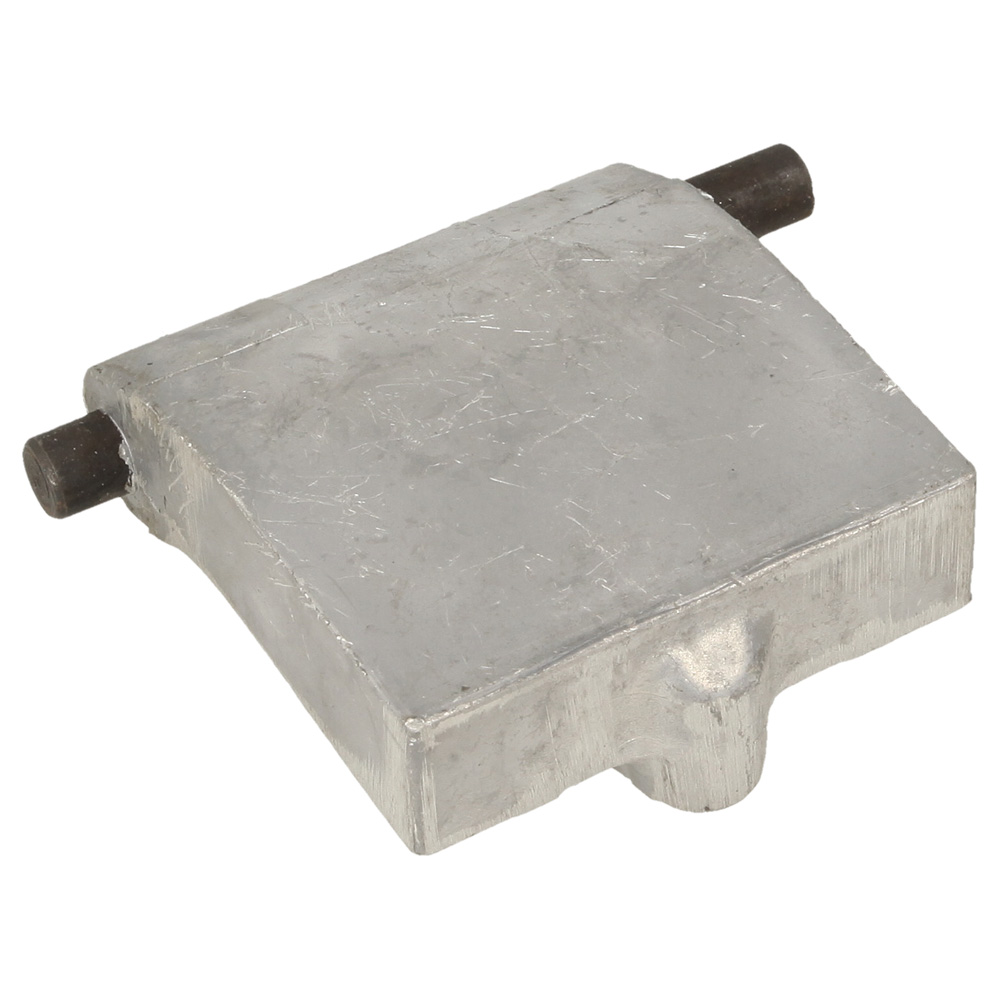

  20 Inlet Baffle CO8181-546301-0000000
Inlet Baffle
Out of stock
£12.46 £10.38

  21 Type A Flat Key CO8DJA-00003
Type A Flat Key
Out of stock
£2.52 £2.10

  22 Hob CO8231-546301-0100000
Hob
Out of stock
£47.10 £39.25

  23 End Cover CO8440-546104-0000010
End Cover
Out of stock
£9.94 £8.28

  27 Lower Housing CO8006-546105-0000110
Lower Housing
Out of stock
£6.44 £5.37

  30 Base Set CO8440-546128-0000110
Base Set
Out of stock
£47.34 £39.45

  30 Base Set CO8440-546105-0000111
Base Set
Out of stock
£47.34 £39.45

  31 Wheel Set CO8440-546106-0021210
Wheel Set
Out of stock
£9.85 £8.21

  32 Component CO8440-546107-0000110
Component
Out of stock
£2.52 £2.10

  33 Rubbish Bins CO8440-546108-0000110
Rubbish Bins
Out of stock
£41.33 £34.44

  312 31-2 Machine Screw CO8SJAD05-120B
31-2 Machine Screw
Out of stock
£2.52 £2.10

  331 33-1 Push Button CO8312-546101-0000110
33-1 Push Button
Out of stock
£2.52 £2.10

  336 33-6 Bin CO8104-546101-0000010
33-6 Bin
Out of stock
£41.33 £34.44

  44928 Over Current Protector CO8424-546101-0000010
Over Current Protector
Out of stock
£4.25 £3.54

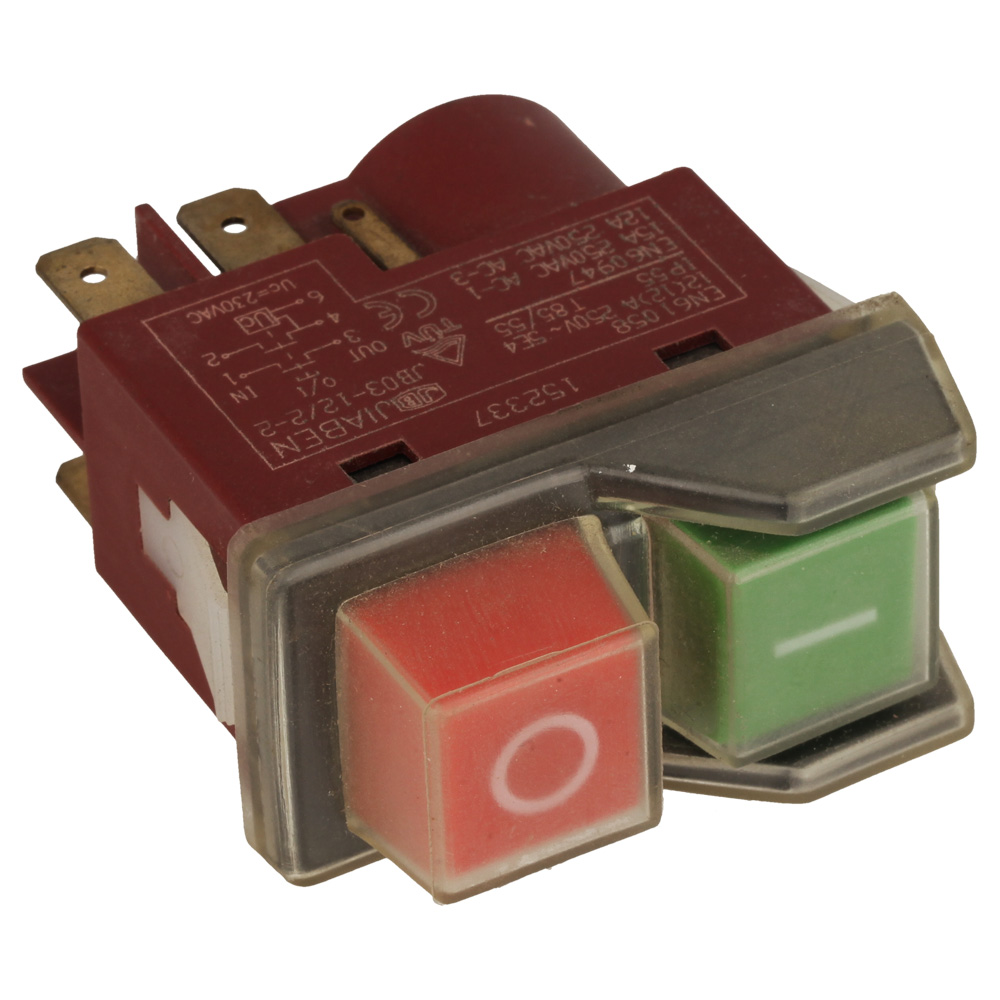

  44959 Electromagnetic Switch CO8042-546101-0000010
Electromagnetic Switch
Out of stock
£26.76 £22.30


Description

Cobra QS2500 Shredder Parts Diagram
