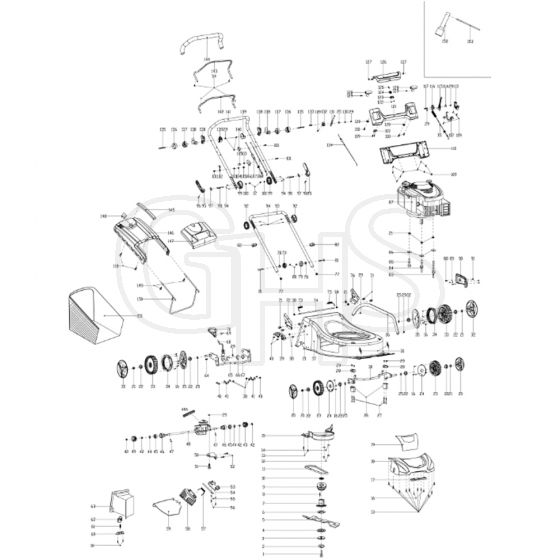

Cobra MX564SPB Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800602301	Blade Locking Bolt	Out of stock	£2.52 £2.10
2	CO26300107302	Dishing Washer	Out of stock	£2.52 £2.10
3	CO26900205001	Pressing Board Of Blade Support	Out of stock	£2.52 £2.10
4	CO25271700101	Lower Pressing Plate Of Blade	Out of stock	£2.52 £2.10
5	CO26300249001	Blade	Out of stock	£32.54 £27.12
6	CO25271600101	Upper Pressing Plate Of Blade	Out of stock	£2.52 £2.10
7	CO26900208601	Blade Support	Out of stock	£8.80 £7.33
8	CO26809000201	Flat Pin	Out of stock	£2.62 £2.18
9	CO26300401901	Driving Belt Wheel	Out of stock	£37.21 £31.01
10	CO26300235101	Flat Plate	Out of stock	£2.52 £2.10
11	CO25100206501	Triangle Belt	Out of stock	£11.32 £9.43
12	CO26800500801	Hexagon Locking Nut	Out of stock	£1.26 £1.05
13	CO26800103701	Self-Driving Screw	In stock	£1.26 £1.05
14	CO26800700701	Flat Ring	Out of stock	£2.52 £2.10
15	CO25256000101	Belt Protecting Cover	Out of stock	£8.26 £6.88
16	CO26800100501	Self-Driving Screw	In stock	£1.26 £1.05
17	CO25302900101	Handle Cover	Out of stock	£2.52 £2.10
18	CO23600306201	Head Cover	Out of stock	£16.34 £13.62
19	CO25302800101	Cover Board	Out of stock	£3.70 £3.08
20	CO23600301901	Wheel Cover	Out of stock	£2.52 £2.10
21	CO26800502801	Hexagon Flange Locking Bolt	Out of stock	£1.26 £1.05
22	CO26800401601	Bearing	In stock	£4.20 £3.50
23	CO25400204001	Wheel Assy	Out of stock	£14.47 £12.06
24	CO25287100101	Dust-Proof Wheel Cover	Out of stock	£3.44 £2.87
25	CO26800706201	Wave Washer	Out of stock	£2.52 £2.10
26	CO25237600101	Lower Support Of Axle	Out of stock	£2.52 £2.10
27	CO26800611901	Hexagon Flange Locking Bolt	Out of stock	£2.52 £2.10
28	CO25237600201	Upper Support Of Axle	Out of stock	£2.52 £2.10
29	CO26800500501	Hexagon Locking Nut	Out of stock	£2.52 £2.10
30	CO26300137601	Front Wheel Axis Assy	Out of stock	£16.99 £14.16
31	CO26801111201	Front Wheel Axis Spring	Out of stock	£2.52 £2.10
32	CO23600302001	Wheel Cover	Out of stock	£5.32 £4.43
33	CO25400204101	Wheel Assy	Out of stock	£23.92 £19.93
34	CO25229500101	Wheel Gear Ring	Out of stock	£6.70 £5.58
35	CO25208700105	11 Dust-Proof Wheel Cover	Out of stock	£4.00 £3.33
36	CO26300137902	Connecting Rod	Out of stock	£6.89 £5.74
38	CO26800502401	Hexagon Flange Locking Bolt	Out of stock	£1.26 £1.05
39	CO23100102401	Gearing Board	Out of stock	£2.99 £2.49
40	CO26800201901	Tooth Screw	Out of stock	£1.26 £1.05
41	CO26300124401	Axle Fixing Ring	In stock	£2.52 £2.10
42	CO26800900201	Open Block Ring	Out of stock	£2.52 £2.10
43	CO26900300103	Left Output Gear Assy	In stock	£7.20 £6.00
44	CO26800705102	Flat Washer	Out of stock	£2.52 £2.10
45	CO26800402301	Bearing	In stock	£2.77 £2.31
46	CO26900203103	Bearing Sheath	Out of stock	£3.23 £2.69
47	CO26809000102	Column Pin	In stock	£2.62 £2.18
48	CO2100200173	48A Gearbox Spring	Out of stock	£2.52 £2.10
48	CO23050202701	Variable Gear Box Assy	Out of stock	£90.12 £75.10
49	CO26900300202	Right Output Gear Assy	In stock	£7.20 £6.00
50	CO26300229701	Positioned Board	Out of stock	£2.52 £2.10
51	CO26800618101	Fixed Bolt	Out of stock	£2.52 £2.10
52	CO26800611201	Hexagon Flange Locking Bolt	Out of stock	£2.52 £2.10
53	CO26300218302	Side-Discharge Fixing Board	Out of stock	£2.52 £2.10
54	CO26200101901	Side-Discharge Fixing Shaft	Out of stock	£2.52 £2.10
55	CO26800800403	Spring Washer	Out of stock	£2.52 £2.10
56	CO26800201501	Tooth Screw	Out of stock	£2.52 £2.10
57	CO26801113002	Spring Of Side Cover Board	Out of stock	£2.52 £2.10
58	CO25302400101	Side-Discharge Cover Board	Out of stock	£8.09 £6.74
59	CO25306500101	Side-Discharge Protecting Cover	Out of stock	£8.12 £6.77
60	CO25231700101	Pressing Board Of Locking Button	Out of stock	£2.52 £2.10
61	CO26801100501	Spring	Out of stock	£2.52 £2.10
62	CO25231600501	Locking Knob	Out of stock	£2.52 £2.10
63	CO25231500101	Mulching Plug-In	Out of stock	£11.36 £9.47
64	CO26800203001	Cross Pan Screw	Out of stock	£1.26 £1.05
65	CO26300137301	Rear Wheel Axis Assy	Out of stock	£19.99 £16.66
66	CO26800900301	E Clip	Out of stock	£2.52 £2.10
67	CO26300107601	Adjusting Washer	Out of stock	£2.52 £2.10
68	CO26300139602	Handle Assy	Out of stock	£3.49 £2.91
69	CO26800303301	Sunk Screw	Out of stock	£1.26 £1.05
70	CO25400105401	Height Adjustment Handle	Out of stock	£4.64 £3.87
71	CO26800606401	Hexagon Flange Locking Bolt	Out of stock	£2.52 £2.10
72	CO23600118701	Right Handle Bracket	Out of stock	£5.32 £4.43
73	CO26801113901	Spring Of Right Knob	Out of stock	£2.52 £2.10
74	CO26300136701	Long Rod	Out of stock	£2.52 £2.10
75	CO26801113801	Spring Of Left Knob	Out of stock	£2.52 £2.10
76	CO23600118601	Left Handle Blacket	Out of stock	£5.32 £4.43
77	CO25100119902	Plug	Out of stock	£2.52 £2.10
78	CO25100108501	Curl Washer	Out of stock	£2.52 £2.10
79	CO25236500101	Knob Of Lower Handle Pole	Out of stock	£2.52 £2.10
80	CO26800502301	Hexagon Nut	Out of stock	£1.26 £1.05
81	CO26800600401	Bolt	Out of stock	£2.52 £2.10
82	CO25261100101	Wire Clamp	Out of stock	£2.52 £2.10
83	CO26800302401	Special Nut	Out of stock	£2.52 £2.10
84	CO26800304401	Special Nut	Out of stock	£2.52 £2.10
85	CO26800602501	Hexagon Bolt	Out of stock	£2.52 £2.10
86	CO26300210602	Square Washer	Out of stock	£2.52 £2.10
88	CO26800203201	Tooth Screw	Out of stock	£2.52 £2.10
89	CO26800701001	Flate Washer	Out of stock	£2.52 £2.10
90	CO25241600101	Crashproof Board	Out of stock	£2.52 £2.10
91	CO26800500201	Hexagon Locking Nut	Out of stock	£2.52 £2.10
92	CO25205500103	Lower Adjuesting Gear Ring	Out of stock	£2.52 £2.10
93	CO26300138801	Lower Handle Pole	Out of stock	£16.94 £14.12
94	CO26800104902	Self-Driving Screw	Out of stock	£1.26 £1.05
95	CO25236400101	Locking Handle	Out of stock	£2.52 £2.10
96	CO26809004801	Column Pin	Out of stock	£2.52 £2.10
97	CO26300111901	Pressing Plate	Out of stock	£2.52 £2.10
98	CO26300130101	Locking Handle Bolt	Out of stock	£2.52 £2.10
99	CO25205400103	Upper Adjusting Gear Ring	Out of stock	£2.52 £2.10
100	CO26300118902	Flate Washer	Out of stock	£2.52 £2.10
101	CO26800607701	Hexagon Flange Locking Bolt	Out of stock	£2.62 £2.18
102	CO26300168401	Rope Guide	Out of stock	£2.52 £2.10
103	CO26800700801	Flate Washer	Out of stock	£2.52 £2.10
104	CO26800800303	Spring Washer	Out of stock	£2.52 £2.10
105	CO26800501602	Lid Nut	Out of stock	£2.52 £2.10
106	CO25258500101	Cord Fixing Board	Out of stock	£2.52 £2.10
107	CO29100127401	Driving Cord Assy	Out of stock	£12.58 £10.48
108	CO29100127201	Flameout Cord Assy	Out of stock	£11.32 £9.43
109	CO26800105602	Self Driving Screw	Out of stock	£2.52 £2.10
110	CO25302300101	Rear Cover Of Panel	Out of stock	£8.90 £7.42

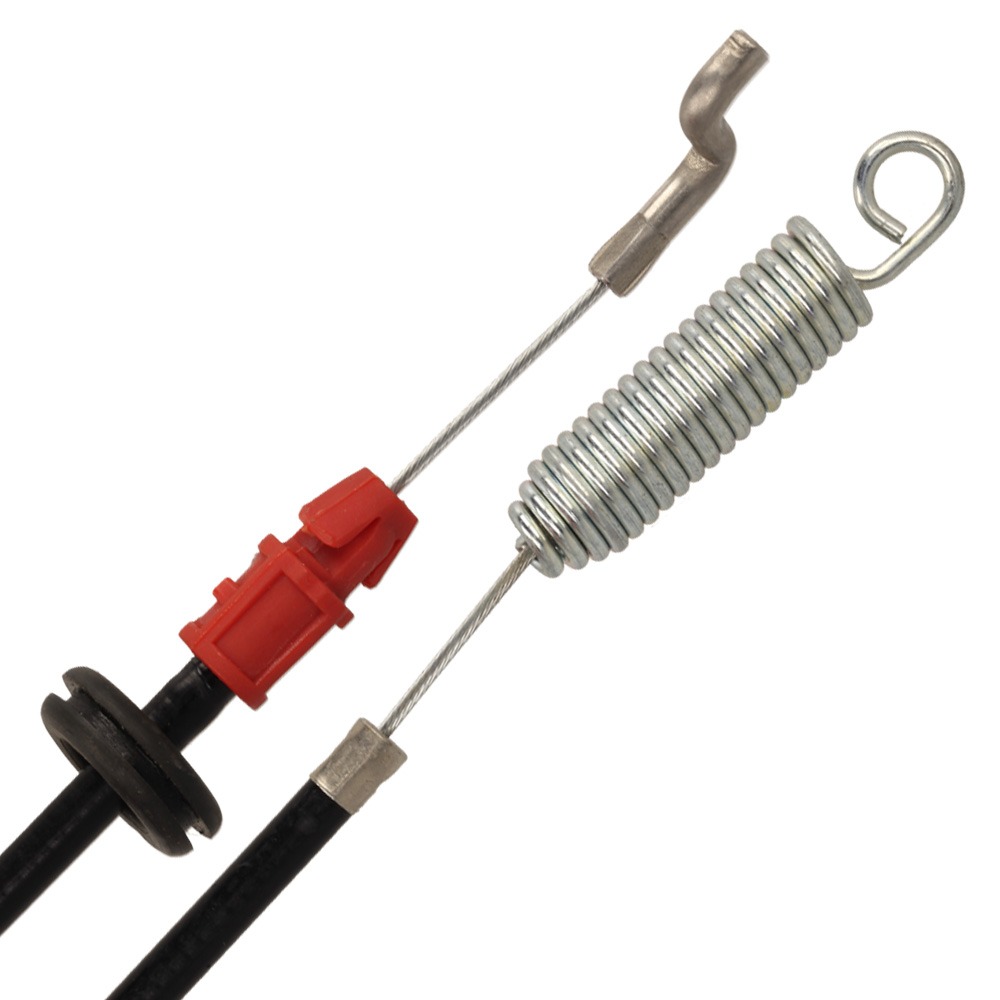

111	CO29100127501	Variable Speed Cable Assembly	Out of stock	£12.58 £10.48
112	CO26300165201	Variable Speed Reinforcing Plate	Out of stock	£2.52 £2.10
113	CO26900205401	Variable Speed Gear Block	Out of stock	£2.86 £2.38
114	CO26900203701	Torsional Spring Bushing	Out of stock	£2.52 £2.10
115	CO26300240101	Shift Handle	Out of stock	£2.57 £2.14
116	CO25239000101	Shifting Gear Set Blocks	Out of stock	£2.52 £2.10
117	CO26800613501	Hexagon Bolt	Out of stock	£2.52 £2.10
118	CO26800104601	Self Driving Screw	Out of stock	£1.26 £1.05
119	CO26300139501	Board	Out of stock	£2.52 £2.10
120	CO25239100101	Curl Washer	Out of stock	£2.52 £2.10
121	CO25302200101	Armrest Of Panel	Out of stock	£17.62 £14.68
122	CO26800103602	Self Driving Screw	Out of stock	£2.52 £2.10
123	CO25237200101	Pressing Board	Out of stock	£2.52 £2.10
124	CO25286400101	Locking Botton Of Panel	Out of stock	£2.52 £2.10
125	CO26801104201	Safety Button Spring	Out of stock	£2.52 £2.10
126	CO25286300101	Panel Cover	Out of stock	£3.02 £2.52
127	CO26801111501	Flip Torsional Spring	Out of stock	£2.52 £2.10
128	CO25239200101	Gear Adjusting Handle	Out of stock	£2.52 £2.10
129	CO26800202501	Tooth Screw	Out of stock	£1.26 £1.05
130	CO26800700301	Big Washer	Out of stock	£2.52 £2.10
131	CO26300139301	Choke Pull Rod	Out of stock	£2.52 £2.10
132	CO25238700101	Choke Gear Board	Out of stock	£2.52 £2.10
133	CO26800604501	Hexagon Bolt	Out of stock	£2.52 £2.10
134	CO29100113401	Choke Cord Assy	Out of stock	£11.32 £9.43
135	CO26800611401	Inner Haxagon Bolt	Out of stock	£2.52 £2.10
136	CO25239300101	Outside Positioned Support	Out of stock	£2.52 £2.10
137	CO25239300201	Inside Positioned Support	Out of stock	£2.52 £2.10
138	CO25287600101	Self-Driving Cord Board	Out of stock	£2.62 £2.18
139	CO25239300302	Cover Board Of Pulling Pole	Out of stock	£2.52 £2.10
140	CO25233600101	Cord Fixing Board	Out of stock	£2.52 £2.10
141	CO26300166001	Upper Handle Pole	Out of stock	£21.80 £18.17
142	CO23601015201	Flameout Pulling Pole	Out of stock	£6.52 £5.43
143	CO26300139203	Choke Pulling Pole	Out of stock	£6.10 £5.08
144	CO25600102401	Handle Sheath	Out of stock	£4.60 £3.83
145	CO25275500201	Grass Catcher Handle	Out of stock	£2.52 £2.10
146	CO25213900101	Grass Catcher Cover	Out of stock	£20.10 £16.75
147	CO23000452701	Rear Cover Assy	Out of stock	£10.16 £8.47
148	CO25275600501	Wind Window Board	Out of stock	£2.62 £2.18
149	CO26800103202	Self Driving Screw	Out of stock	£1.26 £1.05
150	CO26300138201	Grass Catcher Bracket	Out of stock	£19.51 £16.26
151	CO25100137901	Grass Catcher	Out of stock	£29.10 £24.25
152	CO26300107801	Wrench	Out of stock	£2.52 £2.10
153	CO26300107901	Wrench Rod	Out of stock	£2.52 £2.10
