Cobra MX534SPH - 53cm GCV170 Mower Feb 2019 Grassbag Assy Diagram

Description

Cobra MX534SPH Rotary Mower Parts Diagram

	Part No.	Details
1	COG4661200000 Available to backorder	Metal Bracket	£11.69 £9.74
2	COB5032W00000 Available to backorder	Flat Washer	£2.48 £2.07
3	COB3022W00000 In stock	Screw	£1.28 £1.07
4	COG4661300000 Available to backorder	Fixed Plate	£2.48 £2.07
5	COG4661110010 In stock	Plastic Cover	£19.28 £16.07
6	COG3661120010 In stock	Rear Cover	£2.48 £2.07

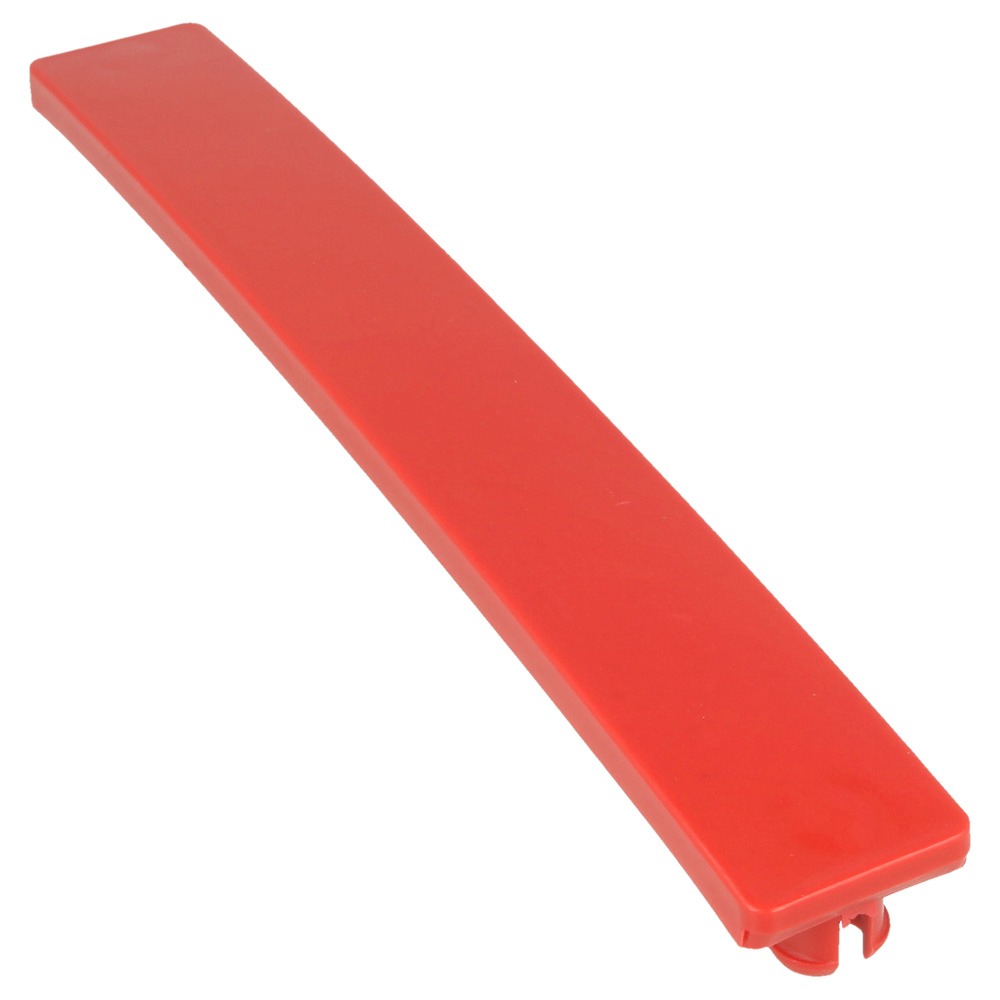

7	COG4661130028 Available to backorder	Handle Cover	£2.48 £2.07

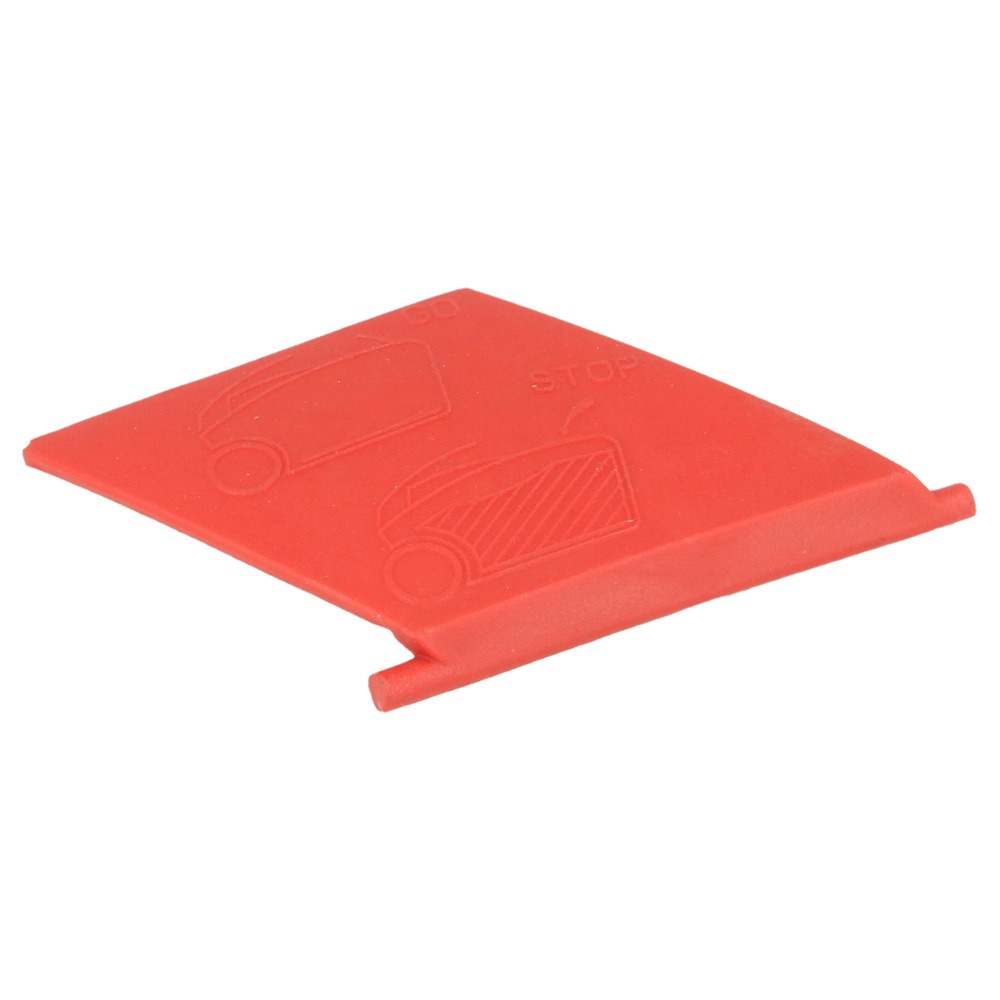

8	COG4661120028 Available to backorder	Indicated Board	£2.48 £2.07
9	COG18A7100000 In stock	Fabric Bag	£30.20 £25.17
