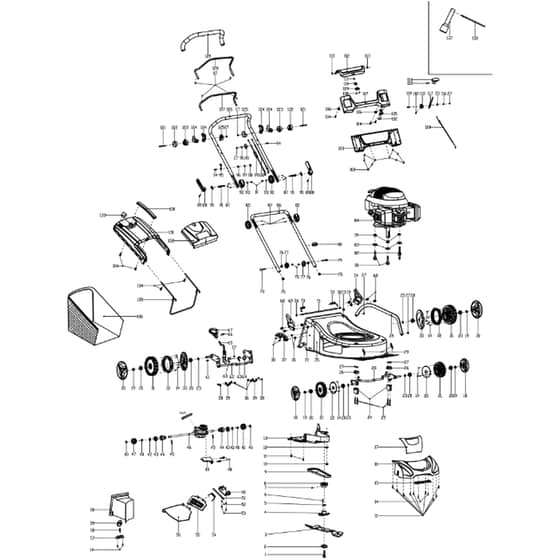

Cobra MX51SPH Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800606201 Available to backorder	Blade Locking Bolt	£2.40 £2.00
2	CO26300107302 Available to backorder	Dishing Washer	£2.40 £2.00
3	CO26300155101 In stock	Blade	£20.38 £16.98
4	CO26300148301 Available to backorder	Blade Support	£7.20 £6.00
5	CO26900209601 Available to backorder	Blade Support Bush	£2.52 £2.10
6	CO26809004101 Available to backorder	Flat Pin	£2.52 £2.10
7	CO26800300502 Available to backorder	Locking Screw	£1.26 £1.05
8	CO26300403501 Available to backorder	Driving Belt Wheel	£5.71 £4.76
9	CO25100203302 Available to backorder	Triangle Belt	£8.38 £6.98
10	CO26800500801 Available to backorder	Locking Nut	£1.26 £1.05
11	CO26800103701 Available to backorder	Self-Driving Screw	£1.44 £1.20
12	CO26800700701 Available to backorder	Flat Washer	£2.40 £2.00
13	CO25240000101 Available to backorder	Belt Protecting Cover	£6.83 £5.69
14	CO26800100501 Available to backorder	Self-Driving Screw	£1.26 £1.05
15	CO25259200101 Available to backorder	Handle Cover	£2.52 £2.10
16	CO23600302201 Available to backorder	Head Cover	£16.04 £13.37
17	CO25301900101 Available to backorder	Cover Board	£3.44 £2.87
18	CO23600301901 Available to backorder	Wheel Cover	£2.52 £2.10
19	CO26800502801 Available to backorder	Hexagon Flange Locking Bolt	£1.44 £1.20
20	CO26800401601 Available to backorder	Bearing	£4.00 £3.33
21	CO25400204001 Available to backorder	Wheel Assy	£14.47 £12.06
22	CO25287100101 Available to backorder	Dust-Proof Wheel Cover	£3.44 £2.87
23	CO26800706202 Available to backorder	Wave Washer	£2.52 £2.10
24	CO25237600101 Available to backorder	Lower Support Of Axle	£2.52 £2.10
25	CO26800611901 Available to backorder	Hexagon Flange Bolt	£2.52 £2.10
26	CO25237600201 Available to backorder	Upper Support Of Axle	£2.52 £2.10
27	CO26800500501 Available to backorder	Hexagon Locking Nut	£2.40 £2.00
28	CO26300137502 Available to backorder	Front Wheel Axis Assy	£16.99 £14.16
29	CO26801111201 Available to backorder	Front Wheel Axis Spring	£2.40 £2.00
30	CO23600302001 Available to backorder	Wheel Cover	£5.32 £4.43
31	CO25400204101 Available to backorder	Wheel Assy	£23.92 £19.93
32	CO25229500101 Available to backorder	Wheel Gear Ring	£6.38 £5.32
33	CO25208700105 Available to backorder	11 Dust-Proof Wheel Cover	£4.00 £3.33
34	CO26300137802 Available to backorder	Connecting Rod	£6.30 £5.25
36	CO26800502401 Available to backorder	Hexagon Flange Locking Bolt	£1.26 £1.05
37	CO23100102501 Available to backorder	Gearing Board	£3.02 £2.52
38	CO26800201901 Available to backorder	Tooth Screw	£1.20 £1.00
39	CO26300124401 In stock	Axle Fixing Ring	£2.40 £2.00
40	CO26800900201 Available to backorder	Open Block Ring	£2.40 £2.00
41	CO26900300103 In stock	Left Output Gear Assy	£7.00 £5.83
42	CO26800705102 In stock	Flat Washer	£2.40 £2.00
43	CO26800402301 Available to backorder	Bearing	£2.64 £2.20
44	CO26900203103 Available to backorder	Bearing Sheath	£3.00 £2.50
45	CO26809000102 In stock	Column Pin	£2.40 £2.00
46	CO2100200173 Available to backorder	46A Gearbox Spring	£2.40 £2.00
46	CO23050203201 Available to backorder	Variable Gear Box Assy	£63.84 £53.20
47	CO26900300202 In stock	Right Output Gear Assy	£7.00 £5.83
48	CO26800603701 Available to backorder	Hexagon Flange Bolt	£2.52 £2.10
49	CO26300257701 Available to backorder	Positioned Board	£2.62 £2.18
50	CO26300218303 Available to backorder	Side-Discharge Fixing Board	£2.40 £2.00
51	CO26200101901 Available to backorder	Side-Discharge Fixing Shaft	£2.40 £2.00
52	CO26800800402 Available to backorder	Spring Washer	£2.40 £2.00
53	CO26800201501 Available to backorder	Tooth Screw	£2.40 £2.00
54	CO26801113002 Available to backorder	Spring Of Side Cover Board	£2.62 £2.18
55	CO25286600101 Available to backorder	Side-Discharge Cover Board	£5.44 £4.53
56	CO25306700101 Available to backorder	Side-Discharge Protecting Cover	£10.16 £8.47
57	CO25231700101 Available to backorder	Pressing Board Of Locking Button	£2.52 £2.10
58	CO26801100501 Available to backorder	Spring	£2.52 £2.10
59	CO25231601801 Available to backorder	Locking Knob	£2.52 £2.10
60	CO25231600101 Available to backorder	Mulching Plug-In	£2.52 £2.10
61	CO26800203001 Available to backorder	Cross Pan Screw	£1.26 £1.05
62	CO26300137201 Available to backorder	Rear Wheel Axis Assy	£19.51 £16.26
63	CO26800900301 Available to backorder	E Clip	£2.40 £2.00
64	CO26300107601 Available to backorder	Adjusting Washer	£2.52 £2.10
65	CO26300139602 Available to backorder	Handle Assy	£3.49 £2.91
66	CO26800303301 Available to backorder	Sunk Screw	£1.26 £1.05
67	CO25400108401 Available to backorder	Height Adjustment Handle	£4.01 £3.34
68	CO26800606401 Available to backorder	Hexagon Flange Bolt	£2.62 £2.18

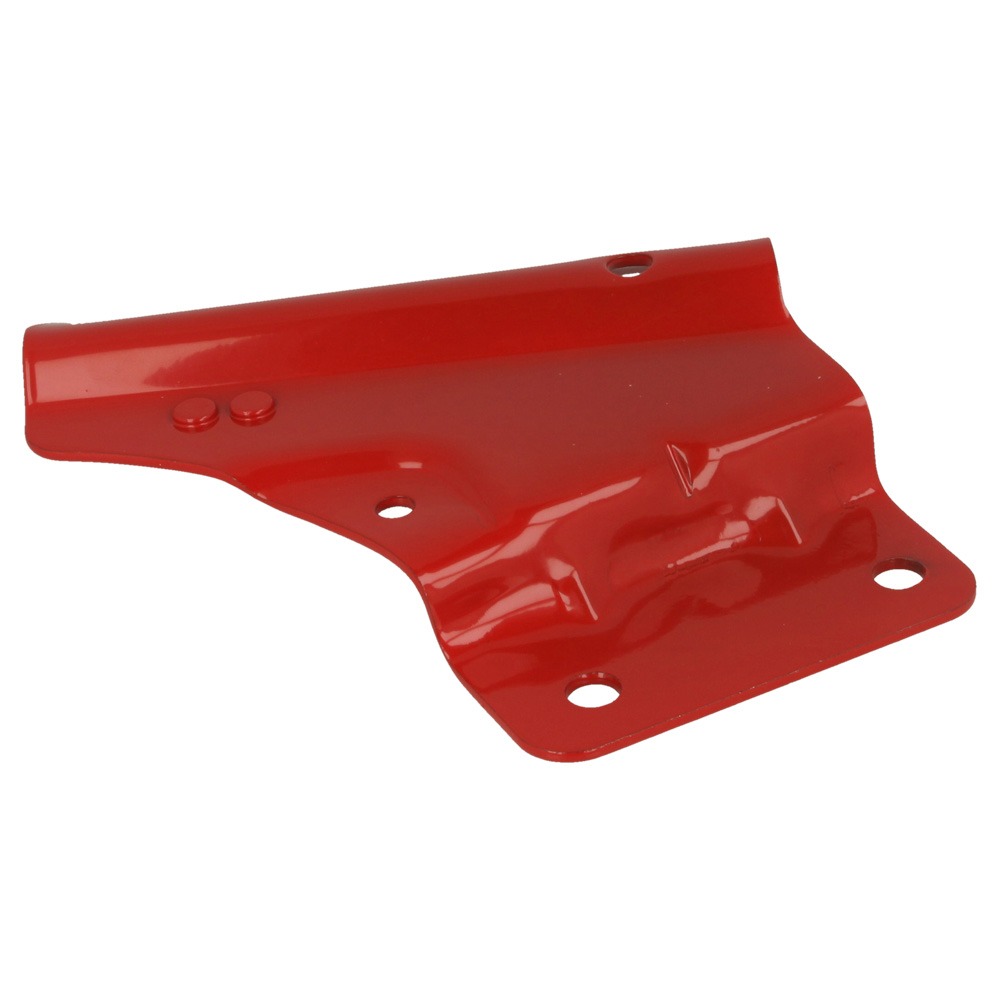

69	CO23601010801 Available to backorder	Right Handle Bracket	£5.06 £4.22
70	CO26801113901 Available to backorder	Spring Of Right Knob	£2.52 £2.10
71	CO26300136601 Available to backorder	Long Rod	£2.52 £2.10
72	CO26801113801 Available to backorder	Spring Of Left Knob	£2.52 £2.10
73	CO25217800104 Available to backorder	Cord Protceting Sheath	£2.52 £2.10

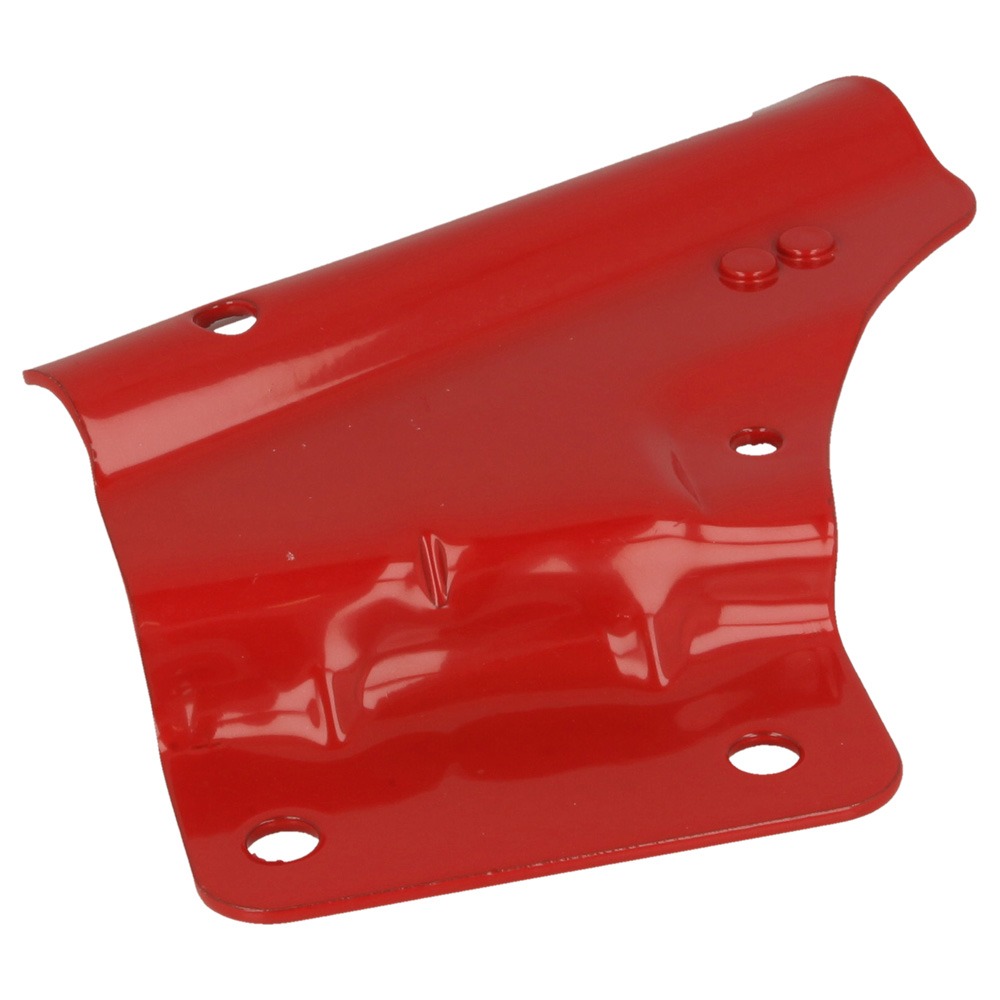

74	CO23601010701 Available to backorder	Left Handle Blacket	£5.06 £4.22
75	CO25100119902 Available to backorder	Plug	£2.52 £2.10
76	CO25100108501 Available to backorder	Curl Washer	£2.62 £2.18
77	CO25236501801 Available to backorder	Knob Of Lower Handle Pole	£2.52 £2.10
78	CO26800502301 In stock	Hexagon Nut	£1.20 £1.00
79	CO26800600401 Available to backorder	Bolt	£2.52 £2.10
80	CO25261100101 Available to backorder	Wire Clamp	£2.52 £2.10
81	CO26800612801 Available to backorder	Bolt	£2.52 £2.10
82	CO26800305901 Available to backorder	Special Bolt	£2.52 £2.10
83	CO26300210602 Available to backorder	Square Washer	£2.52 £2.10
85	CO25205500103 Available to backorder	Lower Adjuesting Gear Ring	£2.52 £2.10
86	CO26300138504 Available to backorder	Lower Handle Pole	£16.91 £14.09
87	CO26800104902 Available to backorder	Self-Driving Screw	£1.26 £1.05
88	CO25236401501 Available to backorder	Locking Handle	£2.52 £2.10
89	CO26809004801 Available to backorder	Column Pin	£2.40 £2.00
90	CO26300111901 Available to backorder	Pressing Plate	£2.52 £2.10
91	CO26300130101 Available to backorder	Locking Handle Bolt	£2.40 £2.00
92	CO25205400103 Available to backorder	Upper Adjusting Gear Ring	£2.52 £2.10
93	CO26300118902 Available to backorder	Flat Washer	£2.40 £2.00
94	CO26800607701 Available to backorder	Hexagon Flangebolt	£2.62 £2.18
95	CO26300168401 Available to backorder	Rope Guide	£2.52 £2.10
96	CO26800700801 Available to backorder	Flat Washer	£1.20 £1.00
97	CO26800800303 Available to backorder	Spring Washer	£2.40 £2.00
98	COA26800501603 Available to backorder	Lid Nut	£1.20 £1.00
99	CO29100126301 In stock	Driving Cord Assy	£11.98 £9.98
100	CO29100129901 Available to backorder	Flameout Cord Assy	£10.06 £8.38
101	CO25233600101 Available to backorder	Cord Fixing Board	£2.40 £2.00
102	CO26800105602 Available to backorder	Self Driving Screw	£2.52 £2.10
103	CO25286200102 Available to backorder	Rear Cover Of Panel	£10.86 £9.05
104	CO26800104601 In stock	Self Driving Screw	£1.20 £1.00
105	CO26300139501 Available to backorder	Board	£2.52 £2.10
106	CO25239100101 Available to backorder	Curl Washer	£2.52 £2.10
107	CO25286100101 Available to backorder	Armrest Of Panel	£10.64 £8.87
108	CO26800103602 Available to backorder	Self-Driving Screw	£2.52 £2.10
109	CO25237200101 Available to backorder	Pressing Board	£2.52 £2.10
110	CO25286400401 Available to backorder	Locking Botton Of Panel	£2.52 £2.10
111	CO26801104201 Available to backorder	Safety Button Spring	£2.52 £2.10
112	CO25286300101 Available to backorder	Panel Cover	£3.02 £2.52
113	CO26801111502 Available to backorder	Flip Torsional Spring	£2.52 £2.10
114	CO25239201501 Available to backorder	Gear Adjusting Handle	£2.52 £2.10
115	CO26800202501 Available to backorder	Tooth Screw	£1.26 £1.05
116	CO26800700301 Available to backorder	Big Washer	£2.52 £2.10
117	CO26300139301 Available to backorder	Choke Pull Rod	£2.52 £2.10
118	CO25238700101 Available to backorder	Choke Gear Board	£2.52 £2.10
119	CO26800604501 Available to backorder	Hexagon Bolt	£2.52 £2.10
120	CO29100114702 Available to backorder	Choke Cord Assy	£11.32 £9.43
121	CO26800611401 Available to backorder	Inner Haxagon Bolt	£2.52 £2.10
122	CO25239300101 Available to backorder	Outside Positioned Support	£2.52 £2.10
123	CO25239300201 Available to backorder	Inside Positioned Support	£2.52 £2.10
124	CO25287600101 In stock	Self-Driving Cord Board	£2.40 £2.00
125	CO25239300302 Available to backorder	Cover Board Of Pulling Pole	£2.52 £2.10
126	CO26300165901 Available to backorder	Upper Handle Pole	£25.03 £20.86
127	CO23601011701 Available to backorder	Flameout Pulling Pole	£5.82 £4.85
128	CO26300139003 Available to backorder	Choke Pulling Pole	£5.82 £4.85
129	CO25600101003 Available to backorder	Handle Sheath	£2.57 £2.14
130	CO25275500201 In stock	Grass Catcher Handle	£2.40 £2.00
131	CO25275300101 Available to backorder	Grass Catcher Cover	£18.40 £15.33
132	CO23000452601 Available to backorder	Rear Cover Assy	£8.99 £7.49
133	CO21071000080108A In stock	Wind Window Board	£2.40 £2.00
134	CO26800103202 In stock	Self Driving Screw	£1.20 £1.00
135	CO26300195901 Available to backorder	Grass Catcher Bracket	£18.25 £15.21
136	CO25100137841 Available to backorder	Grass Catcher	£28.03 £23.36
137	CO26300107801 Available to backorder	Wrench	£2.52 £2.10
138	CO26300107901 Available to backorder	Wrench Rod	£2.52 £2.10
