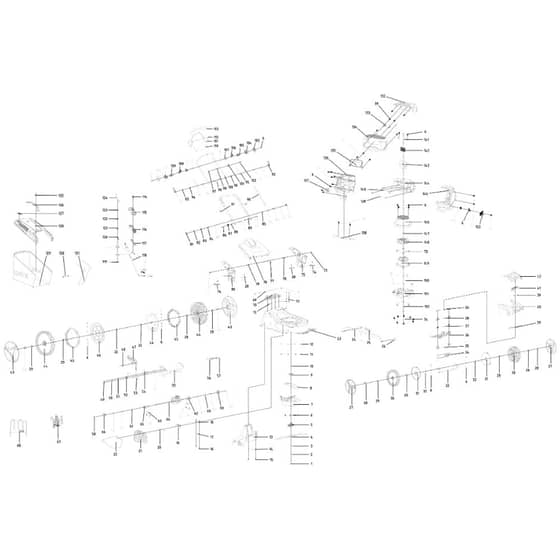

Cobra MX51S40VX Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO30913040145000 Available to backorder	Hexagon Head Bolt M8*40	£1.25 £1.04
2	CO3052301002 Available to backorder	Spring Washers	£1.25 £1.04
3	CO30512050025000 Available to backorder	Large Washer (Ref: 3 & 94)	£1.25 £1.04
4	CO2105300084C In stock	Blade	£22.98 £19.15
5	CO2105100004A Available to backorder	Knife Block	£2.35 £1.96
6	CO3011301010 Available to backorder	Self-Tapping Screw St4*16 (Pan Head 6.6-7.0)	£1.26 £1.05
7	CO21091000570001A Available to backorder	20" Belt Guard (Dym192602-19)	£11.35 £9.46
8	CO2102600018 Available to backorder	V-Belts (Reach Compliant)	£5.11 £4.26
9	CO2102100008 Available to backorder	Pulley	£1.84 £1.53
10	CO2263300003 Available to backorder	Flat Key	£1.25 £1.04
11	CO3031309002 Available to backorder	Hexagon Lock Nut M8	£1.26 £1.05
12	CO2103300032 Available to backorder	Square Gasket	£1.25 £1.04
13	CO21041006970001 Available to backorder	Grass Outlet Bracket (Dym192602-20)	£19.93 £16.61
14	CO2103200261 Available to backorder	Grass Outlet Bracket Connecting Plate	£1.38 £1.15
15	CO3011301006 Available to backorder	Self-Tapping Screw St5*16 (Cross Slot Large Flat Head)	£1.25 £1.04
16	CO3021302002 Available to backorder	Machine Screw M5*10 (Pan Head 8.1-8.7)	£1.25 £1.04
17	CO3052301004 Available to backorder	Spring Washer 5	£1.25 £1.04
18	CO2106200554 Available to backorder	Side Fixing Plate	£1.48 £1.23
19	CO2109800066 Available to backorder	Side Cover Torsion Spring (D Version)	£1.36 £1.13
20	CO2103300052 Available to backorder	Side Positioning Shaft	£1.26 £1.05

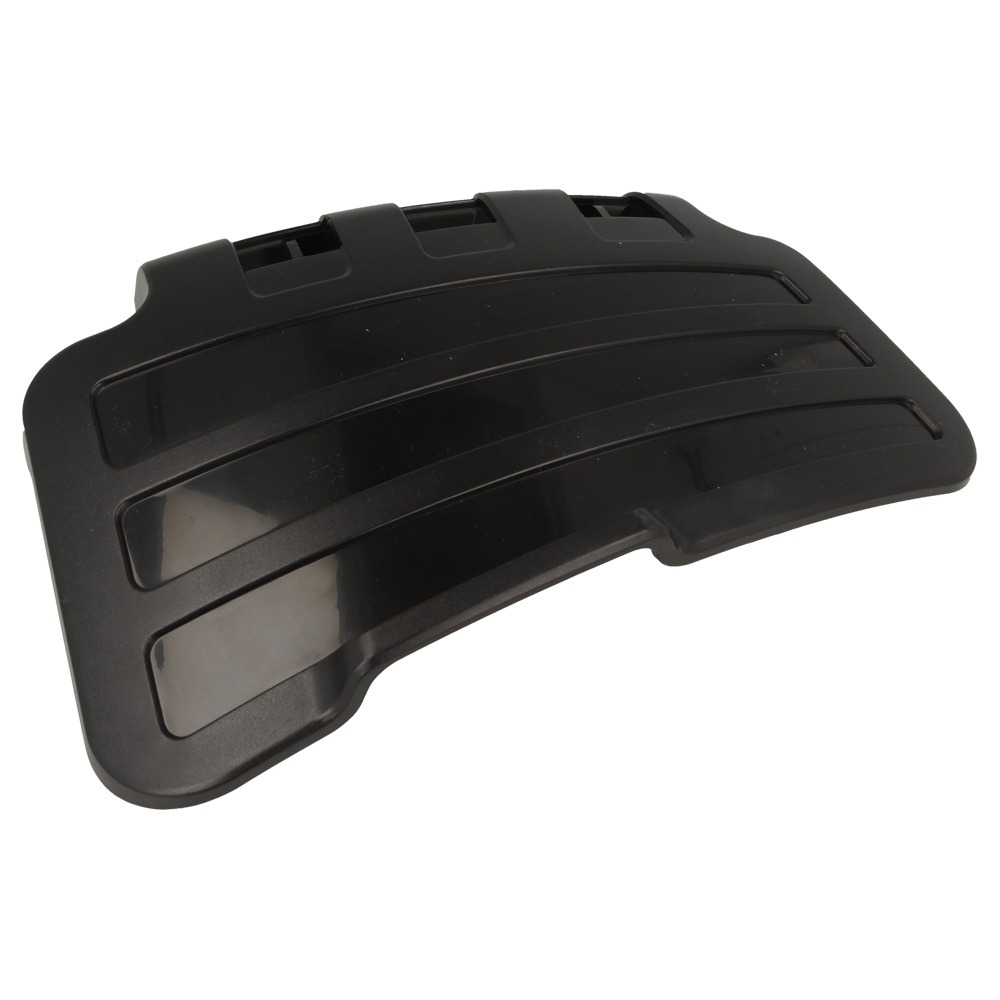

21	CO21051000430001 Available to backorder	Side Row Cover (Dym192602-24)	£5.50 £4.58
22	CO21041006190001 Available to backorder	Side Exhaust Protection Cover (Dym1578-04)	£4.98 £4.15
24	CO2101200059 Available to backorder	Link	£9.48 £7.90
25	CO2109800205 Available to backorder	Connecting Rod Tension Spring	£2.69 £2.24
26	CO30313090035000 Available to backorder	Hexagon Lock Nut M6	£1.25 £1.04
27	CO21011001490006 Available to backorder	Wheel Cover (Dym1578-43)	£2.99 £2.49
28	CO30323060035000 Available to backorder	Hexagon Flange Lock Nut M8	£1.25 £1.04
29	CO2101300065 Available to backorder	Angular Bearings	£1.31 £1.09
30	CO21011002600001 Available to backorder	Wheel Assembly (Dym1578-30) (Dym1578-30-2)	£12.30 £10.25
31	CO21011001460001 Available to backorder	Dustproof Wheel Cover (Dym1578-33) (Dym1578-33-2)	£1.82 £1.52
32	CO26800706202 Available to backorder	Wave Washers	£2.52 £2.10
33	CO2101500214 Available to backorder	Front Axle Assembly	£17.40 £14.50
34	COA26800105502 Available to backorder	Self-Tapping Screws	£2.52 £2.10
35	COA26800202801 Available to backorder	Machine Screws	£1.25 £1.04
36	CO21041007310108 Available to backorder	Mask Base (Dym192607-10)	£11.03 £9.19
37	CO2101800009 Available to backorder	Shock Absorber Spring	£1.25 £1.04
38	CO2103100245 Available to backorder	Axle Fixing Block (Dym193001-25)	£1.25 £1.04
39	CO3011301009 Available to backorder	Self-Tapping Screw St4*12 (Pan Head 6.6-7.0)	£1.26 £1.05
40	CO21041007300006 Available to backorder	Front Mask (Dym192607-09)	£24.73 £20.61
41	CO21041007200006 Available to backorder	Handle Pressure Plate (Dym192107-15)	£2.21 £1.84
42	CO21041007190006 Available to backorder	Upper Handle Cover (Dym192107-14)	£9.31 £7.76
43	CO21011001500006 Available to backorder	Wheel Cover (Dym1578-44)	£4.45 £3.71
44	CO21011002610001 Available to backorder	Wheel Assembly (Dym1578-31)	£18.55 £15.46
45	CO2101100081 Available to backorder	Wheel Ring Gear (Dym1560-03) (Dym1560-03-2)	£7.97 £6.64
46	CO21011004100001 Available to backorder	Dustproof Wheel Cover (Dym192602-25)	£3.42 £2.85
47	CO21061006083001 Available to backorder	Height Adjustment Handle Assembly (Dym192602-18)	£5.81 £4.84
48	COA26800201801 Available to backorder	Machine Screws	£1.25 £1.04
49	COA26800203001A Available to backorder	Cross Recessed Pan Head Screws	£1.25 £1.04
50	CO3081301001 Available to backorder	Split Pin Φ2.5*16	£1.26 £1.05
51	COA26800710001 Available to backorder	Flat Washers	£1.25 £1.04
52	CO2106800749 Available to backorder	Handlebar Torsion Spring	£1.25 £1.04
53	CO2106300451 Available to backorder	Heightening Lever	£4.26 £3.55
54	CO2106500005 Available to backorder	Handle Fixing Plate	£2.28 £1.90
55	CO2101500213 Available to backorder	Rear Axle Assembly	£23.83 £19.86
56	CO2103200262 Available to backorder	Gearbox Limit Plate	£2.29 £1.91
57	CO30913050015000 Available to backorder	Hexagonal Flange Bolt M6*12 (In Accordance With Cp65 Standard)	£1.25 £1.04
58	CO3043301001 Available to backorder	Open Retaining Ring 9	£1.25 £1.04
59	CO2104400013 Available to backorder	Left Output Gear Assembly	£3.80 £3.17
60	COA26800705102 Available to backorder	Flat Gasket	£1.25 £1.04

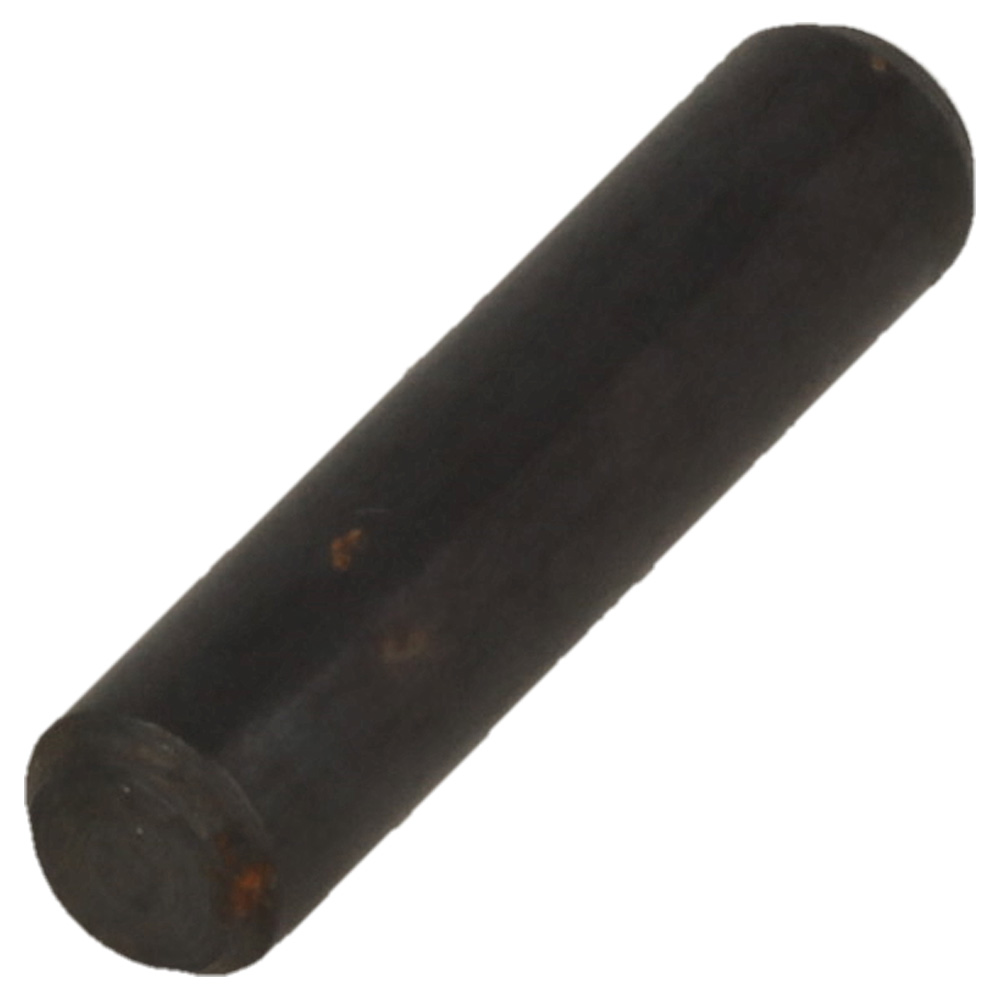

61	COA26809000102 Available to backorder	Cylindrical Pins	£1.25 £1.04
62	CO2101100413 Available to backorder	Rear Wheel Bushing 2 (Dym192602-26)	£2.45 £2.04
63	CO2109200032 Available to backorder	Rear Axle Pressure Plate	£1.25 £1.04
64	CO2102300315 Available to backorder	Gearbox Assembly (Self-Made)	£71.82 £59.85
65	CO2101100411 Available to backorder	Rear Wheel Bushing (Dym192602-26)	£3.44 £2.87
66	CO2104400014 Available to backorder	Right Output Gear Assembly	£3.80 £3.17
67	CO21031002290001 Available to backorder	Grass Cutting Plug-In (Dym192602-44)	£7.39 £6.16
69	CO2104300006 Available to backorder	Bracket Connecting Rod	£5.00 £4.17
70	CO21091000580001 Available to backorder	Rear Cover Plate (Dym192602-21)	£4.37 £3.64
71	COA26800108001 Available to backorder	Self-Tapping Screws	£1.25 £1.04
72	CO3011301012 Available to backorder	Self-Tapping Screw St5*12	£1.25 £1.04
73	CO30323060015000 Available to backorder	All Metal Hexagon Flange Lock Nut M6	£1.25 £1.04
74	CO3091307016 Available to backorder	Hexagonal Flange Bolt M8*16	£1.25 £1.04
75	CO21063004500108 Available to backorder	Left Armrest Bracket	£1.25 £1.04
76	CO2109800156 Available to backorder	Left-Hand Torsion Spring	£14.42 £12.02
77	CO2107300015 Available to backorder	Long Pole	£1.25 £1.04
78	CO21002003440001 Available to backorder	Rear Cover (Dym192607-11)	£2.54 £2.12
79	CO2109800157 Available to backorder	Right-Hand Torsion Spring	£10.26 £8.55
80	CO21063004490108 Available to backorder	Right Armrest Bracket	£1.25 £1.04
81	CO21041007290108 Available to backorder	Locking Knob (Dym192107-22)	£17.50 £14.58
82	CO2106300258 Available to backorder	Cylindrical Pins	£1.25 £1.04
83	CO2109800200 Available to backorder	Lower Armrest Spring	£1.25 £1.04
84	CO2106300166 Available to backorder	Bushing	£1.25 £1.04
85	CO2106300335 Available to backorder	Pin	£1.68 £1.40
86	CO2106300235 Available to backorder	Lower Handrail Screw (Special)	£1.72 £1.43
87	CO2109600052 Available to backorder	Jacket	£1.25 £1.04
88	CO2106201206 Available to backorder	Threading Clip	£1.25 £1.04
89	CO21063005060001 Available to backorder	Lower Handrail	£1.63 £1.36
90	CO2106800920 Available to backorder	Drive Cable Assembly	£21.02 £17.52
91	CO2106100001 Available to backorder	Wire Clamp (Dym1568-08-2) (Dym1568-08-03)	£7.45 £6.21
92	CO21061007230108 Available to backorder	Locking Handle (Dym1564K-07)	£1.25 £1.04
93	CO2109300018C In stock	Quick Wrench Shaft	£3.04 £2.53
95	CO21061005660001 Available to backorder	Pipe Sleeve (Dym112201-01)	£1.57 £1.31
96	CO21061005670001 Available to backorder	Pipe Sleeve Bushing (Dym112201-02)	£1.25 £1.04
97	CO2109300356 Available to backorder	Cap Nut (Same As A26800501603)	£1.25 £1.04
98	CO2129900095 Available to backorder	Flat Head Bolts	£1.51 £1.26
99	CO3051303003 Available to backorder	Flat Washer 6	£1.20 £1.00
100	CO21063004540001 Available to backorder	Upper Handrail	£23.42 £19.52
101	CO21061003650001 Available to backorder	Cable Fixing Block (Dym1560-29) (Dym1560-29-2)	£1.25 £1.04
102	CO3091307003 Available to backorder	Hexagon Flange Bolt M6*35	£1.20 £1.00
103	CO21041011030001 Available to backorder	Fixed Seat Cover (Dym192619-08)	£1.25 £1.04
104	CO21041011010001 Available to backorder	Tie Rod Bracket Fixing Seat (Dym192619-06)	£1.25 £1.04
105	CO21041011040001 Available to backorder	Drive Rod Bracket Left (Dym192619-09)	£1.25 £1.04
106	CO21041011000001 Available to backorder	Starter Rod Bracket Left (Dym192619-05)	£1.25 £1.04
107	CO21041011020001 Available to backorder	Tie Rod Bracket Cover (Dym192619-07)	£1.25 £1.04
108	CO21299000680001 Available to backorder	Starter Rod Bracket Right (Dym192619-05)	£1.25 £1.04
109	CO21299000690001 Available to backorder	Drive Rod Bracket Right (Dym192619-09)	£1.25 £1.04
110	COA26800200101 Available to backorder	Machine Screws	£1.25 £1.04
111	CO21063004560001 Available to backorder	Drive Rod	£10.32 £8.60
112	CO21063004550108 Available to backorder	Start Lever	£8.08 £6.73
113	CO2106100320 Available to backorder	Handrail Cover (Compliant With Phthalates And Pahs Class Ii)	£3.94 £3.28
114	CO21031004670108 Available to backorder	Button (Dym100909-25)	£1.25 £1.04
115	CO21031004630001 Available to backorder	Switch Box Cover (Dym100909-23)	£1.93 £1.61
116	CO21031004640001 Available to backorder	Switch Box Lower Cover (Dym100909-23)	£1.92 £1.60
117	CO21031004650001 Available to backorder	Switch Box Pressure Plate (Dym100909-24)	£1.25 £1.04
118	CO2108900491 Available to backorder	Handrail Control Line	£27.77 £23.14
119	CO2208100010 Available to backorder	Wire Clamp (Dym2164-27) (Dym2164-27-2)	£1.25 £1.04
120	CO2103100469 Available to backorder	Push Block (Dym100909-27)	£1.25 £1.04
121	CO2103100468 Available to backorder	Trigger Button (Dym100909-26)	£1.25 £1.04
122	CO2103800046 Available to backorder	Spring	£1.25 £1.04
123	CO2109800012 Available to backorder	Spring	£1.25 £1.04
124	CO2106800820 Available to backorder	Start Cable	£2.75 £2.29
125	CO3011301004 Available to backorder	Self-Tapping Screw St4.8*19	£1.26 £1.05
126	CO21071000730001 Available to backorder	Grass Basket Handle (Dym1181-03) (Dym1181-03-2)	£2.46 £2.05
127	CO21071001080108 Available to backorder	Wind Window Plate(Dym192404-04)	£1.25 £1.04
128	CO21071000720001 Available to backorder	Grass Basket Cover (Dym1181-02) (Dym1181-02-2)	£15.95 £13.29
129	CO21077000462006 Available to backorder	Grass Bag	£25.24 £21.03
130	CO3011301005 Available to backorder	Self-Tapping Screw St4.2*18 (Pan Head 7.0-7.3)	£1.25 £1.04
131	CO2107500004 Available to backorder	Grass Bag Holder	£11.18 £9.32
132	CO21041011250006 Available to backorder	Power Head Cover (Dym192220-02)	£11.50 £9.58
133	CO21091002400001 Available to backorder	Power Head Hinge (Dym192220-05)	£1.25 £1.04
134	CO21041011264069 Available to backorder	Power Head Cover (Dym192220-03)	£6.70 £5.58
135	CO2109100303 Available to backorder	Transparent Cover For Power Head (Dym192220-04)	£2.18 £1.82
136	CO21091002360001 Available to backorder	Power Head Right Housing (Dym192220-01)	£9.26 £7.72
137	CO21091002420001 Available to backorder	Power Head Right Cover (Dym192220-08)	£1.25 £1.04
138	CO21091003110001 Available to backorder	Battery Compartment Pressure Plate (Mna192707-01)	£1.31 £1.09
139	CO2109400004 Available to backorder	Cylindrical Magnet	£2.69 £2.24
140	CO2102800020 Available to backorder	Battery Compartment Spring	£1.25 £1.04
141	CO2109200005 Available to backorder	Limiting Plate	£1.25 £1.04
142	CO2109900303 Available to backorder	Controller	£67.78 £56.48
143	CO2108900494 Available to backorder	Converter Board Assy	£84.18 £70.15
144	CO21091003060001 Available to backorder	Battery Compartment	£8.74 £7.28
145	CO21091002350001 Available to backorder	Left Housing	£9.26 £7.72
146	CO21091002440001 Available to backorder	Motor Cover	£3.64 £3.03
147	CO3042301004 Available to backorder	Shaft Circlip	£1.25 £1.04
148	CO2109100083 Available to backorder	Motor Fan Blade	£2.23 £1.86
149	CO2050000024 Available to backorder	Bushless Motor	£117.76 £98.13
150	CO30913040115000 Available to backorder	Head Bolt	£1.25 £1.04
151	CO21041009580001 Available to backorder	Motor Base	£9.05 £7.54
152	CO3091307008 Available to backorder	Bolt	£1.26 £1.05
153	CO21091002410001 Available to backorder	Power Head Left Cover (Dym192220-08)	£1.25 £1.04
