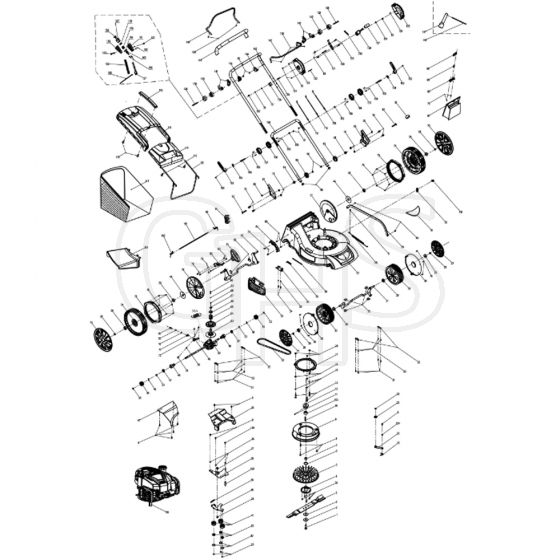

Cobra MX515SPBI Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800602301 Available to backorder	Blade Tighten Bolt	£2.62 £2.18
2	CO26300107302 In stock	Dishing Washer	£2.40 £2.00
2	CO2105200245A In stock	Pressing Plate Of Blade	£2.40 £2.00
3	CO26300167901 Available to backorder	Blade	£23.92 £19.93
3	CO21052002622000A In stock	Blade	£20.40 £17.00
4	CO2105200251A In stock	Blade Support	£7.54 £6.28
4	CO26300167101 Available to backorder	Blade Support	£9.86 £8.22
5	CO25256600102 Available to backorder	Wind Impeller	£15.60 £13.00
7	CO21051000163206A Available to backorder	Bushing Of Blade Support	£2.52 £2.10
7	CO26300167201 Available to backorder	Blade Support Bush	£2.52 £2.10
8	CO26800307801 Available to backorder	Triangular Screw	£1.26 £1.05
9	CO25256700101 Available to backorder	Wind Guide Cover	£10.56 £8.80
10	CO26809000201 In stock	Flat Key	£2.40 £2.00
11	CO26800300502 Available to backorder	Screw	£1.26 £1.05
12	CO26300401301 Available to backorder	Driving Belt Wheel	£5.88 £4.90
13	CO26800601601 Available to backorder	Hexagon Bolt	£2.52 £2.10
14	CO25349400101 Available to backorder	Cable Clamp	£2.52 £2.10
15	CO26800800202 Available to backorder	Spring Washer	£2.52 £2.10
16	CO26800700701 Available to backorder	Flat Ring	£2.40 £2.00
17	CO25256800101 Available to backorder	Shock Pad	£2.65 £2.21
18	CO26800500801 Available to backorder	Hex Locking Nut	£1.26 £1.05
19	CO26801113601 Available to backorder	Torsion Spring	£2.52 £2.10
20	CO26300167301 Available to backorder	Guide Pulley Fixing Plate	£2.52 £2.10
21	CO26800307901 Available to backorder	Triangular Screw	£2.52 £2.10

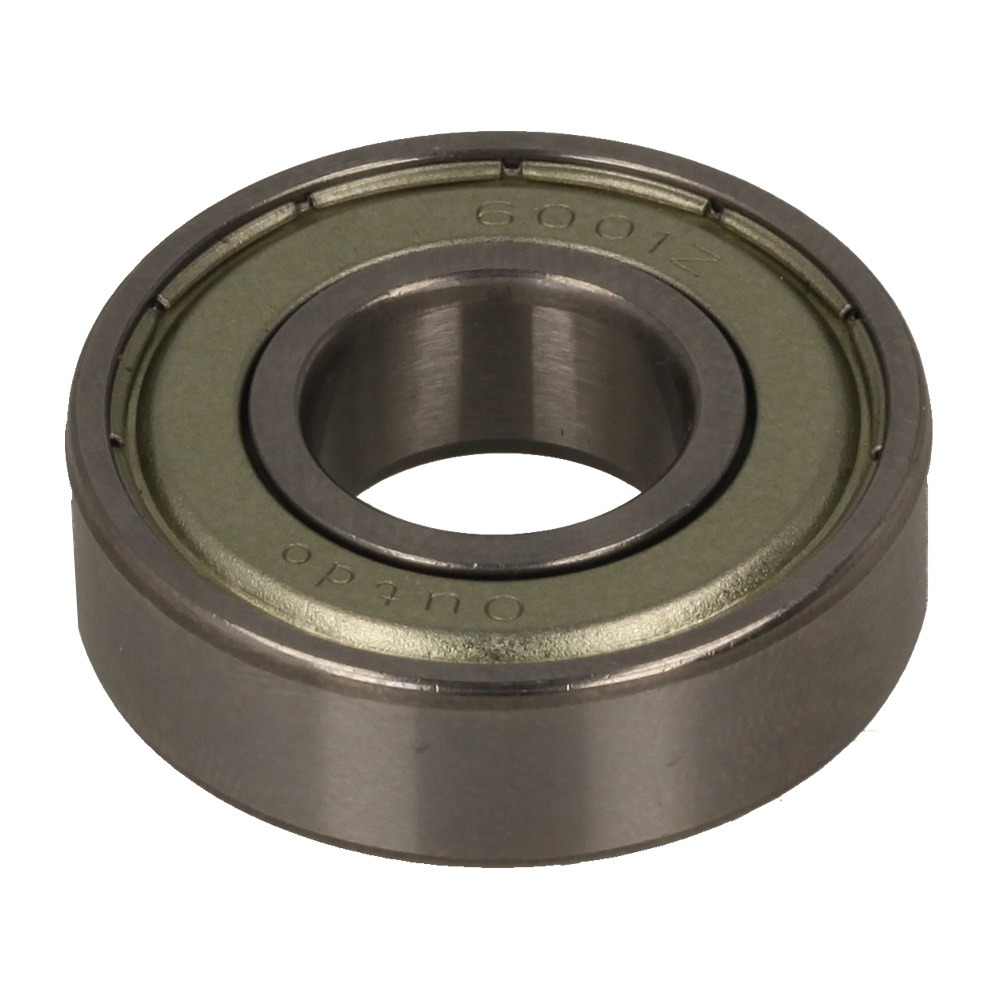

22	CO26800401501 Available to backorder	Bearing	£2.54 £2.12
23	CO26800903201 Available to backorder	Circlip For Shaft	£2.52 £2.10
24	CO26800202902 Available to backorder	Tooth Screw	£2.52 £2.10
25	CO26300167501 Available to backorder	Wheel Axle Pressure Plate	£2.52 £2.10
26	CO25287100101 Available to backorder	Cross Pan Self-Driving Screw	£3.44 £2.87
27	CO23600301901 Available to backorder	Wheel Cover	£2.52 £2.10
28	CO26800502801 Available to backorder	Hex Flange Locking Nut	£1.44 £1.20
29	CO26800401601 In stock	Bearing	£4.00 £3.33
30	CO25400205501 Available to backorder	Wheel Ass'Y	£17.03 £14.19
31	CO26300361601 Available to backorder	Front Wheel Axle Ass'Y	£16.99 £14.16
32	CO25235310201 Available to backorder	Wheel Axle Sheath	£2.52 £2.10
33	CO25100203202 Available to backorder	Triangle Belt	£11.15 £9.29
34	CO26800202001 Available to backorder	Tooth Screw	£1.26 £1.05
35	CO25256900102 Available to backorder	Belt Protecting Cover	£5.77 £4.81
36	CO26800800303 Available to backorder	Spring Washer	£2.40 £2.00
37	CO26800304201 Available to backorder	Fixing Screw	£1.26 £1.05
38	CO26300167001 Available to backorder	Position Fixing Plate	£6.66 £5.55
39	CO26801102101 Available to backorder	Tensioner Spring	£2.52 £2.10
40	CO26300166901 Available to backorder	Gear Wheel Fixed Plate	£6.13 £5.11
41	CO26400105601 Available to backorder	Gear Wheel	£6.60 £5.50
42	CO26800902101 Available to backorder	Spring Washer	£2.52 £2.10
43	CO26300167801 Available to backorder	Grass Discharge Board	£10.78 £8.98
44	CO26800705102 In stock	Big Washer	£2.40 £2.00
45	CO26900300203 In stock	Right Output Gear Ass'Y	£7.00 £5.83
46	CO26809000102 In stock	Column Pin	£2.40 £2.00
47	CO26800402302 Available to backorder	Bearing	£2.70 £2.25
48	CO26900203001 Available to backorder	Bearing Sheath	£3.26 £2.72
49	CO26300146001 Available to backorder	Gear Box Fixed Plate	£2.52 £2.10
50	CO26801118001 Available to backorder	50A Gearbox Spring	£2.40 £2.00

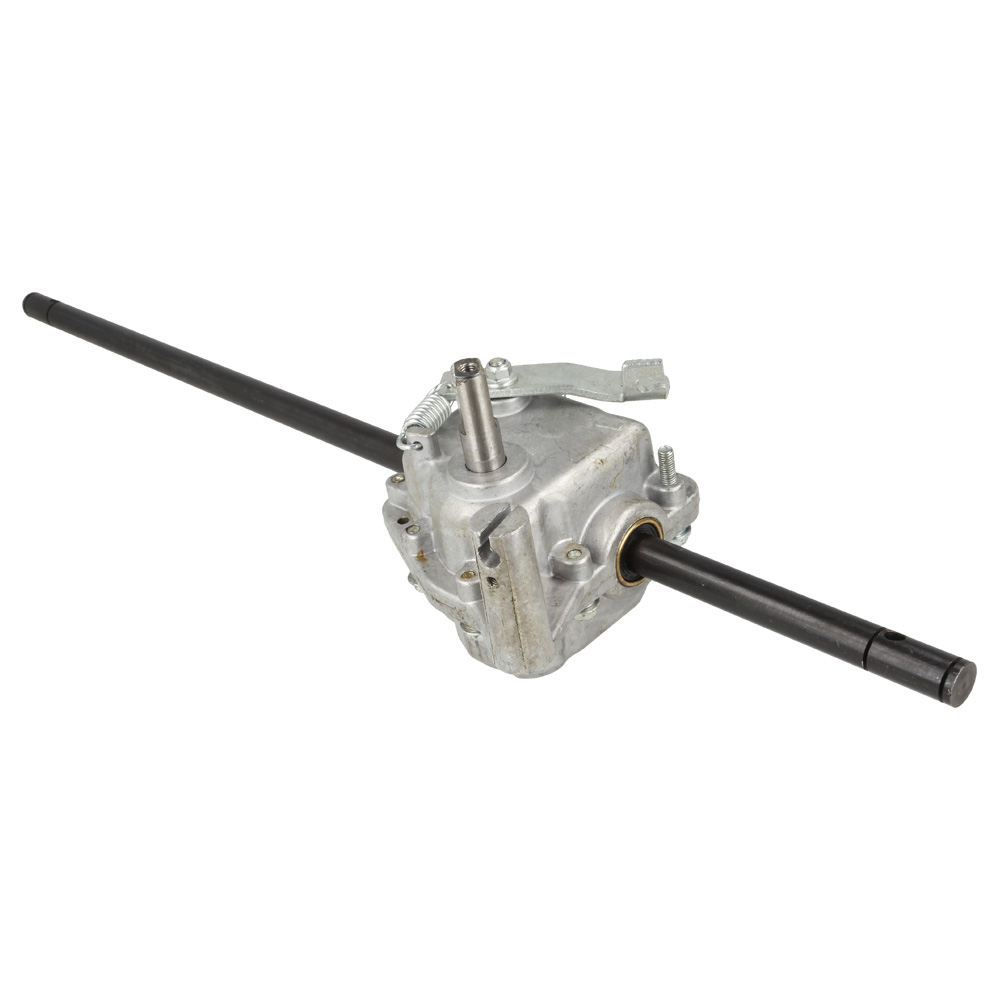

50	CO23050201202 Available to backorder	Gear Box Ass'Y	£66.40 £55.33
52	CO25256500101 Available to backorder	Side-Discharge Cover Board	£6.22 £5.18
53	CO26800800402 Available to backorder	Spring Washer	£2.40 £2.00
51	CO26900300103 In stock	Left Wheel Output Assy	£7.00 £5.83
54	CO26300157101 Available to backorder	Side-Discharge Fixing Board	£2.52 £2.10
55	CO26801115501 Available to backorder	Side Cover Board Spring	£2.52 £2.10
56	CO26200101901 Available to backorder	Side-Discharge Position Fixing Shaft	£2.40 £2.00
58	CO26801115401 Available to backorder	Connecting Rod Tension Spring	£2.94 £2.45
59	CO26300361301 Available to backorder	Connecting Rod	£6.38 £5.32
60	CO26800500501 Available to backorder	Hex Locking Nut	£2.40 £2.00
61	CO23100113801 Available to backorder	Front Panel Decorative Board	£2.88 £2.40
62	CO25214300201 Available to backorder	Blade Washing Connector	£2.52 £2.10
63	CO26400108201 Available to backorder	Lower Driven Pulley Assembly	£7.40 £6.17
64	CO26400105401 Available to backorder	Upper Driven Pulley	£4.76 £3.97
65	CO26801112201 Available to backorder	Spring	£2.52 £2.10
66	CO26300145701 Available to backorder	Pressing Plate	£2.52 £2.10
67	CO26800902001 Available to backorder	Wheel Axle Steel Wire Block Ring	£2.52 £2.10
68	CO26800700401 Available to backorder	Big Washer	£2.52 £2.10
69	CO26800612301 Available to backorder	Hexagon Bolt	£2.52 £2.10
70	CO26800606401 Available to backorder	Hexagon Flange Bolt	£2.62 £2.18
71	CO26300152102 Available to backorder	Gear Box Fixed Plate 2	£2.52 £2.10
72	CO26800501101 Available to backorder	Hex Locking Nut	£1.20 £1.00
73	CO23600302001 Available to backorder	11" Wheel Cover	£5.32 £4.43
74	CO25400205401 Available to backorder	11" Wheel Ass'Y	£26.06 £21.72
75	CO25229500101 Available to backorder	Wheel Gear Ring	£6.38 £5.32
76	CO26800100501 Available to backorder	Self-Driving Screw	£1.26 £1.05
77	CO25208700105 Available to backorder	Dust-Proof Wheel Cover	£4.00 £3.33
78	CO26800203001 Available to backorder	Tooth Screw	£1.26 £1.05
79	CO26800303301 Available to backorder	Screw	£1.26 £1.05
80	CO26300316701 Available to backorder	Handle Ass'Y	£3.36 £2.80
81	CO25400108401 Available to backorder	Height Adjustment Ass'Y	£4.01 £3.34
82	CO26800900301 Available to backorder	E Clip	£2.40 £2.00
83	CO26300187801 Available to backorder	Rear Wheel Axle Ass'Y	£18.25 £15.21
84	CO23100113701 Available to backorder	Height Adjustment Board	£2.80 £2.33
85	CO26800502401 Available to backorder	Hex Flange Locking Nut	£1.26 £1.05
86	CO25100119902 Available to backorder	Tube Plug	£2.52 £2.10
87	CO25257000101 Available to backorder	Mulching Kit	£11.87 £9.89
88	CO25231700101 Available to backorder	Knob Pressing Board	£2.52 £2.10
89	CO26801100501 Available to backorder	Spring	£2.52 £2.10
90	CO25231600301 Available to backorder	Mulching Kit Button	£2.52 £2.10
91	CO25261100102 In stock	Cable Clamp	£2.40 £2.00
92	CO26800600401 Available to backorder	Flat Head Bolt	£2.52 £2.10
93	CO23601010701 Available to backorder	Left Handle Bracket	£5.06 £4.22
94	CO25100108505 Available to backorder	Curved Washer	£2.52 £2.10
95	CO25236501801 Available to backorder	Lower Handle Knob	£2.52 £2.10
96	CO26800502301 In stock	Hex Nut	£1.20 £1.00
97	CO23601010801 Available to backorder	Right Handle Bracket	£5.06 £4.22
98	CO26801113801 Available to backorder	Left Knob Spring	£2.52 £2.10
99	CO26300136601 Available to backorder	Long Rod	£2.52 £2.10
100	CO26801113901 Available to backorder	Right Knob Spring	£2.52 £2.10
101	CO25256400102 Available to backorder	Side-Discharge Protecting Cover	£10.30 £8.58
102	CO26809004801 Available to backorder	Column Pin	£2.40 £2.00
103	CO25236401501 Available to backorder	Locking Handle	£2.52 £2.10
104	CO26300111901 Available to backorder	Pressing Plate	£2.52 £2.10
105	CO26300130101 Available to backorder	Locking Handle Bolt	£2.40 £2.00
106	CO26800104902 Available to backorder	Self-Driving Screw	£1.26 £1.05
107	CO25205400104 Available to backorder	Upper Adjustment Gear	£2.52 £2.10
108	CO25205500104 Available to backorder	Lower Adjustment Gear	£2.52 £2.10
109	CO29100119401 Available to backorder	Speed Adjustment Cable	£12.58 £10.48

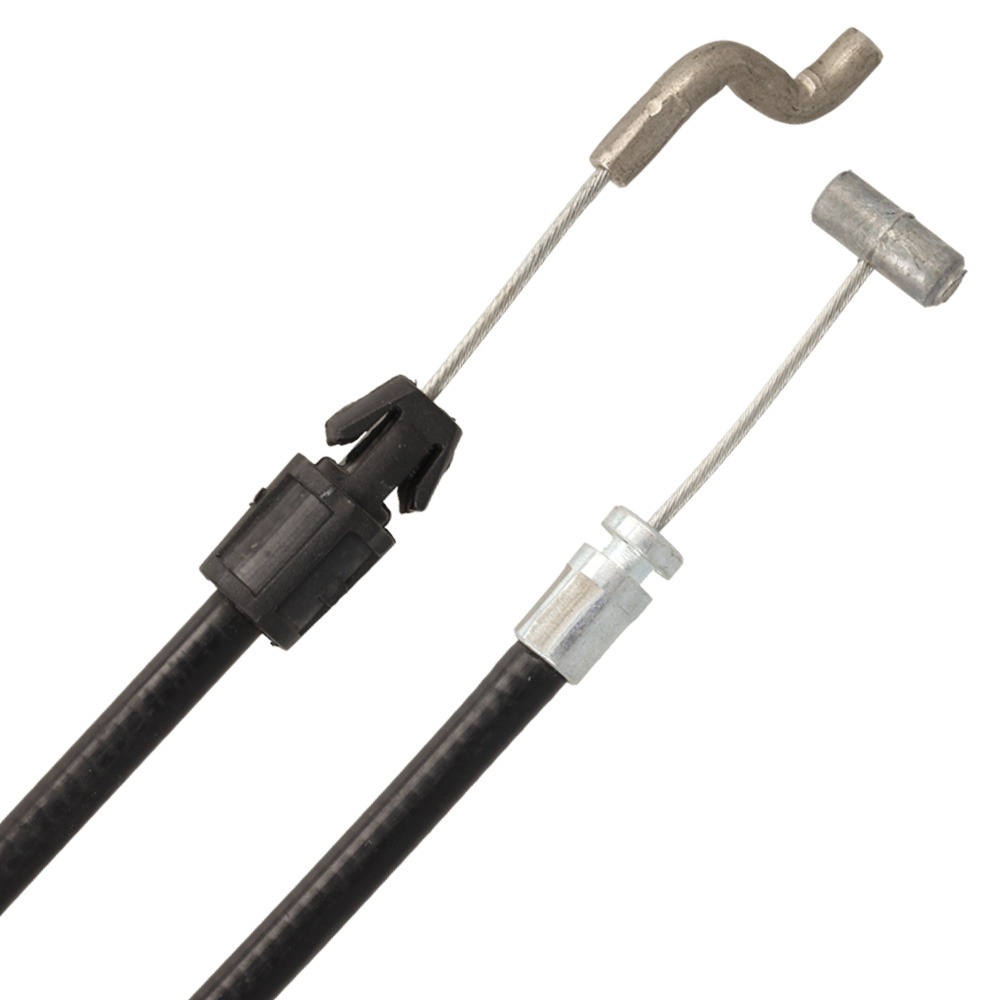

110	CO29100141301 Available to backorder	Flameout Cord	£10.78 £8.98
111	CO29100119301 In stock	Driving Cord	£12.00 £10.00
112	CO26300138101 Available to backorder	Grass Catcher Bracket	£15.73 £13.11
113	CO26800103202 In stock	Self-Driving Screw	£1.20 £1.00
114	CO23001445801 Available to backorder	Rear Flap Ass'Y	£9.79 £8.16
115	CO25238200101 Available to backorder	Grass Catcher Cover	£22.79 £18.99
116	CO25238400101 Available to backorder	Handle Of Grass Catcher	£2.54 £2.12
117	CO25100137841 Available to backorder	Grass Catcher	£28.03 £23.36
118	CO26800104601 In stock	Self-Driving Screw	£1.20 £1.00
120	CO26800501603 Available to backorder	Cap Nut	£1.20 £1.00
121	CO26800700801 Available to backorder	Flat Washer	£1.20 £1.00
122	CO25100174801 Available to backorder	Wave Pipe	£2.62 £2.18
123	CO26800607701 Available to backorder	Hexagon Flange Bolt	£2.62 £2.18
124	CO23600180401 Available to backorder	Lower Handle	£26.59 £22.16
125	CO25257200101 Available to backorder	Speed Adjustment Board Upper	£3.78 £3.15
126	CO26800202501 Available to backorder	Tooth Screw	£1.26 £1.05
127	CO25239201501 Available to backorder	Gear Shift Handle	£2.52 £2.10
128	CO26300167702 Available to backorder	Speed Adjustment Handle	£2.52 £2.10
129	CO26801112301 Available to backorder	Gear Wheel Spring	£2.52 £2.10
130	CO26300151401 Available to backorder	Speed Adjustment Box Fixing Board	£2.52 £2.10
131	CO26800608201 Available to backorder	Hexagon Flange Bolt	£2.52 £2.10
132	CO26300151101 Available to backorder	Cable Fixing Sheet	£2.52 £2.10

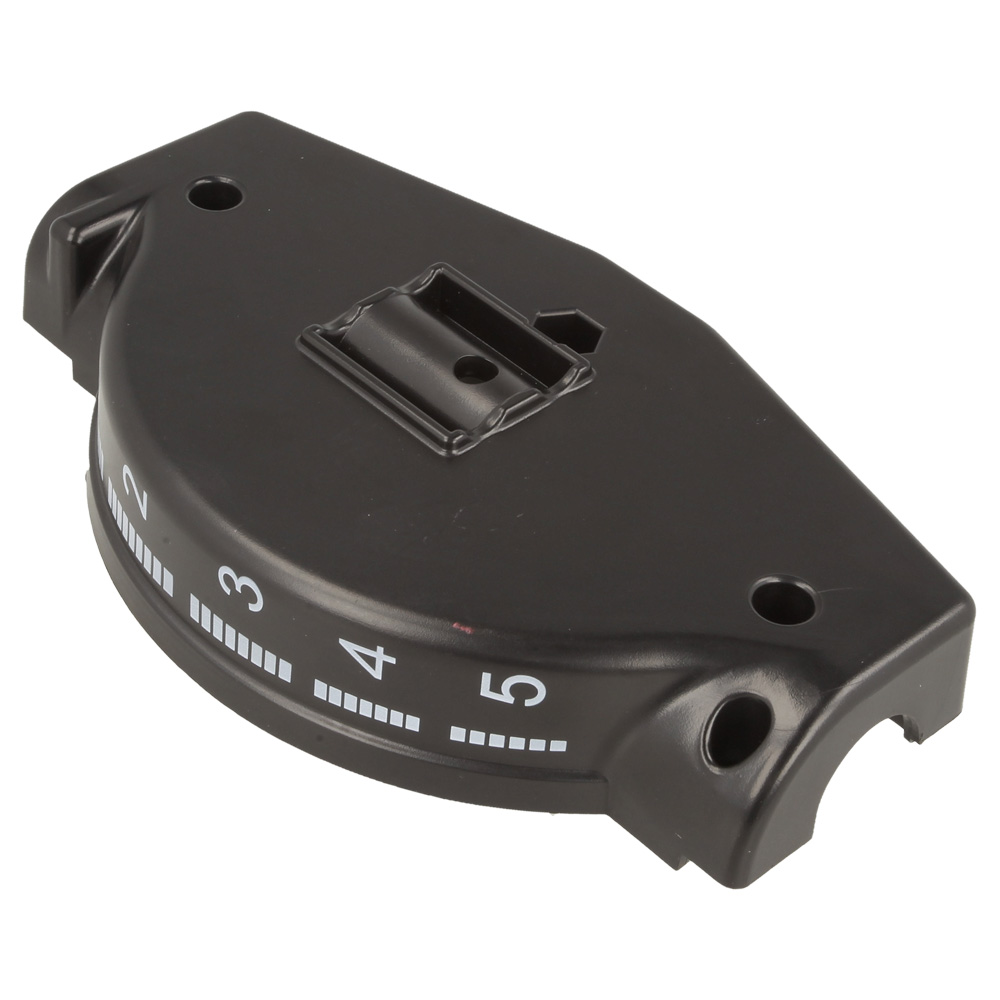

133	CO23100104701 Available to backorder	Speed Adjustment Box Lower	£3.20 £2.67
134	CO26800106302 Available to backorder	Self-Driving Screw	£2.52 £2.10
135	CO26800606301 Available to backorder	Hex Bolt	£2.52 £2.10
136	CO25233600102 Available to backorder	Cord Fixing Board	£2.40 £2.00
137	CO27100123801 Available to backorder	Connect Plug	£2.94 £2.45
138	CO26800611401 Available to backorder	Inner Six Angle Bolt	£2.52 £2.10
139	CO25239300102 Available to backorder	Outside Positioned Support	£2.52 £2.10
140	CO25239300202 Available to backorder	Inside Positioned Support	£2.52 £2.10
141	CO25238800101 Available to backorder	Self-Driving Cord Board	£2.52 £2.10
142	CO23601011701 Available to backorder	Flameout Pole	£5.82 £4.85
143	CO23600194501 Available to backorder	Upper Handle	£18.34 £15.28
145	CO25600101903 Available to backorder	Handle Sheath	£4.44 £3.70
146	CO23601018101 Available to backorder	Driving Pole	£5.82 £4.85
144	CO25239300302 Available to backorder	cover	£2.52 £2.10
147	CO26300161201 Available to backorder	Wrench	£2.52 £2.10
148	CO26300107901 Available to backorder	Wrench Pole	£2.52 £2.10
149	CO26800607601 Available to backorder	Hexagon Flange Bolt	£2.52 £2.10
150	CO26900103201 Available to backorder	Spacer Sleeve	£2.52 £2.10
151	CO25100135101 Available to backorder	O-Sealing Ring	£2.52 £2.10
152	CO26300118902 Available to backorder	Flat Washer	£2.40 £2.00
153	CO25231900101 Available to backorder	Blade Support Bush	£1.26 £1.05
154	CO26800703201 Available to backorder	Flat Washer	£2.52 £2.10
155	CO25364700101 Available to backorder	Right Case Of Switch Box	£2.40 £2.00
156	CO25364800501 In stock	Switch Button	£4.00 £3.33
157	CO25364900101 Available to backorder	Button Cover	£2.40 £2.00
158	CO25365000101 Available to backorder	Spring Cover	£2.40 £2.00
159	CO26801133001 Available to backorder	Spring	£2.40 £2.00
160	CO25365100101 Available to backorder	Switch Board	£2.40 £2.00
161	CO25364600101 Available to backorder	Left Case Of Switch Box	£2.40 £2.00
162	CO26800100302 Available to backorder	Screw	£1.44 £1.20
163	CO27600105301 In stock	Button	£2.40 £2.00
164	CO26900105002 Available to backorder	Master Terminal	£2.40 £2.00
