Cobra MX484SPCE - 48cm Mower Feb 2019 Drive Assy Diagram

Name: Cobra MX484SPCE - 48cm Mower Feb 2019 Drive Assy Diagram
SKU: mx484spce_48cm_mower_feb_2019_drive_assy-group
Price: 0.4 GBP
Availability: InStock

Part No. mx484spce_48cm_mower_feb_2019_drive_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra MX484SPCE - 48cm Mower Feb 2019 Drive Assy Diagram

Description

Cobra MX484SPCE Rotary Mower Parts Diagram

	Part No.	Details
1	COG4420000028 Available to backorder	Height Adjustment Handle	£6.35 £5.29
2	COG3490000300 Available to backorder	Rear Wheel Shaft Assy	£21.79 £18.16
3	COG34AC000000 Available to backorder	Inner Wheel Cover	£3.56 £2.97
4	COB6009B00000 Available to backorder	Washer	£2.48 £2.07
5	COB1057W06010 Available to backorder	Bolt M10X90	£2.48 £2.07

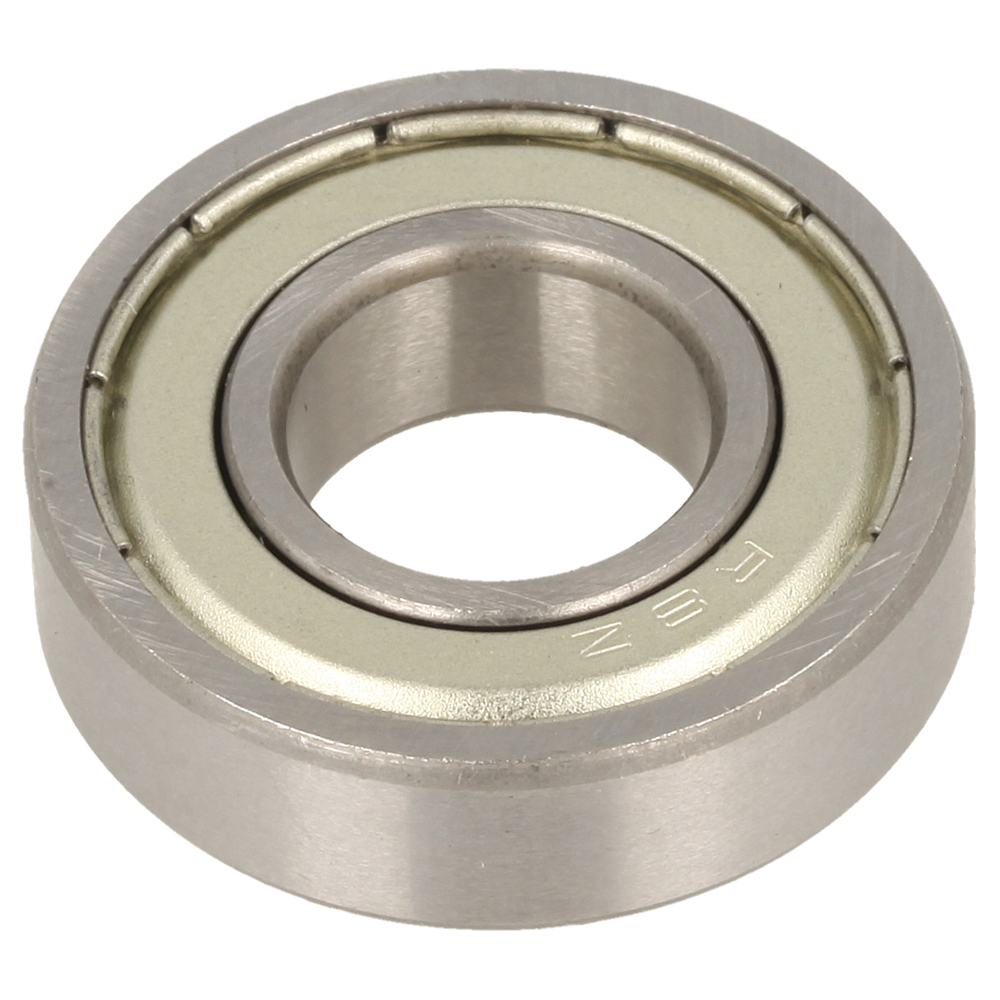

6	COB0014W00000 In stock	Ball Bearing 12 7X28 575X7 9-12 7X28 57	£5.45 £4.54
7	COG34L1000000 Available to backorder	10" Wheel	£19.28 £16.07
8	COB5031W00000 Available to backorder	Washer	£1.24 £1.03
9	COB2017W00000 Available to backorder	Locknut M6	£1.24 £1.03
10	COG34V0000055 Available to backorder	10" Outer Wheel Cover	£3.08 £2.57
11	COBB004W00000 Available to backorder	Split Pin	£2.48 £2.07
12	COBA00CB00000 In stock	Edging Belt	£11.08 £9.23
13	COG54AP201800 In stock	Gear Box	£65.56 £54.63
14	COG54BL201800 In stock	Fixing Board For Gear Box	£2.58 £2.15
15	COG34AN000000 In stock	Pin-Ø5 Mm / L 17 Mm	£2.58 £2.15
16	COB2007W00000 In stock	Nut M10	£2.58 £2.15
17	COG34DV000000 In stock	Shaft Sleeve	£2.58 £2.15
18	COB1053W05012 Available to backorder	Bolt M10X90	£2.48 £2.07
19	COB9006B00000 In stock	Lock Ring	£1.28 £1.07
20	COB5033W00000 Available to backorder	Washer	£2.48 £2.07
21	COG54AL000000 In stock	Ratchet Wheel 15 Tænder	£6.84 £5.70
22	COG54AM000000 In stock	Ratchet Wheel 15 Tænder	£6.84 £5.70
23	COG645Y000000 Available to backorder	Front Wheel Shaft	£15.71 £13.09
24	COB2008W00000 Available to backorder	Nut M10	£2.48 £2.07
25	COB1058W06012 Available to backorder	Bolt M10X90	£2.48 £2.07
26	COB2016W00000 Available to backorder	Locknut M6	£1.24 £1.03
27	COB0019W00000 Available to backorder	Wheel Bearing 12 6X28 6X11-12 6X28 6X8	£2.48 £2.07
28	COG24F1000000 Available to backorder	Wheel	£11.46 £9.55
29	COG24R2000055 Available to backorder	Wheel Cover	£2.48 £2.07
30	COG34AX100000 Available to backorder	Height Adjustment Spring	£3.11 £2.59
31	COG4410000100 Available to backorder	Height Adjustment Connecting Rod	£7.34 £6.12
32	COB1090W08012 In stock	Bolt	Was £2.62 £2.18 Special Price £1.73 £1.44
33	COB5037W00000 Available to backorder	Washer	Was £2.48 £2.07 Special Price £1.73 £1.44
34	COG54BQ000000 Available to backorder	Spring	£2.48 £2.07
37	COB2009W00000 Available to backorder	Washer	£2.48 £2.07
38	COG54BP000000 In stock	Spring	£0.48 £0.40
39	COG54BM000000 In stock	Vario-Speed Fixing Board	£10.82 £9.02
40	COG54BNX00000 In stock	Wheel Fixing Board	£10.82 £9.02
41	COB1036W08015 Available to backorder	Bolt	£2.48 £2.07
42	COG54BN120000 In stock	Belt Wheel	£5.36 £4.47
43	COB0020W00000 Available to backorder	Bearing	£2.58 £2.15

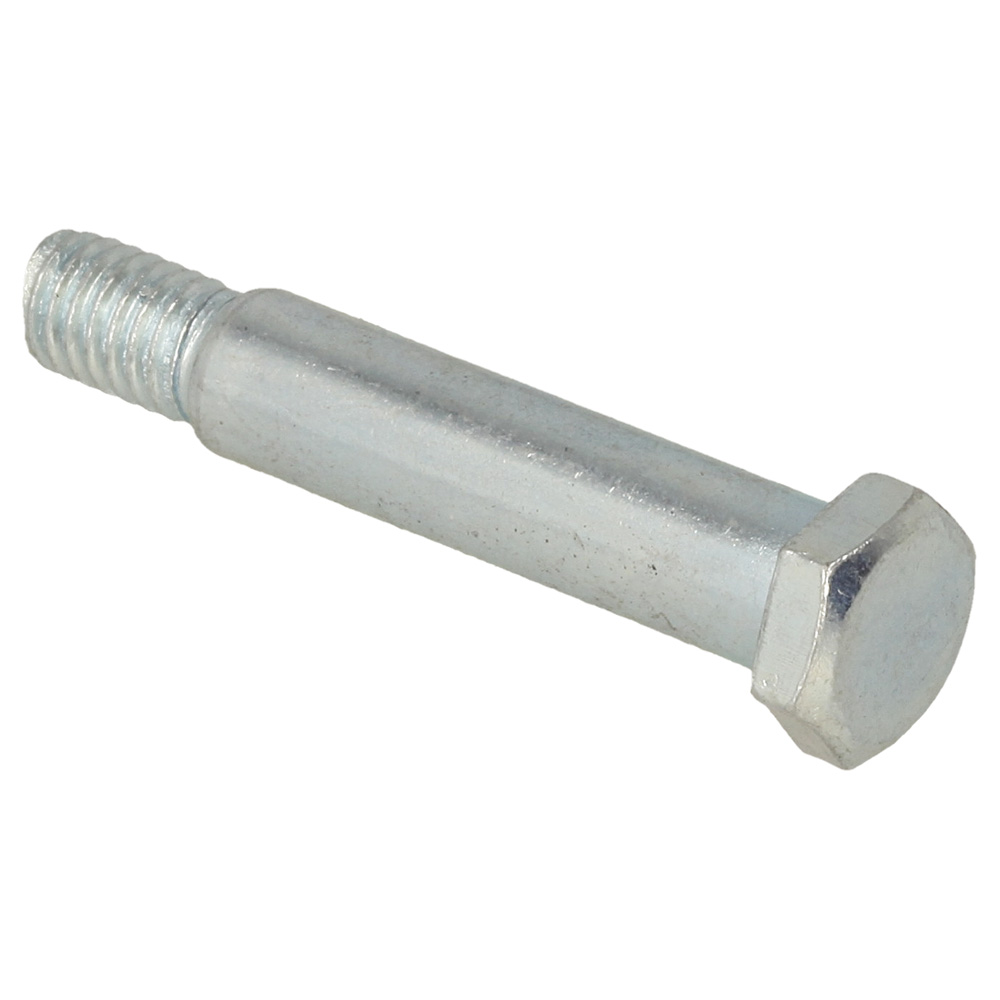

44	COB1096W06000 Available to backorder	Bolt M6	£2.48 £2.07
45	COB1061W06018 Available to backorder	Bolt M10X90	£2.48 £2.07
46	COG349X000000 Available to backorder	Shaft Sleeve	£2.48 £2.07
47	COG4CT0000000 Available to backorder	Front Driving Sleeve	£2.48 £2.07
44943	COB0021W00000 Available to backorder	Ball Bearing	£5.86 £4.88
