Cobra MX484SPCE - 48cm Mower Feb 2019 Deck Assy Diagram

Name: Cobra MX484SPCE - 48cm Mower Feb 2019 Deck Assy Diagram
SKU: mx484spce_48cm_mower_feb_2019_deck_assy-group
Price: 0.62 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra MX484SPCE - 48cm Mower Feb 2019 Deck Assy Diagram

Description

Cobra MX484SPCE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COB1036W08015 Available to backorder	Bolt	£2.62 £2.18
2	COG42B0000100 Available to backorder	Right Bracket	£24.19 £20.16
3	COB2009W00000 Available to backorder	Nut M10	£2.62 £2.18
5	COG46M0000000 In stock	Mulching Plug	£8.52 £7.10
6	COG52E0000000 Available to backorder	Cable Sleeve	£2.52 £2.10
7	COBD001B00000 Available to backorder	Seal Ring	£2.52 £2.10
8	COG62D0000000 Available to backorder	Washing Linker	£2.52 £2.10
9	COB3044W00000 Available to backorder	Screw	£2.52 £2.10
10	COG42C0000100 Available to backorder	Left Bracket	£16.99 £14.16
11	COG32J0000000 Available to backorder	Bracket	£2.40 £2.00
12	COB1059W06014 Available to backorder	Bolt M10X90	£2.62 £2.18
13	COG42A0000100 Available to backorder	Rear Cover Pedestal	£7.20 £6.00
14	COB2008W00000 Available to backorder	Nut M10	£2.62 £2.18
15	COG32K0000000 Available to backorder	Plug	£2.52 £2.10
16	COG46B0000010 Available to backorder	Rear Cover	£11.11 £9.26
17	COG36J0000000 Available to backorder	Rear Cover Spring	£2.62 £2.18
18	COG36E0000000 Available to backorder	Rear Cover Shaft	£2.52 £2.10

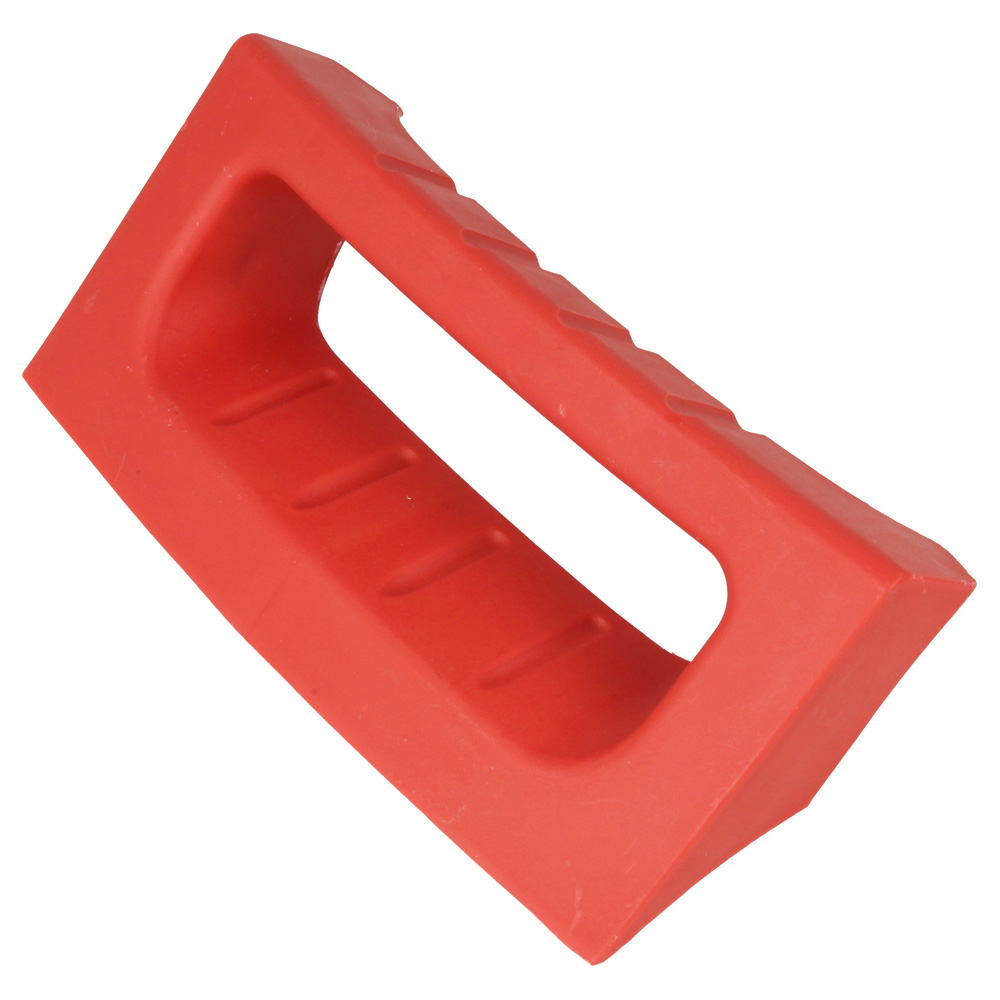

19	COG4241100028 Available to backorder	Plastic Front Handle	£5.40 £4.50
20	COG4241000055 Available to backorder	Front Plastic Face Handle	£9.24 £7.70
21	COG52G0000000 Available to backorder	Washer R	£2.52 £2.10
22	COG52F0000000 Available to backorder	Washer L	£2.52 £2.10
23	COB2007W00000 Available to backorder	Nut M10	£2.52 £2.10
24	COG4250000000 Available to backorder	Side Discharge Bracket	£2.52 £2.10
25	COB1052W05010 Available to backorder	Bolt M10X90	£2.52 £2.10
26	COG3260000000 Available to backorder	Side Discharge Cover Shaft	£2.40 £2.00
27	COG3271000000 Available to backorder	Side Discharge Cover Spring	£2.40 £2.00
28	COB3034W00000 In stock	Screw	£1.20 £1.00
29	COG328CX00000 Available to backorder	Side Discharge Cover	£2.40 £2.00
30	COG328D000000 Available to backorder	Spring	£2.40 £2.00
31	COG428AX00000 In stock	Side Discharge Cover	£5.64 £4.70
32	COG328B000000 Available to backorder	Button	£3.38 £2.82
33	COG4290000000 In stock	Side Discharge Cover	£5.64 £4.70
34	COG321WG00000 In stock	Window Cover	£2.40 £2.00
35	COG53Y3UK0000 Available to backorder	Charger	£21.88 £18.23
36	COG53Y0000000 In stock	Wire	£2.76 £2.30
37	COB1059W06155 Available to backorder	Bolt	£2.52 £2.10
38	COG53Y1000000 Available to backorder	Battery Holder	£0.74 £0.62
39	COG53X0000000 In stock	Battery 12V/5Ah	£43.32 £36.10
