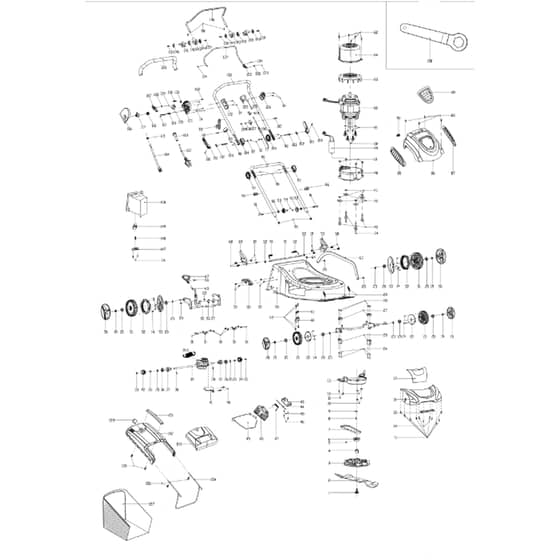

Cobra MX46SPE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO25500100802	Blade Locking Bolt	Out of stock	£2.52 £2.10
2	CO26300248701	Blade	Out of stock	£14.26 £11.88
3	CO25263300101	Motor Centrifuge Cutter	Out of stock	£7.92 £6.60
4	CO26900203602	Centrifuge Cutter Bush	Out of stock	£2.52 £2.10
5	CO26800300502	Screw	Out of stock	£1.26 £1.05
6	CO2102300148A	Driving Belt Wheel	Out of stock	£5.68 £4.73
7	CO25100205501	Triangle Belt	In stock	£10.06 £8.38
8	CO26809003701	Flat Pin	Out of stock	£2.52 £2.10
9	CO26800901901	Circlip For Shaft	Out of stock	£2.52 £2.10
10	CO26800500801	Hexagon Locking Nut	Out of stock	£1.26 £1.05
11	CO26800103701	Self-Driving Screw	In stock	£1.26 £1.05
12	CO26800700701	Flat Ring	Out of stock	£2.52 £2.10
13	CO25255800102	Belt Protecting Cover	Out of stock	£7.92 £6.60
14	CO26800100501	Self-Driving Screw	In stock	£1.26 £1.05
15	CO25301700101	Cover Handle	Out of stock	£2.52 £2.10
16	CO23600302101	Head Cover	Out of stock	£12.01 £10.01
17	CO25301600101	Cover Board	Out of stock	£2.57 £2.14
18	CO23600301901	Wheel Cover	Out of stock	£2.52 £2.10
19	CO26800502801	Hexagon Flange Locking Bolt	Out of stock	£1.26 £1.05
20	CO26800401601	Bearing	In stock	£4.20 £3.50
21	CO25400204001	Wheel Assy	Out of stock	£14.47 £12.06
22	CO25287100101	Dust-Proof Wheel Cover	Out of stock	£3.44 £2.87
23	CO26800706202	Wave Washer	Out of stock	£2.52 £2.10
24	CO26800611901	Hexagon Flange Locking Bolt	Out of stock	£2.52 £2.10
25	CO25237600101	Lower Support Of Axle	Out of stock	£2.52 £2.10
26	CO26300137401	Front Wheel Axis Assy	Out of stock	£16.99 £14.16
27	CO25237600201	Upper Support Of Axle	Out of stock	£2.52 £2.10
28	CO26800500501	Hexagon Locking Bolt	Out of stock	£2.52 £2.10
29	CO26801111201	Front Wheel Axis Spring	Out of stock	£2.52 £2.10
30	CO26800201901	Tooth Screw	Out of stock	£1.26 £1.05
31	CO26300124401	Axle Fixing Ring	In stock	£2.52 £2.10
32	CO26800502401	Bolt	Out of stock	£1.26 £1.05
33	CO26800900201	Open Block Ring	Out of stock	£2.62 £2.18
34	CO26900300103	Left Output Gear Assy	In stock	£7.20 £6.00
35	CO26800705102	Flat Washer	Out of stock	£2.62 £2.18
36	CO26800402301	Bearing	In stock	£2.77 £2.31
37	CO26900203103	Bearing Sheath	Out of stock	£3.23 £2.69
38	CO26809000102	Column Pin	Out of stock	£2.62 £2.18
39	CO23000504402	39A Gearbox Spring	Out of stock	£2.52 £2.10

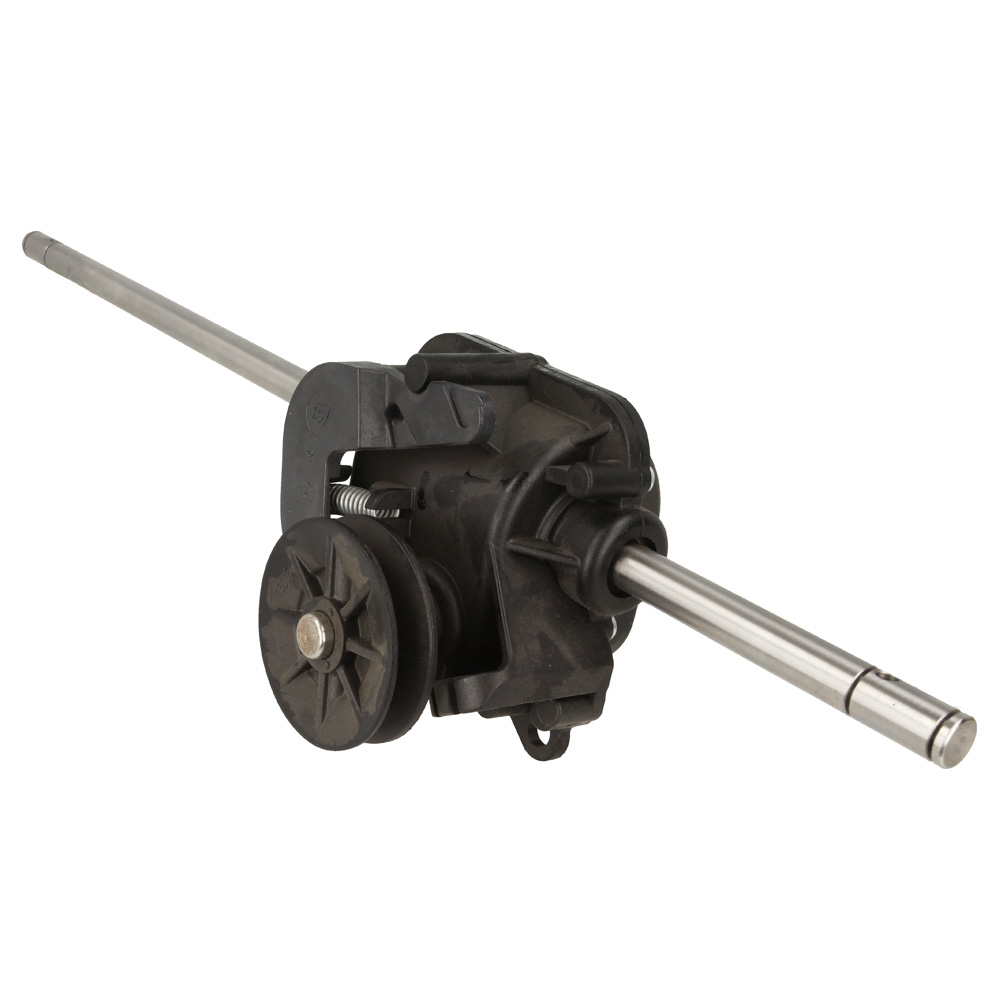

39	CO23050203201	Variable Gear Box Assy	Out of stock	£63.84 £53.20
40	CO26800611201	Hexagon Flange Bolt	Out of stock	£2.52 £2.10
41	CO2102300154A	Positioned Board	Out of stock	£2.52 £2.10
42	CO26900300202	Right Output Gear Assy	In stock	£7.20 £6.00
43	CO26300218302	Side-Discharge Fixing Board	Out of stock	£2.52 £2.10
44	CO26200101901	Side-Discharge Fixing Shaft	Out of stock	£2.52 £2.10

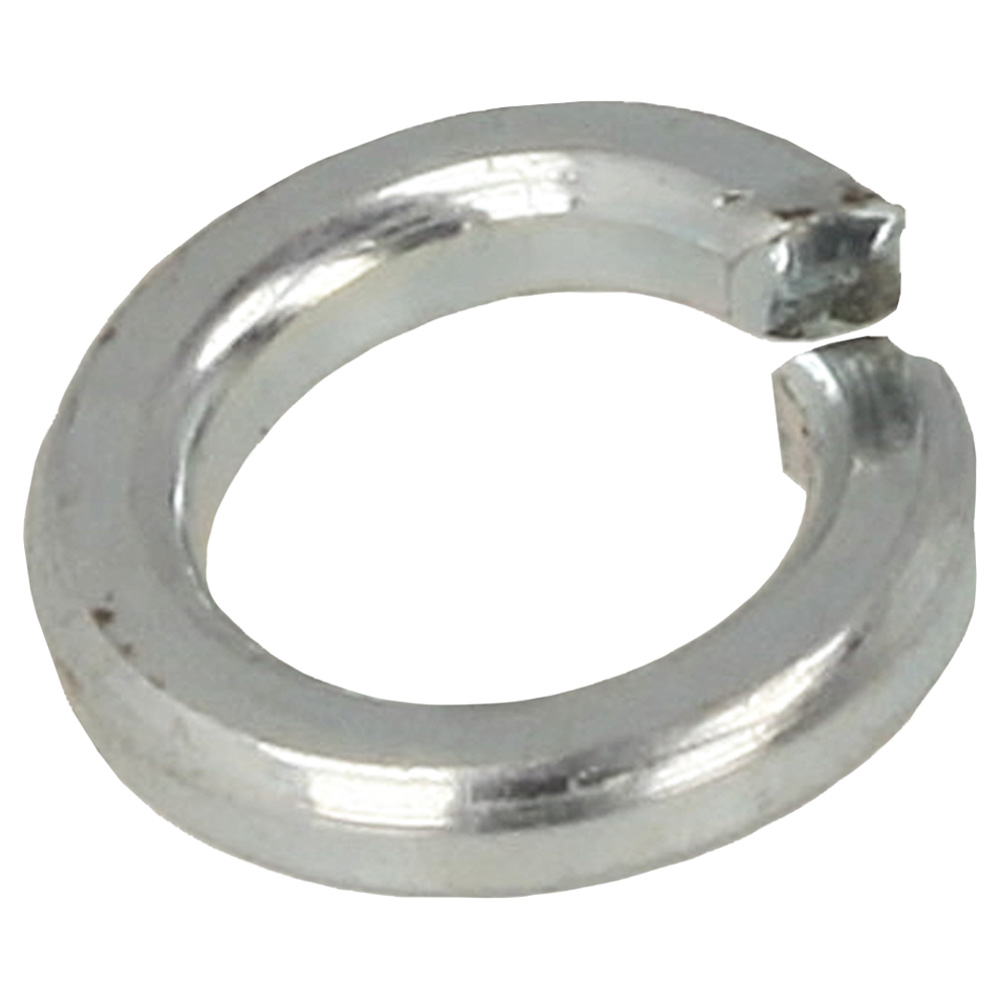

45	CO26800800403	Spring Washer	Out of stock	£2.52 £2.10
46	CO26800201501	Tooth Screw	Out of stock	£2.52 £2.10
47	CO26801113002	Spring Of Side Cover Board	Out of stock	£2.52 £2.10
48	CO25286500101	Side-Discharge Cover Board	Out of stock	£5.82 £4.85
49	CO25238100102	Side-Discharge Protecting Cover	Out of stock	£10.16 £8.47
50	CO23600302001	Wheel Cover	Out of stock	£5.32 £4.43
51	CO25400204101	Wheel Assy	Out of stock	£23.92 £19.93
52	CO25229500101	Wheel Gear Ring	Out of stock	£6.70 £5.58
53	CO25208700105	11"Dust-Proof Wheel Cover	Out of stock	£4.00 £3.33
54	CO26800203001	Cross Pan Screw	Out of stock	£1.26 £1.05
55	CO26300137201	Rear Wheel Axis Assy	Out of stock	£19.51 £16.26
56	CO26800900301	E Clip	Out of stock	£2.52 £2.10
57	CO26300107601	Adjusting Washer	Out of stock	£2.52 £2.10
58	CO23100106901	Gearing Board	Out of stock	£3.02 £2.52
60	CO25226000101	Line Pressing Board Bracket	Out of stock	£2.52 £2.10
61	CO25100102301	Line Pressing Board	Out of stock	£2.52 £2.10
62	CO26800100302	Self Driving Screw	Out of stock	£1.44 £1.20
63	CO26300137701	Connecting Rod	Out of stock	£6.89 £5.74
64	CO25217800104	Puling Cord Protecting Cover	Out of stock	£2.52 £2.10
65	CO26300139602	Handle Assy	Out of stock	£3.49 £2.91
66	CO26800303301	Sunk Screw	Out of stock	£1.26 £1.05
67	CO25400105401	Height Adjusting Handle Assy	Out of stock	£4.64 £3.87
68	CO26800606401	Hexagonal Flange Locking Nut	Out of stock	£2.52 £2.10
69	CO23600118701	Right Handle Bracket	Out of stock	£5.32 £4.43
70	CO26801111301	Right Knob Spring	Out of stock	£2.52 £2.10
71	CO26300136601	Long Rod	Out of stock	£2.52 £2.10
72	CO26801111401	Left Knob Spring	Out of stock	£2.52 £2.10
73	CO23600118601	Left Handle Bracket	Out of stock	£5.32 £4.43
74	CO26800304401	Special Nut	Out of stock	£2.52 £2.10
75	CO26800612501	Bolt	Out of stock	£2.52 £2.10
76	CO26300210602	Squareness Washer	Out of stock	£2.52 £2.10
77	CO26900209101	Blade Support Bush	Out of stock	£2.52 £2.10
78	CO25299700101	Down Wind Sleeve	Out of stock	£12.56 £10.47
79	CO22900308101	Capacitance	Out of stock	£10.61 £8.84
80	CO25500100901	Motor Locking Bolt	Out of stock	£2.52 £2.10
81	CO26800801002	Tooth Locking Washer	Out of stock	£2.52 £2.10
82	CO27400202701	Induction Motor	Out of stock	£75.48 £62.90
83	CO25232700102	Motor Axis Fan	Out of stock	£4.60 £3.83
84	CO25262500101	Upper Wind Sleeve	Out of stock	£9.41 £7.84
85	CO25248900201	Right Inlet Board	Out of stock	£2.52 £2.10
86	CO23600148901	Motor Cover-Z1	Out of stock	£32.95 £27.46
87	CO25248900101	Left Inlet Board	Out of stock	£2.77 £2.31
88	CO26800200201	Tooth Screw	Out of stock	£1.26 £1.05
89	CO25263200101	Cover Board-Z1	Out of stock	£2.99 £2.49
90	CO25228400102	Connecting Wire Protecting Sheath2	Out of stock	£2.52 £2.10
91	CO26800600401	Bolt	Out of stock	£2.52 £2.10
92	CO25100108501	Curled Washer	Out of stock	£2.52 £2.10
93	CO25236500101	Knob Of Lower Handle Pole	Out of stock	£2.52 £2.10
94	CO26800502301	Hexagonal Nut	Out of stock	£1.26 £1.05
95	CO25100119902	Tube Plug	Out of stock	£2.52 £2.10
96	CO25261100101	Wire Clamp	Out of stock	£2.52 £2.10
97	CO25261000202	Lower Adjustment Gear	Out of stock	£2.52 £2.10
98	CO26800104902	Self-Driving Screw	Out of stock	£1.26 £1.05
99	CO26300151701	Lower Handle	Out of stock	£15.59 £12.99
100	CO26809004801	Column Pin	Out of stock	£2.52 £2.10
101	CO25236400101	Locking Handle	Out of stock	£2.52 £2.10
102	CO26300111901	Pressing Plate	Out of stock	£2.52 £2.10
103	CO26300130101	Locking Handle Bolt	Out of stock	£2.52 £2.10
104	CO25261000101	Upper Adjustment Gear	Out of stock	£2.52 £2.10
105	CO26800612002	Bolt	Out of stock	£2.52 £2.10
106	CO29100128301	Driving Cord Assy	Out of stock	£11.32 £9.43
107	CO25233600101	Cord Fixed Board	Out of stock	£2.52 £2.10
108	CO26800700801	Flat Washer	Out of stock	£2.52 £2.10
109	CO26800501602	Lid Nut	Out of stock	£2.52 £2.10
110	CO25232800102	Block Ring	Out of stock	£2.52 £2.10
111	CO25247900101	Rope Guide	Out of stock	£2.52 £2.10
112	CO2011100209A	Power Cord	Out of stock	£30.49 £25.41
113	CO25280300101	Cable Sheath	Out of stock	£2.52 £2.10
114	CO27100101001	Connecting Wire	Out of stock	£2.99 £2.49
115	CO25228300102	Connecting Wire Protecting Sheath1	Out of stock	£2.52 £2.10
116	CO25261800201	Right Switch Box	Out of stock	£3.24 £2.70
117	CO25262000101	Switch Button	Out of stock	£2.52 £2.10
118	CO26801107901	Conversion Plate Spring	Out of stock	£2.52 £2.10
119	CO25226300101	Pressing Board	Out of stock	£2.52 £2.10
120	CO27600100401	Arc Switch	Out of stock	£3.86 £3.22
121	CO25261800102	Left Switch Box	Out of stock	£3.74 £3.12
122	CO25261900101	Switch Box Pressing Board	Out of stock	£2.52 £2.10
123	CO25225700101	Left Handle Support	Out of stock	£2.52 £2.10
124	CO25265700101	Cable Connection Buckle	Out of stock	£2.52 £2.10
125	CO29100120702	Driven Cord Assy	Out of stock	£2.52 £2.10
126	CO25225700201	Right Handle Support	Out of stock	£2.52 £2.10
127	CO25262100201	Right Handle Plug-In	Out of stock	£2.52 £2.10
128	CO26801109301	Right Plug-In Spring	Out of stock	£2.52 £2.10
129	CO26800103602	Self-Driving Screw	Out of stock	£2.52 £2.10
130	CO25400104301	Light Lamp	Out of stock	£2.52 £2.10
131	CO28700900202	Indication Light	Out of stock	£2.52 £2.10
132	CO26800303101	Heteromorphosis Screw	Out of stock	£2.52 £2.10
133	CO26300168602	Upper Handle	Out of stock	£24.61 £20.51
134	CO26800102101	Self-Driving Screw	Out of stock	£2.52 £2.10
135	CO25262100101	Left Handle Plug-In	Out of stock	£2.52 £2.10
136	CO26801112401	Right Plug-In Spring	Out of stock	£2.52 £2.10
137	CO23600154501	Drive Pulling Rod	Out of stock	£5.96 £4.97
138	CO25600101801	Handle Sheath	Out of stock	£4.60 £3.83
139	CO26800104601	Self-Driving Screw	Out of stock	£1.26 £1.05
140	CO25239100101	Curl Washer	Out of stock	£2.52 £2.10
141	CO25262200201	Right Bracket Of Driving Pole	Out of stock	£2.52 £2.10
142	CO25263400201	Pull Rod Support Gasket	Out of stock	£2.52 £2.10
143	CO25287600101	Self-Driving Cord Board	In stock	£2.62 £2.18
144	CO25263400101	Cover Board Of Pulling Pole Support	Out of stock	£2.52 £2.10
145	CO25262200101	Left Bracket Of Driving Pole	Out of stock	£2.52 £2.10
146	CO26300171101	Driving Pole	Out of stock	£6.52 £5.43
147	CO25231700101	Locking Press Board	Out of stock	£2.52 £2.10
148	CO26801100501	Spring	Out of stock	£2.52 £2.10
149	CO25231600501	Wedge Locking Button	Out of stock	£2.52 £2.10
150	CO25232600101	Mulching Wedge	Out of stock	£10.19 £8.49
151	CO25275500201	Grass Catcher Handle	Out of stock	£2.52 £2.10
152	CO25275300101	Grass Catcher Cover	Out of stock	£19.32 £16.10
153	CO23000450701	Rear Cover Assy	Out of stock	£8.68 £7.23
154	CO26300195901	Grass Catcher Bracket	Out of stock	£18.25 £15.21
155	CO25275600501	Wind Window Board	Out of stock	£2.62 £2.18
156	CO26800103202	Self Driving Screw	Out of stock	£1.26 £1.05
157	CO25100137801	Grass Catcher	Out of stock	£21.97 £18.31
158	CO26300200901	Wrench	Out of stock	£2.82 £2.35
