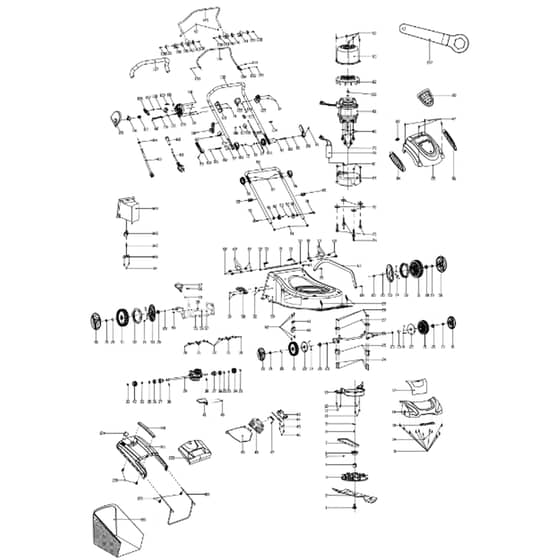

Cobra MX46SPE Rotary Mower Parts Diagram

	Part No.	Details
1	CO25500100802 Available to backorder	Blade Locking Bolt	£2.48 £2.07
2	CO26300248701 Available to backorder	Blade	£14.05 £11.71
3	CO25263300101 Available to backorder	Motor Centrifuge Cutter	£7.80 £6.50
4	CO26900203602 Available to backorder	Centrifuge Cutter Bush	£2.48 £2.07
5	CO26800300502 Available to backorder	Screw	£1.24 £1.03
6	CO2102300148A Available to backorder	Driving Belt Wheel	£5.59 £4.66
7	CO21026000029N Available to backorder	Triangle Belt	£9.91 £8.26
8	CO26809003701 Available to backorder	Flat Pin	£2.48 £2.07
9	CO26800901901 Available to backorder	Circlip For Shaft	£2.48 £2.07
10	CO26800500801 Available to backorder	Hexagon Locking Nut	£1.24 £1.03
11	CO26800103701 In stock	Self-Driving Screw	£1.28 £1.07
12	CO26800700701 Available to backorder	Flat Ring	£2.48 £2.07
13	CO25255800102 Available to backorder	Belt Protecting Cover	£7.80 £6.50
14	CO26800100501 In stock	Self-Driving Screw	£1.28 £1.07
15	CO25301700101 Available to backorder	Cover Handle	£2.48 £2.07
16	CO23600302101 Available to backorder	Head Cover	£11.83 £9.86
17	CO25301600101 Available to backorder	Cover Board	£2.52 £2.10
18	CO23600301901 Available to backorder	Wheel Cover	£2.48 £2.07
19	CO26800502801 Available to backorder	Hexagon Flange Locking Bolt	£1.24 £1.03
20	CO26800401601 In stock	Bearing	£4.30 £3.58
21	CO25400204001 Available to backorder	Wheel Assy	£14.26 £11.88
22	CO25287100101 Available to backorder	Dust-Proof Wheel Cover	£3.40 £2.83
23	CO26800706202 In stock	Wave Washer	£2.48 £2.07
24	CO26800611901 Available to backorder	Hexagon Flange Locking Bolt	£2.48 £2.07
25	CO25237600101 Available to backorder	Lower Support Of Axle	£2.48 £2.07
26	CO26300137401 Available to backorder	Front Wheel Axis Assy	£16.74 £13.95
27	CO25237600201 Available to backorder	Upper Support Of Axle	£2.48 £2.07
28	CO26800500501 Available to backorder	Hexagon Locking Bolt	£2.48 £2.07
29	CO26801111201 Available to backorder	Front Wheel Axis Spring	£2.48 £2.07
30	CO26800201901 Available to backorder	Tooth Screw	£1.24 £1.03
31	CO26300124401 In stock	Axle Fixing Ring	£2.58 £2.15
32	CO26800502401 Available to backorder	Bolt	£1.24 £1.03
33	CO26800900201 In stock	Open Block Ring	£2.58 £2.15
34	CO26900300103 In stock	Left Output Gear Assy	£7.50 £6.25
35	COA26800705901 Available to backorder	Flat Washer	£1.24 £1.03
36	CO26800402301 In stock	Bearing	£2.84 £2.37
37	CO26900203103 In stock	Bearing Sheath	£3.18 £2.65
38	CO26809000102 In stock	Column Pin	£2.58 £2.15
39	CO2102900011A Available to backorder	Variable Gear Box Assy	£52.69 £43.91
39	CO26801118001 Available to backorder	39A Gearbox Spring	£2.48 £2.07
40	CO26800611201 Available to backorder	Hexagon Flange Bolt	£2.48 £2.07
41	CO2102200065A Available to backorder	Positioned Board	£2.48 £2.07
42	CO26900300202 In stock	Right Output Gear Assy	£7.50 £6.25
43	CO26300218302 Available to backorder	Side-Discharge Fixing Board	£2.48 £2.07
44	CO26200101901 Available to backorder	Side-Discharge Fixing Shaft	£2.48 £2.07
45	CO26800800403 Available to backorder	Spring Washer	£2.48 £2.07
46	CO26800201501 Available to backorder	Tooth Screw	£2.48 £2.07
47	CO26801113002 Available to backorder	Spring Of Side Cover Board	£2.48 £2.07
48	CO25286500101 Available to backorder	Side-Discharge Cover Board	£5.74 £4.78
49	CO25238100102 Available to backorder	Side-Discharge Protecting Cover	£10.01 £8.34
50	CO21011001500006A Available to backorder	Wheel Cover	£7.34 £6.12
51	CO25400204101 Available to backorder	Wheel Assy	£23.57 £19.64
52	CO25229500101 In stock	Wheel Gear Ring	£6.84 £5.70
53	CO25208700105 Available to backorder	11"Dust-Proof Wheel Cover	£3.94 £3.28
54	CO26800203001 Available to backorder	Cross Pan Screw	£1.24 £1.03
55	CO26300137201 Available to backorder	Rear Wheel Axis Assy	£19.22 £16.02
56	CO26800900301 Available to backorder	E Clip	£2.48 £2.07
57	CO26300107601 Available to backorder	Adjusting Washer	£2.48 £2.07
58	CO23100106901 Available to backorder	Gearing Board	£2.98 £2.48
60	CO25226000101 Available to backorder	Line Pressing Board Bracket	£2.48 £2.07
61	CO25100102301 Available to backorder	Line Pressing Board	£2.48 £2.07
62	CO26800100302 Available to backorder	Self Driving Screw	£1.24 £1.03
63	CO26300137701 Available to backorder	Connecting Rod	£6.79 £5.66
64	CO25217800104 Available to backorder	Puling Cord Protecting Cover	£2.48 £2.07
65	CO26300139602 Available to backorder	Handle Assy	£3.43 £2.86
66	CO26800303301 Available to backorder	Sunk Screw	£1.24 £1.03
67	CO25400105401 Available to backorder	Height Adjusting Handle Assy	£3.95 £3.29
68	CO26800606401 Available to backorder	Hexagonal Flange Locking Nut	£2.48 £2.07
69	CO23600118701 Available to backorder	Right Handle Bracket	£4.99 £4.16
70	CO26801111301 Available to backorder	Right Knob Spring	£2.48 £2.07
71	CO26300136601 Available to backorder	Long Rod	£2.48 £2.07
72	CO26801111401 Available to backorder	Left Knob Spring	£2.48 £2.07
73	CO23600118601 Available to backorder	Left Handle Bracket	£4.99 £4.16
74	CO26800304401 Available to backorder	Special Nut	£2.48 £2.07
75	CO26800612501 Available to backorder	Bolt	£2.48 £2.07
76	CO26300210602 Available to backorder	Squareness Washer	£2.48 £2.07
77	CO25299700101 Available to backorder	Down Wind Sleeve	£12.37 £10.31
78	CO22900308101 Available to backorder	Capacitance	£10.45 £8.71
79	CO25500100901 Available to backorder	Motor Locking Bolt	£2.48 £2.07
80	CO26800801002 Available to backorder	Tooth Locking Washer	£2.48 £2.07
81	CO27400202701 Available to backorder	Induction Motor	£74.88 £62.40
82	CO25232700102 Available to backorder	Motor Axis Fan	£4.54 £3.78
83	CO25262500101 Available to backorder	Upper Wind Sleeve	£9.26 £7.72
84	CO25248900201 Available to backorder	Right Inlet Board	£2.48 £2.07
85	CO23600148901 Available to backorder	Motor Cover-Z1	£32.46 £27.05
86	CO25248900101 Available to backorder	Left Inlet Board	£2.74 £2.28
87	CO26800200201 Available to backorder	Tooth Screw	£1.24 £1.03
88	CO25263200101 Available to backorder	Cover Board-Z1	£2.94 £2.45
89	CO25228400102 Available to backorder	Connecting Wire Protecting Sheath2	£2.48 £2.07
90	CO26800600401 Available to backorder	Bolt	£2.48 £2.07
91	CO25100108501 Available to backorder	Curled Washer	£2.48 £2.07
92	CO25236500101 Available to backorder	Knob Of Lower Handle Pole	£2.48 £2.07
93	CO26800502301 In stock	Hexagonal Nut	£1.28 £1.07
94	CO25100119902 Available to backorder	Tube Plug	£2.48 £2.07
95	CO25261100101 Available to backorder	Wire Clamp	£2.48 £2.07
96	CO25261000202 Available to backorder	Lower Adjustment Gear	£2.48 £2.07
97	CO26800104902 Available to backorder	Self-Driving Screw	£1.24 £1.03
98	CO26300151701 Available to backorder	Lower Handle	£15.35 £12.79
99	CO26809004801 Available to backorder	Column Pin	£2.48 £2.07
100	CO25236400101 Available to backorder	Locking Handle	£2.48 £2.07
101	CO26300111901 Available to backorder	Pressing Plate	£2.48 £2.07
102	CO26300130101 Available to backorder	Locking Handle Bolt	£2.48 £2.07
103	CO25261000101 Available to backorder	Upper Adjustment Gear	£2.48 £2.07
104	CO26800612002 Available to backorder	Bolt	£2.48 £2.07
105	CO29100128301 In stock	Driving Cord Assy	£11.56 £9.63
106	CO25233600101 In stock	Cord Fixed Board	£2.58 £2.15
107	CO26800700801 In stock	Flat Washer	£1.28 £1.07
108	COA26800501603 Available to backorder	Lid Nut	£1.24 £1.03
109	CO25232800102 Available to backorder	Block Ring	£2.48 £2.07
110	CO25247900101 Available to backorder	Rope Guide	£2.48 £2.07
111	CO2011100209A Available to backorder	Power Cord	£30.04 £25.03
112	CO25280300101 Available to backorder	Cable Sheath	£2.48 £2.07
113	CO27100101001 Available to backorder	Connecting Wire	£2.94 £2.45
114	CO25228300102 Available to backorder	Connecting Wire Protecting Sheath1	£2.48 £2.07
115	CO25261800201 Available to backorder	Right Switch Box	£3.19 £2.66
116	CO25262000101 Available to backorder	Switch Button	£2.48 £2.07
117	CO26801107901 Available to backorder	Conversion Plate Spring	£2.48 £2.07
118	CO25226300101 Available to backorder	Pressing Board	£2.48 £2.07
119	CO27600100401 Available to backorder	Arc Switch	£3.80 £3.17
120	CO25261800102 Available to backorder	Left Switch Box	£3.68 £3.07
121	CO25261900101 Available to backorder	Switch Box Pressing Board	£2.48 £2.07
122	CO25225700102 Available to backorder	Left Handle Support	£2.48 £2.07
123	CO25265700101 Available to backorder	Cable Connection Buckle	£2.48 £2.07
124	CO29100120702 Available to backorder	Driven Cord Assy	£2.48 £2.07
125	CO25225700201 Available to backorder	Right Handle Support	£2.48 £2.07
126	CO25262100201 Available to backorder	Right Handle Plug-In	£2.48 £2.07
127	CO26801109301 Available to backorder	Right Plug-In Spring	£2.48 £2.07
128	CO26800103602 Available to backorder	Self-Driving Screw	£2.48 £2.07
129	CO25400104301 Available to backorder	Light Lamp	£2.48 £2.07
130	CO28700900202 Available to backorder	Indication Light	£2.48 £2.07
131	CO26800303101 Available to backorder	Heteromorphosis Screw	£2.48 £2.07
132	CO26300168602 Available to backorder	Upper Handle	£24.25 £20.21
133	CO26800102101 Available to backorder	Self-Driving Screw	£2.48 £2.07
134	CO25262100101 Available to backorder	Left Handle Plug-In	£2.48 £2.07
135	CO2106800003B Available to backorder	Right Plug-In Spring	£1.24 £1.03
136	CO23600154501 Available to backorder	Drive Pulling Rod	£5.88 £4.90
137	CO25600101801 Available to backorder	Handle Sheath	£4.54 £3.78
138	CO26800104601 In stock	Self-Driving Screw	£1.28 £1.07
139	CO25239100101 Available to backorder	Curl Washer	£2.48 £2.07
140	CO25262200201 Available to backorder	Right Bracket Of Driving Pole	£2.48 £2.07
141	CO25263400201 Available to backorder	Pull Rod Support Gasket	£2.48 £2.07
142	CO25287600101 In stock	Self-Driving Cord Board	£2.58 £2.15
143	CO25263400101 Available to backorder	Cover Board Of Pulling Pole Support	£2.48 £2.07
144	CO25262200101 Available to backorder	Left Bracket Of Driving Pole	£2.48 £2.07
145	CO26300171101 Available to backorder	Driving Pole	£6.41 £5.34
146	CO25231700101 Available to backorder	Locking Press Board	£2.48 £2.07
147	CO26801100501 Available to backorder	Spring	£2.48 £2.07
148	CO25231600501 Available to backorder	Wedge Locking Button	£2.48 £2.07
149	CO25232600101 Available to backorder	Mulching Wedge	£10.03 £8.36
150	CO25275500201 In stock	Grass Catcher Handle	£2.58 £2.15
151	CO25275300101 Available to backorder	Grass Catcher Cover	£19.03 £15.86
152	CO23000450701 Available to backorder	Rear Cover Assy	£8.54 £7.12
153	CO26300195901 Available to backorder	Grass Catcher Bracket	£17.98 £14.98
154	CO21071000080108A In stock	Wind Window Board	£2.58 £2.15
155	CO26800103202 In stock	Self Driving Screw	£1.28 £1.07
156	CO25100137801 Available to backorder	Grass Catcher	£27.62 £23.02
157	CO26300200901 Available to backorder	Wrench	£2.77 £2.31
158	CO2109300116A Available to backorder	Spacer Bush	£1.24 £1.03
