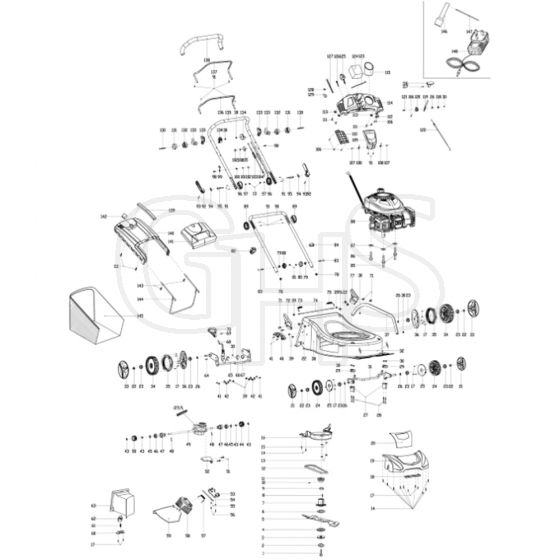

Cobra MX46SPCE Rotary Mower Parts Diagram

	Part No.	Details
1	CO26800602301 Available to backorder	Blade Bolt	£2.48 £2.07
2	CO26300107302 In stock	Dishing Washer	£2.58 £2.15
3	CO26900205001 Available to backorder	Pressing Board Of Blade Support	£2.48 £2.07
4	CO25271600102 Available to backorder	Upper Pressing Plate Of Blade	£2.48 £2.07
5	CO26300248801 Available to backorder	Blade	£19.84 £16.53
6	CO25271700102 Available to backorder	Lower Pressing Plate Of Blade	£2.48 £2.07
7	CO26900208701 Available to backorder	Blade Support	£8.66 £7.22
8	CO26809000201 In stock	Flat Pin	£2.58 £2.15
9	CO25231800101 Available to backorder	Blade Support Bush	£2.48 £2.07
10	CO26800300502 Available to backorder	Screw	£1.24 £1.03
11	CO26300400202 Available to backorder	Driving Belt Wheel	£6.29 £5.24
12	CO25100205501 In stock	Triangle Belt	£10.27 £8.56
13	CO26800500801 Available to backorder	Locking Nut	£1.24 £1.03
14	CO26800103701 In stock	Self-Driving Screw	£1.28 £1.07
15	CO26800700701 Available to backorder	Flat Washer	£2.48 £2.07
16	CO25255800102 Available to backorder	Belt Protecting Cover	£7.80 £6.50
17	CO26800100501 In stock	Self-Driving Screw	£1.28 £1.07
18	CO25301700101 Available to backorder	Cover Handle	£2.48 £2.07
19	CO23600302101 Available to backorder	Head Cover	£11.83 £9.86
20	CO25301600101 Available to backorder	Cover Board	£2.52 £2.10
21	CO23600301901 Available to backorder	Wheel Cover	£2.48 £2.07
22	CO26800502801 Available to backorder	Bolt	£1.24 £1.03
23	CO26800401601 In stock	Bearing	£4.30 £3.58
24	CO25400204001 Available to backorder	Wheel Assy	£14.26 £11.88
25	CO25287100101 Available to backorder	Dust-Proof Wheel Cover	£3.40 £2.83
26	CO26800706202 In stock	Wave Washer	£2.48 £2.07
27	CO25237600101 Available to backorder	Lower Support Of Axle	£2.48 £2.07
28	CO26800611901 Available to backorder	Hexagon Flange Locking Bolt	£2.48 £2.07
29	CO25237600201 Available to backorder	Upper Support Of Axle	£2.48 £2.07
30	CO26800500501 Available to backorder	Hexagon Locking Nut	£2.48 £2.07
31	CO26300137401 Available to backorder	Front Wheel Axis Assy	£16.74 £13.95
32	CO26801111201 Available to backorder	Front Wheel Axis Spring	£2.48 £2.07
33	CO21011001500006A Available to backorder	Wheel Cover -13	£7.34 £6.12
34	CO25400204101 Available to backorder	Wheel Assy	£23.57 £19.64
35	CO25229500101 In stock	Wheel Gear Ring	£6.84 £5.70
36	CO25208700105 Available to backorder	11"Dust-Proof Wheel Cover	£3.94 £3.28
37	CO26300137701 Available to backorder	Connecting Rod	£6.79 £5.66
39	CO26800502401 Available to backorder	Hexagon Flange Locking Bolt	£1.24 £1.03
40	CO23100106901 Available to backorder	Gearing Board	£2.98 £2.48
41	CO26800201901 Available to backorder	Tooth Screw	£1.24 £1.03
42	CO26300124401 In stock	Axle Fixing Ring	£2.58 £2.15
43	CO26800900201 In stock	Open Block Ring	£2.58 £2.15
44	CO26900300103 In stock	Left Output Gear Assy	£7.50 £6.25
45	CO26800705102 In stock	Flat Washer	£2.58 £2.15
46	CO26800402301 In stock	Bearing	£2.84 £2.37
47	CO26900203103 In stock	Bearing Sheath	£3.18 £2.65
48	CO26809000102 In stock	Column Pin	£2.58 £2.15
49	CO2100200173 Available to backorder	49A Gearbox Spring	£2.48 £2.07
49	CO23050203201 In stock	Variable Gear Box Assy	£65.56 £54.63
50	CO26900300202 In stock	Right Output Gear Assy	£7.50 £6.25
51	CO26800611201 Available to backorder	Hexagon Flange Locking Bolt	£2.48 £2.07
52	CO26300257701 Available to backorder	Positioned Board	£2.48 £2.07
53	CO26300218303 Available to backorder	Side-Discharge Fixing Board	£2.48 £2.07
54	CO26200101901 Available to backorder	Side-Discharge Fixing Shaft	£2.48 £2.07
55	CO26800800402 Available to backorder	Spring Washer	£2.48 £2.07
56	CO26800201501 Available to backorder	Tooth Screw	£2.48 £2.07
57	CO26801113002 Available to backorder	Spring Of Side Cover Board	£2.48 £2.07
58	CO25286500101 Available to backorder	Side-Discharge Cover Board	£5.74 £4.78
59	CO25238100102 Available to backorder	Side-Discharge Protecting Cover	£10.01 £8.34
60	CO25231700101 Available to backorder	Pressing Board Of Locking Button	£2.48 £2.07
61	CO26801100501 Available to backorder	Spring	£2.48 £2.07
62	CO25231601801 Available to backorder	Locking Knob	£2.48 £2.07
63	CO25232600101 Available to backorder	Mulching Plug-In	£10.03 £8.36
64	CO26800203001 Available to backorder	Cross Pan Screw	£1.24 £1.03
65	CO26300137201 Available to backorder	Rear Wheel Axis Assy	£19.22 £16.02
66	CO26800900301 Available to backorder	E Clip	£2.48 £2.07
67	CO26300107601 Available to backorder	Adjustment Washer	£2.48 £2.07
68	CO26300139602 Available to backorder	Handle Assy	£3.43 £2.86
69	CO26800303301 Available to backorder	Sunk Screw	£1.24 £1.03
70	CO25400108401 Available to backorder	Height Adjustment Handle	£3.95 £3.29
71	CO26800606401 Available to backorder	Hexagon Flange Locking Bolt	£2.48 £2.07
72	CO23601010801 Available to backorder	Right Handle Bracket	£4.99 £4.16
73	CO26801111301 Available to backorder	Spring Of Right Knob	£2.48 £2.07
74	CO26300136601 Available to backorder	Long Rod	£2.48 £2.07
75	CO26801111401 Available to backorder	Spring Of Left Knob	£2.48 £2.07
76	CO25217800104 Available to backorder	Cord Protceting Sheath	£2.48 £2.07
77	CO23601010701 Available to backorder	Left Handle Blacket	£4.99 £4.16
78	CO25100119902 Available to backorder	Plug	£2.48 £2.07
79	CO25100108501 Available to backorder	Curl Washer	£2.48 £2.07
80	CO25236501801 Available to backorder	Knob Of Lower Handle Pole	£2.48 £2.07
81	CO26800502301 In stock	Hexagon Nut	£1.28 £1.07
82	CO25281000101 Available to backorder	Wire Clamp	£2.48 £2.07
83	CO26800600401 Available to backorder	Bolt	£2.48 £2.07
84	CO25261100101 Available to backorder	Wire Clamp	£2.48 £2.07
84	CO2050100157C Available to backorder	Motor	£50.80 £42.33
86	CO26800601701 Available to backorder	Hexagon Bolt	£2.48 £2.07
87	CO26300210602 Available to backorder	Square Washer	£2.48 £2.07
89	CO25205500104 Available to backorder	Lower Adjuesting Gear Ring	£2.48 £2.07
90	CO26300138504 Available to backorder	Lower Handle Pole	£16.66 £13.88
91	CO26800104902 Available to backorder	Self-Driving Screw	£1.24 £1.03
92	CO25236401501 Available to backorder	Locking Handle	£2.48 £2.07
93	CO26809004801 Available to backorder	Column Pin	£2.48 £2.07
94	CO26300111901 Available to backorder	Pressing Plate	£2.48 £2.07
95	CO26300130101 Available to backorder	Locking Handle Bolt	£2.48 £2.07
96	CO25205400103 Available to backorder	Upper Adjusting Gear Ring	£2.48 £2.07
97	CO26300118902 Available to backorder	Flate Washer	£2.48 £2.07
98	CO26800607701 Available to backorder	Hexagon Flange Locking Bolt	£2.48 £2.07
99	CO26300168401 Available to backorder	Rope Guide	£2.48 £2.07
100	CO26800700801 In stock	Flate Washer	£1.28 £1.07
101	CO26800800303 Available to backorder	Spring Washer	£2.48 £2.07
102	CO26800501603 In stock	Lid Nut	£1.28 £1.07

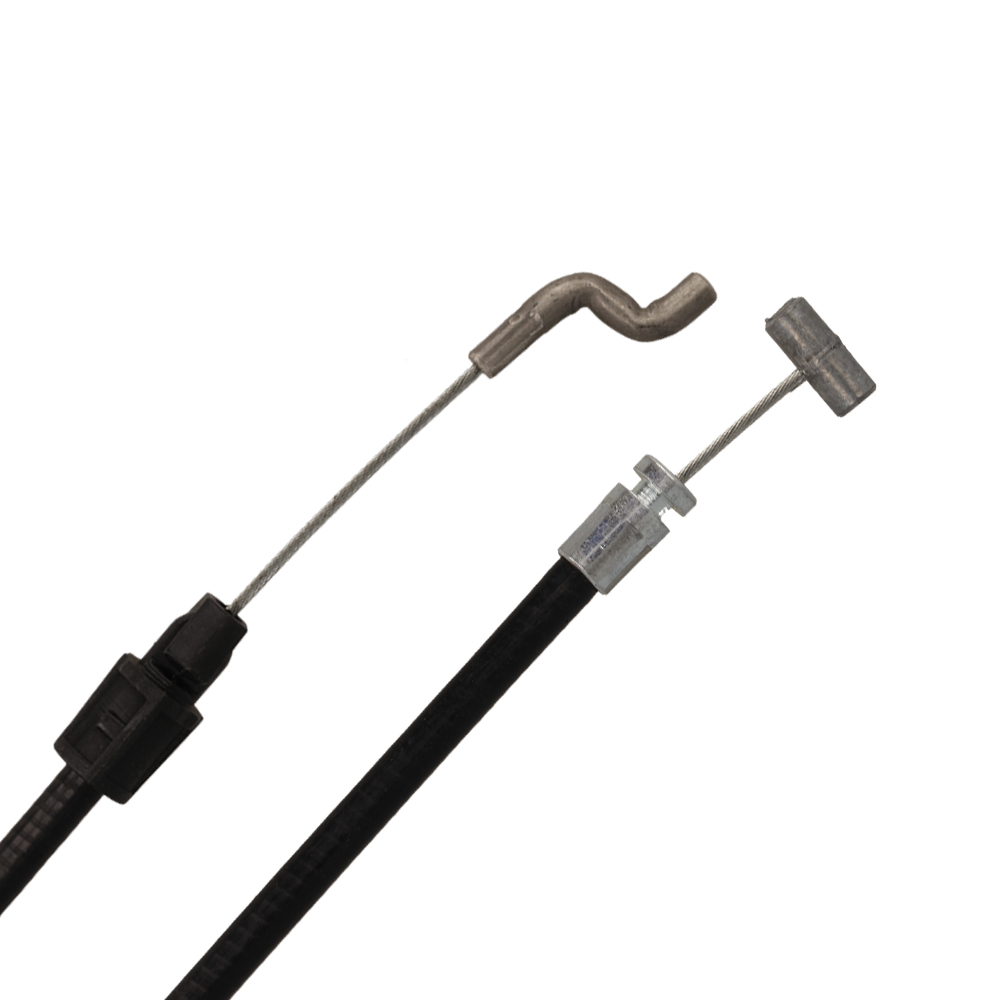

103	CO29100133301 Available to backorder	Flameout Cord Assy	£9.91 £8.26
104	CO29100126301 In stock	Driving Cord Assy	£12.84 £10.70
105	CO25233600101 In stock	Cord Fixing Board	£2.58 £2.15
106	CO26800105602 Available to backorder	Self Driving Screw	£2.48 £2.07
107	CO26809009001 Available to backorder	Positioned Pin	£2.48 £2.07
108	CO26801123701 Available to backorder	Flip Torsional Spring	£2.48 £2.07
109	CO25315000101 Available to backorder	Panel Cover	£2.48 £2.07
110	CO25322800101 Available to backorder	Cover Plate	£2.48 £2.07
111	CO26800104601 In stock	Self Driving Screw	£1.28 £1.07
112	CO26300139501 Available to backorder	Board	£2.48 £2.07
113	CO25239100101 Available to backorder	Curl Washer	£2.48 £2.07
114	CO25314900301 Available to backorder	Armrest Of Panel	£11.46 £9.55
115	CO25315100101 Available to backorder	Goblet	£2.48 £2.07
116	CO25239201501 Available to backorder	Gear Adjusting Handle	£2.48 £2.07
117	CO26800202501 Available to backorder	Tooth Screw	£1.24 £1.03
118	CO26800700301 Available to backorder	Big Washer	£2.48 £2.07
119	CO26300139301 Available to backorder	Choke Pulling Pole	£2.48 £2.07
120	CO25238700101 Available to backorder	Choke Gear Board	£2.48 £2.07
121	CO26800604501 Available to backorder	Hexagon Bolt	£2.48 £2.07
122	CO29100112801 Available to backorder	Choke Cord Assy	£11.15 £9.29
124	CO27500100901 In stock	Storage Battery	£37.72 £31.43
125	CO2100200336 In stock	Start Switch	£15.86 £13.22
125	CO25364800501 In stock	125A Start Button	£4.30 £3.58
126	CO22900201401 Available to backorder	Dc Outlet Assy	£2.48 £2.07
127	CO22900105301 Available to backorder	Inner Connecting Cable Assy	£12.23 £10.19
130	CO26800611401 Available to backorder	Inner Bolt	£2.48 £2.07
131	CO25239300101 Available to backorder	Outside Positioned Support	£2.48 £2.07
132	CO25239300201 Available to backorder	Inside Positioned Support	£2.48 £2.07
133	CO25287600101 In stock	Self-Propelled Cord Board	£2.58 £2.15
134	CO25239300302 Available to backorder	Cover Board Of Pulling Pole	£2.48 £2.07
135	CO23600191001 Available to backorder	Upper Handle Pole	£16.31 £13.59
136	CO23601011701 Available to backorder	Flameout Pulling Pole	£5.74 £4.78
137	CO26300139003 Available to backorder	Choke Pulling Pole	£5.74 £4.78
138	CO25600101903 Available to backorder	Handle Sheath	£4.54 £3.78
139	CO25275500201 In stock	Grass Catcher Handle	£2.58 £2.15
140	CO25275300101 Available to backorder	Grass Catcher Cover	£19.03 £15.86
141	CO23000441301 Available to backorder	Rear Cover Assy	£8.86 £7.38
142	CO21071000080108A In stock	Wind Window Board	£2.58 £2.15
143	CO26800103202 In stock	Self-Driving Screw	£1.28 £1.07
144	CO26300195901 Available to backorder	Grass Catcher Bracket	£17.98 £14.98
145	CO25100137841 Available to backorder	Grass Catcher	£27.62 £23.02
146	CO26300107801 Available to backorder	Wrench	£2.48 £2.07
147	CO26300107901 Available to backorder	Wrench Rod	£2.48 £2.07
148	CO27200101801 In stock	Charger	£19.78 £16.48
