Cobra MX46SPCE - 18" Self Propelled Engine Diagram

Description

Cobra MX46SPCE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800607601 Available to backorder	Bolt M6*30	£2.52 £2.10
2	CO26800702501 Available to backorder	Wave Washer Φ6	£2.52 £2.10
3	CO26300210102 Available to backorder	Dualhole Press Plate	£2.52 £2.10
4	CO26800604101 Available to backorder	Bolt M6*12	£2.52 £2.10
5	CO25100121601 Available to backorder	Slide Sheath	£2.52 £2.10
6	CO26800703201 Available to backorder	Slat Washer6 Φ6Xφ15X05	£2.52 £2.10
7	CO26900104402 Available to backorder	Speed Adjustment Gear Shaft	£2.52 £2.10
8	CO23057001301 Available to backorder	Speed Adjustment Gear Assy	£3.84 £3.20
9	CO26800702101 Available to backorder	Slat Washer	£2.52 £2.10
10	CO23055000401 Available to backorder	Camshaft Assy	£9.41 £7.84
11	CO26900102301 Available to backorder	Column	£2.52 £2.10
12	CO26809001601 Available to backorder	Position Fixed Pin	£2.52 £2.10
13	CO25236000101 Available to backorder	Oil Scaleplate	£3.64 £3.03
14	CO26800608201 Available to backorder	Bolt M6*50	£2.52 £2.10
15	CO25100134501 Available to backorder	O Type Ring 25X29	£2.52 £2.10
16	CO25236100101 Available to backorder	Oil Level Gauge Support	£2.52 £2.10
17	CO25100202201 Available to backorder	Sheath	£2.52 £2.10
18	CO25100123202 Available to backorder	O Type Ring 20X24	£2.40 £2.00
19	CO23053000601 Available to backorder	Bent Axis Assy	£42.31 £35.26
20	CO23054000301 Available to backorder	Connecting Rod Assy	£14.54 £12.12
21	CO26900102201 Available to backorder	Piston Pin	£2.88 £2.40
22	CO26900102101 Available to backorder	Snap Ring Of Piston Pin	£2.52 £2.10
24	CO23054000801 Available to backorder	Piston Pin	£10.30 £8.58
25	CO26900103201 Available to backorder	Sheath 1	£2.52 £2.10
26	CO26900103301 Available to backorder	Sheath 2	£2.52 £2.10
27	CO26801102601 Available to backorder	Speed Adjustment Spring	£2.40 £2.00
28	CO23057001602 Available to backorder	Speed Adjustment Assy	£8.54 £7.12
29	CO26800607701 Available to backorder	Flange Bolt M6X35	£2.62 £2.18
30	CO25600100401 Available to backorder	Sealing Washer	£6.52 £5.43
32	CO25100123602 Available to backorder	Oil Sealer Fb25X37X7	£6.05 £5.04
33	CO26300225901 Available to backorder	Purge Cock Washer	£2.52 £2.10
34	CO26300205601 Available to backorder	Purge Cock	£2.52 £2.10
35	CO26800607801 Available to backorder	Flange Bolt	£2.52 £2.10
36	CO26800501901 Available to backorder	Flange Nut	£1.44 £1.20
37	CO23057000901 Available to backorder	Speed Adjustment Rocker	£2.52 £2.10
38	CO26800301101 Available to backorder	Speed Adjustment Screw	£2.52 £2.10
39	CO26900103401 Available to backorder	Spring Open Pin	£2.52 £2.10
40	CO25100123501 Available to backorder	Oil Sealer 6X11X4	£2.52 £2.10
41	CO26900103001 Available to backorder	Speed Adjustment Swing Pole	£2.52 £2.10
42	CO25100135002 Available to backorder	Aeration Pipe	£2.52 £2.10
43	CO26800703001 Available to backorder	Washer Sheath	£2.52 £2.10
44	CO25100163001 Available to backorder	Bellows	£2.52 £2.10
47	CO27100115801 Available to backorder	Start Control Cable	£2.52 £2.10
48	CO25100168301 Available to backorder	Drivepipe	£2.52 £2.10
50	CO28700100101 In stock	Relay	£11.38 £9.48
51	CO27100115901 Available to backorder	Connecting Cable	£2.88 £2.40

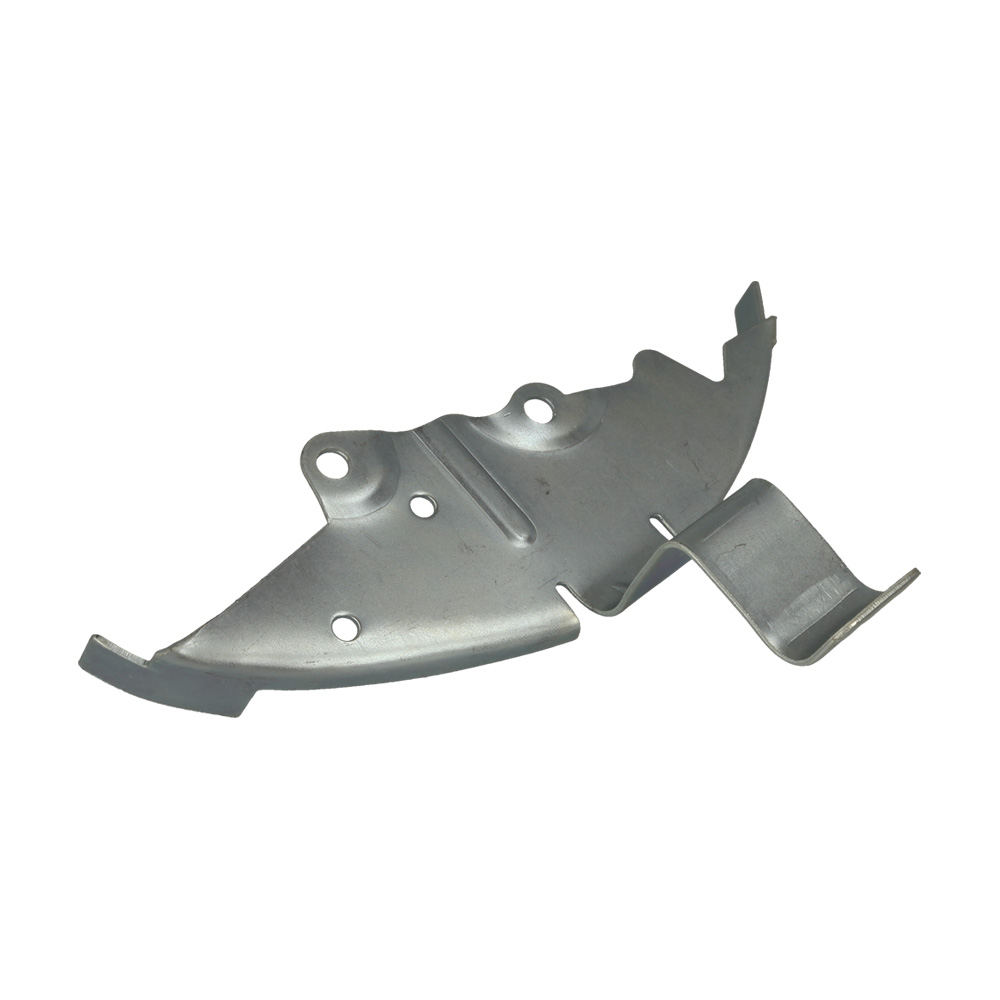

53	CO26300215502 Available to backorder	Oil Crank Bracket	£6.36 £5.30
54	CO26300215301 In stock	Left Gasoline Tank Bracket	£2.40 £2.00
55	CO26300215401 Available to backorder	Right Gasoline Tank Bracket	£2.40 £2.00
56	CO25800100404 In stock	Gasoline Tank	£15.72 £13.10
57	CO25100134803 In stock	Oil Innet Pipe	£5.98 £4.98
58	CO26900102701 Available to backorder	Oil Pipe Clip B	£2.52 £2.10
59	CO26300206401 Available to backorder	Oil Pipe Clip	£2.52 £2.10
60	CO26900102601 Available to backorder	Oil Pipe Clip A	£2.40 £2.00
61	CO25100131401 In stock	Oilburing Filter Net	£2.40 £2.00
62	CO26800608301 Available to backorder	Flange Bolt	£2.52 £2.10
63	CO25100124501 In stock	Tank Cover Sealing Washer	£2.40 £2.00
64	CO25100122702 Available to backorder	Tank Cover	£4.20 £3.50
65	CO26900102001 Available to backorder	Filter Net	£2.52 £2.10
66	CO25100112601 Available to backorder	Breathing Vavle Plate	£2.52 £2.10
67	CO25100123901 Available to backorder	Breathing Sealing Washer	£2.52 £2.10
68	CO23052000501 Available to backorder	Breathing Cover Assy	£2.52 £2.10
69	CO26800400201 Available to backorder	Rolling Bearing 6205 E Grade	£7.10 £5.92
71	CO23061001701 Available to backorder	Cast Iron Flying Wheel Assy	£31.21 £26.01
72	CO25100121901 Available to backorder	Fan	£8.32 £6.93
73	CO26900103701 Available to backorder	Passive Tray	£4.68 £3.90
74	CO26800502701 Available to backorder	Nut	£2.52 £2.10
75	CO26900103601 Available to backorder	Starting Shell Sheath	£2.52 £2.10

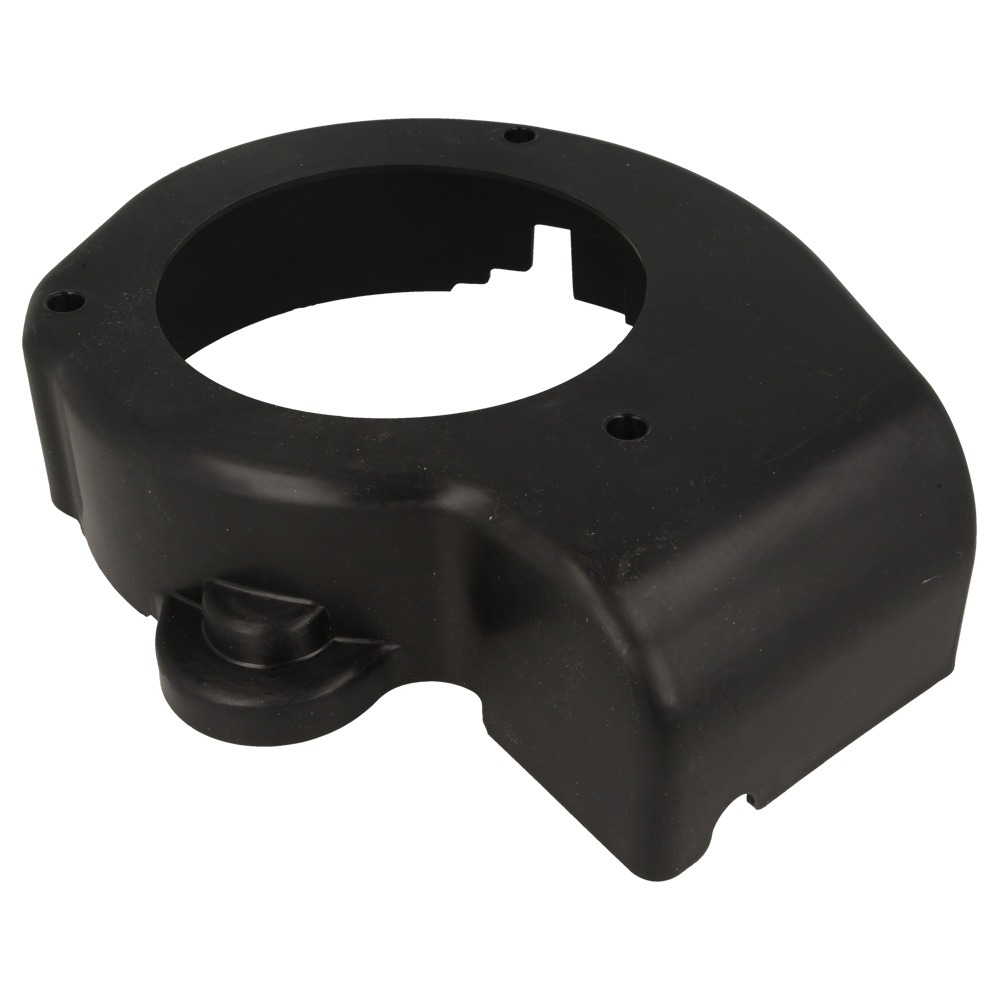

76	CO25311000101 Available to backorder	Wind-Guiding Cover	£10.36 £8.63
77	CO23052002801 In stock	Starter Assey	£23.40 £19.50
78	CO26800502201 Available to backorder	Nut M6	£2.52 £2.10
79	CO23600306401 Available to backorder	3# Cover	£13.58 £11.32
81	CO26800501603 Available to backorder	Lid Shape Nut	£1.20 £1.00
82	CO26800312901 Available to backorder	Inner Hexagon Nut	£2.52 £2.10
83	CO25310400101 Available to backorder	Motor Cover	£2.52 £2.10
84	CO27400400101 Available to backorder	Motor	£54.24 £45.20
85	CO22900104701 Available to backorder	Inner Connecting Cable Assy	£4.31 £3.59

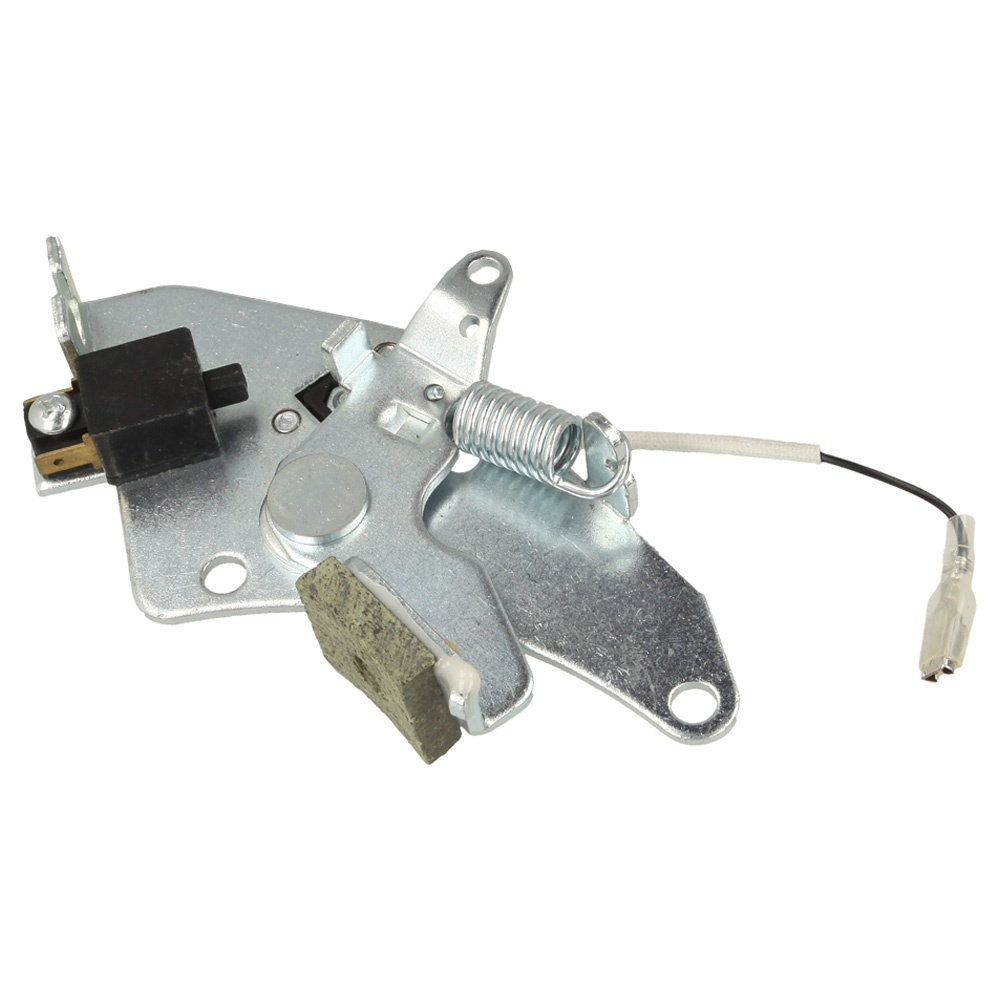

87	CO23058002601 Available to backorder	Brake Controller Assey	£8.98 £7.48
89	CO26800603701 Available to backorder	Flange Bolt	£2.52 £2.10
90	CO23062000201 In stock	Ignation Assey	£20.04 £16.70
91	4547 In stock	Spark	£1.74 £1.45
93	CO26300206101 Available to backorder	Air Outlet	£5.88 £4.90
95	CO26300206001 Available to backorder	Air Inlet	£5.88 £4.90
96	CO26809001501 Available to backorder	Pisition Fixed Pin	£2.52 £2.10
97	CO25600100201 Available to backorder	Cylinder Head Sealing Washer	£7.08 £5.90
99	CO25600100101 Available to backorder	Muffler Sealing Washer	£4.14 £3.45
100	CO23060002701 Available to backorder	Air Discharge And Muffler Assey	£18.25 £15.21
101	CO25100130601 Available to backorder	Muffler Heat Insulation Washer	£2.52 £2.10
102	CO26300273901 Available to backorder	Muffler Sheath Assey	£11.74 £9.78
103	CO26800502401 Available to backorder	Flange Nut	£1.26 £1.05
106	CO26300207401 Available to backorder	Oil Block Sheath	£2.52 £2.10
107	CO26801103101 Available to backorder	Valve Spring	£2.62 £2.18
108	CO26900102401 Available to backorder	Airinnet Spring Seat	£2.52 £2.10
109	CO26900102501 Available to backorder	Airoutlet Spring Seat	£2.52 £2.10
110	CO26400100801 Available to backorder	Top Cat	£2.52 £2.10
111	CO23055000501 Available to backorder	Pushing Rod Assey	£2.52 £2.10
112	CO26300206301 Available to backorder	Pushing Rod Guidebar	£9.43 £7.86
113	CO26800605401 Available to backorder	Adjustment Bolt	£2.52 £2.10
114	CO26300225701 Available to backorder	Valve Spring Rocker	£2.52 £2.10
115	CO26800502501 Available to backorder	Adjustment Nut	£2.52 £2.10
116	CO26800502601 Available to backorder	Locking Nut	£2.52 £2.10
117	CO25100123701 Available to backorder	Cylinder Head Cover Sealing Washer	£2.40 £2.00
118	CO26300207001 Available to backorder	Cylinder Cover	£2.99 £2.49
120	CO26801102901 Available to backorder	Accelerograph Spring	£2.40 £2.00
121	CO26900102801 Available to backorder	Valve Rod	£2.52 £2.10
122	CO26900108701 Available to backorder	Valve Pushing Pole	£2.52 £2.10
123	CO25100122901 Available to backorder	Cylinder Head And Air Innet Pipe Sealing Washer	£2.40 £2.00
124	CO25100121201 Available to backorder	Air Innet Pipe	£2.40 £2.00
125	CO25100124201 In stock	Airinnet Pipe And Carburetor Sealing Washer	£2.40 £2.00
126	CO23056000901 In stock	Carburetor Assey	£32.98 £27.48
127	CO25600100301 Available to backorder	Empty Filter Sealing Washer	£2.40 £2.00
128	CO26809003101 Available to backorder	Spacer	£2.62 £2.18
129	CO25228700101 Available to backorder	Air Filter Base	£7.78 £6.48
130	CO25228800101 Available to backorder	Air Filter Inner Cover	£2.52 £2.10
131	CO25100134901 In stock	Filter Core Assy	£5.04 £4.20
132	CO25228600101 In stock	Air Filter Upper Cover	£5.40 £4.50
