Cobra MX46S40V - Lawn Mower Main Diagram

Name: Cobra MX46S40V - Lawn Mower Main Diagram
SKU: mx46s40v_lawn_mower_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra MX46S40V - Lawn Mower Main Diagram

Description

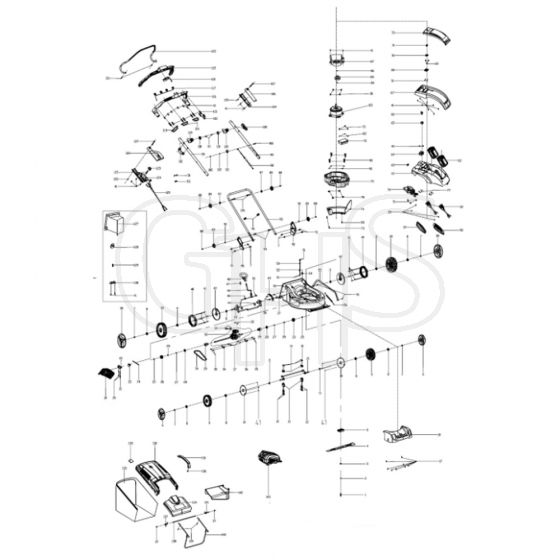

Cobra MX46S40V Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800601701 Available to backorder	Bolt	£2.40 £2.00
2	CO26800800202 Available to backorder	Washer	£2.52 £2.10
3	CO26800700201 Available to backorder	Washer	£2.52 £2.10

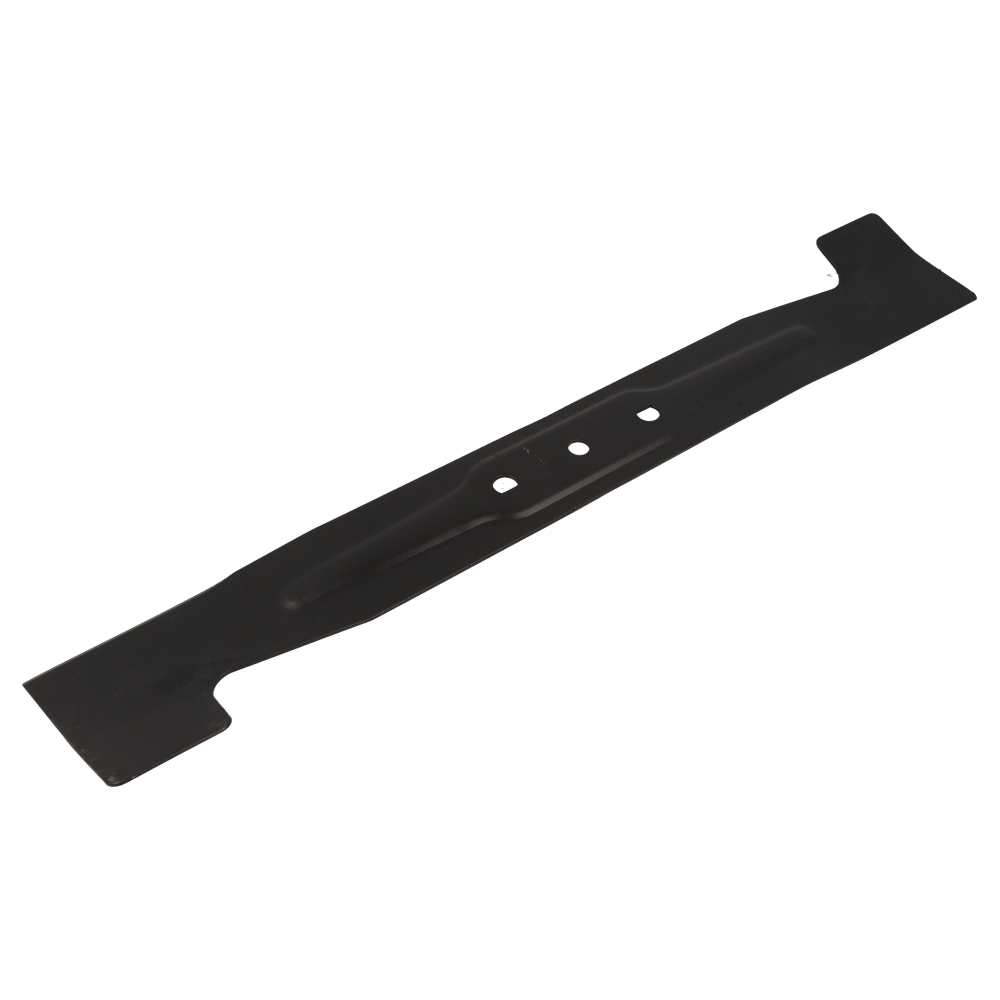

4	CO26300295101 Available to backorder	Blade	£17.86 £14.88
5	CO25296000101 Available to backorder	Blade Support	£2.52 £2.10
6	CO23600301901 Available to backorder	Wheel Cover	£2.52 £2.10
7	CO26800502801 Available to backorder	Nut	£1.44 £1.20
8	CO26800401601 Available to backorder	Bearing	£4.00 £3.33
9	CO25400204001 Available to backorder	Wheel Assy	£14.47 £12.06
10	CO25287100101 Available to backorder	Dustproof Wheel Cover	£3.44 £2.87
11	CO26800706202 Available to backorder	Washer	£2.52 £2.10
12	CO26800611901 Available to backorder	Bolt	£2.52 £2.10
15	CO26300290101 Available to backorder	Front Wheel Axle Assy	£12.40 £10.33
16	CO26800500501 Available to backorder	Nut	£2.40 £2.00
19	CO25286500101 Available to backorder	Side Discharge Cover	£5.82 £4.85
20	CO26800201501 Available to backorder	Screw	£2.40 £2.00
21	CO26800800402 Available to backorder	Washer	£2.40 £2.00
22	CO26300218303 Available to backorder	Fixed Board For Side Discharge	£2.40 £2.00
23	CO26801113002 Available to backorder	Spring For Side Discharge Cover	£2.62 £2.18
24	CO26200101901 Available to backorder	Fixed Axle For Side Discharge	£2.40 £2.00
25	CO26800900201 Available to backorder	Split Washer	£2.40 £2.00
26	CO26900300202 In stock	Right Output Gear Assy	£7.00 £5.83
27	CO26809000102 In stock	Round Pin	£2.40 £2.00
28	CO26800402301 Available to backorder	Bearing	£2.64 £2.20
30	CO23050204901 Available to backorder	Gearbox	£47.09 £39.24
31	CO26300257701 Available to backorder	Guide Plate	£2.62 £2.18
32	CO26800611201 Available to backorder	Bolt	£2.62 £2.18
33	CO26900300103 In stock	Left Output Gear Assy	£7.00 £5.83
34	CO25100201902 Available to backorder	Triangle Belt	£3.34 £2.78
35	CO26800201901 Available to backorder	Screw	£1.20 £1.00
36	CO26300124401 In stock	Fixed Ring	£2.40 £2.00
37	CO26800502401 Available to backorder	Nut	£1.26 £1.05
38	CO23600302001 Available to backorder	Wheel Cover	£5.32 £4.43
39	CO25400204101 Available to backorder	Wheel Assy	£23.92 £19.93
40	CO25229500101 Available to backorder	Gear Ring	£6.38 £5.32
41	CO26800100501 Available to backorder	Screw	£1.26 £1.05
42	CO25208700105 Available to backorder	11" Dustproof Wheel Cover	£4.00 £3.33
43	CO26300289901 Available to backorder	Rear Wheel Axle Assy	£14.87 £12.39
45	CO26800203001 Available to backorder	Screw	£1.26 £1.05
46	CO25400108401 Available to backorder	Adjustment Handle Assy	£4.01 £3.34
47	CO26800303301 Available to backorder	Screw	£1.26 £1.05
48	CO26300314501 Available to backorder	Handle Assy	£2.52 £2.10
51	CO26800100302 Available to backorder	Screw	£1.44 £1.20
52	CO25226000101 Available to backorder	Tension Disc Support	£2.52 £2.10
54	CO25217800104 Available to backorder	Cable Jacket	£2.52 £2.10
55	CO26300290201 Available to backorder	Connection Rod	£9.20 £7.67
56	CO26801103903 Available to backorder	Spring	£2.52 £2.10
57	CO25248900201 Available to backorder	Right Air Inlet Board	£2.52 £2.10
58	CO25248900101 Available to backorder	Left Air Inlet Board	£2.77 £2.31
62	CO25228400102 Available to backorder	Collection Line Jacket	£2.52 £2.10
63	CO40V4AHLI Available to backorder	Battery	£165.96 £138.30
65	CO27600103501 Available to backorder	Key Switch	£6.86 £5.72
66	CO25328300201 Available to backorder	Key	£2.52 £2.10
68	CO25338500101 Available to backorder	Button Base	£2.52 £2.10
69	CO26801100301 Available to backorder	Spring	£2.52 £2.10
70	CO25338400101 Available to backorder	Button Sliding Block	£2.52 £2.10
71	CO25338300301 Available to backorder	Button	£2.52 £2.10
72	CO25337700101 Available to backorder	Battery Upper Cover	£9.10 £7.58
73	CO26800307801 Available to backorder	Screw	£1.26 £1.05
74	CO25338200101 Available to backorder	Belt Lower Protective Cover	£3.91 £3.26
75	CO23057002801 Available to backorder	Controller Assy	£58.02 £48.35
77	CO26801128501 Available to backorder	Spring	£2.52 £2.10
78	CO26800500801 Available to backorder	Nut	£1.26 £1.05
82	CO26800701201 Available to backorder	Washer	£2.52 £2.10
83	CO27400101701 Available to backorder	Motor	£68.04 £56.70
84	CO26809003701 Available to backorder	Flat Key	£2.52 £2.10
88	CO26800500701 Available to backorder	Nut	£1.26 £1.05
89	CO25236500501 Available to backorder	Knob	£2.52 £2.10
90	CO26800700701 Available to backorder	Washer	£2.40 £2.00
91	CO26800606401 Available to backorder	Bolt	£2.62 £2.18
92	CO23601045401 Available to backorder	Left Handle Support	£11.20 £9.33
93	CO23601008701 Available to backorder	Lower Handle	£13.15 £10.96
94	CO26800611802 Available to backorder	Bolt	£2.52 £2.10
95	CO23601045501 Available to backorder	Right Handle Support	£11.20 £9.33
96	CO25261100101 Available to backorder	Cable Clamp	£2.52 £2.10
97	CO25100108501 Available to backorder	Washer	£2.62 £2.18
98	CO29100137901 Available to backorder	Drive Cable Assy	£11.32 £9.43
99	CO23601035801 Available to backorder	Upper Handle	£11.34 £9.45
100	CO26800607701 Available to backorder	Bolt	£2.62 £2.18
101	CO25233600101 Available to backorder	Cable Fixed Board	£2.40 £2.00
102	CO26800700801 Available to backorder	Washer	£1.20 £1.00
103	CO26800501603 Available to backorder	Nut	£1.20 £1.00
104	CO25339200101 Available to backorder	Lower Cover For Left Handle	£2.52 £2.10
105	CO26800502201 Available to backorder	Nut	£2.52 £2.10
106	CO25339300101 Available to backorder	Upper Cover For Left Handle	£2.52 £2.10
109	CO25339800101 Available to backorder	Self Propelled Cable Hang Block	£2.52 £2.10
111	CO26800103701 Available to backorder	Screw	£1.44 £1.20
113	CO25338800301 Available to backorder	Lower Button	£2.52 £2.10
114	CO25338900301 Available to backorder	Upper Button	£2.52 £2.10
115	CO26801126601 Available to backorder	Spring	£2.52 £2.10
116	CO25400114001 In stock	Lower Cover Rubber Coating For Control Panel	£7.00 £5.83
117	CO27100118401 Available to backorder	Switching Line	£8.46 £7.05
118	CO28600103001 Available to backorder	Battery Capacity Display Board	£10.69 £8.91
119	CO25400114101 In stock	Upper Cover Rubber Coating For Control Panel	£7.00 £5.83
120	CO23601044501 Available to backorder	Drive Rod	£7.02 £5.85
121	CO26800104902 Available to backorder	Screw	£1.26 £1.05
122	CO25339100101 Available to backorder	Upper Cover For Switch Box	£2.52 £2.10
123	CO25339400301 Available to backorder	Button	£2.52 £2.10
124	CO25339000101 Available to backorder	Lower Cover For Switch Box	£2.52 £2.10
125	CO27100118301 Available to backorder	Control Line	£11.98 £9.98
126	CO26800600401 Available to backorder	Bolt	£2.52 £2.10
127	CO25232600101 Available to backorder	Mulching Insert Plastic Block	£10.19 £8.49
128	CO25231600301 Available to backorder	Insert Lock	£2.52 £2.10
129	CO26801100501 Available to backorder	Spring	£2.52 £2.10
130	CO25231700101 Available to backorder	Pressing Plate	£2.52 £2.10
131	CO25316700101 Available to backorder	Collection Bag Handle	£2.52 £2.10
132	CO25316600101 Available to backorder	Collection Bag Cover	£17.05 £14.21
133	CO21071000080108A In stock	Window	£2.40 £2.00
134	CO25316500501 Available to backorder	Rear Cover	£7.52 £6.27
135	CO25100137858 Available to backorder	Collection Bag	£24.25 £20.21
136	CO26800103202 In stock	Screw	£1.20 £1.00
137	CO26801125501 Available to backorder	Spring	£2.52 £2.10
138	CO26300281401 Available to backorder	Long Rod	£2.52 £2.10
139	CO26800104601 In stock	Screw	£1.20 £1.00
140	CO26300195901 Available to backorder	Collection Bag Support	£18.25 £15.21
141	CO26801125401 Available to backorder	Spring	£2.52 £2.10
142	CO25306600101 Available to backorder	Side Discharge Cover	£11.68 £9.73
143	CO40V2AHCHARGER Available to backorder	Charger	£61.68 £51.40
