Cobra MX460SPH Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COG3376000001 In stock	A-1 Clutch Lever	£8.80 £7.33
1	COG343100000W Available to backorder	D-1 Height Adjustment Handle	£1.45 £1.21
1	COG5661200000 Available to backorder	E-1 Metal Bracket	£13.67 £11.39
1	COB1036W08015 Available to backorder	C-1 Bolt	£2.62 £2.18
1	COGCV145N3000 Available to backorder	B-1 Engine	£199.44 £166.20
2	COG34BD000000 Available to backorder	C-2 Height Adjustment Plate	£2.57 £2.14
2	COB3001B00000 Available to backorder	B-2 Screw	£2.52 £2.10

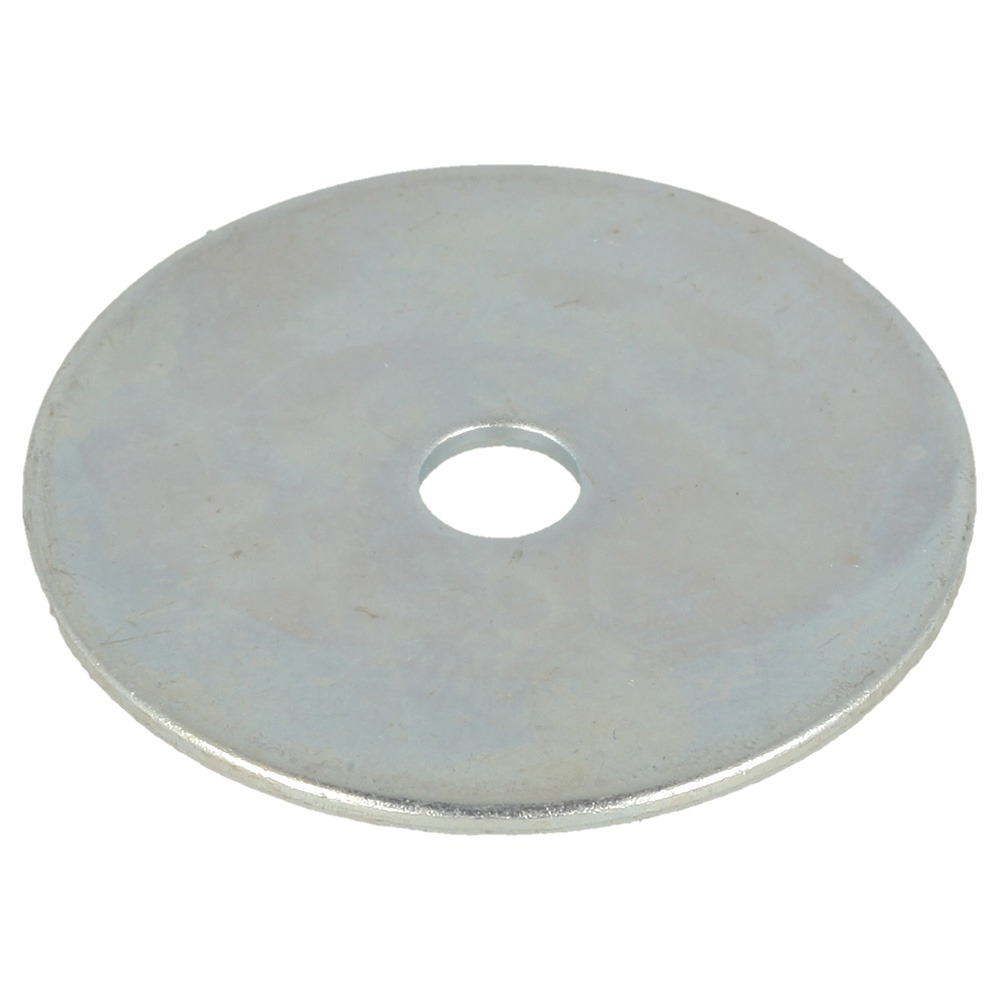

2	COB5032W00000 Available to backorder	E-2 Flat Washer	£2.40 £2.00
2	COG3353N00001 Available to backorder	A-2 Brake Lever	£8.21 £6.84
2	COG3490000300 Available to backorder	D-2 Rear Wheel Shaft	£22.12 £18.43
3	COB3022W00000 In stock	E-3 Screw	£1.20 £1.00
3	COG3XW0000000 Available to backorder	A-3 Limiting Stopper	£2.62 £2.18
3	COBE005W00000 Available to backorder	B-3 Flat Key	£2.62 £2.18
3	COG42B0000000 Available to backorder	C-3 Right Bracket	£8.26 £6.88
3	COG34ACN00000 Available to backorder	D-3 Inner Wheel Cover	£2.92 £2.43
4	COG34AWX00000 In stock	B-4 Blade Adapter	£17.56 £14.63
4	COG3320000000 Available to backorder	A-4 Foam Pipe	£4.70 £3.92

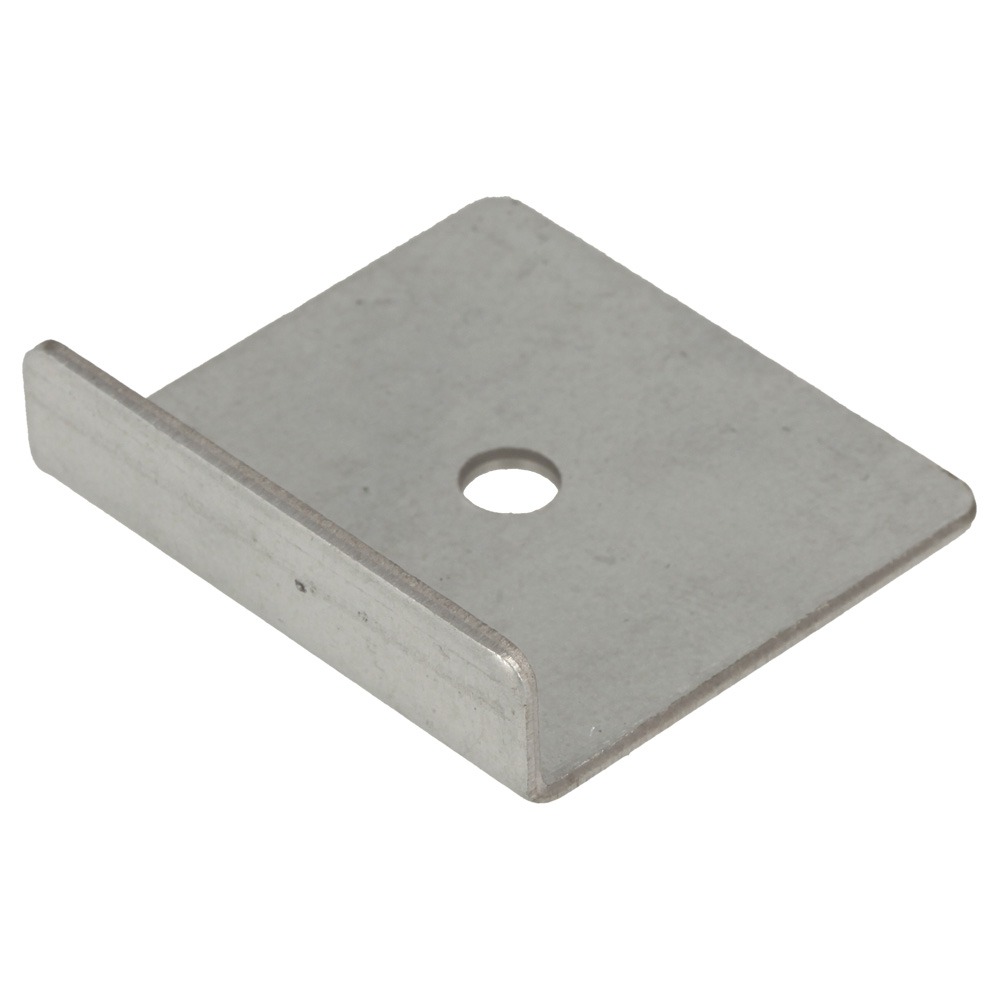

4	COG4661300000 Available to backorder	E-4 Fixed Plate	£2.40 £2.00
4	COB2028W00000 Available to backorder	C-4 Nut	£2.52 £2.10
4	COB6009B00000 Available to backorder	D-4 Spring Washer	£2.52 £2.10
5	COG5661110010 Available to backorder	E-5 Plastic Cover	£18.42 £15.35
5	COG22K0000000 Available to backorder	B-5 Screw Cap	£2.40 £2.00
5	COG333F000001 Available to backorder	A-5 Upper Handle	£22.98 £19.15
6	COG3CT0000000 Available to backorder	D-6 Bush	£2.52 £2.10
6	COB2011B00000 Available to backorder	A-6 Nut	£1.44 £1.20
6	COB3036W00000 Available to backorder	E-6 Screw	£1.26 £1.05
6	COG36MN000000 In stock	C-6 Mulching Plug	£5.76 £4.80
6	COG323N000000 In stock	C-6 Belt Cover	£6.26 £5.22
7	COG566112000W Available to backorder	E-7 Indicated Board	£1.26 £1.05

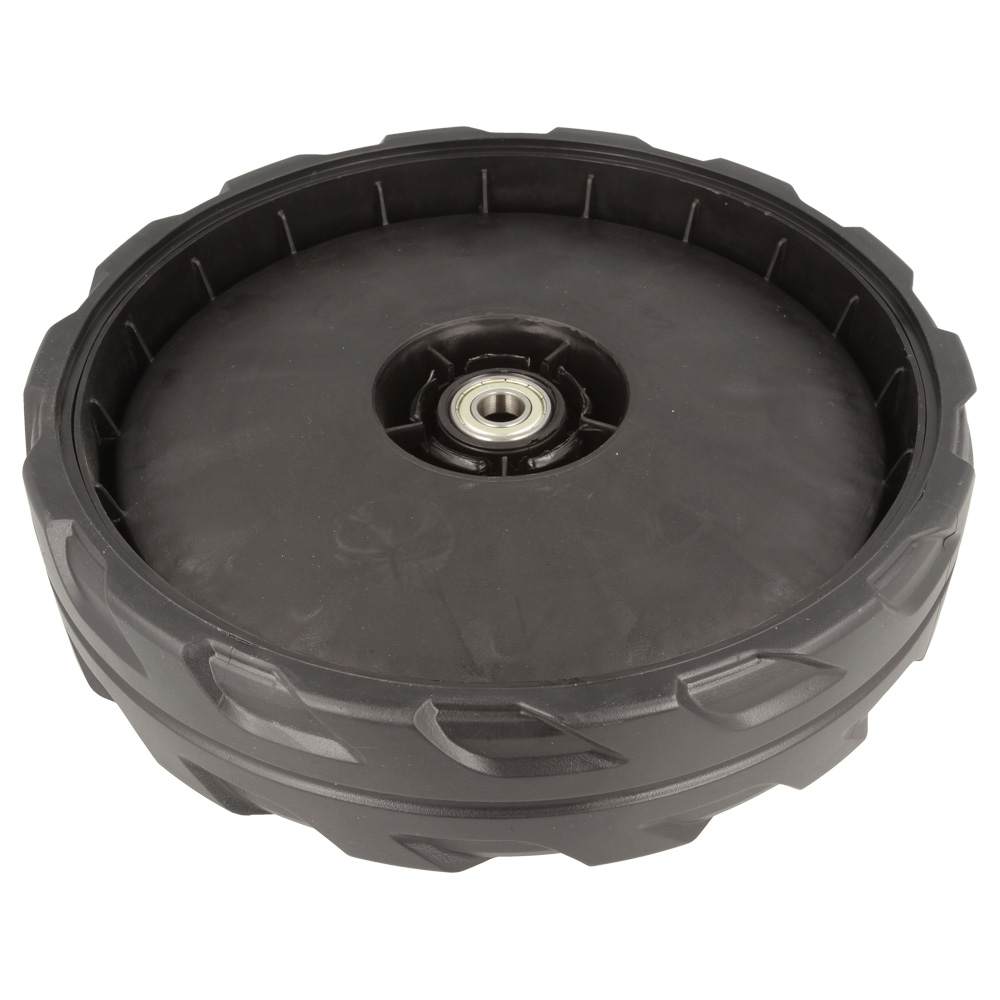

7	COG34LN000000 Available to backorder	D-7 10" Wheel	£15.26 £12.72
7	COG32E0000000 Available to backorder	C-7 Cable Sleeve	£1.26 £1.05
7	COG339X300000 Available to backorder	A-7 Cable Fixing Clamp	£2.40 £2.00
8	COBD001B00000 Available to backorder	C-8 O Ring	£2.52 £2.10
8	COG323G000000 In stock	B-8 Belt Cover Plate	£2.40 £2.00
8	MDG639XXN0000 In stock	A-8 Brake Cable	£6.10 £5.08

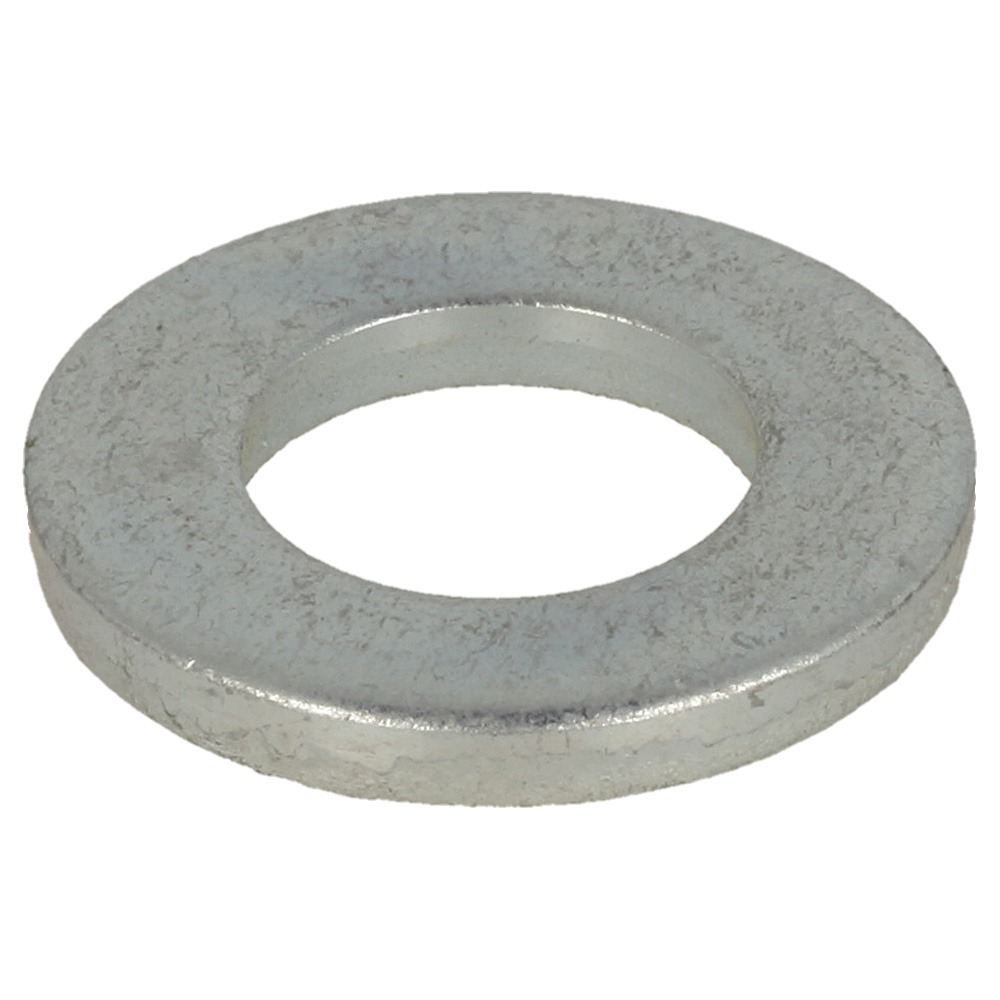

8	COB5031W00000 Available to backorder	D-8 Flat Washer	£1.20 £1.00
8	COG566113000W Available to backorder	E-8 Handle	£2.63 £2.19
9	COB2017W00000 Available to backorder	D-9 Nut	£1.20 £1.00
9	COG339XY90000 In stock	A-9 Clutch Cabel	£10.48 £8.73
9	COG566114000W Available to backorder	E-9 Handle Cover	£1.45 £1.21
9	COG32D0000100 Available to backorder	C-9 Washing Linker	£1.26 £1.05
9	COG323HN00000 In stock	B-9 Belt Cover Plate	£1.20 £1.00
10	COG34V3000073 Available to backorder	D-10 10" Outer Wheel Cover	£2.42 £2.02
10	COB3044W00000 Available to backorder	E-10 Screw	£2.52 £2.10
10	COB1066B06032 Available to backorder	A-10 Bolt	£2.52 £2.10
10	COB2025B00000 Available to backorder	C-10 Nut	£1.26 £1.05
10	COG3510000000 In stock	B-10 18" Blade	£19.92 £16.60
11	COG42C0000000 Available to backorder	C-11 Left Bracket	£16.99 £14.16

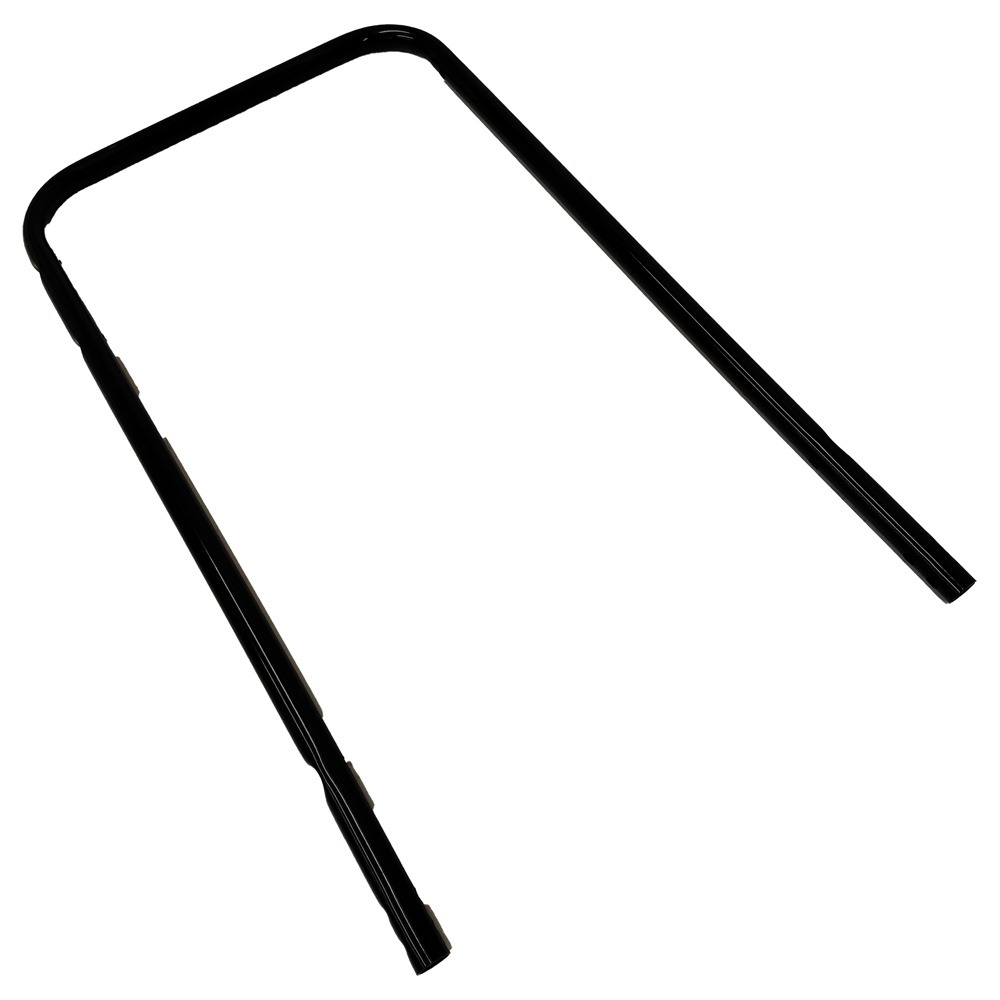

11	COG33B4000001 Available to backorder	A-11 Lower Handle	£23.74 £19.78
11	COG3520000000 In stock	B-11 Blade Washer	£1.98 £1.65
11	COBB004W00000 Available to backorder	D-11 Split Pin	£2.62 £2.18

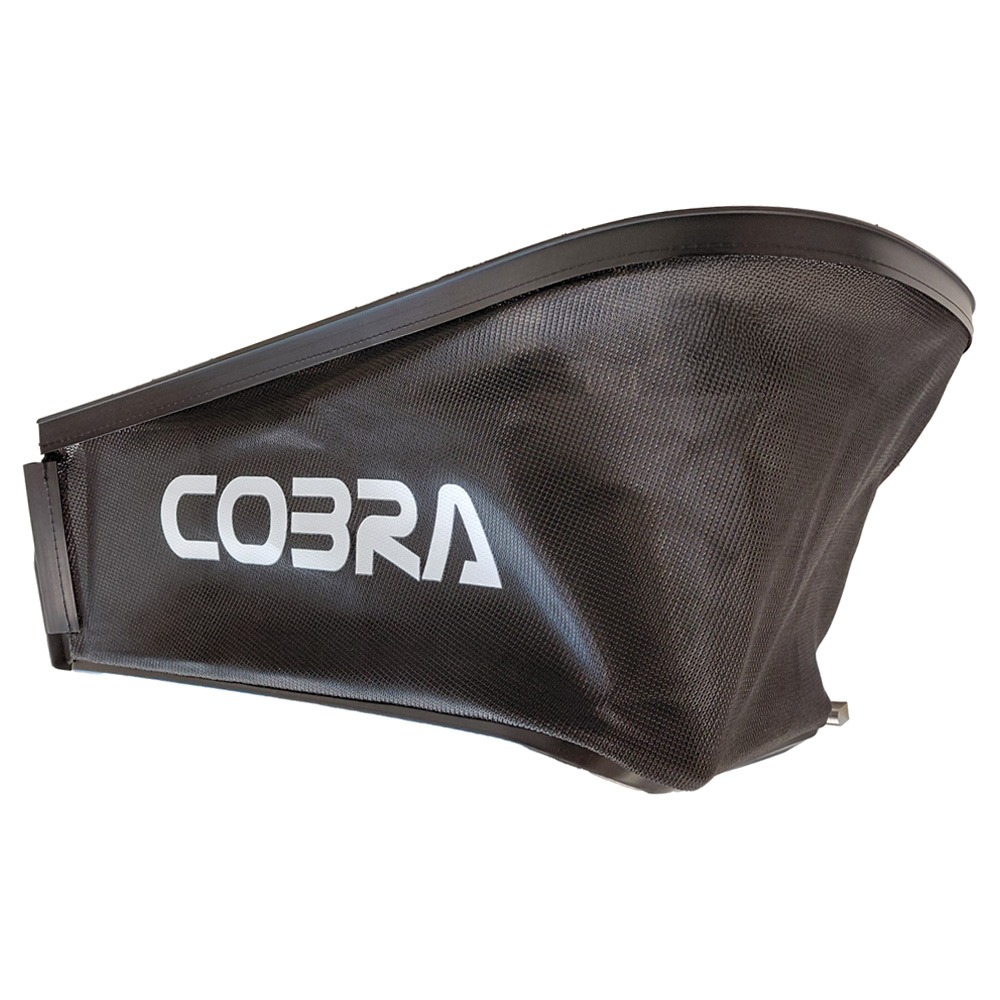

11	COG18A7100000 In stock	E-11 Fabric Bag	£29.20 £24.33
12	COB1088W08050 In stock	A-12 Bolt	£2.40 £2.00
12	COBA00FB00000 Available to backorder	D-12 Belt	£9.88 £8.23
12	COB1001B00032 Available to backorder	B-12 Blade Bolt	£2.40 £2.00
12	COG32J0000000 Available to backorder	C-12 Rear Cover Support	£2.40 £2.00
13	COG34AP201800 In stock	D-13 Gearbox	£62.34 £51.95
13	COB5019W00000 In stock	A-13 Flat Washer	£1.22 £1.02
13	COB1059W06014 Available to backorder	C-13 Bolt	£2.62 £2.18
14	COG32A0000010 Available to backorder	C-14 Rear Cover Pedestal	£5.04 £4.20
14	COG34AJ000200 In stock	D-14 Spring	£1.20 £1.00
14	COG33C1100010 In stock	A-14 Knob	£2.40 £2.00
15	COG34AN000000 In stock	D-15 Pin	£2.40 £2.00
15	COG33K0000000 In stock	A-15 Rope Guide	£1.36 £1.13
16	COG32K0000000 Available to backorder	C-16 Plug	£2.52 £2.10
16	COG33H2000000 In stock	A-16 Cable Support	£0.36 £0.30
16	COB2007W00000 Available to backorder	D-16 Nut	£2.52 £2.10

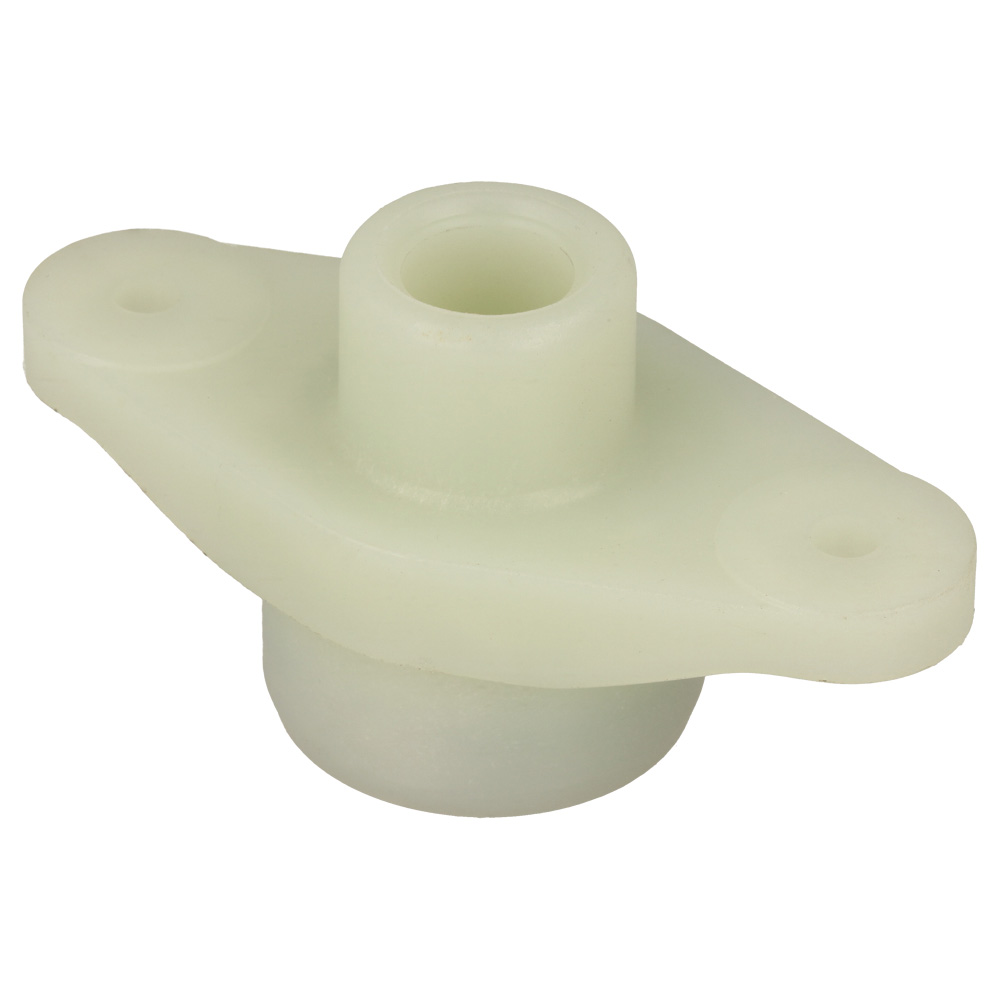

17	COG34DV000000 In stock	D-17 Shaft Sleeve	£2.40 £2.00
17	COB1087W08032 Available to backorder	A-17 Bolt	£2.52 £2.10
17	COG56B0000010 Available to backorder	C-17 Rear Cover	£9.47 £7.89
18	COB2009W00000 Available to backorder	A-18 Nut	£2.62 £2.18
18	COB1053W05012 Available to backorder	D-18 Bolt	£2.52 £2.10
18	COG56BZSB000W Available to backorder	C-18 Cover	£1.74 £1.45

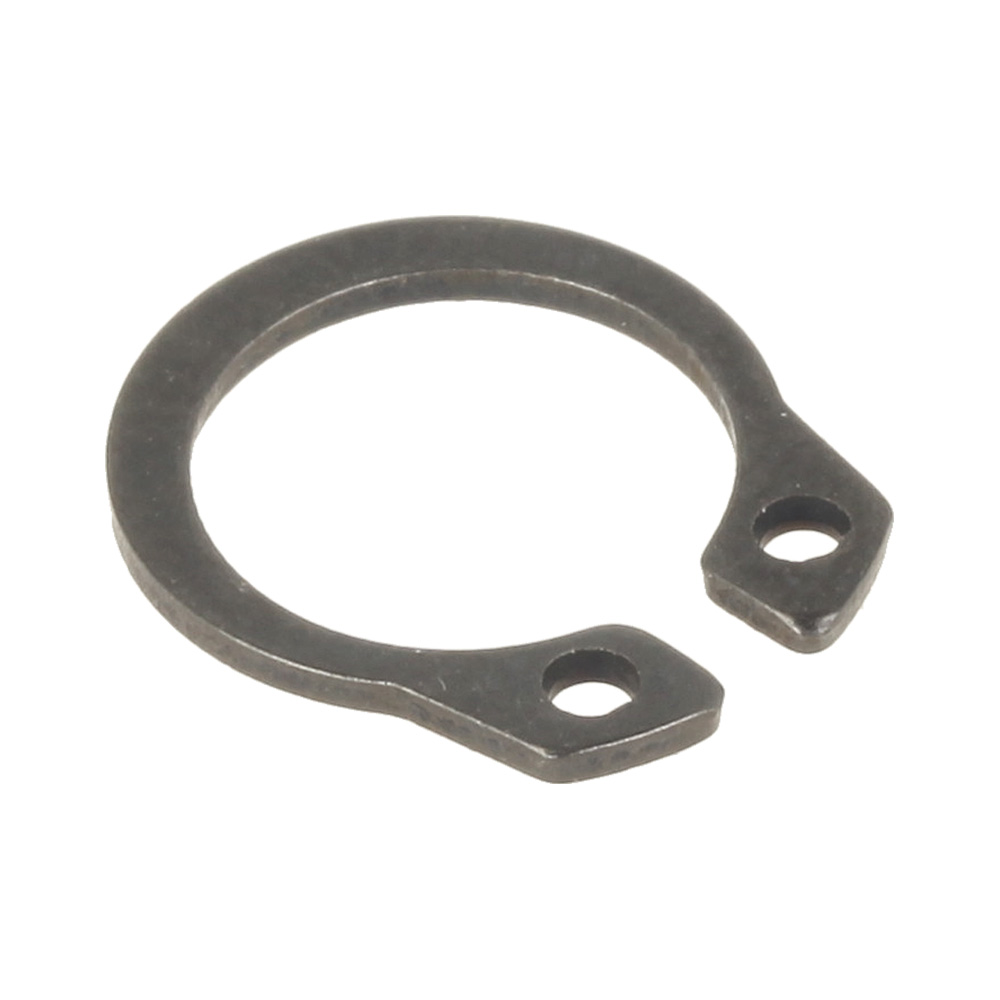

19	COB9006B00000 Available to backorder	D-19 Lock Ring	£1.26 £1.05
19	COG33J0000000 Available to backorder	A-19 Handle Plug	£2.52 £2.10
20	COG36J0000000 Available to backorder	C-20 Rear Cover Spring	£2.62 £2.18
20	COB5033W00000 Available to backorder	D-20 Flat Washer	£2.52 £2.10
21	COG36E0000000 Available to backorder	C-21 Rear Cover Shaft	£2.52 £2.10
21	COG54AL000000 In stock	D-21 Left Gear	£6.38 £5.32
22	COG5242000055 Available to backorder	C-22 Front Face	£6.74 £5.62
22	COG54AM000000 Available to backorder	D-22 Right Gear	£6.38 £5.32
23	COG524210000W Available to backorder	C-23 Label Plate	£1.26 £1.05
23	COG3451Y00000 Available to backorder	D-23 Front Wheel Shaft	£15.71 £13.09
24	COB2008W00000 Available to backorder	D-24 Nut	£2.62 £2.18
25	COG32F0000000 Available to backorder	C-25 Washer L	£1.26 £1.05
25	COB1058W06012 Available to backorder	D-25 Bolt	£2.52 £2.10
26	COG32G0000000 Available to backorder	C-26 Washer R	£1.26 £1.05
26	COB2016W00000 Available to backorder	D-26 Nut	£1.26 £1.05
27	COG24FN000000 Available to backorder	D-27 7 Inch Wheel	£14.20 £11.83
28	COG24R5000073 Available to backorder	D-28 Outer Wheel Cover	£1.60 £1.33
29	COG3250000000 Available to backorder	C-29 Side Discharge Bracket	£1.26 £1.05
29	COG34AX100000 Available to backorder	D-29 Height Adjustment Spring	£2.52 £2.10
30	COG3410000100 Available to backorder	D-30 Height Adjustment Connecting Rod	£7.79 £6.49
31	COG349X000000 Available to backorder	D-31 Shaft Sleeve	£2.62 £2.18
31	COG3260000000 Available to backorder	C-31 Side Discharge Cover Shaft	£2.40 £2.00
32	COG3271000000 Available to backorder	C-32 Side Discharge Cover Spring	£2.40 £2.00
33	COG328CX00000 Available to backorder	C-33 Cover Plate	£2.40 £2.00
34	COG328D000000 Available to backorder	C-34 Spring	£2.40 £2.00
35	COG328AX00000 Available to backorder	C-35 Side Discharge Cover	£3.95 £3.29
36	COG328B000000 Available to backorder	C-36 Lock	£3.38 £2.82
37	COG3290000000 Available to backorder	C-37 Side-Discharge Guiding Board	£4.70 £3.92
