Cobra MX460SPC - Lawn Mower Aug 2022 Drive Assy Diagram

Cobra MX460SPC - Lawn Mower Aug 2022 Drive Assy Diagram
Cobra MX460SPC - Lawn Mower Aug 2022 Drive Assy Diagram

Description

Cobra MX460SPC Rotary Mower Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Height Adjustment Handle COG343100000W
Height Adjustment Handle
 Out of stock
£1.45 £1.21

  2 Rear Wheel Shaft COG3490000300
Rear Wheel Shaft
 Out of stock
£22.12 £18.43

  3 Inner Wheel Cover COG34ACN00000
Inner Wheel Cover
 Out of stock
£2.92 £2.43

  4 Spring Washer COB6009B00000
Spring Washer
 Out of stock
£2.52 £2.10

  6 Bush COG3CT0000000
Bush
 Out of stock
£2.52 £2.10

  7 10 COG34LN000000
10" Wheel
 Out of stock
£15.26 £12.72

  8 Flat Washer COB5031W00000
Flat Washer
 Out of stock
£1.26 £1.05

  9 Nut COB2017W00000
Nut
 Out of stock
£1.26 £1.05

  10 10 COG34V3000073
10" Outer Wheel Cover
 Out of stock
£2.33 £1.94

  11 Split Pin COBB004W00000
Split Pin
 Out of stock
£2.62 £2.18

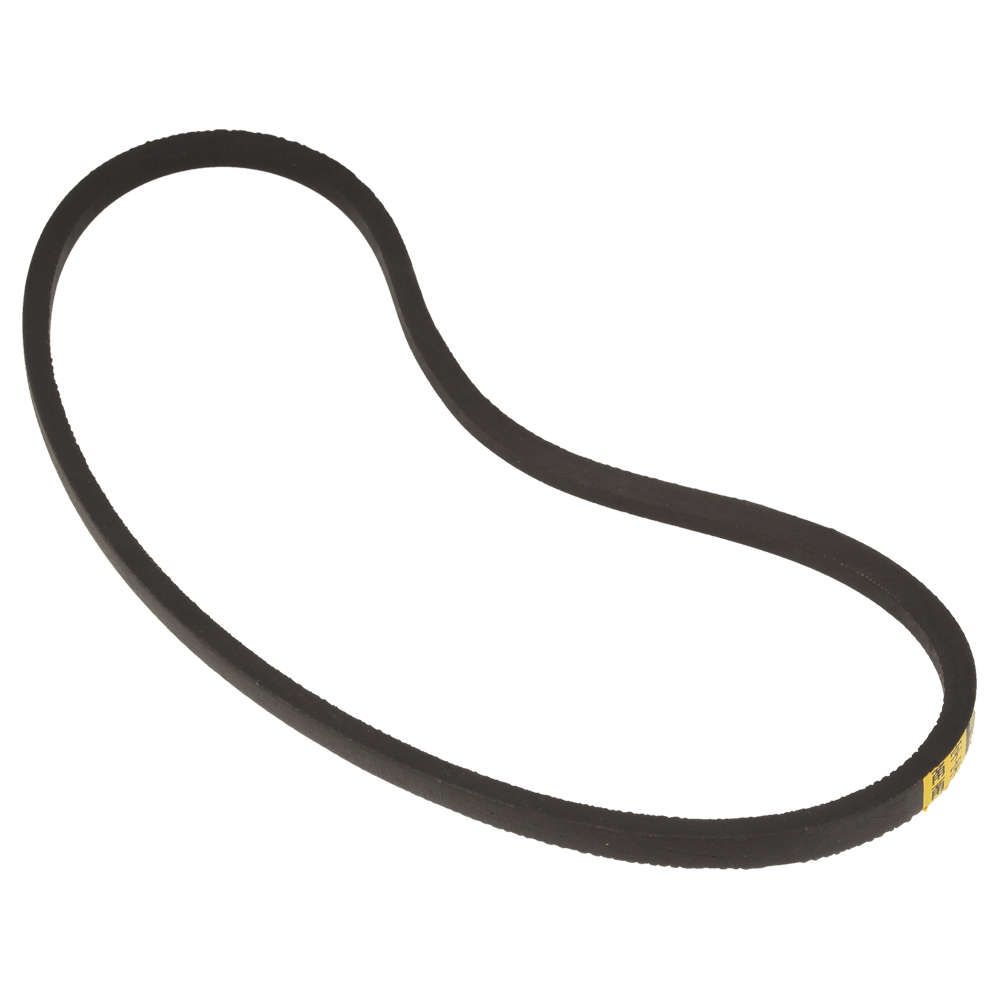

  12 Belt COBA00FB00000
Belt
 In stock
£10.20 £8.50

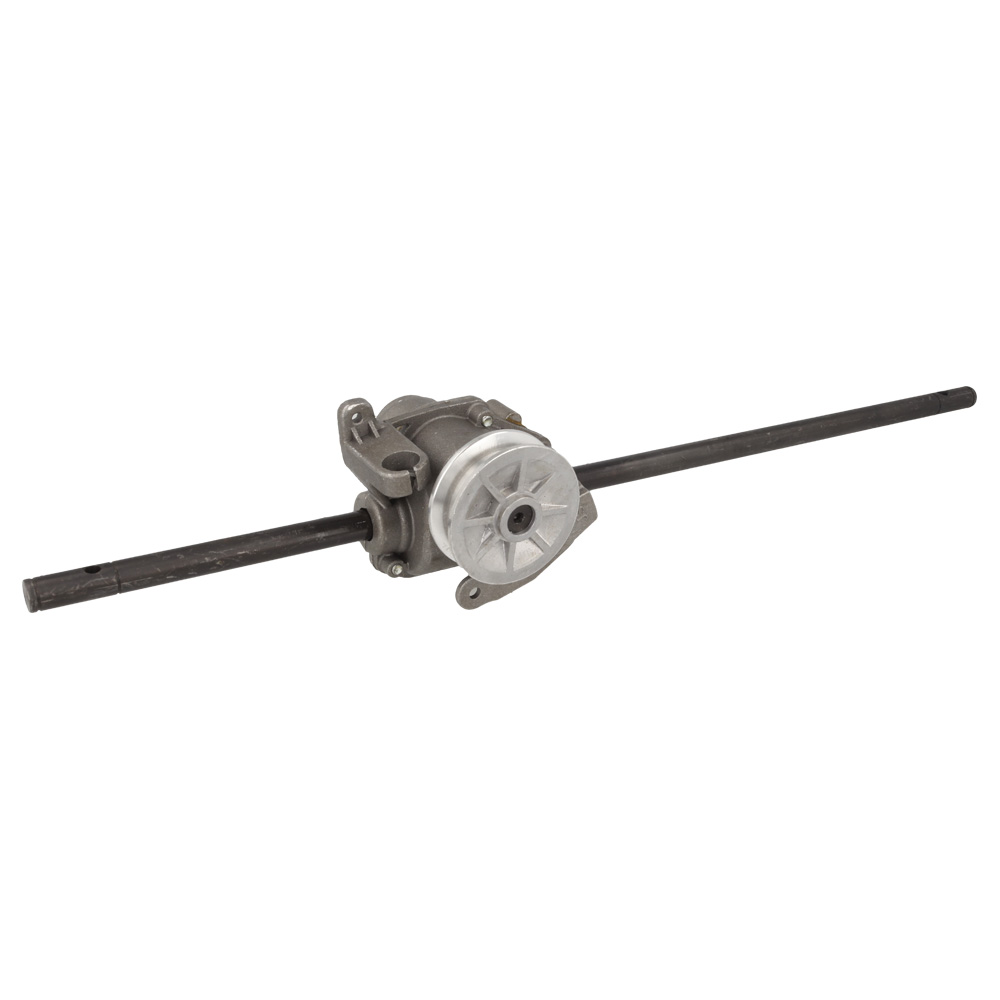

  13 Gearbox COG34AP201800
Gearbox
 Out of stock
£64.44 £53.70

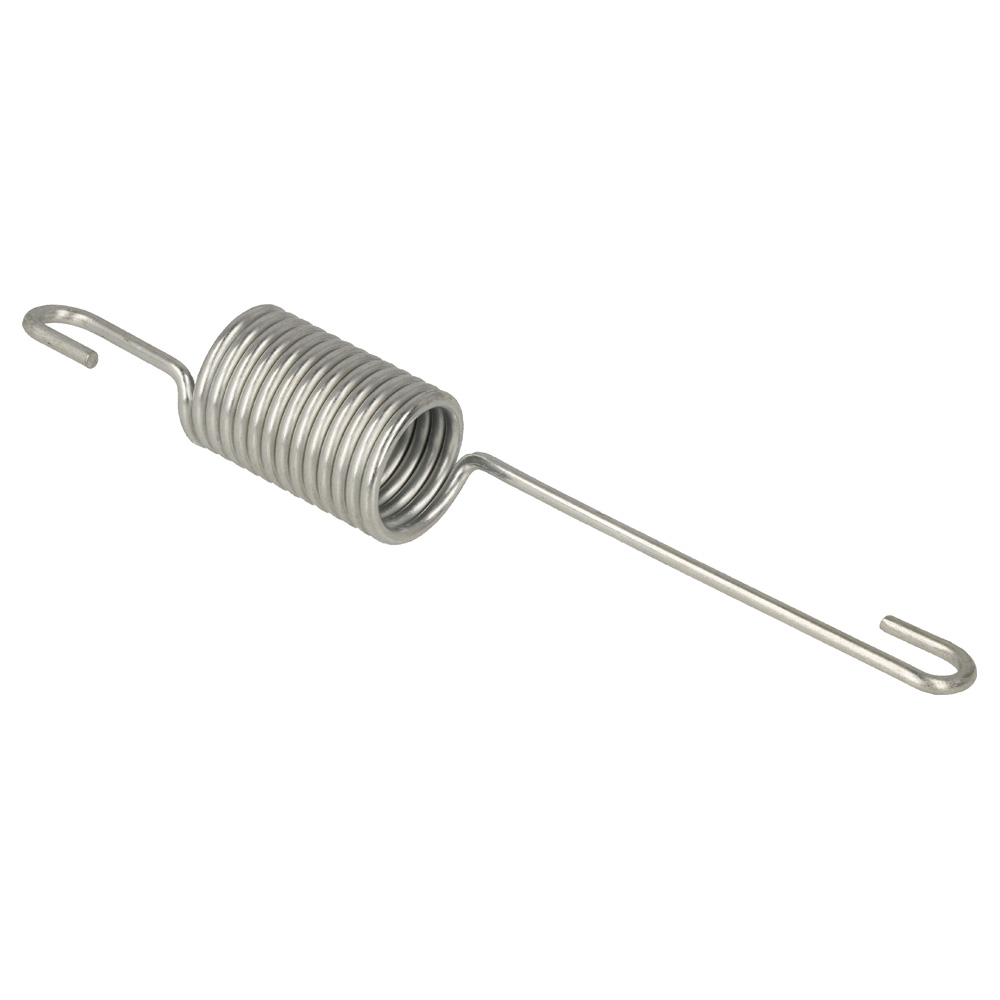

  14 Spring COG34AJ000200
Spring
 In stock
£1.44 £1.20

  15 Pin COG34AN000000
Pin
 In stock
£2.62 £2.18

  16 Nut COB2007W00000
Nut
 Out of stock
£2.52 £2.10

  17 Shaft Sleeve COG34DV000000
Shaft Sleeve
 Out of stock
£2.52 £2.10

  18 Bolt COB1053W05012
Bolt
 Out of stock
£2.52 £2.10

  19 Lock Ring COB9006B00000
Lock Ring
 Out of stock
£1.26 £1.05

  20 Flat Washer COB5033W00000
Flat Washer
 Out of stock
£2.52 £2.10

  21 Left Gear COG54AL000000
Left Gear
 In stock
£6.70 £5.58

  22 Right Gear COG54AM000000
Right Gear
 In stock
£6.70 £5.58

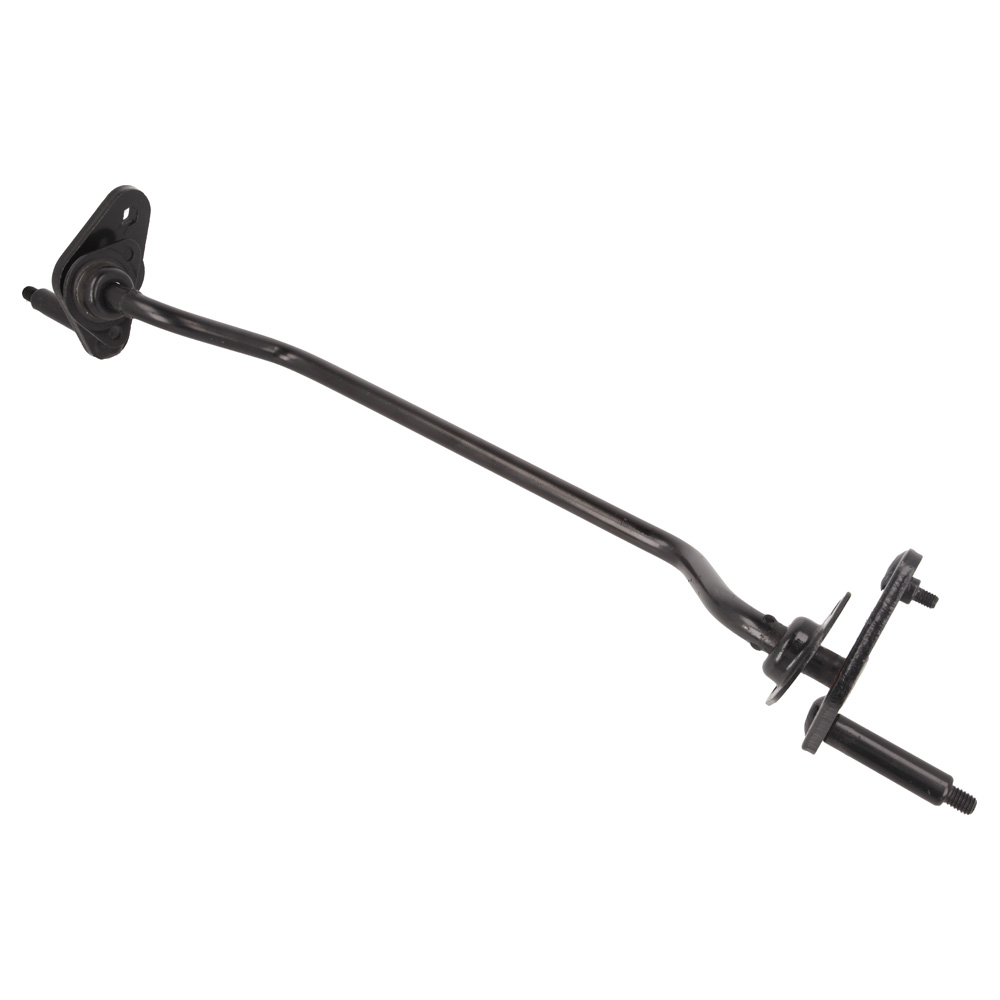

  23 Front Wheel Shaft COG3451Y00000
Front Wheel Shaft
 Out of stock
£15.71 £13.09

  24 Nut COB2008W00000
Nut
 Out of stock
£2.52 £2.10

  25 Bolt COB1058W06012
Bolt
 Out of stock
£2.52 £2.10

  26 Nut COB2016W00000
Nut
 Out of stock
£1.26 £1.05

  27 7 Inch Wheel COG24FN000000
7 Inch Wheel
 Out of stock
£14.20 £11.83

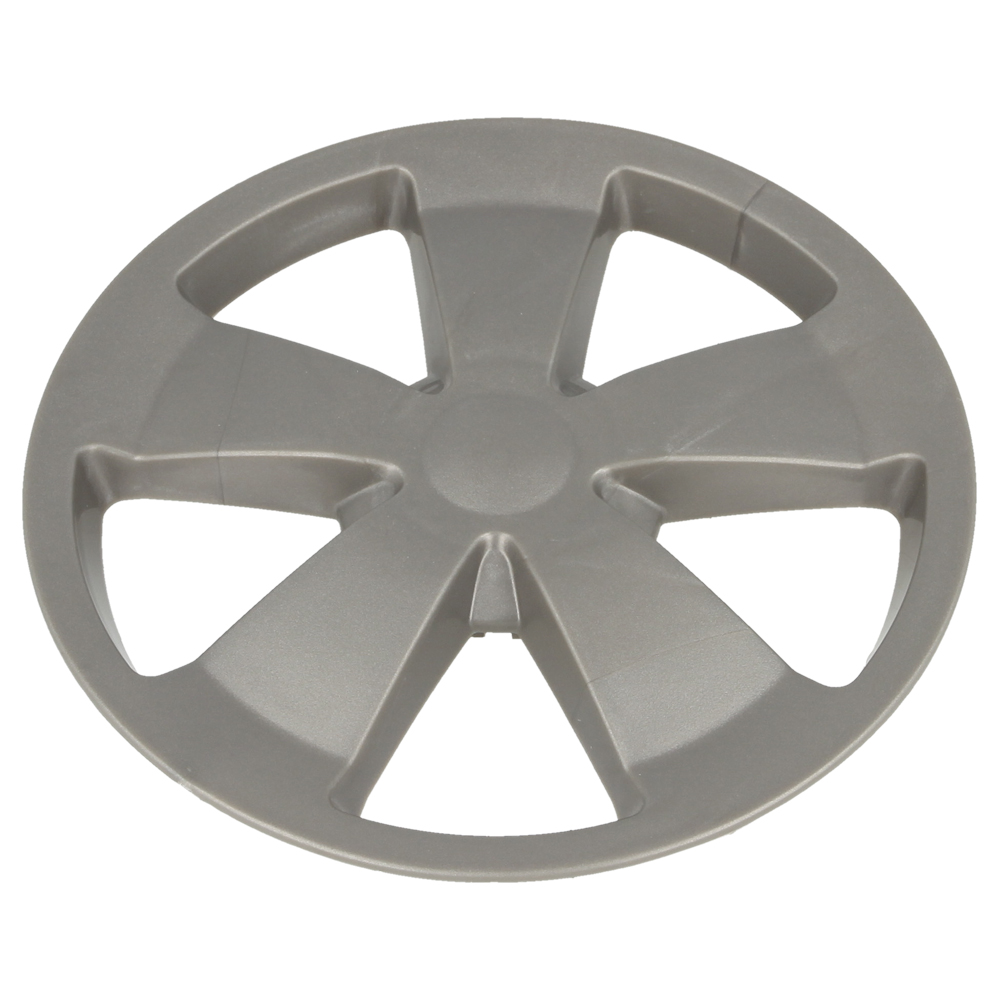

  28 Outer Wheel Cover COG24R5000073
Outer Wheel Cover
 Out of stock
£1.68 £1.40

  29 Height Adjustment Spring COG34AX100000
Height Adjustment Spring
 Out of stock
£2.52 £2.10

  30 Height Adjustment Connecting Rod COG3410000100
Height Adjustment Connecting Rod
 Out of stock
£7.79 £6.49

  31 Shaft Sleeve COG349X000000
Shaft Sleeve
 Out of stock
£2.52 £2.10


Description

Cobra MX460SPC Rotary Mower Parts Diagram
