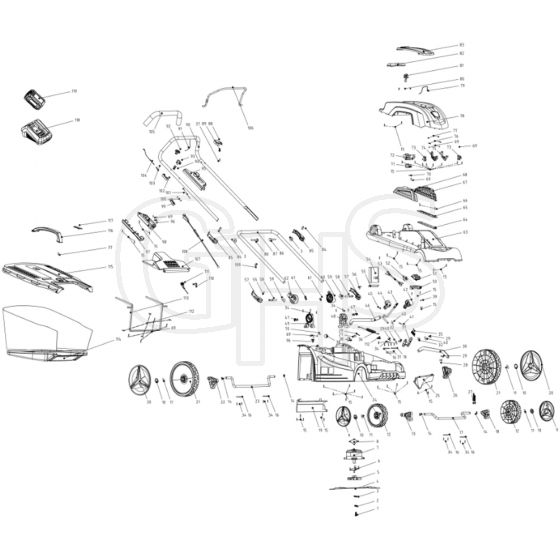

Cobra MX4340V Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO3091304015 Available to backorder	Bolt	£2.52 £2.10
2	CO26800800202 Available to backorder	Spring Washer	£2.52 £2.10
3	CO26800700201 Available to backorder	Big Washer	£2.52 £2.10
4	CO2105200308A In stock	Blade	£21.58 £17.98
5	CO2105100025A Available to backorder	Blade Support	£8.09 £6.74
6	CO3091307008 Available to backorder	Bolt	£1.26 £1.05
7	CO2050100266A Available to backorder	Motor	£80.76 £67.30
8	CO3032306001 Available to backorder	Nut	£1.26 £1.05
9	CO21011003040006A Available to backorder	6"Wheel Cover	£2.52 £2.10
10	CO26800705102 Available to backorder	Flat Washer	£2.40 £2.00
11	CO26800903201 Available to backorder	Stopper Ring	£2.52 £2.10
12	CO21011001960001A Available to backorder	6" Wheel	£10.64 £8.87
13	CO21031002670001A Available to backorder	Right Axle Plate Of Front Wheel Axle	£2.16 £1.80
14	CO26800703601 Available to backorder	Washer	£2.52 £2.10
15	COA26800107301 Available to backorder	Self Tapping Screw	£1.26 £1.05
16	CO2109200065B Available to backorder	Pressing Plate	£2.52 £2.10
17	CO2101200068A Available to backorder	Front Wheel Axle	£15.46 £12.88
18	CO21031002660001A Available to backorder	Left Axle Plate Of Front Wheel Axle	£2.44 £2.03
19	CO21061006780001A Available to backorder	Machine Cover Fission	£6.28 £5.23
20	CO21011003050006A Available to backorder	9" Wheel Cover	£2.74 £2.28
21	CO21011001980001B Available to backorder	9" Wheel	£10.30 £8.58
22	CO21031002690001A Available to backorder	Right Axle Plate Of Rear Wheel Axle	£2.33 £1.94
23	CO2101200069A Available to backorder	Rear Wheel Axle Assy	£11.64 £9.70
25	CO21091001000001A Available to backorder	Stopper Plate Of Deck	£3.55 £2.96
26	CO21031002680001A Available to backorder	Left Axle Plate Of Rear Wheel Axle	£2.33 £1.94
27	CO2103800020A Available to backorder	Spring Of Front Wheel Axle	£1.26 £1.05
28	CO2103200310A Available to backorder	Connection Rod Pin	£1.26 £1.05
29	CO2221300002A Available to backorder	Open Pin	£2.52 £2.10
30	CO2103500187A Available to backorder	Front Connection Rod	£5.06 £4.22
31	CO2103300086A Available to backorder	Pin	£1.26 £1.05
32	COA26809002001 Available to backorder	Pin Axle	£1.26 £1.05
33	CO2103200309A Available to backorder	Connection Rod Support	£4.70 £3.92
34	COA26800105502 Available to backorder	Self Tapping Screw	£2.52 £2.10
35	CO2109800126B Available to backorder	Spring	£2.52 £2.10
36	CO2106800647A Available to backorder	Spring Of Connection Rod	£1.28 £1.07
37	CO26800103701 Available to backorder	Self Tapping Screw	£1.44 £1.20
38	CO2106100003A Available to backorder	Plug Stopper	£1.26 £1.05
39	COA26800204701 Available to backorder	Screw	£2.52 £2.10
40	CO26800700701 Available to backorder	Flat Washer	£2.40 £2.00
41	CO3081301001 Available to backorder	Open Pin	£1.26 £1.05
42	CO21061002440108A Available to backorder	Left Height Adjuster	£2.52 £2.10
43	CO2106200764C Available to backorder	Adjust Rod	£3.38 £2.82
44	CO21061002430108A Available to backorder	Right Height Adjuster	£2.52 £2.10
45	CO26800503501 Available to backorder	Nut	£2.52 £2.10
46	CO2103500188A Available to backorder	Rear Connection Rod	£4.93 £4.11
47	CO2426800001A Available to backorder	Spring	£2.74 £2.28
48	CO21061006790001A Available to backorder	Left-Adjusting Gear Plate	£3.19 £2.66
49	CO21061006840001A Available to backorder	Right-Adjusting Gear Plate	£3.19 £2.66
50	CO21041005940001A Available to backorder	Pressing Plate	£2.52 £2.10
51	CO20741000010001A Available to backorder	Male Connector Of Battery	£1.68 £1.40
52	CO2074200001A Available to backorder	Male Terminal Of Battery	£4.37 £3.64
53	CO2328900030A Available to backorder	Wiring Of Battery Male Connector	£11.45 £9.54
54	CO2108900155A Available to backorder	Controller Assy	£54.52 £45.43
55	CO2109900083A Available to backorder	Waterproof Strip	£1.26 £1.05
56	CO2109300063A Available to backorder	Round Pin	£2.52 £2.10
57	CO21061000570108B Available to backorder	Locking Handle	£2.52 £2.10
58	CO2109300010A Available to backorder	Bolt Of Locking Handle	£2.52 £2.10
59	CO2106200001A Available to backorder	Pressing Plate	£2.52 £2.10
60	CO21061003750001B Available to backorder	Left Adjusting Gear	£2.86 £2.38
61	CO26800502801 Available to backorder	Nut	£1.44 £1.20
62	CO21061003760001B Available to backorder	Right Adjusting Gear	£2.86 £2.38
63	CO21041008100108A Available to backorder	Upper Cover	£26.12 £21.77
64	CO2109600030A Available to backorder	Rubber Plate	£2.50 £2.08
65	CO2103200315A Available to backorder	Height Plate	£3.61 £3.01
66	COA26800109401 Available to backorder	Self Tapping Screw	£2.52 £2.10
67	CO21071000120001A Available to backorder	Left Air Window	£2.52 £2.10
68	CO21071000130001A Available to backorder	Right Air Window	£2.52 £2.10
69	CO26800100302 Available to backorder	Self Tapping Screw	£1.44 £1.20
70	CO2109200005A Available to backorder	Pressing Plate Of Limitation	£2.52 £2.10
71	CO2011400041A Available to backorder	Key Switch	£5.35 £4.46
72	CO21091000890001A Available to backorder	Fixing Support Of Switch	£1.74 £1.45
73	CO2101100303A Available to backorder	Fixing Support	£2.52 £2.10
74	CO2104100815A Available to backorder	Right Bracket	£1.26 £1.05
75	CO2104100814A Available to backorder	Left Bracket	£1.26 £1.05
76	CO2104800008A Available to backorder	Spring Of Lid	£1.26 £1.05
77	COA26800700502 Available to backorder	Flat Washer	£1.26 £1.05
78	CO21041008090108A Available to backorder	Cover	£18.44 £15.37
79	CO2108900015A Available to backorder	Spring Of Battery House	£2.52 £2.10
80	CO2109600029A Available to backorder	Damping Column	£1.26 £1.05
81	CO23061000420108A Available to backorder	Key	£2.71 £2.26
82	CO21041008130001A Available to backorder	Clip Plate	£1.26 £1.05
83	CO21041008120177A Available to backorder	Battery House Lid	£5.82 £4.85
84	CO2109300018C In stock	Fast Wrench Axle	£3.04 £2.53
85	CO21061002450108B Available to backorder	Adjusting Handle	£2.62 £2.18
86	CO2109200014C In stock	Bolt	£1.20 £1.00
87	CO21062011120001A Available to backorder	Lower Handle Bar	£16.24 £13.53
88	CO21061003780001A Available to backorder	Handle Bracket	£1.20 £1.00
89	CO21061001113201N Available to backorder	Washer	£1.26 £1.05
90	CO21062011330001A Available to backorder	Upper Handle Bar	£18.37 £15.31
91	CO2309100017A Available to backorder	Key Wire	£2.52 £2.10
92	CO21061003770108A Available to backorder	Switch Button	£3.16 £2.63
93	CO2106100607A Available to backorder	Switch Block	£1.26 £1.05
94	CO2109800012A Available to backorder	Spring	£2.52 £2.10
95	CO21061006880001A Available to backorder	Upper Cover Of Sw Box	£3.38 £2.82
96	CO2281100002B Available to backorder	Pressing Plate	£1.26 £1.05
97	CO21041000300001A Available to backorder	Pressing Plate Of Switch	£2.52 £2.10
98	CO21061006890001A Available to backorder	Lower Cover Of Sw Box	£2.50 £2.08
99	CO2108900156A Available to backorder	Power Indicator	£14.17 £11.81
100	CO2326900001A Available to backorder	Pressing Plate Of Switch	£1.26 £1.05
101	COA26800101701 Available to backorder	Self Tapping Screw	£1.26 £1.05
102	CO2104100031A Available to backorder	Switch Push Plate	£2.52 £2.10
103	CO2109800013A Available to backorder	Spring	£2.52 £2.10
104	CO2106800658A Available to backorder	Bail Cable	£2.86 £2.38
105	CO2106600021A Available to backorder	Handle Sheath	£4.60 £3.83
106	CO21062000360108A Available to backorder	Bail Arm	£9.83 £8.19
107	CO21041008110001A Available to backorder	Rear Flap	£10.52 £8.77
108	CO2108900157A Available to backorder	Control Wire	£16.57 £13.81
109	CO21061000123201A Available to backorder	Cable Hook	£2.52 £2.10
110	CO21091000870001A Available to backorder	Spring Cap	£1.26 £1.05
111	CO2109800217A Available to backorder	Spring Of Rear Flap	£1.26 £1.05
112	CO2109200040A Available to backorder	Pressing Plate	£1.26 £1.05
113	CO2107300012A Available to backorder	Bracket Of Grass Catcher	£14.08 £11.73
114	CO21077001332006A Available to backorder	Grass Bag	£26.23 £21.86
115	CO21071001160001A Available to backorder	Grass Catcher Cover	£16.27 £13.56
116	CO21071000730001N Available to backorder	Handle Of Grass Catcher	£2.52 £2.10
117	CO21071001000108A Available to backorder	Air Indicator	£2.52 £2.10
