Cobra MTX230C - Multi Tool Sept 2018 Engine Diagram

Description

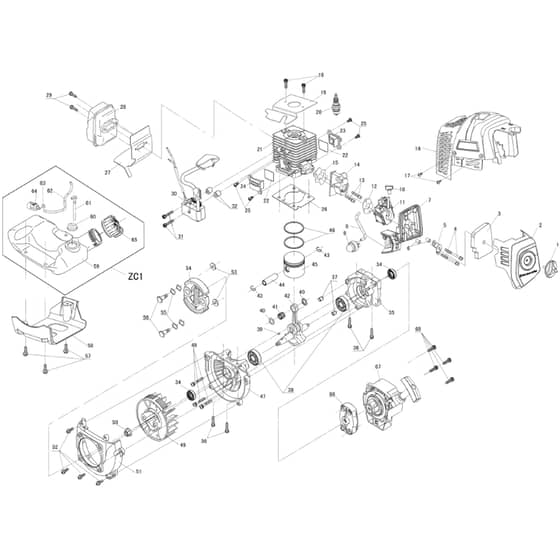

Cobra MTX230C Multi Tool Parts Diagram

	Part No.	Details
1	COGC230-18300 Available to backorder	ZC1 Fuel Tank Assy	£18.04 £15.03

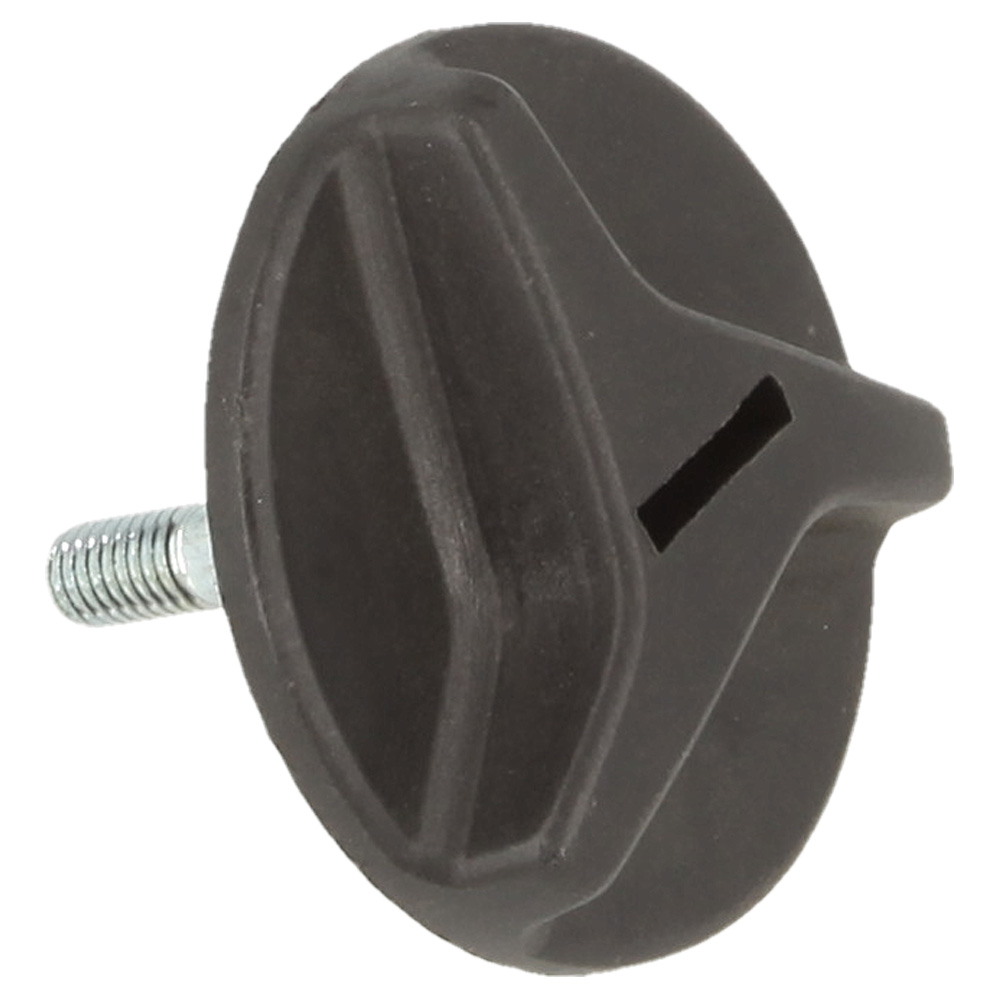

1	COGC230-16320 Available to backorder	Knob Of Air Filter	£2.48 £2.07
2	COGC230-16301 Available to backorder	Air Filter Cover	£7.26 £6.05

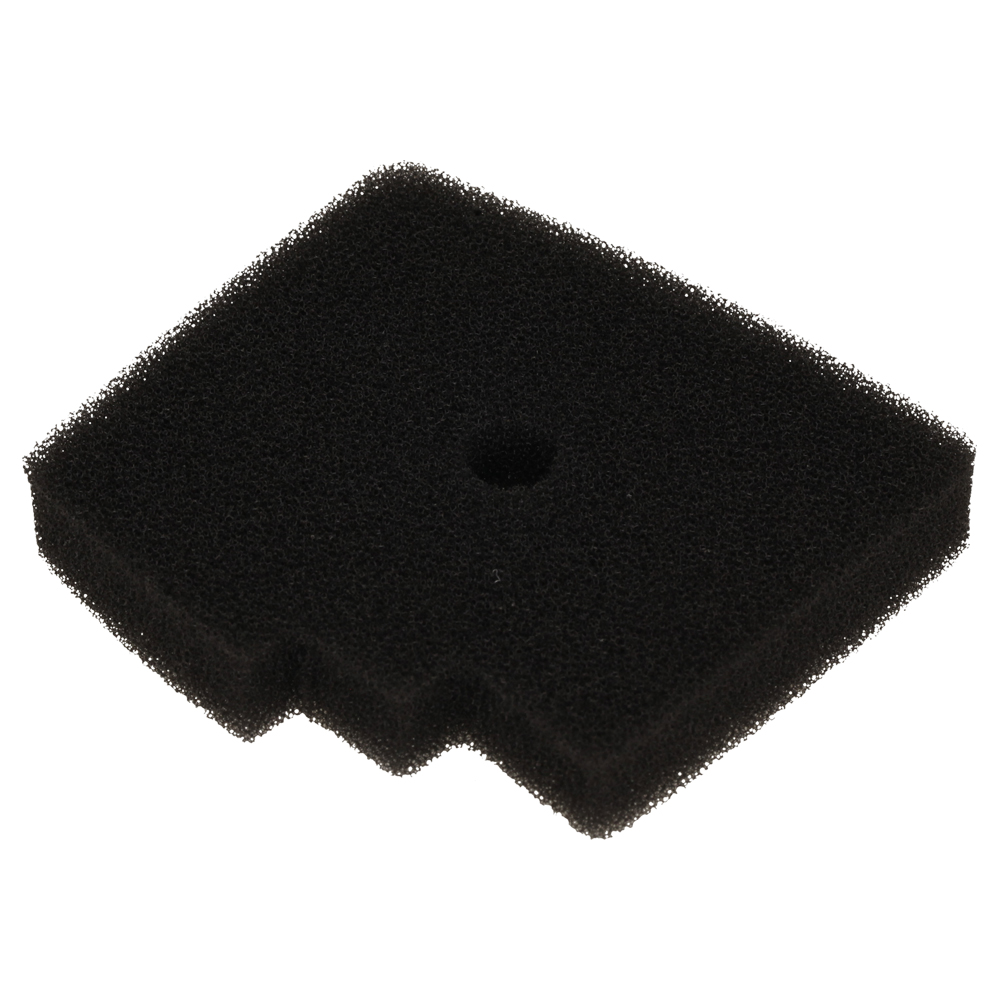

3	COGC230-16313 Available to backorder	Air Filter Sponge	£4.51 £3.76
4	COGC230-97026 Available to backorder	Screw	£2.48 £2.07

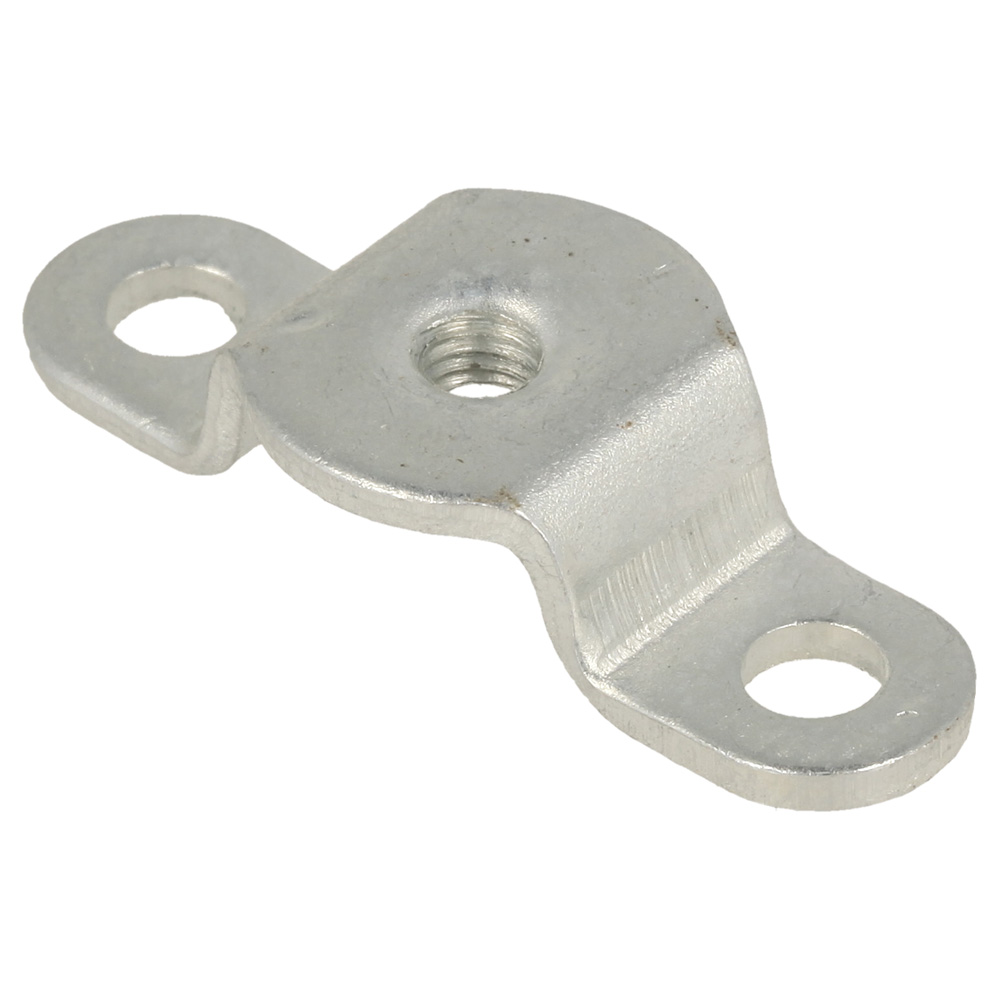

5	COGC230-16311 Available to backorder	Support	£2.48 £2.07
6	COGC230-16212 Available to backorder	Air Filter Insert	£3.14 £2.62
7	COGC230-16211 Available to backorder	Air Filter	£5.20 £4.33
8	COYD3800-18432A Available to backorder	Oil Bubble Return Pipe	£2.48 £2.07
9	COYD2500-18410 In stock	Oil Bubble	£3.71 £3.09
10	COGC230-24009 Available to backorder	Choke Driving Lever	£2.48 £2.07

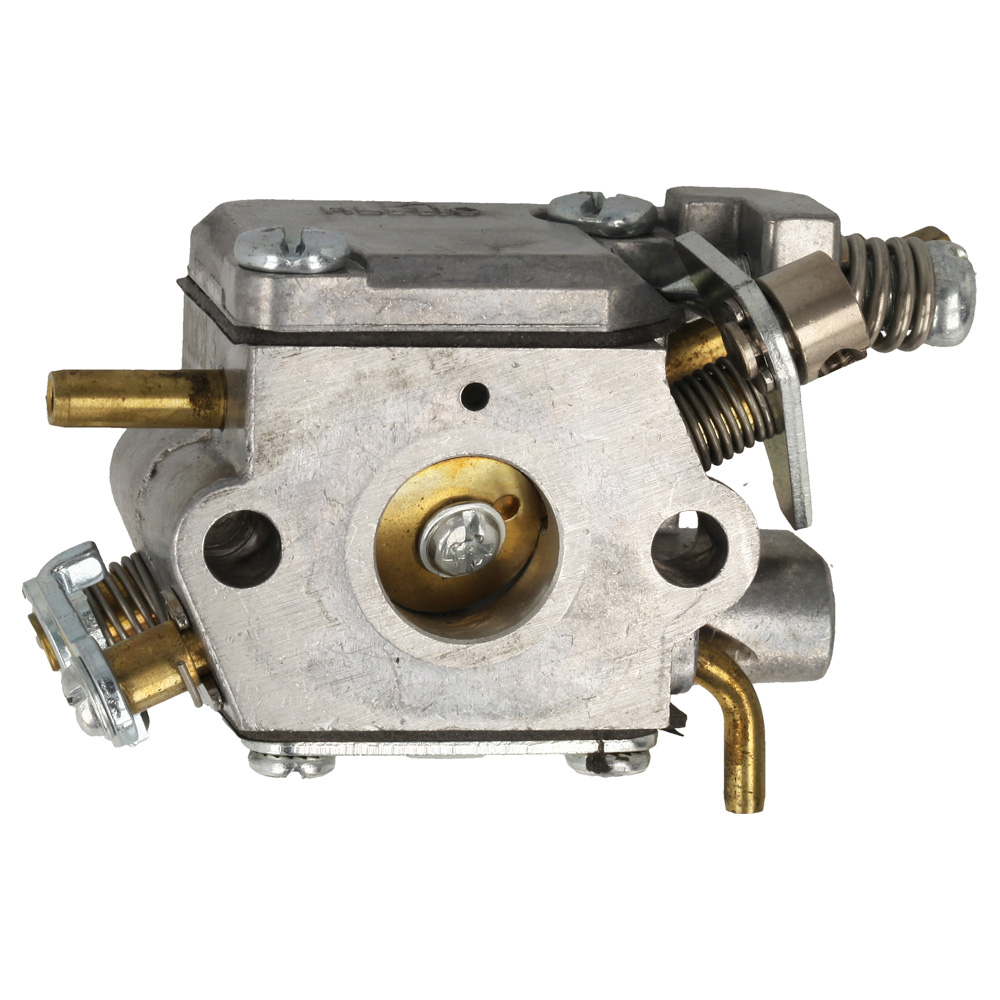

11	COGC230-18200 Available to backorder	Carburetor	£44.69 £37.24
12	COGC230-18204 Available to backorder	Washer Of Carburetor	£2.48 £2.07
14	COGC230-16110 Available to backorder	Nut Of Boot Intake	£2.48 £2.07
15	COGC230-16001 Available to backorder	Boot Intake Gasket	£2.48 £2.07
16	COGC230-11301 Available to backorder	Cover Cylider	£16.03 £13.36
17	COGC230-98801 Available to backorder	Screw	£2.48 £2.07
18	COYD4500-90022 Available to backorder	Screw	£1.24 £1.03
19	COGC230-12712 Available to backorder	Heat Pad Of Cylinder	£3.89 £3.24
20	9411 In stock	Spark Plug	£3.24 £2.70
21	COGC230-12111 Available to backorder	Cylinder	£42.35 £35.29
22	COGC230-16505 Available to backorder	Gasket Of Cover Intake	£2.48 £2.07
23	COGC230-16315 Available to backorder	Left Intake Cover	£2.48 £2.07
24	COGC230-16316 Available to backorder	Right Intake Cover	£2.48 £2.07
25	COGC230-99101 Available to backorder	Screw	£2.48 £2.07

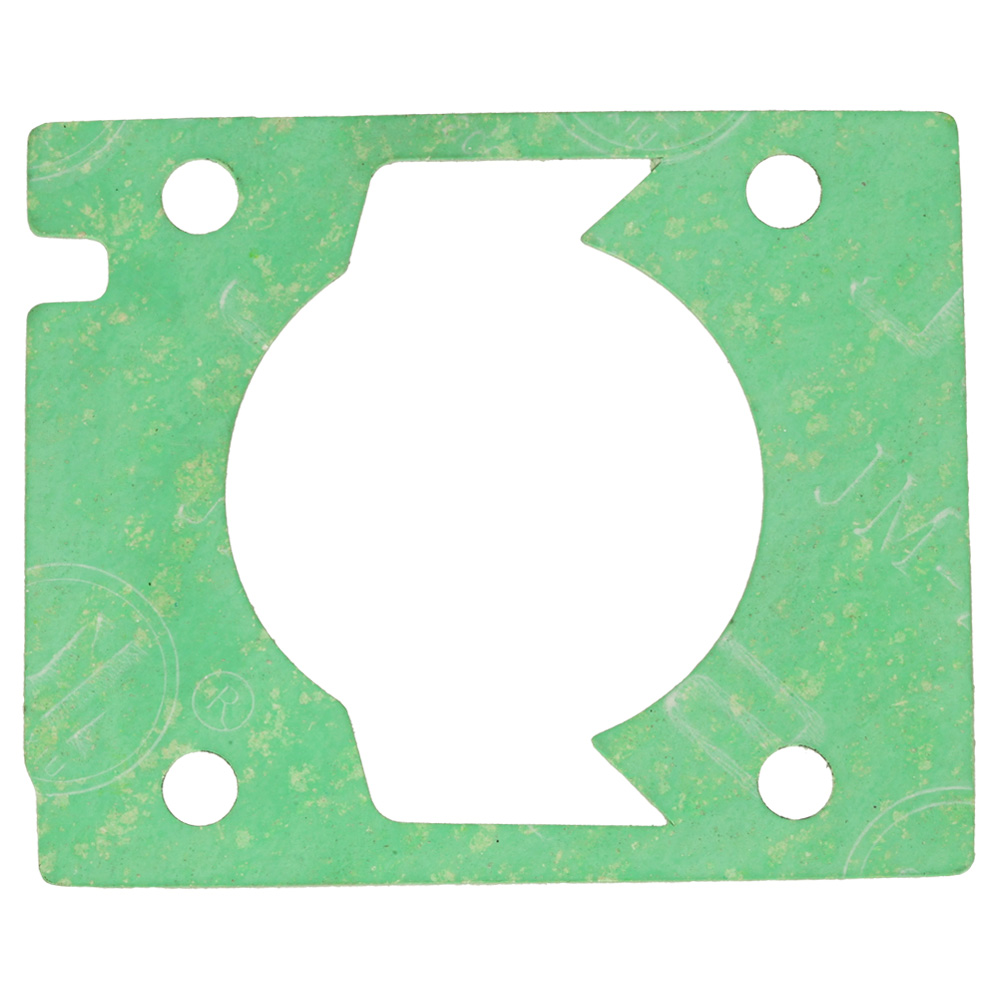

26	COGC230-12501 Available to backorder	Gasket Of Cylinder	£2.48 £2.07
27	COGC230-21003 Available to backorder	Head Gasket Of Muffler	£2.48 £2.07
28	COGC230-21120 Available to backorder	Muffler	£21.49 £17.91
29	COLJ230B-97005 Available to backorder	Screw	£2.48 £2.07

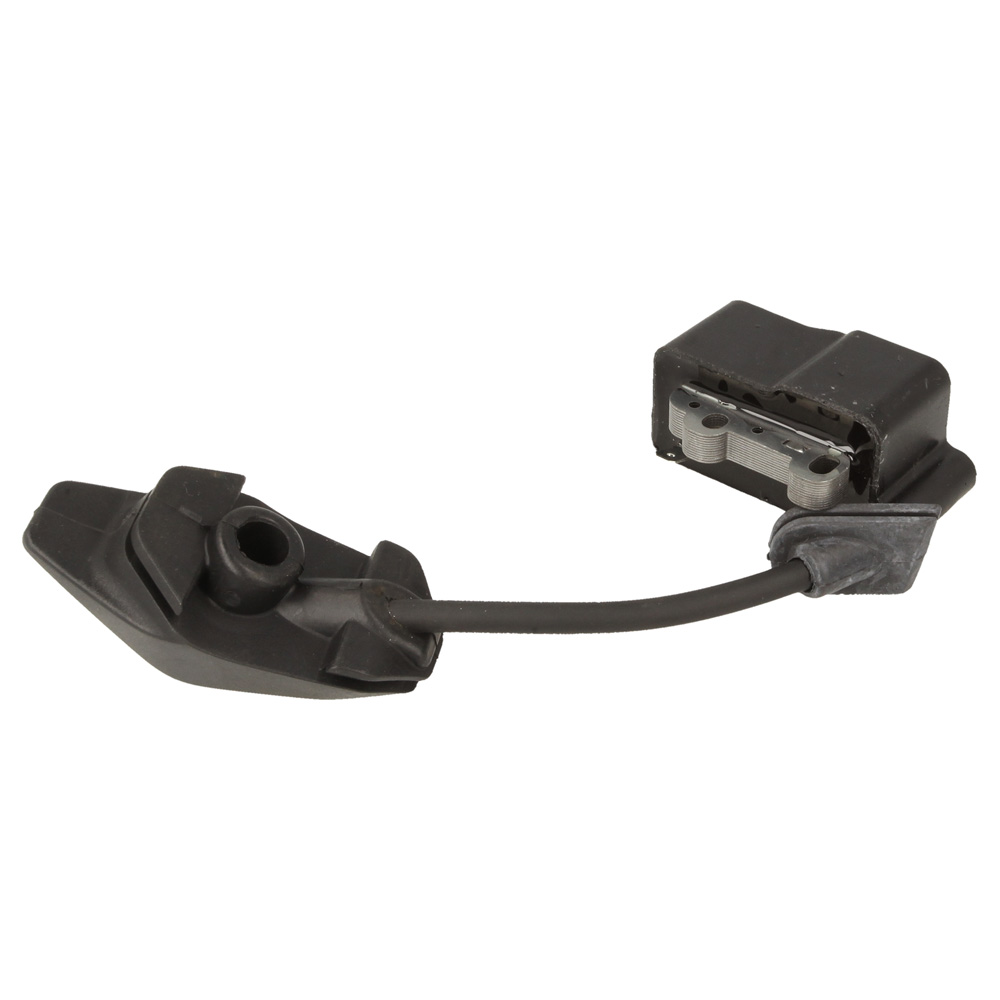

30	COGC230-26110 Available to backorder	Ignition Assy	£19.94 £16.62
31	COYD2500-97001 Available to backorder	Screw	£2.48 £2.07
32	COGC230-26132 Available to backorder	Head Gasket Of Ignition	£2.48 £2.07

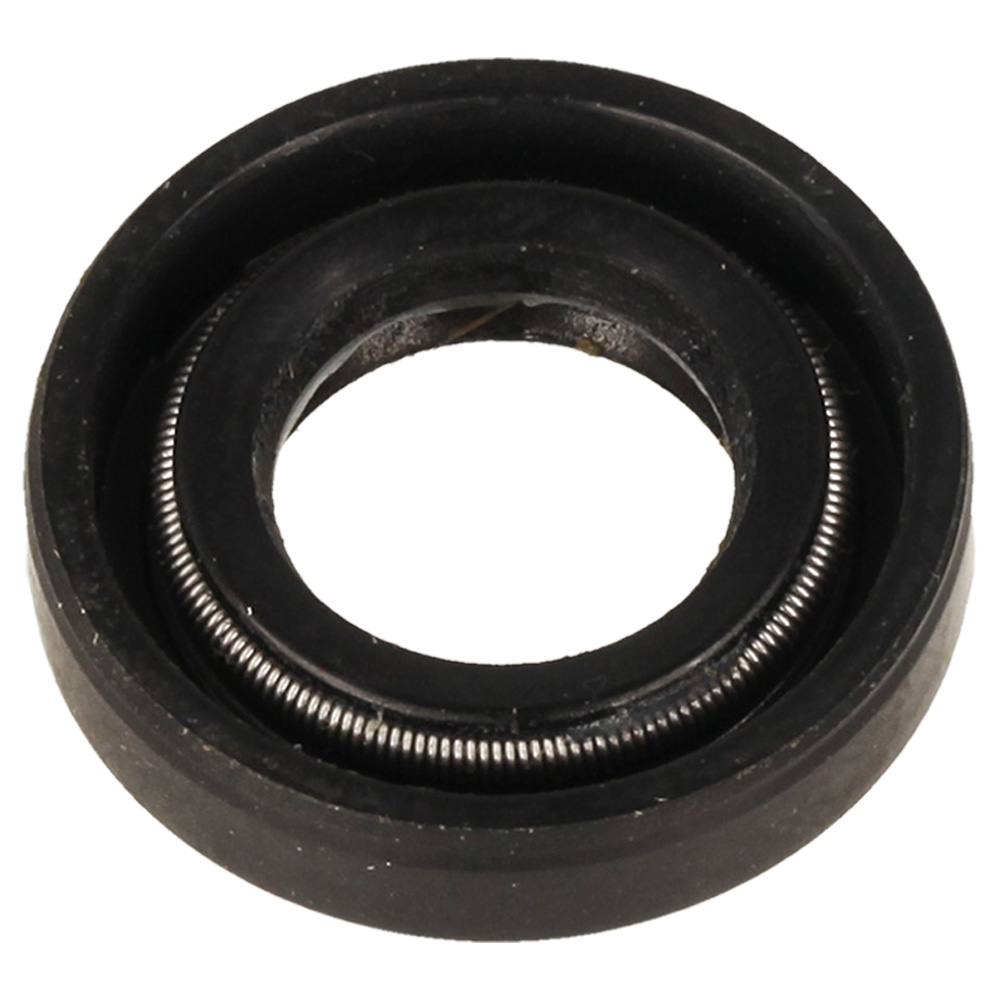

34	COYD2500-95011 Available to backorder	Oil Seal	£2.48 £2.07
35	COGC230-13201 Available to backorder	Right Crankcase	£16.32 £13.60
37	COGC230-94031 Available to backorder	Pin	£2.48 £2.07
38	COYD2500-96011 Available to backorder	Bearing	£2.48 £2.07
39	COYD2500-94601 Available to backorder	Key-Flywheel	£2.48 £2.07
40	COYD2500-14803 Available to backorder	Bearing Ring	£2.48 £2.07
41	COGC230-96119 Available to backorder	Needle Bearing	£3.89 £3.24
42	COGC230-14110 Available to backorder	Crankshaft Assy	£30.94 £25.78

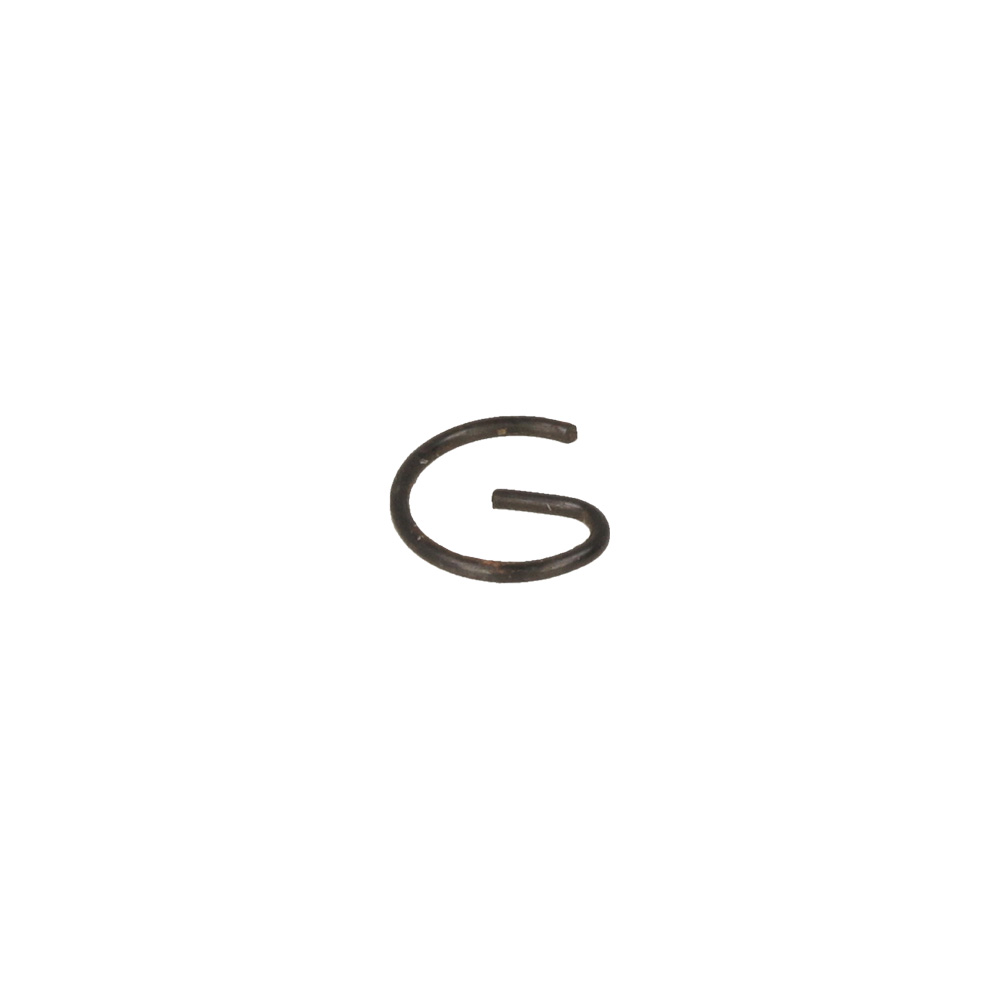

43	COGC260-14002 Available to backorder	Snap Ring	£0.48 £0.40
44	COLJ230B-14001 Available to backorder	Piston Pin	£2.48 £2.07
45	COGC230-14210 Available to backorder	Piston	£10.32 £8.60

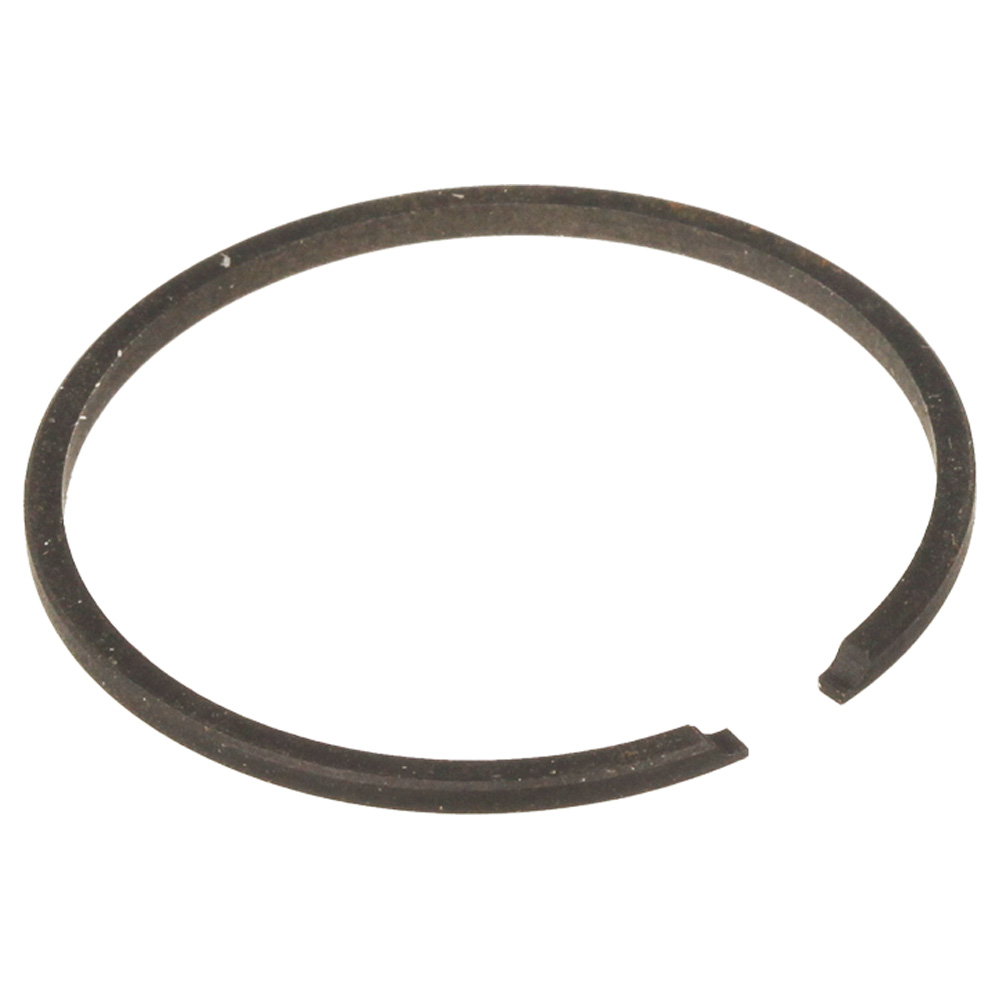

46	COLJ230B-14311 Available to backorder	Piston Ring	£2.48 £2.07
47	COGC230-13101 Available to backorder	Right Crankcase	£16.32 £13.60
48	COLJ230B-97007 Available to backorder	Screw	£2.48 £2.07

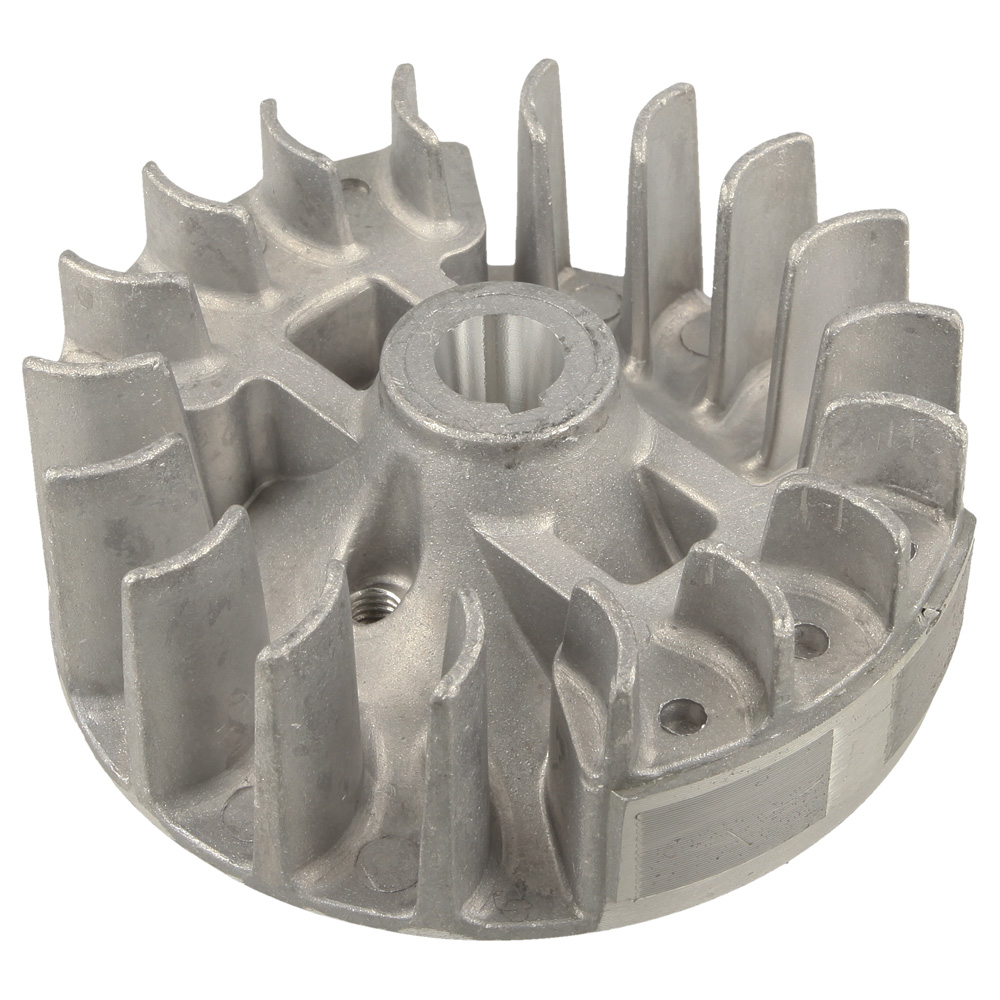

49	COGC230-15110 Available to backorder	Flywheel Assy	£16.09 £13.41
50	COYD2500-92101 Available to backorder	Nut	£1.24 £1.03
51	COGC230-14323 Available to backorder	Side Cover Of Crankcase	£13.46 £11.22
53	COGC260.1-22135 Available to backorder	Flat Washer	£2.48 £2.07
54	COGC260-22110 Available to backorder	Clutch Assy	£22.16 £18.47
55	COGC260-93402 Available to backorder	Gasket	£2.48 £2.07
56	COGC230-22133 Available to backorder	Screw Of Clutch	£2.48 £2.07
57	COYD6200-97004 In stock	Combination Screw	£1.28 £1.07
58	COGC230-18213 Available to backorder	Fuel Tank Support	£6.86 £5.72
60	COGC305.8-18104 In stock	Fuel Pipe Support With Two Hole	£4.62 £3.85
61	COYD3800-18431 Available to backorder	Oil Bubble Inlet Pipe	£2.48 £2.07
62	COGC305-18101.1 In stock	Fuel Pipe	£2.58 £2.15

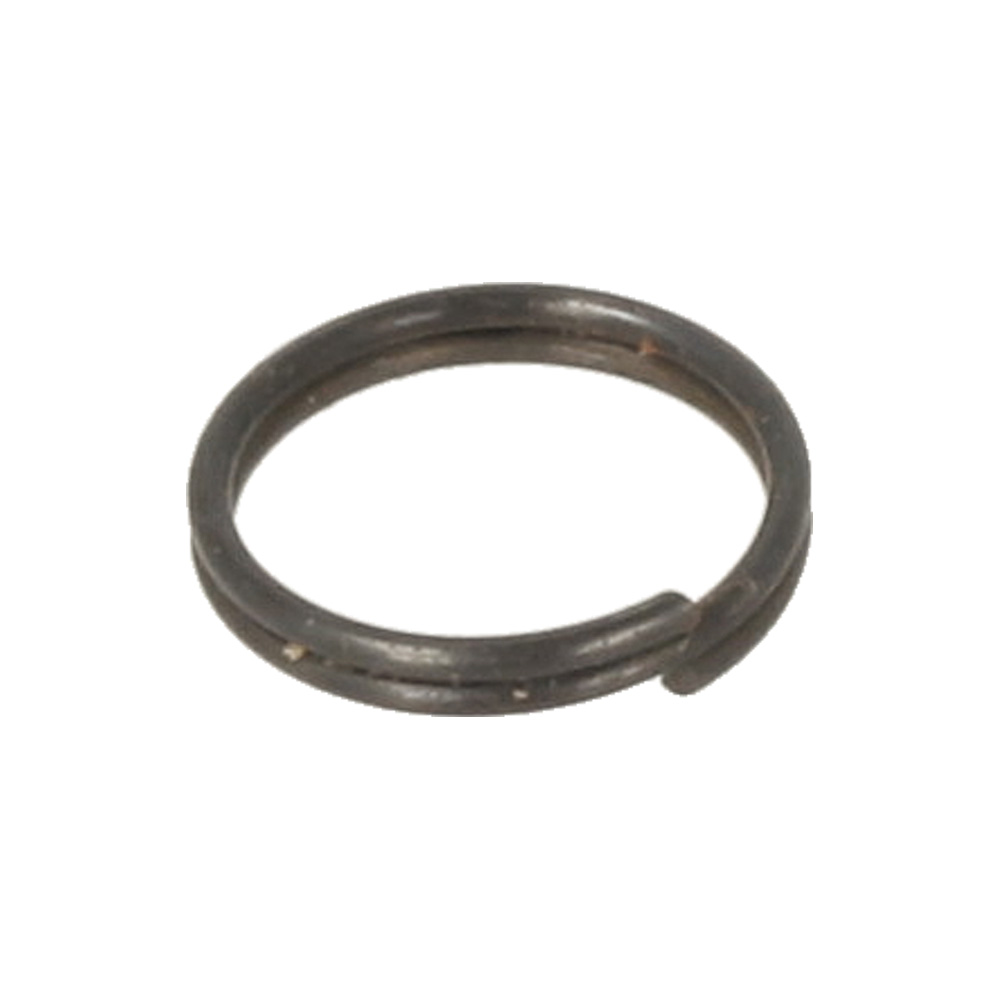

63	COYD4500-18023 Available to backorder	Clip	£2.48 £2.07
64	COGC305-18034 In stock	Fuel Filter	£5.00 £4.17

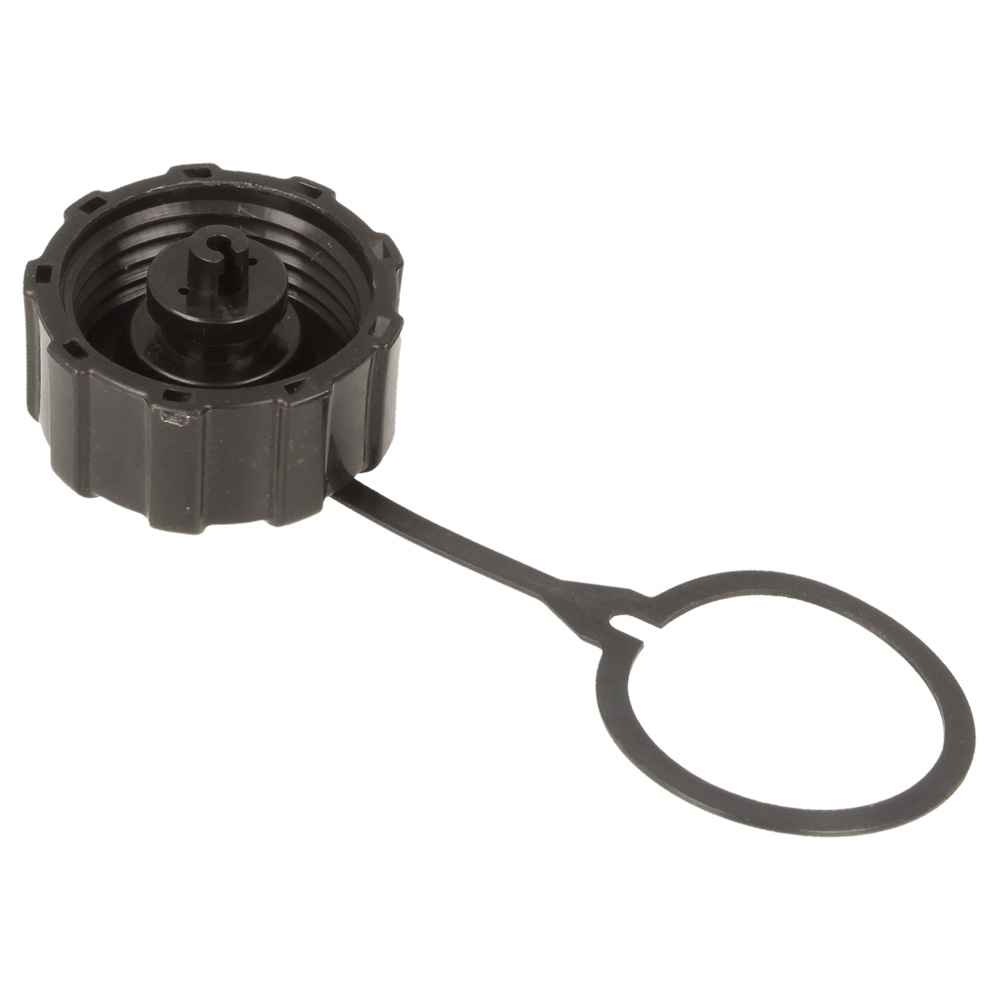

65	COGC230-18030 In stock	Fuel Cap Assy	£8.86 £7.38
66	COGC260-25260.1 In stock	Easy Starter Pulley	£5.36 £4.47

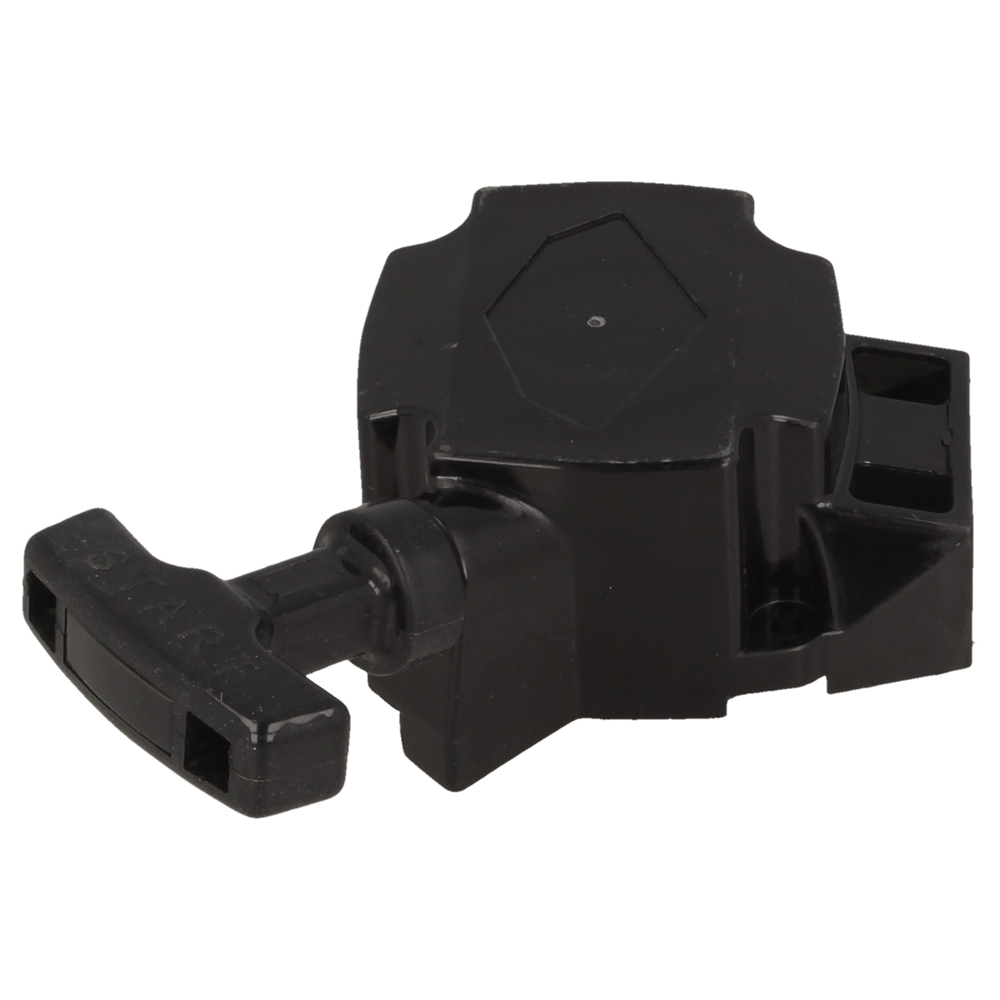

67	COGC230-25000 Available to backorder	Starter Assy	£15.90 £13.25
68	COYD6200-90005 Available to backorder	Screw	£2.48 £2.07
