Cobra MT270K - Kawasaki TJ27 Engine Diagram

Description

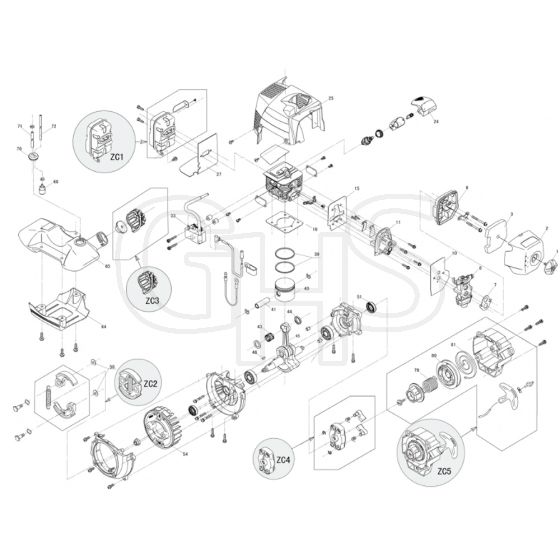

Cobra MT270K Multi Tool Parts Diagram

	Part No.	Details
1	KA49069-0918 Available to backorder	ZC1 Muffler-Assy	£130.20 £108.50

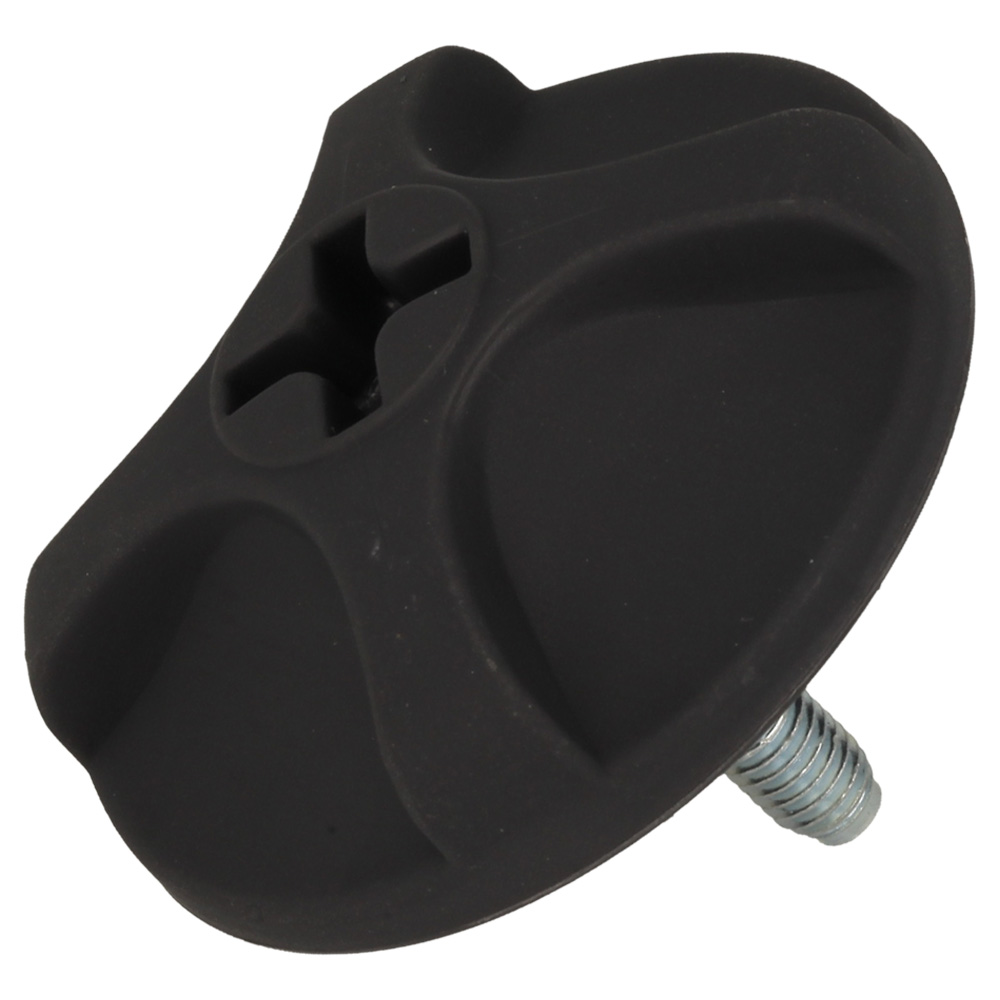

1	KA92154-2053 Available to backorder	Bolt	£4.51 £3.76
2	CO13081-2232 Available to backorder	ZC2 Clutch-Assy	£42.85 £35.71

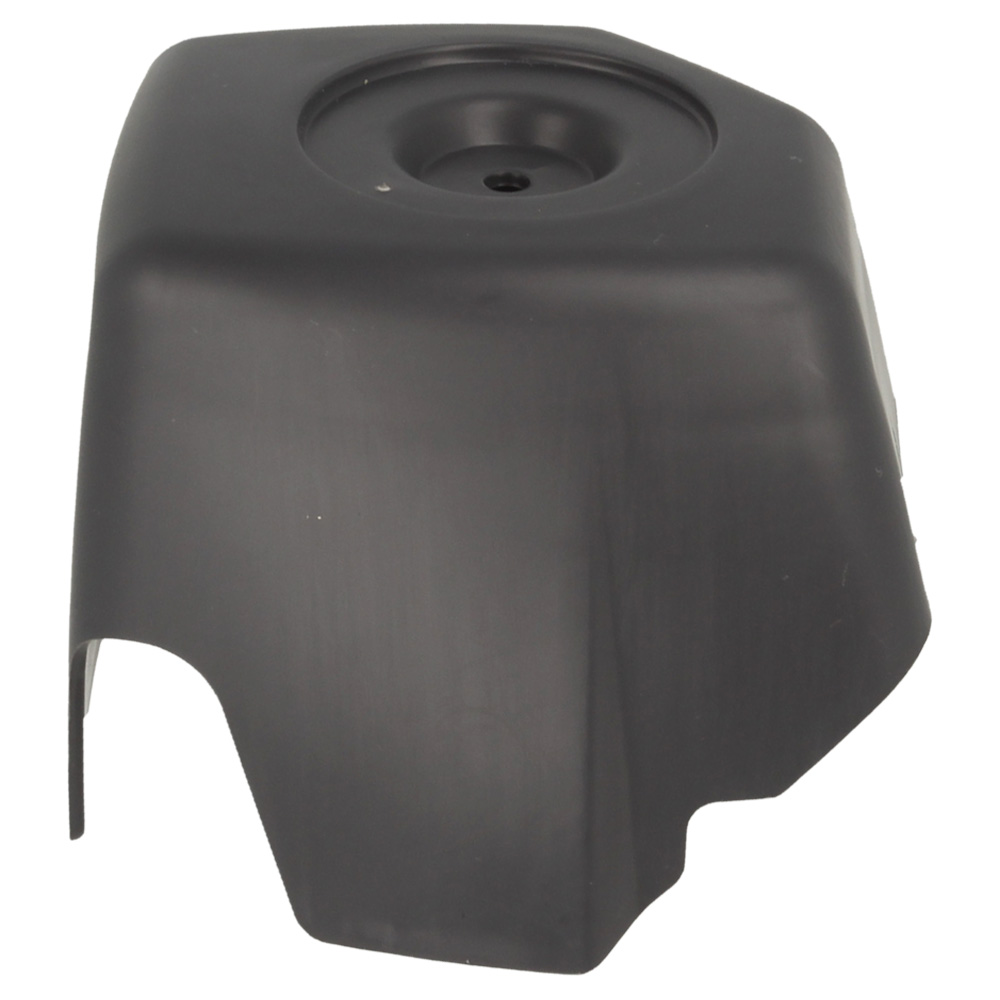

2	KA11065-2143 Available to backorder	Cap	£9.97 £8.31
3	KA99996-6107 In stock	ZC3 Cap-Tank & Breather Assy	£23.96 £19.97
3	KA11013-2244 Available to backorder	Element-Air Filter	£4.14 £3.45
4	KA49080-2215 Available to backorder	ZC4 Pulley-Starting	£8.63 £7.19
5	CO49088-2594 Available to backorder	ZC5 Starter-Recoil	£52.69 £43.91
6	KA11011-2392 Available to backorder	Case-Air Filter	£12.17 £10.14
7	KA11061-2248 In stock	Gasket Carburetor/Spacer	£2.04 £1.70
8	KA15004-2106 Available to backorder	Carburetor-Assy	£144.12 £120.10
10	KA11061-2247 In stock	Gasket Carburetor-Insulat	£2.34 £1.95
15	KA11061-2246 Available to backorder	Gasket Cylinder-Insulator	£2.29 £1.91
19	KA11061-0749 Available to backorder	Gasket Cylinder	£3.12 £2.60
24	KA21130-2071 Available to backorder	Cap-Spark Plug	£5.66 £4.72
25	KA39156-2102 Available to backorder	Pad	£2.26 £1.88
27	KA11061-2204 Available to backorder	Gasket Muffler	£12.86 £10.72

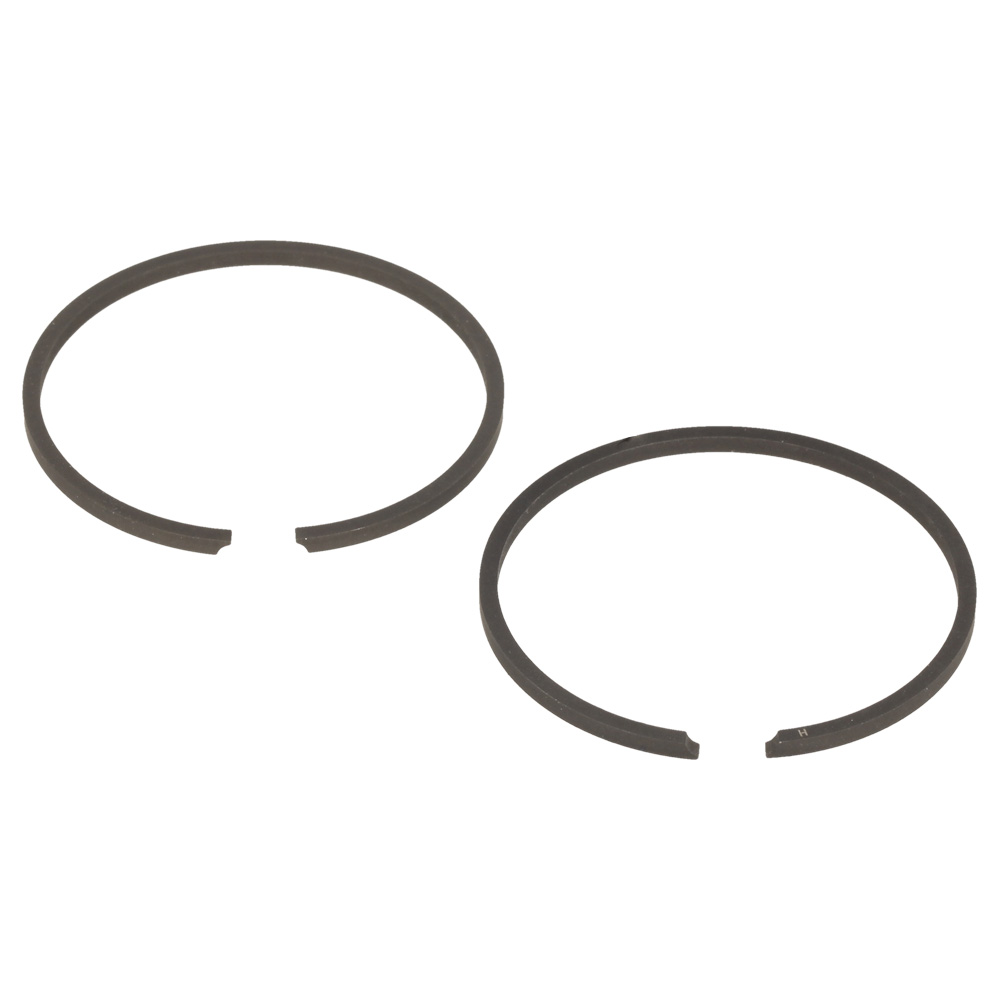

39	KA13008-6071 Available to backorder	Ring-Set-Piston	£14.89 £12.41
40	CO13001-2174 Available to backorder	Piston-Engine	£20.28 £16.90
41	KA13002-2100 Available to backorder	Pin-Piston	£8.86 £7.38
43	KA13033-2064 Available to backorder	Bearing-Small End	£9.60 £8.00
45	KA49119-2242 Available to backorder	Crankshaft-Assy	£227.88 £189.90
46	KA92038-2106 Available to backorder	Key	£1.54 £1.28
51	KA92049-2269 Available to backorder	Seal-Oil 12X22X45	£2.80 £2.33
54	KA21050-2329 Available to backorder	Flywheel	£111.00 £92.50
64	KA34001-2091 Available to backorder	Stand	£5.60 £4.67
65	KA51001-2335 Available to backorder	Tank-Comp-Fuel	£28.37 £23.64
68	KA49019-2114 In stock	Filter-Fuel	£12.61 £10.51
70	KA92071-2142 In stock	Grommet Fuel Tank	£3.62 £3.02
72	KA92192-2130 Available to backorder	Tube 3X5X174	£8.40 £7.00
79	KA92145-2128 In stock	Spring Recoil	£4.70 £3.92
80	KA59101-0558 Available to backorder	Reel Starter-Recoil	£9.60 £8.00
81	KA92145-0850 Available to backorder	Spring Recoil	£16.54 £13.78
