Cobra MT270K - Kawasaki Multi Tool Main Diagram

Description

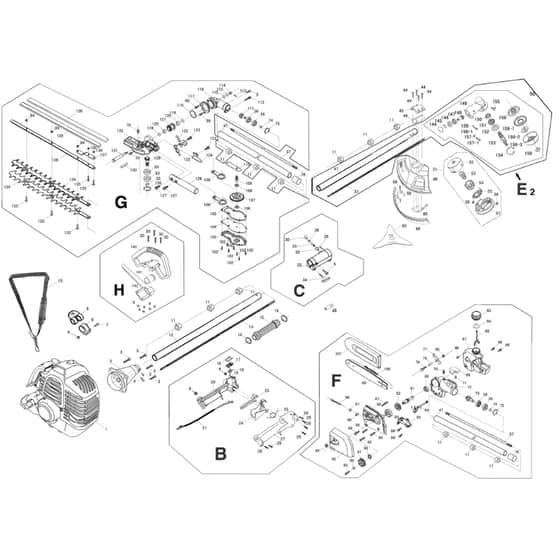

Cobra MT270K Multi Tool Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	COLJ260K-47000 Available to backorder	B Control Handel Assy	£18.84 £15.70
0	COGC260-46090 Available to backorder	H G-Handle Assy	£11.98 £9.98
1	COGCM250-42500 Available to backorder	E1 Blade Work Head Assy	£42.53 £35.44
0	COGCM430-46500 Available to backorder	F Lopper Saw Work Head Assy	£46.00 £38.33
1	COGC260.3B-42000 Available to backorder	Engine	£91.80 £76.50
0	COGCM250-42130 Available to backorder	C Connecter Assy	£26.26 £21.88

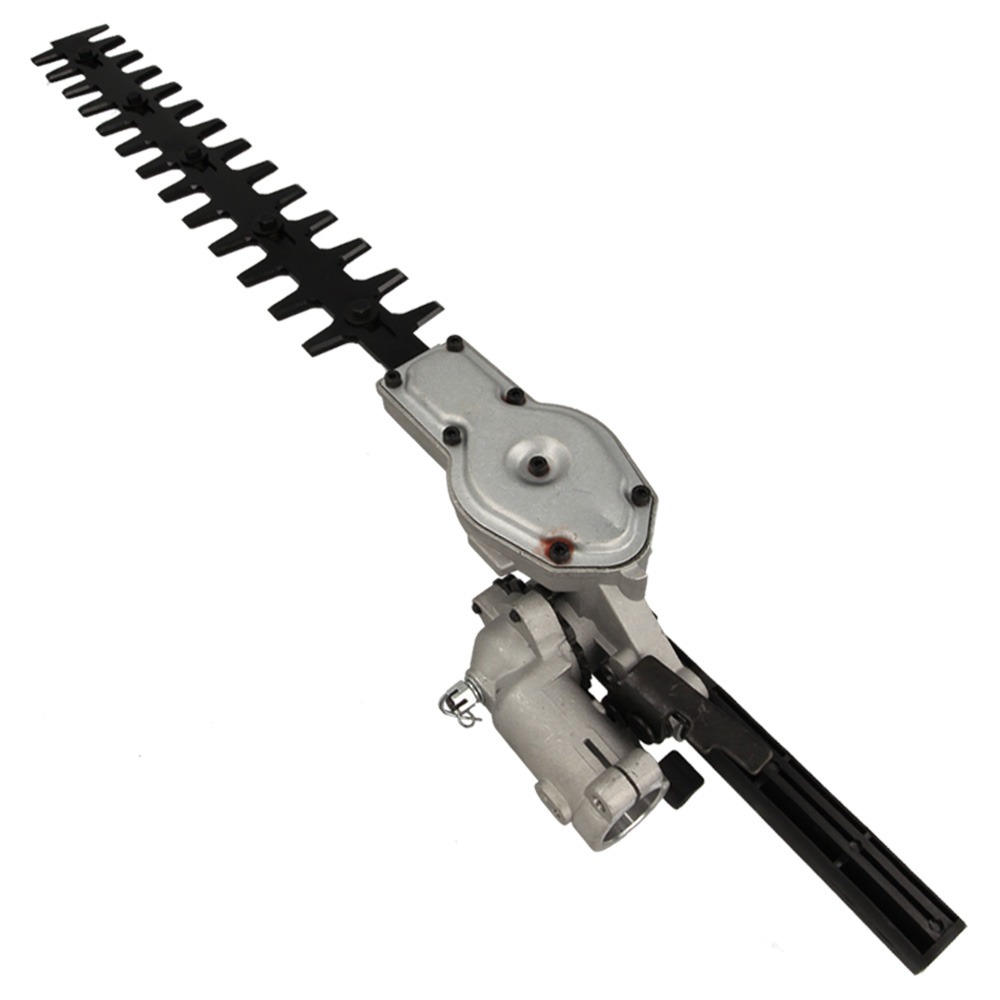

0	COGCM430-42700 Available to backorder	G Hedge Trimmer Work Head Assy	£67.08 £55.90
2	COGC260.3-44310 Available to backorder	Support -Output	£34.20 £28.50
2	COGCM250-48000 Available to backorder	E2 Spool Work Head Assy	£60.12 £50.10
3	COGC260-97016 Available to backorder	Screw	£1.26 £1.05
4	COBGC350K-97025 Available to backorder	Screw	£2.52 £2.10
5	COYD3800-90021 Available to backorder	Screw	£1.20 £1.00

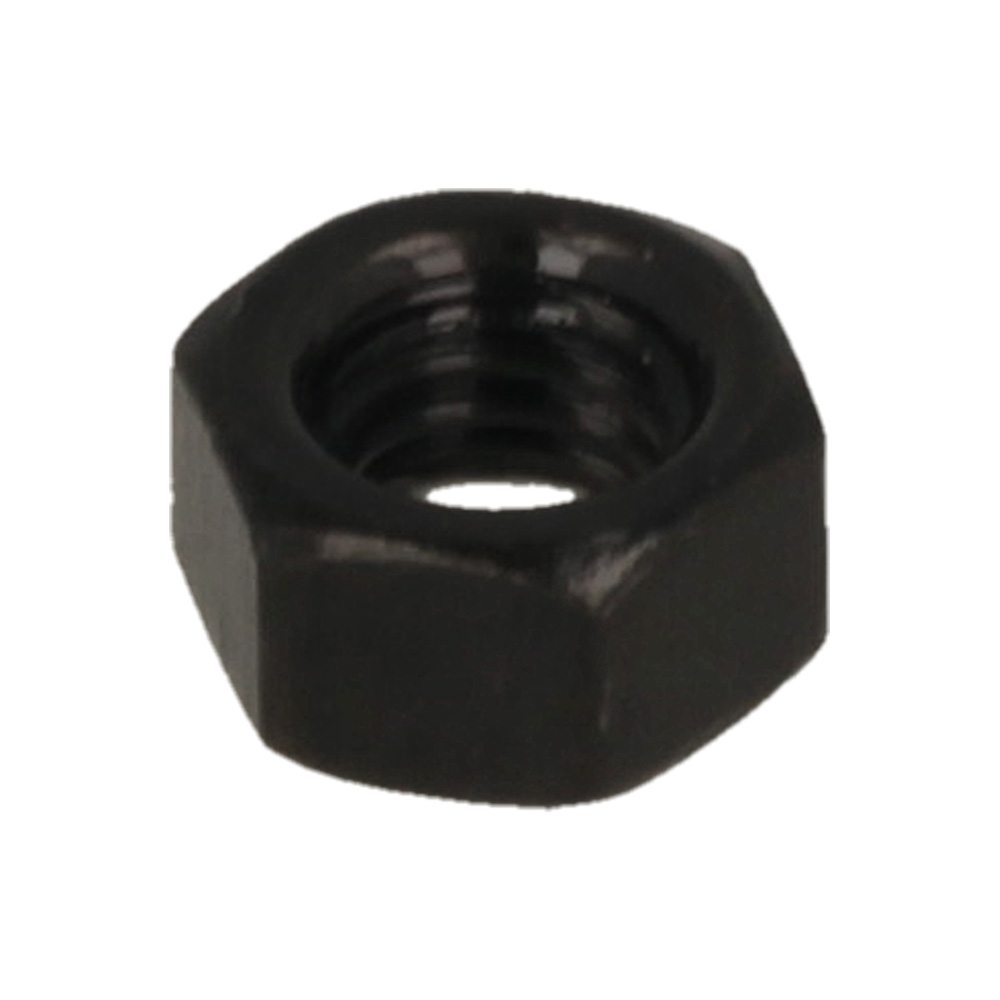

6	COYD2500-92001 Available to backorder	Nut	£1.26 £1.05
7	COYD3800-90024 In stock	Screw	£1.20 £1.00
8	COGC415-46582 Available to backorder	Support	£2.52 £2.10
9	COGC415-46581 Available to backorder	Pothook	£2.52 £2.10
10	COGC260LDB-46591 Available to backorder	Belt	£12.46 £10.38
11	COGC415-45300 Available to backorder	Oil Bearing	£2.62 £2.18
12	COGC305-45106A Available to backorder	Aluminous Pipe-Power Side	£26.10 £21.75

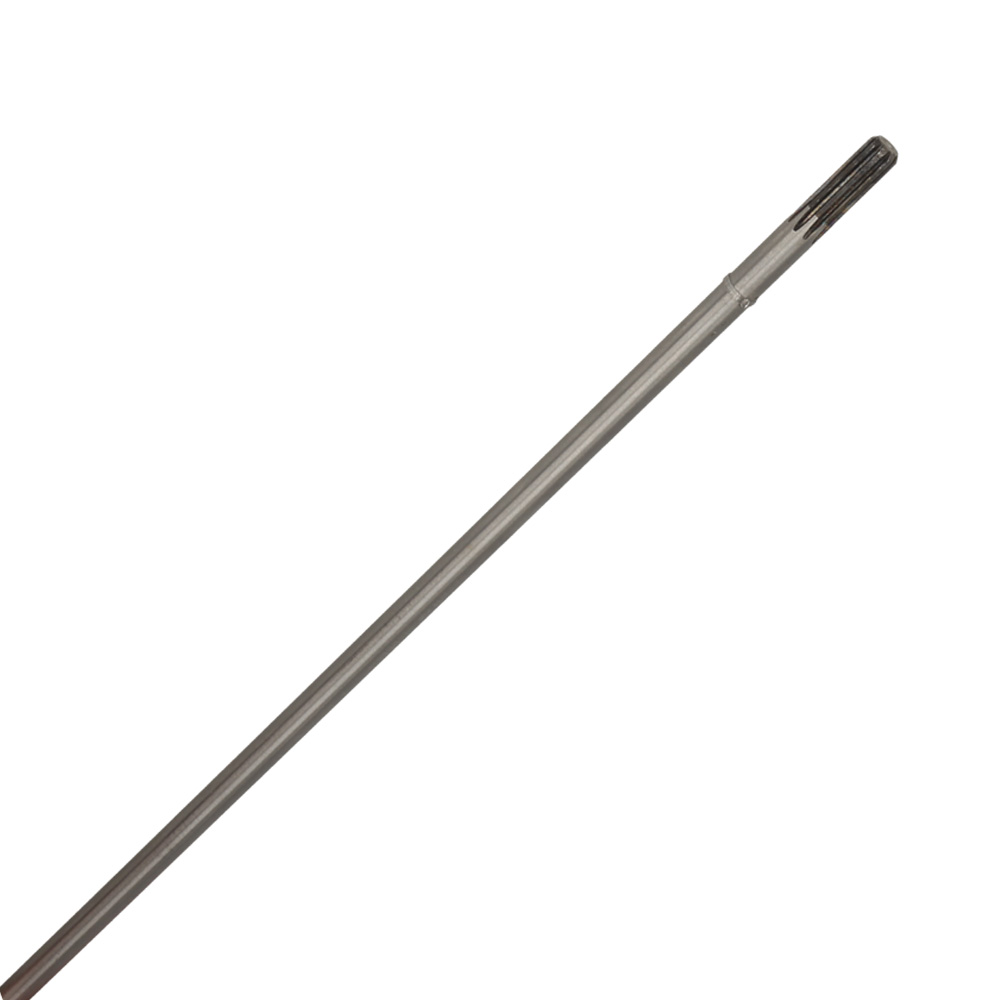

13	COGC260-42107 Available to backorder	Drive Shaft	£28.36 £23.63
14	COGCM250-45510 Available to backorder	Spring	£2.62 £2.18
15	COGCM250-45511 Available to backorder	Middle Grip	£2.52 £2.10
16	COLJ260K-47061 Available to backorder	Switch Plate	£3.50 £2.92
21	COLJ260K-47060 Available to backorder	Stop Wire Assy	£5.65 £4.71
24	COLJ260K-47006 Available to backorder	Trigger	£3.76 £3.13
30	COGC260-42158 Available to backorder	Connector Assembly	£2.58 £2.15
33	COGC305.3-42150 Available to backorder	Connector	£26.26 £21.88
34	COGC260-42150.1 Available to backorder	Clamp	£2.52 £2.10
35	COGC305-90012 Available to backorder	Screw Shaft Tube Retainer	£1.44 £1.20
37	COGC305-42109 Available to backorder	Drive Shaft On Working Side	£27.10 £22.58
38	COGC415-42116 Available to backorder	Spline Housing	£4.25 £3.54
44	COGC305.5-90039 Available to backorder	Screw M5 X 30	£1.20 £1.00
45	COGC305.5-48051 Available to backorder	Up Plate Of Protect Cover	£2.62 £2.18
46	COGC305.5-48057 Available to backorder	Damping Sleeve	£2.40 £2.00
48	COGC305.5-48053 Available to backorder	Cutting Attachment Shield	£18.25 £15.21
49	COGC305.5-48060 Available to backorder	Plt Btm Brush Cutter Ppp	£2.52 £2.10
50	COGC305.3B-48040 Available to backorder	Big Gear Bos Assy	£34.63 £28.86
51	COGC305.3-48180 In stock	Nylon Cutter Assy	£20.04 £16.70
58	COGC305.3A-48056.2A Available to backorder	Small Blade	£2.62 £2.18
59	COGC305.3B-91337 Available to backorder	Screw Line Cutting Blade St4.8 X 14	£2.52 £2.10
60	COGC305-48052B Available to backorder	Bottom Clamp Bracket	£2.62 £2.18
62	COGC305-48200 In stock	Blade 3 Toothed	£10.00 £8.33
63	COGCM250-19234 Available to backorder	Oil Cap	£2.52 £2.10
67	COGCM250-18300 Available to backorder	Oil Capacity Assy	£5.02 £4.18
73	COGCM250-46651 Available to backorder	Gear	£2.52 £2.10
81	COGCM250-46583 Available to backorder	Gear Shaft Assy	£2.52 £2.10
83	COLJ230B-96016 Available to backorder	Bearing	£3.49 £2.91
85	COGCM250-19100 Available to backorder	Oil Pump Assy	£2.52 £2.10
87	COGC305-90013 Available to backorder	Screw	£1.26 £1.05
95	COGCM250-46659 In stock	Left Cover	£4.78 £3.98
99	COGCM250-22910 Available to backorder	Bar	£11.98 £9.98
100	COGCM250-22300 Available to backorder	Chain	£17.16 £14.30
101	COGCM250-46800 Available to backorder	Cover Of Bar	£3.95 £3.29
102	COLJ260K-90006 Available to backorder	Screw	£1.20 £1.00
114	COBGC260-92401 Available to backorder	Nut	£1.26 £1.05
115	COYD3600-93002 Available to backorder	Washer	£2.52 £2.10
141	COGC260-46092 Available to backorder	Circle Cover	£3.76 £3.13
150	COGC415-96030 Available to backorder	Ball Bearing	£2.52 £2.10
156	COGC305.3B-93113 Available to backorder	Washer	£2.52 £2.10
158	COGC305.3-48046A Available to backorder	Shaft Bushing	£3.26 £2.72
159	COGC305.1-92105 In stock	Locking Nut Cutting Blade	£3.60 £3.00
1561	COYD4500-90022 Available to backorder	156-1 Oiling Bolt	£1.26 £1.05
1581	COGC305.3-48047 Available to backorder	158-1 Blade Holder	£3.13 £2.61
1582	COGC305.3-48045 Available to backorder	158-2 Spacer	£2.52 £2.10
1583	COGC305.3-48048A Available to backorder	158-3 Blade Holder Cover	£3.13 £2.61
