Cobra MT270K - Cordless Multi-Tool Power Head Hedgetrimmer Diagram

Name: Cobra MT270K - Cordless Multi-Tool Power Head Hedgetrimmer Diagram
SKU: mt270k_cordless_multi_tool_power_head_hedgetrimmer-group
Price: 1.03 GBP
Availability: InStock

Part No. mt270k_cordless_multi_tool_power_head_hedgetrimmer-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra MT270K - Cordless Multi-Tool Power Head Hedgetrimmer Diagram

Description

Cobra MT270K Multi Tool Parts Diagram

	Part No.	Details
1	COGC260-44323 Available to backorder	ZC1 Clutch Rubber	£4.82 £4.02
95	COLJ260K-92104 In stock	Screw	£1.28 £1.07
96	COLJ260K-56206 Available to backorder	Blade Lead Rail	£11.17 £9.31
98	COLJ260K-56203 Available to backorder	Blade	£52.91 £44.09
99	COLJ260K-56204 In stock	Slide Block	£2.58 £2.15
100	COLJ260K-90041 In stock	Screw	£2.58 £2.15
101	COLJ260K-56103 In stock	Screw	£2.58 £2.15
102	COLJ260K-56208 Available to backorder	Blade Cover	£7.06 £5.88
103	COLJ260K-90124 Available to backorder	Screw	£2.48 £2.07
104	COLJ260K-53901 Available to backorder	Butterfly Spring	£2.48 £2.07
105	COYD3600-93002 Available to backorder	Washer	£2.48 £2.07
106	COLJ260K-53903 Available to backorder	O Type Washer	£2.48 £2.07
107	COLJ260K-46720 Available to backorder	Grease Nipple	£2.48 £2.07
108	COLJ260K-53904 Available to backorder	Gear Case	£21.64 £18.03
109	COLJ260K-53905 Available to backorder	O Type Washer	£2.48 £2.07
110	COLJ260K-53906 Available to backorder	Gear Box C	£7.01 £5.84
111	COLJ260K-96016 Available to backorder	Bearing	£4.60 £3.83

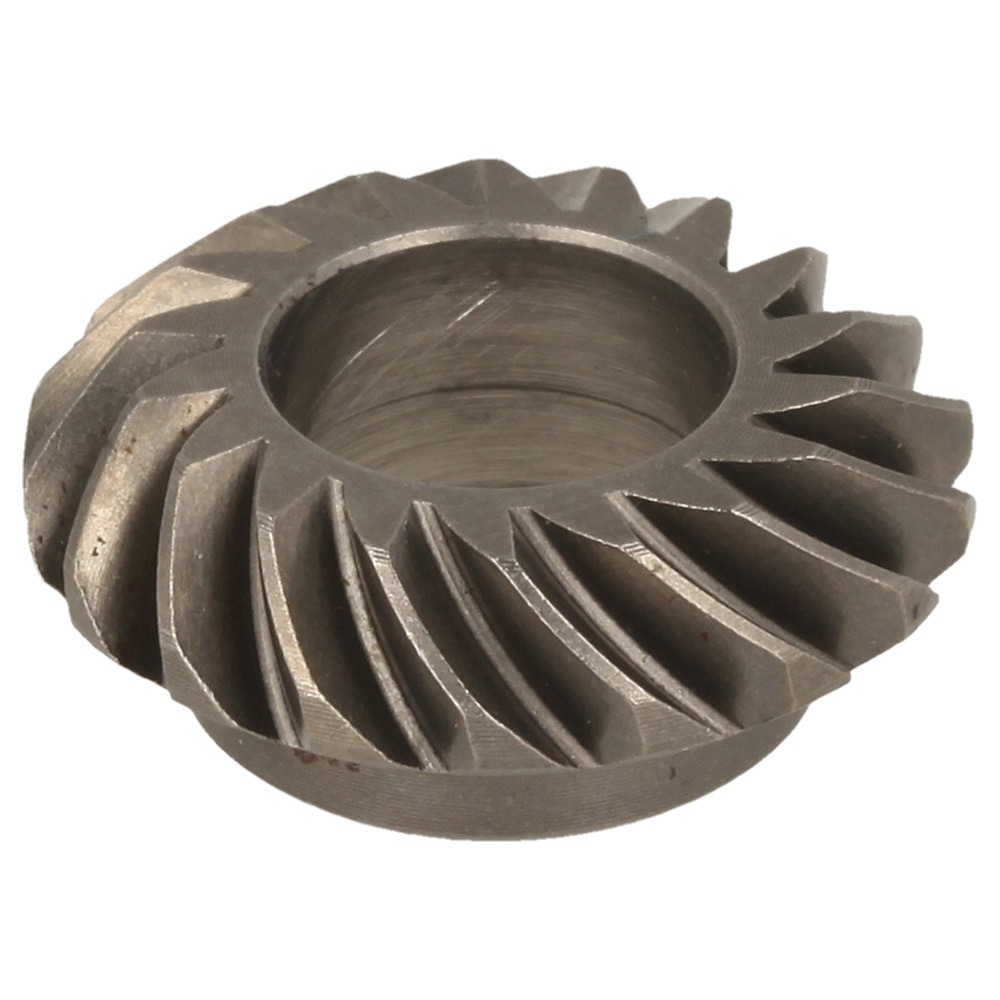

112	COLJ260K-53907 Available to backorder	Gear Box	£8.11 £6.76
113	COLJ260K-90310 Available to backorder	Countersunk Head Screw	£2.48 £2.07
114	COLJ260K-90042 In stock	Screw	£2.58 £2.15
115	COLJ260K-47201 In stock	Stop Plate	£2.58 £2.15
116	COLJ260K-94031 Available to backorder	Parallel Pin	£2.48 £2.07
117	COLJ260K-53009 Available to backorder	Case Body	£34.51 £28.76
118	COLJ260K-92007 Available to backorder	Screw	£63.96 £53.30
119	COLJ260K-47202 Available to backorder	Handle	£4.94 £4.12
120	COLJ230B.2-92107 Available to backorder	Screw	£1.24 £1.03
121	COLJ260K-53908 Available to backorder	Gear Box D	£8.88 £7.40
122	COLJ260K-96025 Available to backorder	Bearing	£3.79 £3.16
123	COLJ260K-30014 Available to backorder	Snap Ring	£2.48 £2.07
124	COLJ260K-30015 Available to backorder	Snap Ring	£2.48 £2.07
125	COLJ260K-30016 In stock	Needle Bearing	£2.58 £2.15
126	COLJ260K-53004 Available to backorder	Upper Thrust Plate	£2.48 £2.07
127	COLJ260K-53007 Available to backorder	Stationary Pin	£2.48 £2.07
128	COLJ260K-53008 Available to backorder	Pin	£2.48 £2.07
129	COLJ260K-90006 In stock	Screw	£1.28 £1.07
130	COLJ260K-47203 In stock	Cover Plate	£2.58 £2.15
132	COLJ260K-58603 Available to backorder	Spring A	£2.48 £2.07
133	COYD2500-92001 Available to backorder	Hex Nut	£1.24 £1.03
134	COGC305.3B-93113 Available to backorder	Spring Washer	£2.48 £2.07
135	COYD4500-90122 Available to backorder	Screw	£1.24 £1.03
137	COLJ260K-90010 Available to backorder	Screw	£2.48 £2.07
138	COLJ260K-47025 Available to backorder	Small Gear Box	£6.52 £5.43
139	COLJ260K-96026 Available to backorder	Bearing	£2.48 £2.07
140	COLJ260K-47026 Available to backorder	Fixed Shaft	£10.06 £8.38
141	COLJ260K-47027 Available to backorder	Sliding Shaft	£16.99 £14.16
142	COLJ260K-47028 Available to backorder	Spring B	£2.48 £2.07
143	COLJ260K-47029 Available to backorder	Rotation Shaft	£8.57 £7.14
144	COLJ260K-47032 Available to backorder	Rotation Plate	£2.48 £2.07
145	COLJ260K-30022 Available to backorder	Bearing	£3.46 £2.88
146	COLJ260K-30023 Available to backorder	Snap Ring	£1.24 £1.03
147	COLJ260K-30024 Available to backorder	Snap Ring	£1.24 £1.03
149	COLJ260K-53909 Available to backorder	Gear A	£10.84 £9.03
150	COLJ260K-53021 In stock	Connecting Rod	£8.82 £7.35
151	COLJ260K-53022 In stock	Needle Bearing	£5.66 £4.72
153	COLJ260K-53005 Available to backorder	Lower Thrust Plate	£2.58 £2.15
154	COLJ260K-58302 Available to backorder	Gasket	£2.48 £2.07
155	COLJ260K-53002 In stock	Sealing Paper Washer	£2.58 £2.15
156	COLJ260K-53001 In stock	Bottom Cap	£10.61 £8.84
157	COLJ260K-45194 In stock	Screw	£2.58 £2.15
158	COGC305-42109 Available to backorder	Shaft	£26.69 £22.24
159	COGC305-45116B Available to backorder	Tube	£17.69 £14.74
