Cobra MOWBOT800 - Mowbot 800 Robot Mower Main Diagram

Description

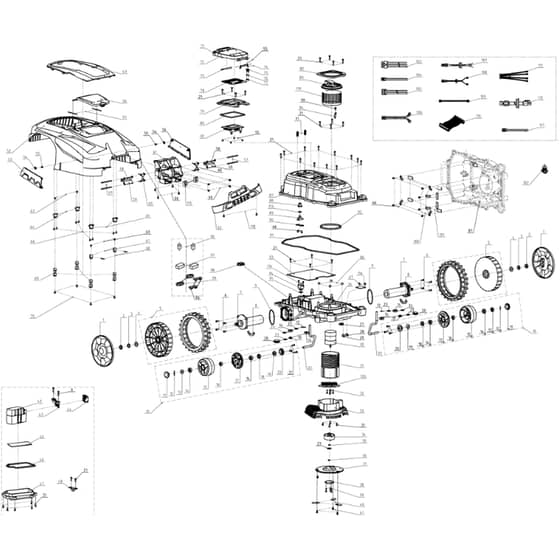

Cobra MOWBOT800 Robot Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO21211000080006A Available to backorder	Rear Wheel Cover	£4.70 £3.92
2	CO3031307001 Available to backorder	Hex Thin Nut	£1.26 £1.05
3	CO3051301002 Available to backorder	Flat Washer	£1.26 £1.05
4	CO3052302001 Available to backorder	Spring Washer	£1.26 £1.05
5	CO21211000460001B Available to backorder	Rear Wheel Ass'Y	£21.28 £17.73
6	COA26800102801 Available to backorder	Stscrew	£1.26 £1.05
7	CO2050100234A Available to backorder	Driving Motor	£68.64 £57.20
8	CO2121600003A Available to backorder	Cushion Of Driving Motor	£1.26 £1.05
9	CO3121602005 Available to backorder	O-Ring	£1.26 £1.05
10	CO2120200003 Available to backorder	Front Wheel Ass'Y	£20.02 £16.68
11	CO21211000030001A Available to backorder	Outer Cover	£1.26 £1.05
12	CO3049301002 Available to backorder	Bearing Clip	£1.26 £1.05
13	CO21211000050001A Available to backorder	Outer Cover Of Front Wheel Bearing	£1.26 £1.05
14	COA26800408601 Available to backorder	Ball Bearing	£1.56 £1.30
15	CO21211000020001A Available to backorder	Front Wheel Hub	£2.48 £2.07
16	CO2121600002A Available to backorder	Water-Proof Rubber	£1.26 £1.05
17	CO21211000010001A Available to backorder	Front Wheel Cover	£1.26 £1.05
18	CO3121601001 Available to backorder	Oil Sealing Ring	£1.26 £1.05
19	CO21211000060001A Available to backorder	Inner Cover Of Front Wheel Bearing	£1.26 £1.05
20	CO21211000040001A Available to backorder	Inner Cover Of Front Wheel	£1.26 £1.05
21	CO3011301010 Available to backorder	St Screw	£1.26 £1.05
22	CO2121300002A Available to backorder	Front Wheel Axle(Left)	£4.60 £3.83
23	CO3051303001 Available to backorder	Washer	£1.26 £1.05
24	COA26800705001 Available to backorder	Wave Washer	£1.26 £1.05
25	CO2121300004A Available to backorder	Front Wheel Axle(Right)	£4.60 £3.83
26	CO21231000010001B Available to backorder	Deck	£22.91 £19.09
27	CO2128100006B Available to backorder	Motor Cable Clamp	£1.26 £1.05
28	CO2128600002B Available to backorder	Charging Cable Clamp	£1.26 £1.05
29	CO2128100007B Available to backorder	Perimeter Cable Clamp	£1.26 £1.05

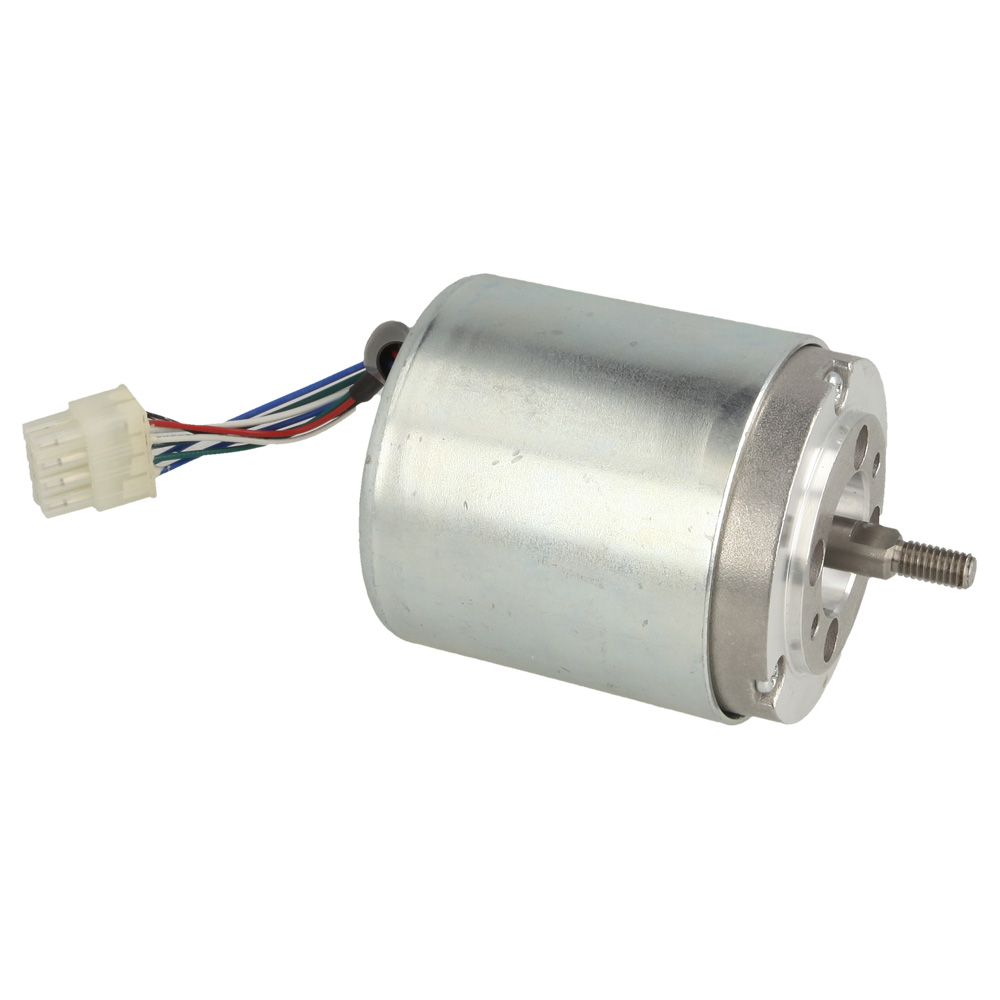

30	CO2050100235A Available to backorder	Cutting Motor	£60.12 £50.10
31	CO21291000250001A Available to backorder	Thread Sleeve	£5.68 £4.73
32	CO3021301004 Available to backorder	Screw M4*14	£1.26 £1.05
33	CO21251000020001C Available to backorder	Protection Cover	£4.22 £3.52
34	CO2125400001A Available to backorder	Blade Adaptor	£5.18 £4.32
35	CO2125300012A Available to backorder	Square Hole Washer	£1.44 £1.20
36	CO3032306001 Available to backorder	All Metal Hex Locking Nut	£1.26 £1.05

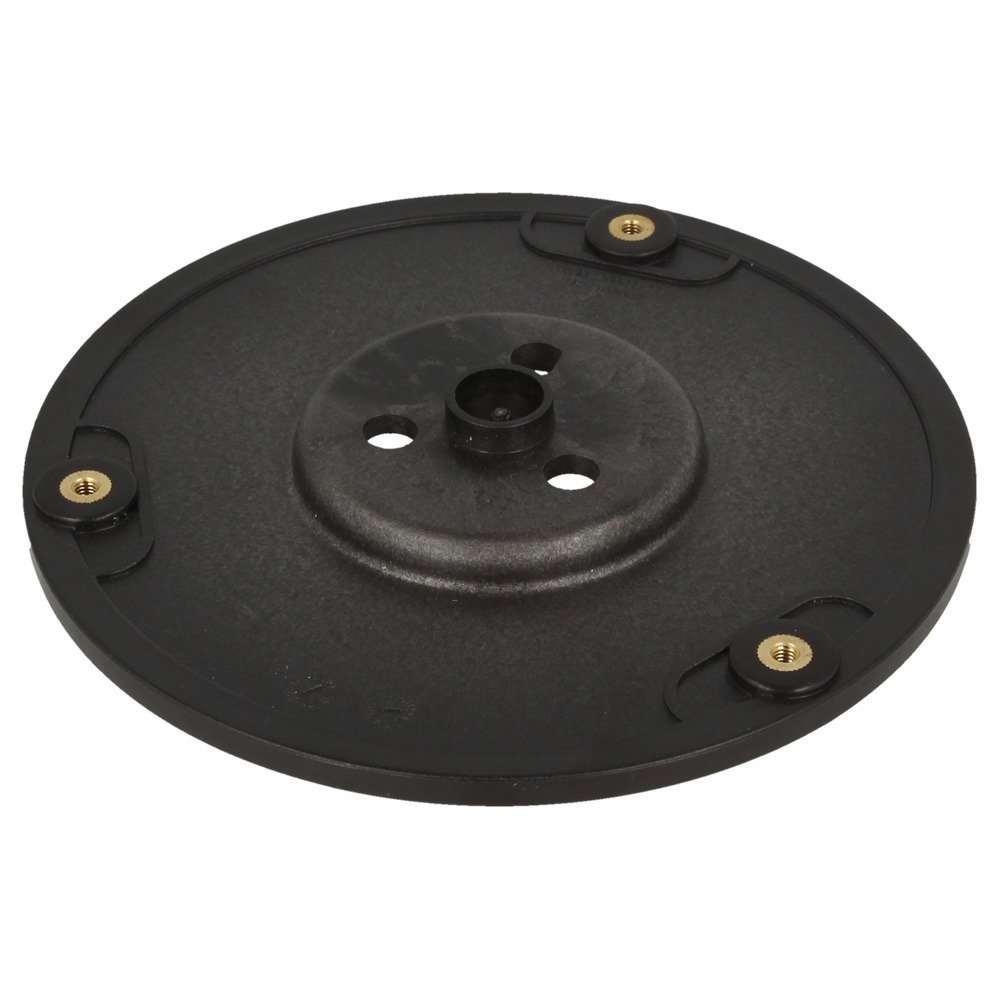

37	CO21251000030001C Available to backorder	Blade Disk	£8.22 £6.85

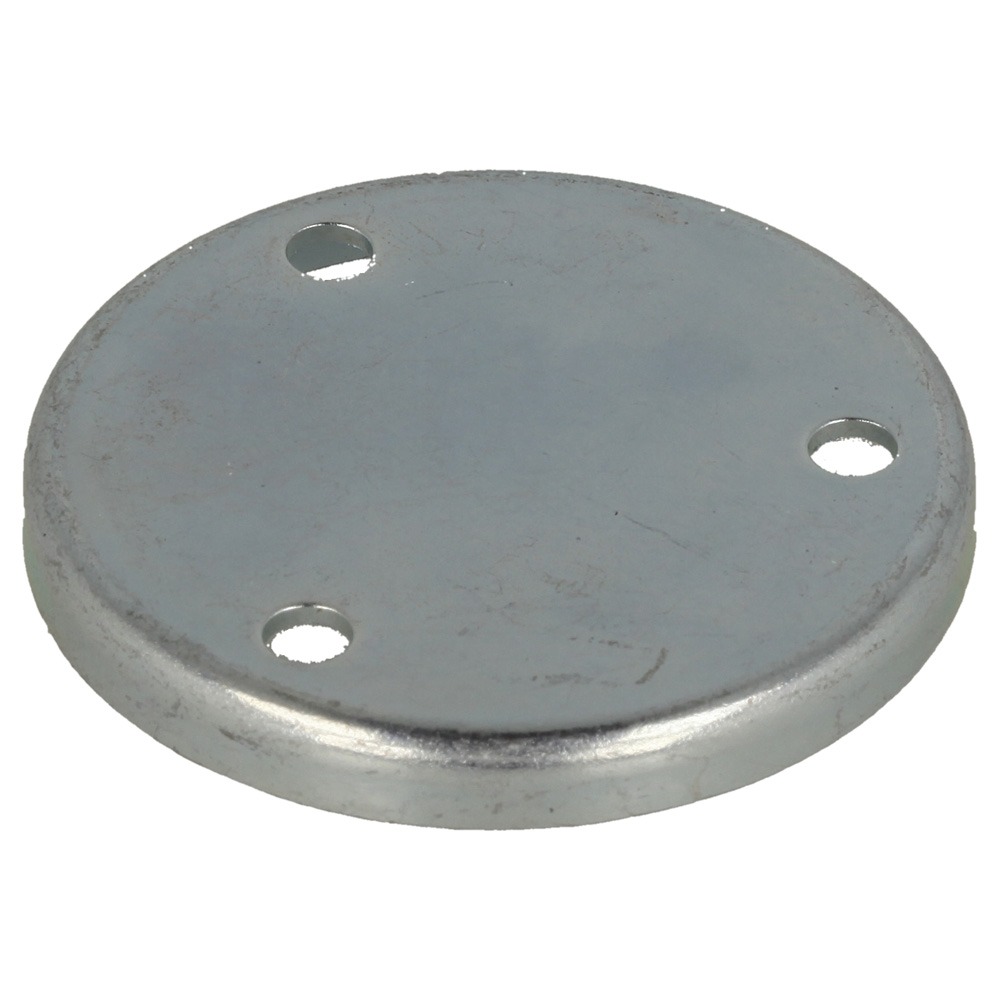

38	CO2125300010A Available to backorder	Cutter Cover	£1.20 £1.00

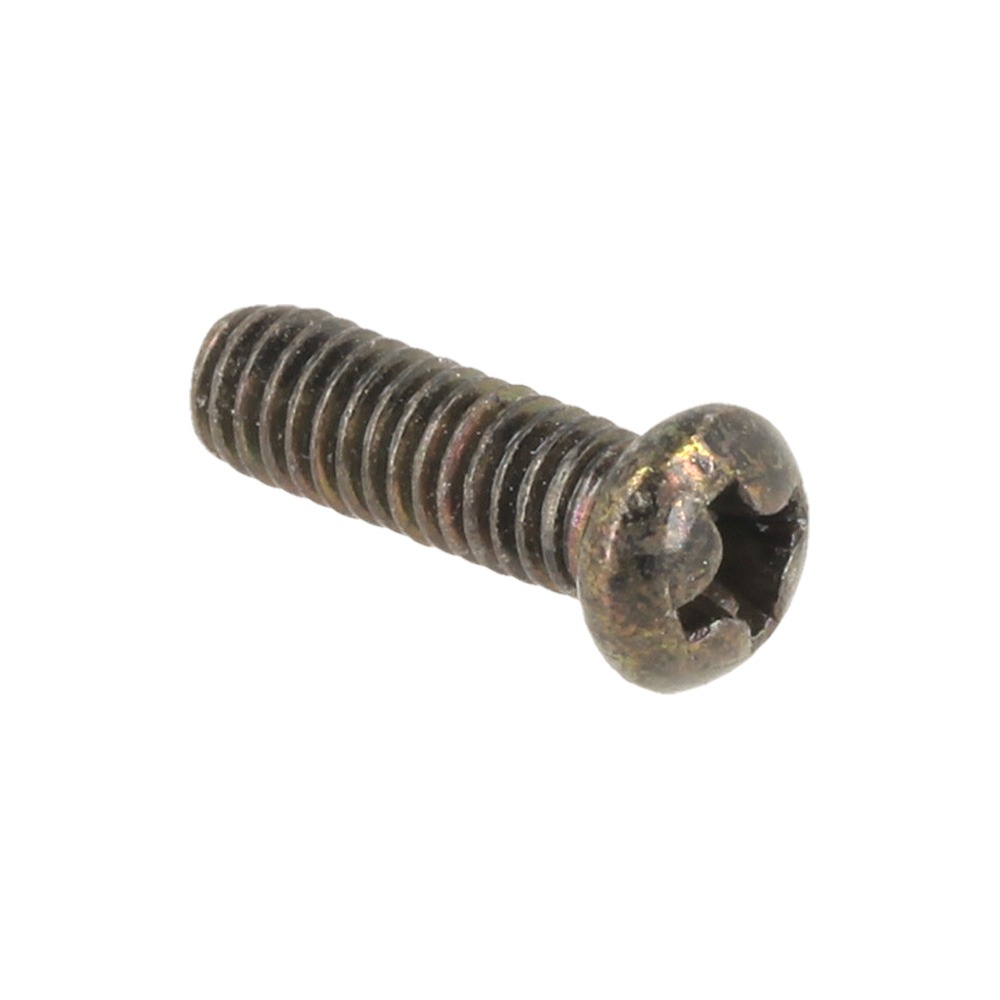

39	CO3021302008 Available to backorder	Tooth Screw	£1.20 £1.00

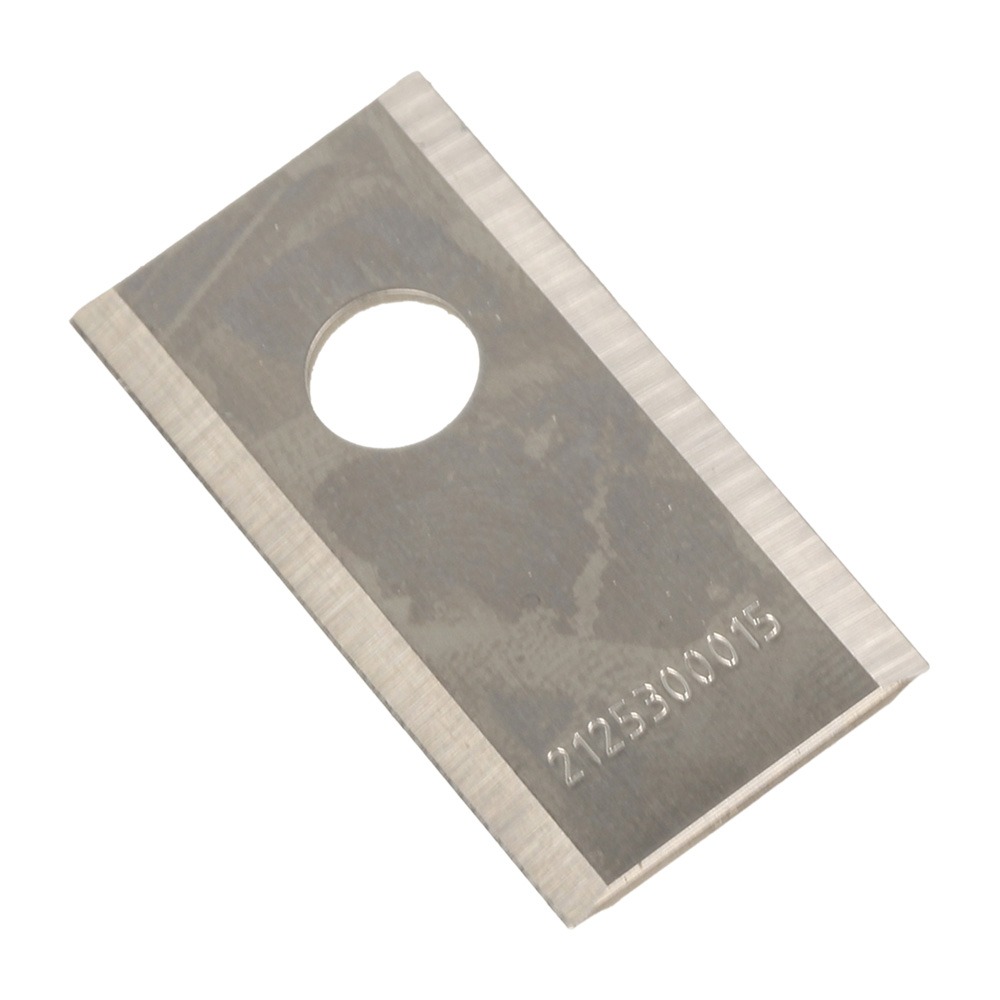

40	CO21253000154122A Available to backorder	Blade	£1.80 £1.50

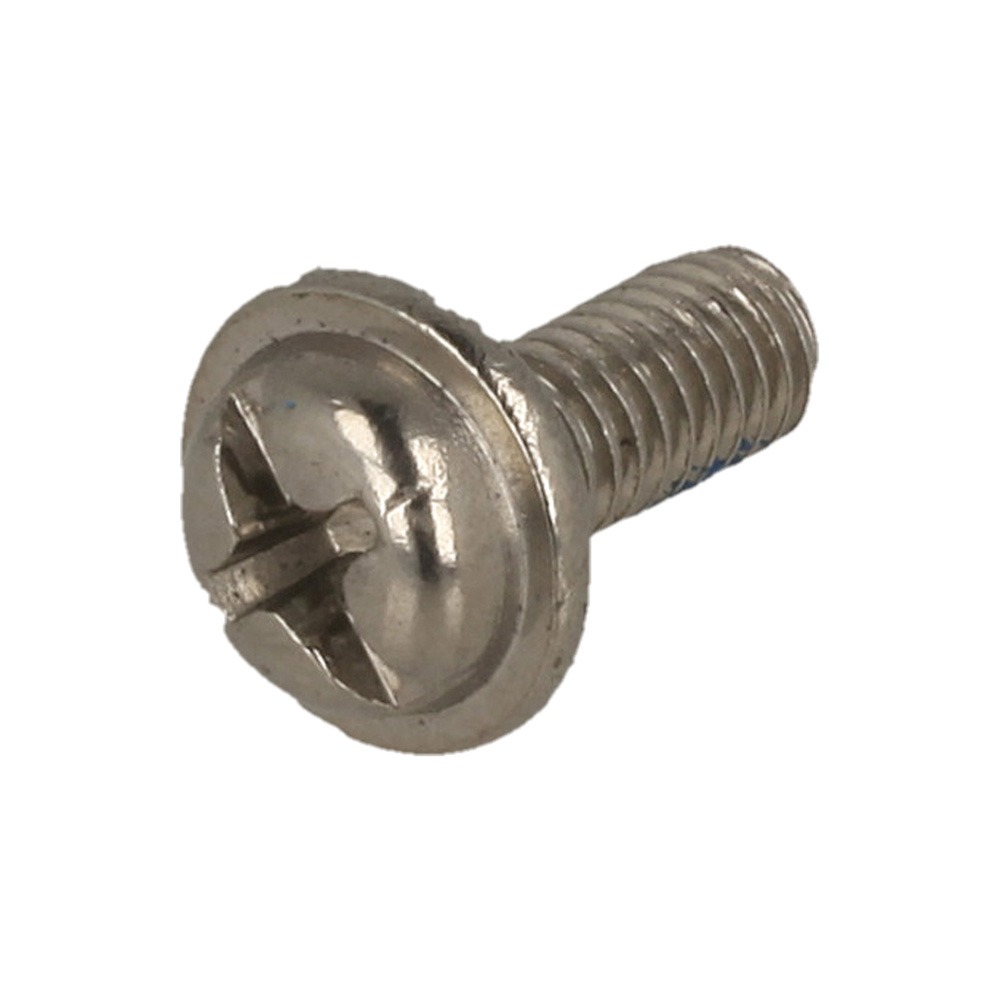

41	CO2125300016A Available to backorder	Screw	£1.20 £1.00
42	CO2060100051B Available to backorder	Battery Pack	£110.28 £91.90
43	CO20691000010001A Available to backorder	Battery Plate	£1.31 £1.09
44	CO2069900002A Available to backorder	Battery Connector	£1.26 £1.05
45	CO2123900001A Available to backorder	Sponge	£1.26 £1.05
46	CO2064600001A Available to backorder	Battery Cover Gasket	£1.85 £1.54
47	CO20691000020001A Available to backorder	Battery Cover	£2.08 £1.73
48	CO2128900051A Available to backorder	Usb Plate	£28.00 £23.33
49	CO21241000050006A Available to backorder	Decorative Ring	£5.18 £4.32
50	CO21241000020001A Available to backorder	Front Cover	£3.89 £3.24
51	CO2124300010A Available to backorder	Spring Steel Wire	£1.26 £1.05
52	CO21241000040001A Available to backorder	Black Shell	£73.56 £61.30
52	CO21241000040306A Available to backorder	Metallic Green Shell	£73.56 £61.30
52	CO21241000040113A Available to backorder	Solid Green Shell	£73.56 £61.30
52	CO21241000040305A Available to backorder	Metallic Red Shell	£73.56 £61.30
53	CO21241000080001A Available to backorder	Right Bumper	£3.44 £2.87
54	COA26800700502 Available to backorder	Flat Washer	£1.26 £1.05
55	COA26800101701 Available to backorder	St Screw	£1.26 £1.05
56	CO21241000070001A Available to backorder	Left Bumper	£3.44 £2.87
57	CO2124300003A Available to backorder	Rotation Shaft Of Charging Contact Plate	£1.26 £1.05
58	CO2128300005A Available to backorder	Charging Contact Plate Upper	£3.34 £2.78
59	CO2128300004A Available to backorder	Charging Contact Plate Lower	£3.34 £2.78
60	CO2123300004A Available to backorder	Torsion Spring	£1.26 £1.05
61	CO21231000020001C Available to backorder	Charging Plate	£9.35 £7.79
62	CO21241000060001A Available to backorder	Front Bumper	£6.16 £5.13
63	CO3022303001 Available to backorder	Screw	£1.26 £1.05
64	CO21231000040001A Available to backorder	Rear Holder Of Rubber Support	£1.26 £1.05
65	CO21231000050001A Available to backorder	Front Holder Of Rubber Support	£1.26 £1.05
66	CO3011301009 Available to backorder	St Screw	£1.26 £1.05
67	CO21231000030001A Available to backorder	Pin Connector	£1.26 £1.05
68	CO3082304001 Available to backorder	Spring Column Pin	£1.26 £1.05
69	CO2123600004A Available to backorder	Rubber Support	£4.70 £3.92
70	COA26800201901 Available to backorder	Tooth Screw	£1.26 £1.05
71	CO21261000020002A Available to backorder	Stop Upper Cover	£4.01 £3.34
72	CO21241000030001A Available to backorder	Rear Cover	£8.29 £6.91
73	CO2124300009A Available to backorder	Stop Rotation Shaft	£1.26 £1.05
74	CO2124300008A Available to backorder	Shrapnel	£1.26 £1.05
75	CO2124300011A Available to backorder	Rain Sensor Screw	£1.26 £1.05
76	CO3121602006 Available to backorder	O-Ring	£1.26 £1.05
77	COA26800506601 Available to backorder	Hex Nut	£1.26 £1.05
78	CO2128900046A Available to backorder	Membrane Keyboard	£21.59 £17.99
79	CO21241000090001B Available to backorder	Bottom Board Of Lcd	£2.82 £2.35
80	CO2124600001B Available to backorder	Sealing Ring Of Lcd	£2.57 £2.14
81	CO2128900001A In stock	Lcd Display Assembly	£52.38 £43.65
82	CO21291000214017A Available to backorder	Height Adjustment Pressing Board	£3.38 £2.82
83	CO21261000080001A Available to backorder	Height Adjustment Knob	£5.09 £4.24
84	CO2126300002B Available to backorder	Paddle	£1.26 £1.05
85	CO2109800122A Available to backorder	Spring	£1.26 £1.05
86	CO2129600002B Available to backorder	Rubber Bushing	£1.26 £1.05
87	CO21291000180001A Available to backorder	Upper Cover	£25.98 £21.65
88	CO2126600002A Available to backorder	Rubber Cover Of Stop Switch	£1.26 £1.05

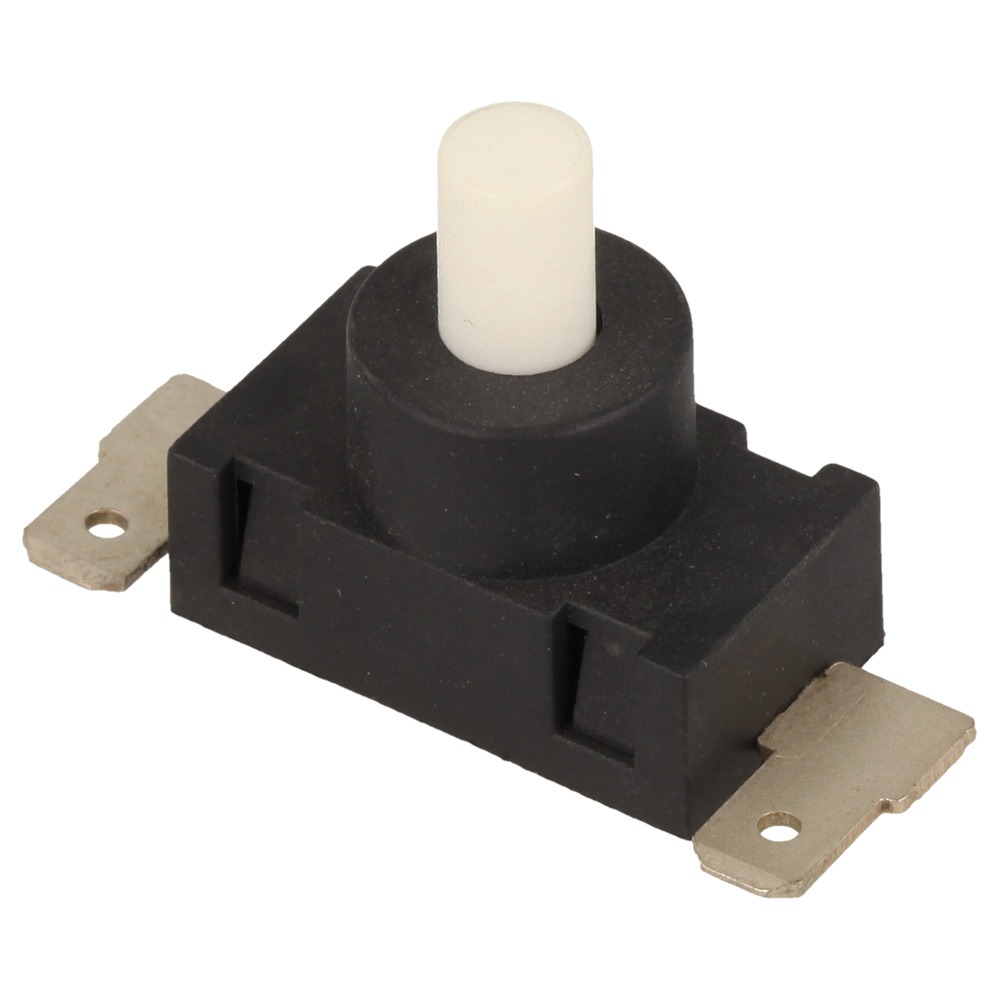

89	CO2126900003A Available to backorder	Stop Switch	£2.76 £2.30
90	CO2109200040A Available to backorder	Pressing Plate	£1.26 £1.05
91	CO2123600001C Available to backorder	Strip Seal Of Deck	£3.16 £2.63
92	CO2126600001B Available to backorder	Sealing Ring Of Tread Sleeve	£6.64 £5.53
93	CO2128900071A Available to backorder	Motherboard	£188.64 £157.20
94	CO2128100001A Available to backorder	Buzzer	£11.87 £9.89
95	CO3121602004 Available to backorder	O-Ring	£1.26 £1.05
96	CO2129900004A Available to backorder	Cylinder Magnet	£1.31 £1.09
97	CO2129900003A Available to backorder	Square Magnet	£1.74 £1.45
98	CO2126900002A Available to backorder	Rocker Switch	£5.90 £4.92
99	CO2208100010A Available to backorder	Pressing Plate	£1.26 £1.05
100	CO2128300003A Available to backorder	Pressing Plate Of Hall Pcb	£1.26 £1.05
101	CO2128900022A Available to backorder	Hall Pcb Assembly	£4.51 £3.76
102	CO2128100004A Available to backorder	Cable Holder	£1.26 £1.05
103	CO2128900019B Available to backorder	Battery Connector	£5.71 £4.76
104	CO2128900009B Available to backorder	Switch Stop Connector	£1.26 £1.05
105	CO2128900010B Available to backorder	Usb Connector	£3.00 £2.50
106	CO2128900003B Available to backorder	Rain Sensor Connector	£1.70 £1.42
107	CO2128900013B Available to backorder	Charging Contact Plate Connector	£7.75 £6.46
108	CO2129900015A Available to backorder	Perimeter Connector	£7.67 £6.39
109	CO2128900012B Available to backorder	Lcd Cover Sensor Connector	£2.38 £1.98
110	CO2128900005A Available to backorder	Fc Connector	£8.93 £7.44
111	CO2128900004B Available to backorder	Obstruction Sensor Connector	£8.48 £7.07
112	CO2128900008B Available to backorder	Cutting Motor Connector	£14.83 £12.36
113	COA26800704601 Available to backorder	Flat Washer	£1.26 £1.05
114	CO3011301017 Available to backorder	St Screw	£1.26 £1.05
115	CO2120200005A Available to backorder	Inductive Plate Assembly	£13.38 £11.15
116	CO2128900044A Available to backorder	Perimeter Sensor Detection Plate	£64.32 £53.60
117	CO2129900017A Available to backorder	Perimeter Sensor Connector	£4.31 £3.59
118	COA26800103102 Available to backorder	St Screw	£1.26 £1.05
