Cobra MOWBOT800 - Mowbot 800 Robot Mower Charging Station Diagram

Description

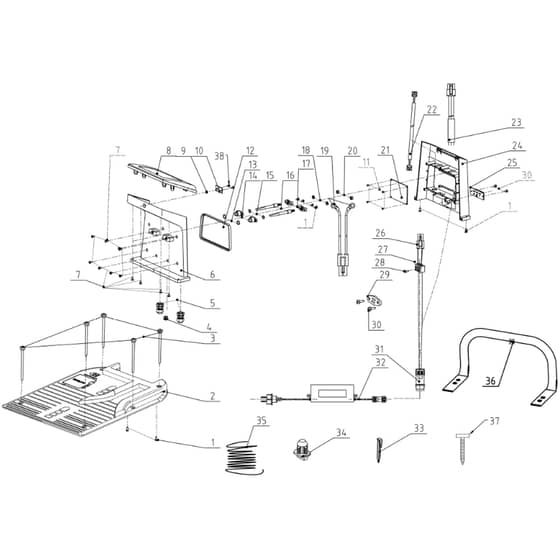

Cobra MOWBOT800 Robot Mower Parts Diagram

	Part No.	Details
1	CO3011301010 Available to backorder	St Screw	£1.24 £1.03
2	CO21231000090001A Available to backorder	Base Plate Of Charging Station	£27.49 £22.91
3	CO2123300005A Available to backorder	Fixing Nail	£1.43 £1.19
4	CO2128100008A Available to backorder	Perimeter Cable Clamp	£1.24 £1.03
5	CO2128100005A Available to backorder	Forced Wire Fixed Head	£2.05 £1.71
6	CO21231000060001A Available to backorder	Front Housing Of Charging Station	£7.74 £6.45
7	COA26800102801 Available to backorder	St Screw	£1.24 £1.03
8	CO21231000080001A Available to backorder	Cover Of Charging Station	£6.25 £5.21
9	CO3121602003 Available to backorder	O-Ring	£1.24 £1.03
10	CO2128900024A Available to backorder	Led Pcb	£3.54 £2.95
11	CO3011301016 Available to backorder	St Screw	£1.24 £1.03
12	CO2123600003A Available to backorder	Sealing Ring Of Charging Station	£2.23 £1.86
13	CO3121602002 Available to backorder	O-Ring	£1.24 £1.03
14	CO21231000100001A Available to backorder	Front Sleeve Of Charging Pin	£1.24 £1.03
15	CO3121602001 Available to backorder	O-Ring	£1.24 £1.03
16	CO2128200001B Available to backorder	Charging Pin	£9.71 £8.09
17	CO21231000110001A Available to backorder	Rear Sleeve Of Charging Pin	£1.24 £1.03
18	CO3051303003 Available to backorder	Flat Washer	£1.24 £1.03
19	CO2128900016B Available to backorder	Charging Pin Connector	£2.71 £2.26
20	CO3031309003 Available to backorder	Hex Locking Nut	£1.24 £1.03
21	CO2128900072A Available to backorder	Charging Pcb	£61.20 £51.00
22	CO2128900014C Available to backorder	Led Connector	£6.11 £5.09
23	CO2128900018C Available to backorder	Perimeter Wire Connector	£3.86 £3.22
24	CO21231000070001B Available to backorder	Rear Housing Of Charging Station	£6.02 £5.02
25	CO2123900006A Available to backorder	Spring Connection Seat	£3.00 £2.50
26	CO2128900015B Available to backorder	Power Supply Cable Connector	£2.92 £2.43
27	CO2011300014 Available to backorder	Terminal Block	£1.24 £1.03
28	CO3011301017 Available to backorder	St Screw	£1.24 £1.03
29	CO2208100010A Available to backorder	Cable Pressing Plate	£1.24 £1.03
30	CO3011301009 Available to backorder	St Screw	£1.24 £1.03

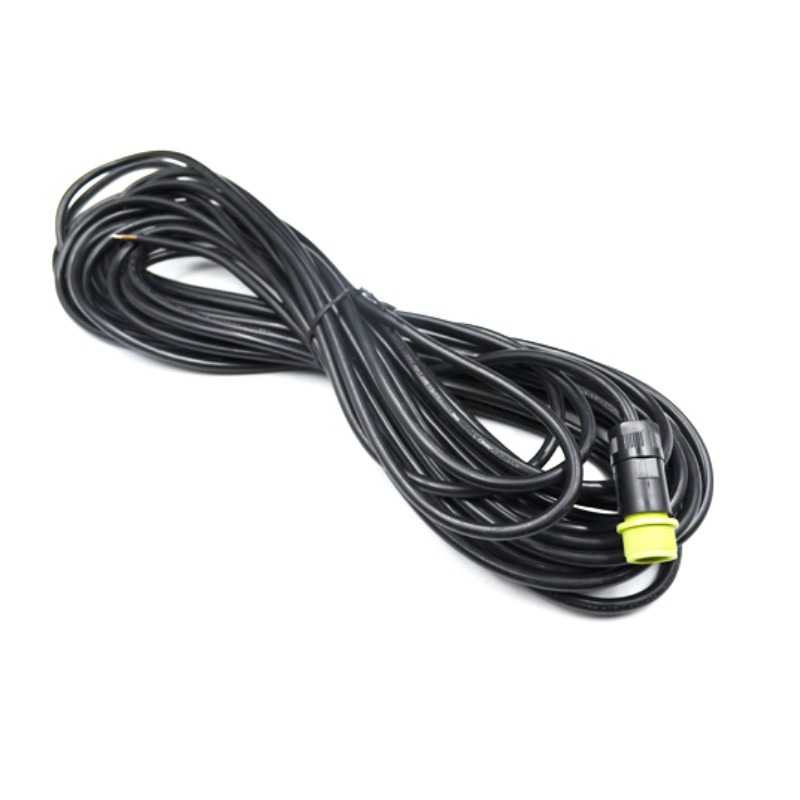

31	CO2070100009A Available to backorder	Power Supply Cable Assembly	£33.46 £27.88

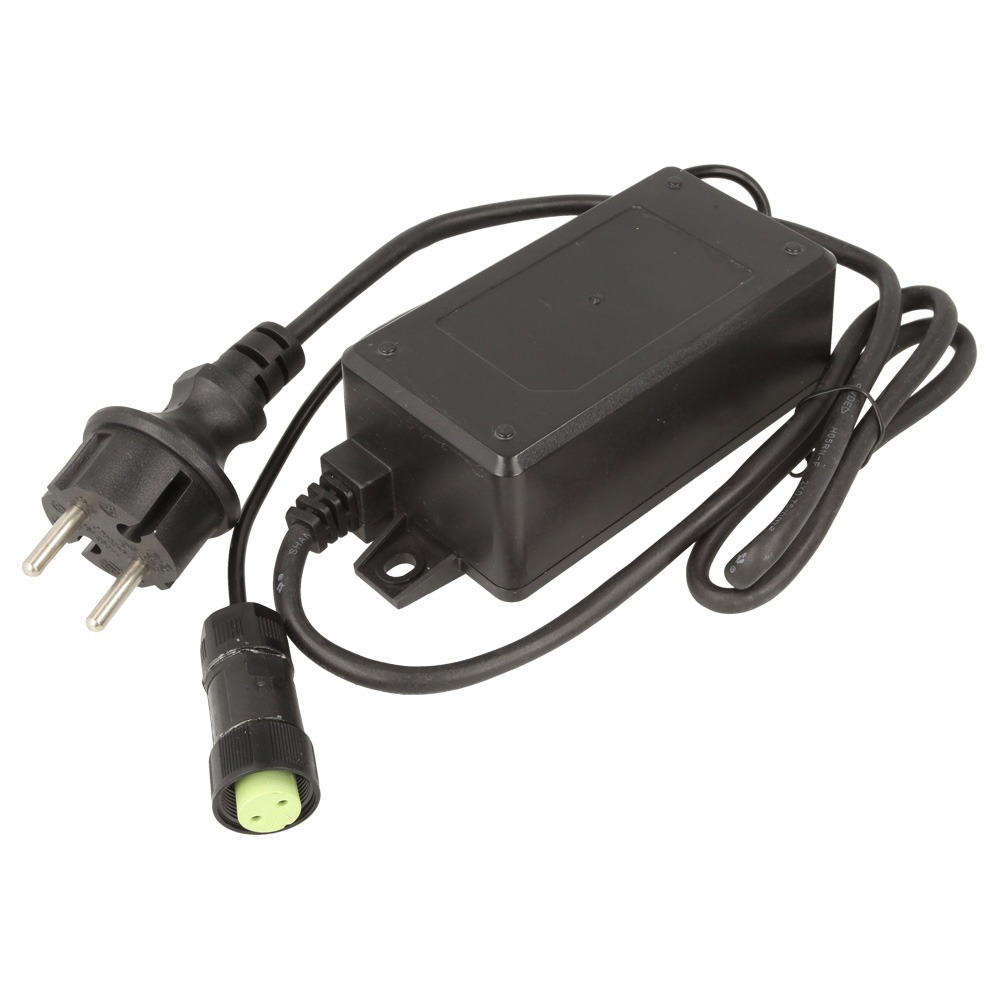

32	CO2070100008B Available to backorder	Charger	£61.80 £51.50
33	CO21291000020001A Available to backorder	Plastic Nail Of Perimeter Wire	£0.48 £0.40
34	CO2128100004A Available to backorder	Cable Holder	£1.24 £1.03
35	CO2128900059A Available to backorder	Perimeter Wire	£87.84 £73.20
36	CO21293000060001A Available to backorder	Charging Handle	£7.16 £5.97
37	CO2013900094 Available to backorder	Nylon Cable Ties	£1.24 £1.03
38	CO2109300058A Available to backorder	St Screw	£1.24 £1.03
