Cobra MM51C - Lawn Mower Mar 2025 Main Diagram

Name: Cobra MM51C - Lawn Mower Mar 2025 Main Diagram
SKU: mm51c_lawn_mower_mar_2025_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra MM51C - Lawn Mower Mar 2025 Main Diagram

Description

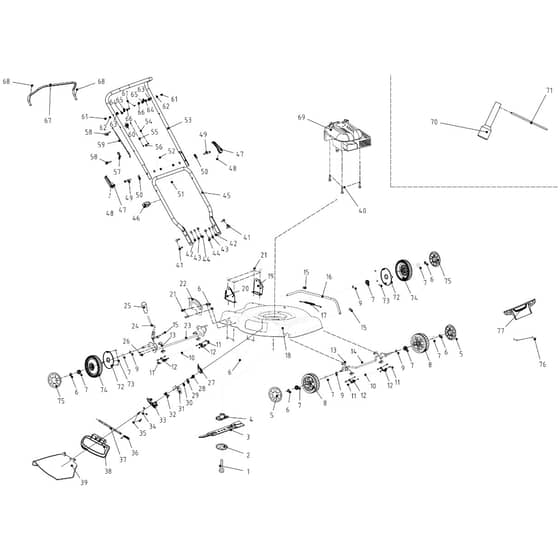

Cobra MM51C Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO2105300159A Available to backorder	Blade Fastening Bolt	£1.90 £1.58
2	CO2105300001C Available to backorder	Belleville Washers	£2.40 £2.00
3	CO2105200084A Available to backorder	Blade	£26.71 £22.26
4	CO2105300155A Available to backorder	Knife Block	£9.83 £8.19
5	CO21011003670006B Available to backorder	Wheel Cover	£3.30 £2.75
6	CO30323060035000 Available to backorder	Hexagon Flange Lock Nut	£1.25 £1.04
7	CO2101300065A Available to backorder	Angular Bearings	£2.40 £2.00
8	CO21011002660001A Available to backorder	Wheel Assembly	£23.83 £19.86
9	CO26800706202 Available to backorder	Wave Washers	£2.52 £2.10
10	CO30323060015000 Available to backorder	All Metal Hexagon Flange Lock Nut	£1.25 £1.04
11	CO3021302003 Available to backorder	Machine Screws	£1.25 £1.04
12	CO2106200128A Available to backorder	Axle Fixing Ring	£1.26 £1.05
13	CO21091000633201A Available to backorder	Axle Bushing	£1.25 £1.04
14	CO2101500107A Available to backorder	Front Axle Assembly	£21.43 £17.86
15	CO30313090035000 Available to backorder	Hexagon Lock Nut	£1.25 £1.04
16	CO2106200415A Available to backorder	Link	£10.32 £8.60
17	CO2109800033D Available to backorder	Connecting Rod Tension Spring	£2.52 £2.10
19	CO21062000870108B Available to backorder	Handle Right Bracket	£5.57 £4.64
20	CO21062000860108B Available to backorder	Handle Left Bracket	£5.57 £4.64
21	CO30913070165000 Available to backorder	Hexagonal Flange Bolts	£1.25 £1.04
22	CO2106200417A Available to backorder	Shift Plate	£5.28 £4.40
23	CO2101500108A Available to backorder	Rear Axle Assembly	£26.14 £21.78
24	CO2106200416B Available to backorder	Handle Assembly	£4.99 £4.16
25	CO21061008530001A Available to backorder	Handle Gloves	£1.72 £1.43
26	COA26800203001A Available to backorder	Cross Recessed Pan Head Screws	£1.25 £1.04
27	CO2103200229A Available to backorder	Lock Block	£1.78 £1.48
28	CO2103800012A Available to backorder	Lock Block Torsion Spring	£1.25 £1.04
29	CO2103300040A Available to backorder	Lock Block Fixed Shaft	£1.25 £1.04
30	COA26800901701 Available to backorder	Split Retaining Ring	£1.26 £1.05
31	CO21031002200001A Available to backorder	Side Row Fixed Base	£1.25 £1.04
32	CO3011301018 Available to backorder	Self-Tapping Screws	£1.25 £1.04
33	CO2103200232A Available to backorder	Side Fixing Plate	£3.44 £2.87
34	CO3052301004 Available to backorder	Spring Washers	£1.25 £1.04
35	CO3021302009 Available to backorder	Machine Screws	£1.25 £1.04
36	CO2109800198A Available to backorder	Side Cover Torsion Spring	£1.61 £1.34
37	CO2103300012A Available to backorder	Axis	£1.32 £1.10
38	CO21061001420001N Available to backorder	Side Row Cover	£6.42 £5.35
39	CO21041001890001D Available to backorder	Side Exhaust Protection Cover	£14.51 £12.09
40	CO2109900066A Available to backorder	Triangular Self-Tapping Bolts	£1.25 £1.04
41	CO30913090015000 Available to backorder	Square Neck Round Head Bolts	£1.25 £1.04
42	CO3051303001 Available to backorder	Flat Washers	£1.26 £1.05
43	CO3052301002 Available to backorder	Spring Washers	£1.25 £1.04
44	CO3033302001 Available to backorder	Cap Nut	£1.26 £1.05
45	CO21063001720001A Available to backorder	Lower Handrail	£19.60 £16.33
46	CO21061000013201A Available to backorder	Cable Clip	£2.52 £2.10
47	CO21061000570108B Available to backorder	Locking Handle	£2.52 £2.10
48	CO21093000635007A Available to backorder	Cylindrical Pins	£1.26 £1.05
49	CO21063000085007A Available to backorder	Locking Handle Bolt	£1.38 £1.15
50	CO21062000015007A Available to backorder	Compression Piece	£1.25 £1.04
51	CO3031309002 Available to backorder	Hexagon Lock Nut	£1.26 £1.05
52	CO21092000295007B Available to backorder	Flat Gasket	£1.25 £1.04
53	CO21063004360001A Available to backorder	Upper Handrail	£23.95 £19.96
54	CO26800501603 Available to backorder	Cap Nut	£1.20 £1.00
55	CO3051303003 Available to backorder	Flat Washers	£1.20 £1.00
56	CO3052301003 Available to backorder	Spring Washers	£1.25 £1.04
57	CO21063000025007A Available to backorder	Hanging Hook	£1.25 £1.04
58	CO3091307003 Available to backorder	Hexagon Flange Bolts	£1.20 £1.00
59	CO2106800927A Available to backorder	Flame-Out Cable Assembly	£5.80 £4.83
60	CO21061000043201A Available to backorder	Cable Fixing Block	£2.40 £2.00
61	CO3011301006 Available to backorder	Self-Tapping Screws	£1.25 £1.04
62	CO21061001113201N Available to backorder	Curved Gasket	£1.26 £1.05
63	CO21061007140001A Available to backorder	Tie Rod Bracket	£1.26 £1.05
64	CO21061007300001A Available to backorder	Tie Rod Bracket Washer	£1.26 £1.05
65	CO21061007150001A Available to backorder	Self-Propelled Cable Hanging Block	£1.26 £1.05
66	CO21061007290001A Available to backorder	Tie Rod Bracket Cover	£1.26 £1.05
67	CO21062012120108A Available to backorder	Flame-Out Lever	£13.30 £11.08
68	COA26800203301 Available to backorder	Machine Screws	£1.25 £1.04
70	CO2012200002A Available to backorder	Socket Wrench	£2.52 £2.10
71	CO2012100004A Available to backorder	Socket Wrench Bar	£2.52 £2.10
72	CO21011001000001A Available to backorder	Dustproof Wheel Cover	£4.42 £3.68
73	CO3011301010 Available to backorder	Self-Tapping Screws	£1.26 £1.05
74	CO21011002650001A Available to backorder	Wheel Assembly	£29.27 £24.39
75	CO21011000620006C Available to backorder	Wheel Cover	£6.60 £5.50
76	CO3011301009 Available to backorder	Self-Tapping Screw St4*12 (Pan Head 6.6-7.0)	£1.26 £1.05
77	CO21041004564145A Available to backorder	Head Mask	£10.26 £8.55
