Cobra MM48SPH - Mulching Lawn Mower March 2021 Main Diagram

Name: Cobra MM48SPH - Mulching Lawn Mower March 2021 Main Diagram
SKU: mm48sph_mulching_lawn_mower_march_2021_main-group
Price: 0.95 GBP
Availability: InStock

Part No. mm48sph_mulching_lawn_mower_march_2021_main-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra MM48SPH - Mulching Lawn Mower March 2021 Main Diagram

Description

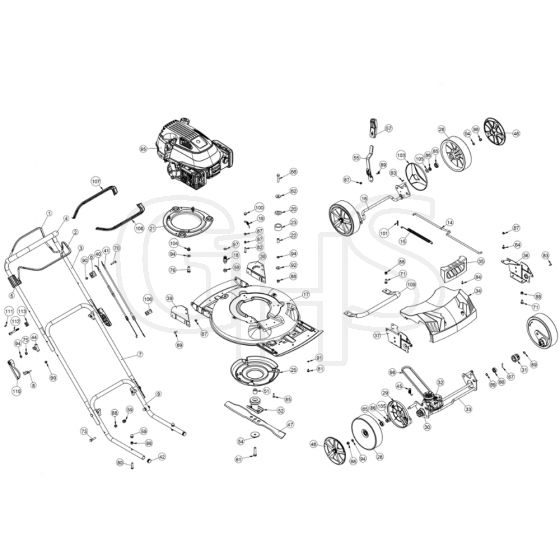

Cobra MM48SPH Rotary Mower Parts Diagram

	Part No.	Details
1	CO106.062PTB Available to backorder	Drive Lever	£10.43 £8.69
2	CO106.064RAL3001 Available to backorder	OPC Lever	£10.43 £8.69
3	CO106.003 Available to backorder	Upper Handle	£27.02 £22.52
4	CO106.004 Available to backorder	22X3X550 Foam Tube	£4.54 £3.78
5	CO106.005 Available to backorder	Handle Stopper	£2.34 £1.95
6	CO106.006 Available to backorder	Cable Holder 22	£1.24 £1.03
7	CO106.007 Available to backorder	Middle Handle	£27.46 £22.88
8	CO106.008 Available to backorder	Guide Rope	£1.24 £1.03
9	CO106.009 Available to backorder	Lower Handle	£25.45 £21.21
14	CO106.014 Available to backorder	Connect Bar	£6.64 £5.53
15	CO106.015 Available to backorder	Assistance Spring	£10.14 £8.45
16	CO106.016 Available to backorder	Rear Wheel Bracket Welding	£41.06 £34.22
18	CO106.018 Available to backorder	Water Tap	£1.24 £1.03
19	CO106.019 Available to backorder	Tension Spring	£1.78 £1.48
20	CO106.020 Available to backorder	Pad	£1.66 £1.38
21	CO106.021 Available to backorder	Tension Engine Basement	£20.86 £17.38
22	CO106.022 Available to backorder	Tension Bush	£2.40 £2.00
23	CO106.023 Available to backorder	Rubber Bush	£2.75 £2.29
25	CO106.025 Available to backorder	Lower Cover	£7.39 £6.16
28	CO106.028 Available to backorder	8"Drive Wheel	£17.05 £14.21

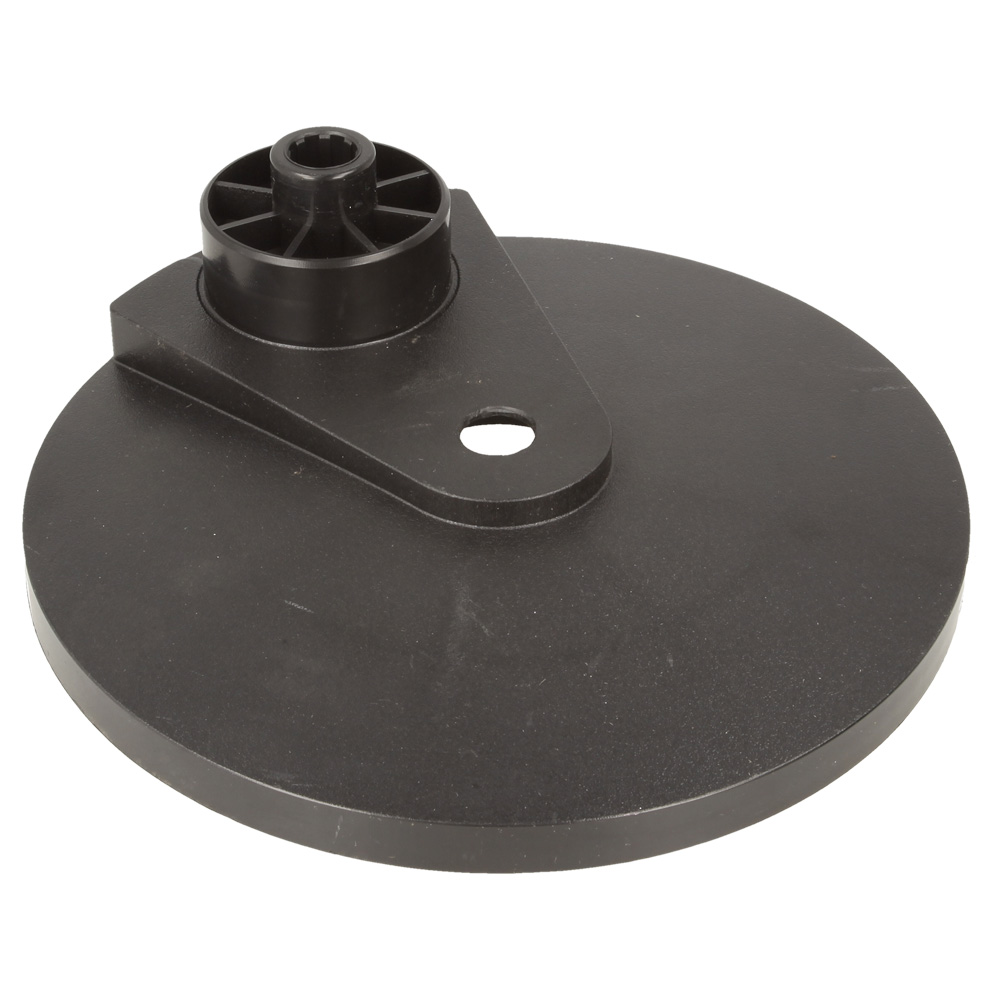

29	CO106.029 Available to backorder	Drive Wheel Innder Cap	£6.06 £5.05
30	CO106.030 Available to backorder	Right Gear	£12.89 £10.74
31	CO106.031 Available to backorder	Left Gear	£13.26 £11.05
32	CO106.032 Available to backorder	GT Cone Clutch Gearbox	£62.52 £52.10
33	CO106.033 Available to backorder	Front Wheel Bracket Welding	£43.60 £36.33
34	CO106.034SY55 Available to backorder	Gear Box Cover	£32.40 £27.00
35	CO106.035RAL3001 Available to backorder	Plastic Handle Red	£7.55 £6.29
36	CO106.036 Available to backorder	Front Wheel Bracket Left	£22.00 £18.33
37	CO106.037 Available to backorder	Front Wheel Bracket Right	£22.00 £18.33
38	CO106.038 Available to backorder	Rear Wheel Bracket Left	£10.32 £8.60
39	CO106.039 Available to backorder	Rear Wheel Bracket Right	£10.32 £8.60

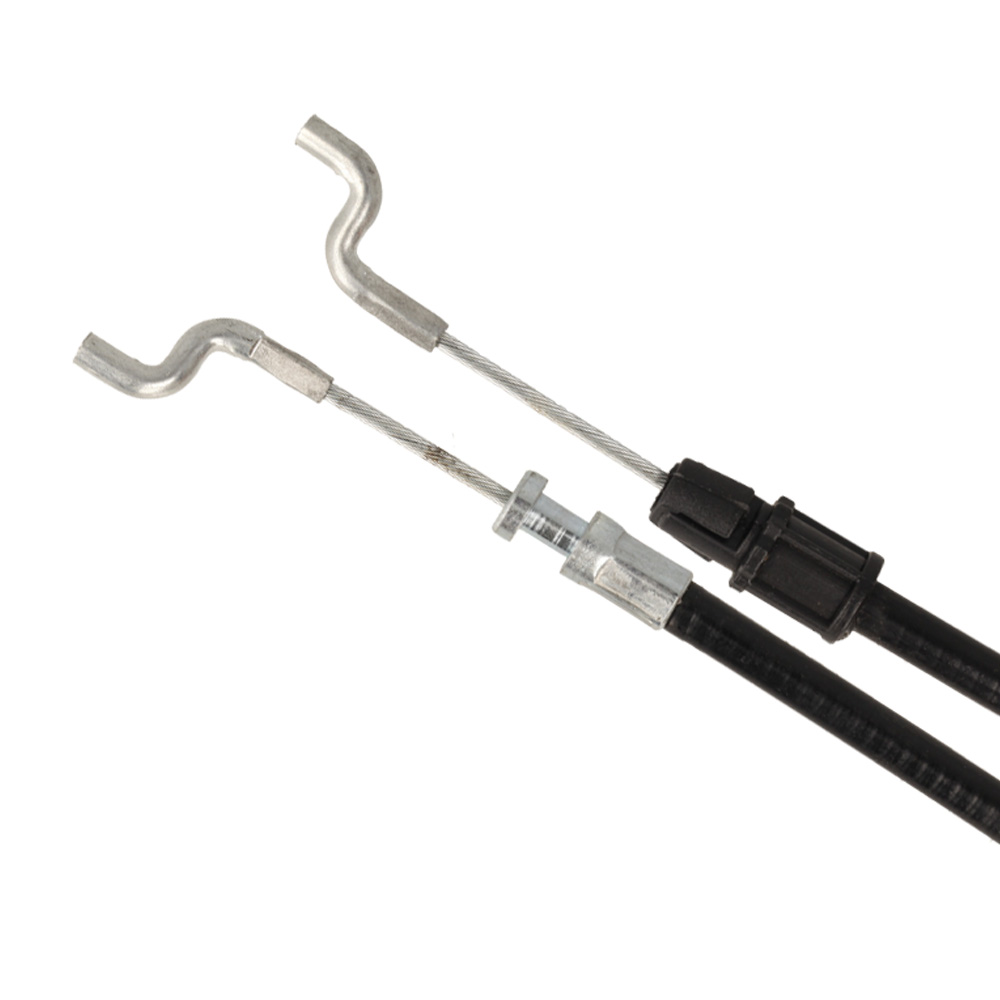

40	CO106.040 Available to backorder	Clutch Cable	£12.40 £10.33
41	CO108.008LP Available to backorder	Brake Cable	£11.15 £9.29
42	CO106.042 Available to backorder	∮22 Tube Plug	£1.24 £1.03
43	CO106.043 Available to backorder	Curve Head Bolt	£1.24 £1.03
44	CO106.044PTB Available to backorder	Quick Nut Black	£1.43 £1.19
45	CO106.045 Available to backorder	Belt Tension Spring	£1.94 £1.62
47	CO106.047 Available to backorder	19" Mulching Blade	£26.17 £21.81
48	CO106.071 Available to backorder	Wheel Cover	£4.18 £3.48
51	CO106.051 Available to backorder	Blade Bracket Support Bush	£2.75 £2.29

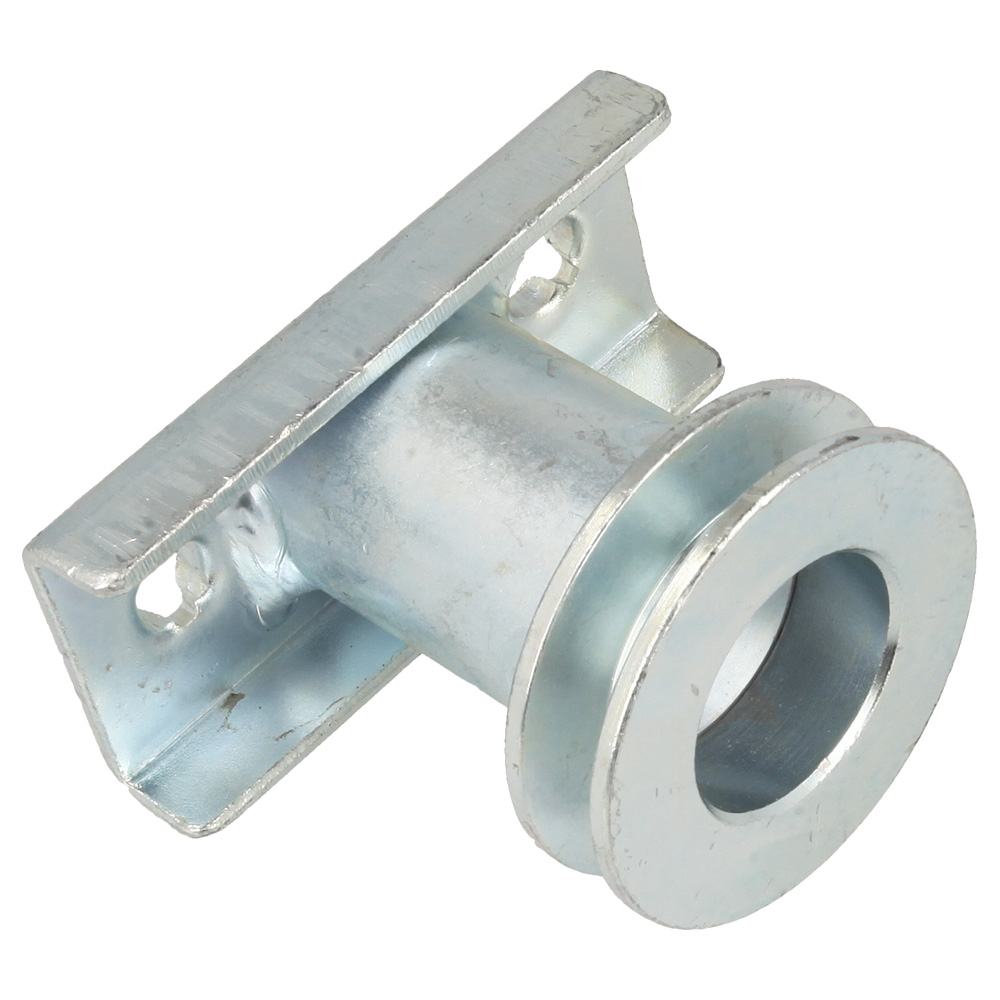

52	CO106.070 Available to backorder	Blade Bracket	£18.29 £15.24
54	CO106.054 Available to backorder	Blade Washer	£2.46 £2.05
55	CO106.055 Available to backorder	Height Adjust Assembly	£20.06 £16.72
57	CO106.056RAL3001 Available to backorder	Height Adjust Handle Red	£2.29 £1.91
58	CO106.058 Available to backorder	Water Tap Nut	£1.24 £1.03
59	CO106.059 Available to backorder	M8 Nut Cap	£1.24 £1.03
61	CO3/8 24UNF 2BX35 Available to backorder	Nut 3/8X35	£2.88 £2.40
62	COFB/T 5287 8X30X2.5 Available to backorder	Washer 8	£1.24 £1.03
64	COGB/T 12 M6X16 Available to backorder	Bolt M6X16	£1.24 £1.03
65	COFB/T 276 6001 2RS Available to backorder	Bearing 6001-2Rs 286X127X8	£3.66 £3.05
66	COGB/T 276 6001 2RS Available to backorder	Bearing 6001-2Rs 28X12X8	£2.40 £2.00
67	COGB/T 309 5X25.8 Available to backorder	Needle Roller	£1.24 £1.03
68	COGB/T 5782 M8X45 Available to backorder	Bolt M8X45	£1.24 £1.03
69	COGB/T 5783 M6X14 Available to backorder	Bolt M6X14	£1.24 £1.03
70	COGB/T 5783 M6X30 Available to backorder	Bolt M6X30	£1.24 £1.03
71	COGB/T 70.2 M8X16 Available to backorder	Bolt M8X16	£1.24 £1.03
73	COGB/T 5783 M8X35 Available to backorder	Bolt M8X35	£1.24 £1.03
75	COGB/T 6170 M8 Available to backorder	Nut M8	£1.24 £1.03
76	COGB/T 5783 M8X40 Available to backorder	Bolt M8X40	£1.24 £1.03
80	COGB/T 70.2 M8X35 Available to backorder	Bolt M8X35	£1.24 £1.03
81	COGB/T 818 M6X12 Available to backorder	Screw M6X12	£1.24 £1.03
82	COGB/T 70.2 M6X30 Available to backorder	Screw M6X30	£1.24 £1.03
83	COGB/T 845 ST4.2X13 Available to backorder	Screw St42X13	£1.24 £1.03
84	COGB/T 845 ST4.8X16 Available to backorder	Screw St48X16	£1.24 £1.03
85	COGB/T 845 ST4.8X25 Available to backorder	Screw St48X25	£1.24 £1.03
86	COGB/T 848 12 Available to backorder	Washer 12	£1.24 £1.03
87	COGB/T 889.1 M6 Available to backorder	Lock Nut M6	£1.24 £1.03
88	COGB/T 889.1 M8 Available to backorder	Nut M8	£1.24 £1.03
89	COGB/T 894.1 12 Available to backorder	Circlip 12	£1.74 £1.45
90	COGB/T 923 M6 Available to backorder	Cap Nut M6	£1.24 £1.03
91	COGB/T 93 6 Available to backorder	Spring Washer 6	£1.24 £1.03
92	COGB/T 96.1 8 Available to backorder	Washer 8	£1.24 £1.03
94	COGB/T 97.1 8 Available to backorder	Washer 8	£1.24 £1.03

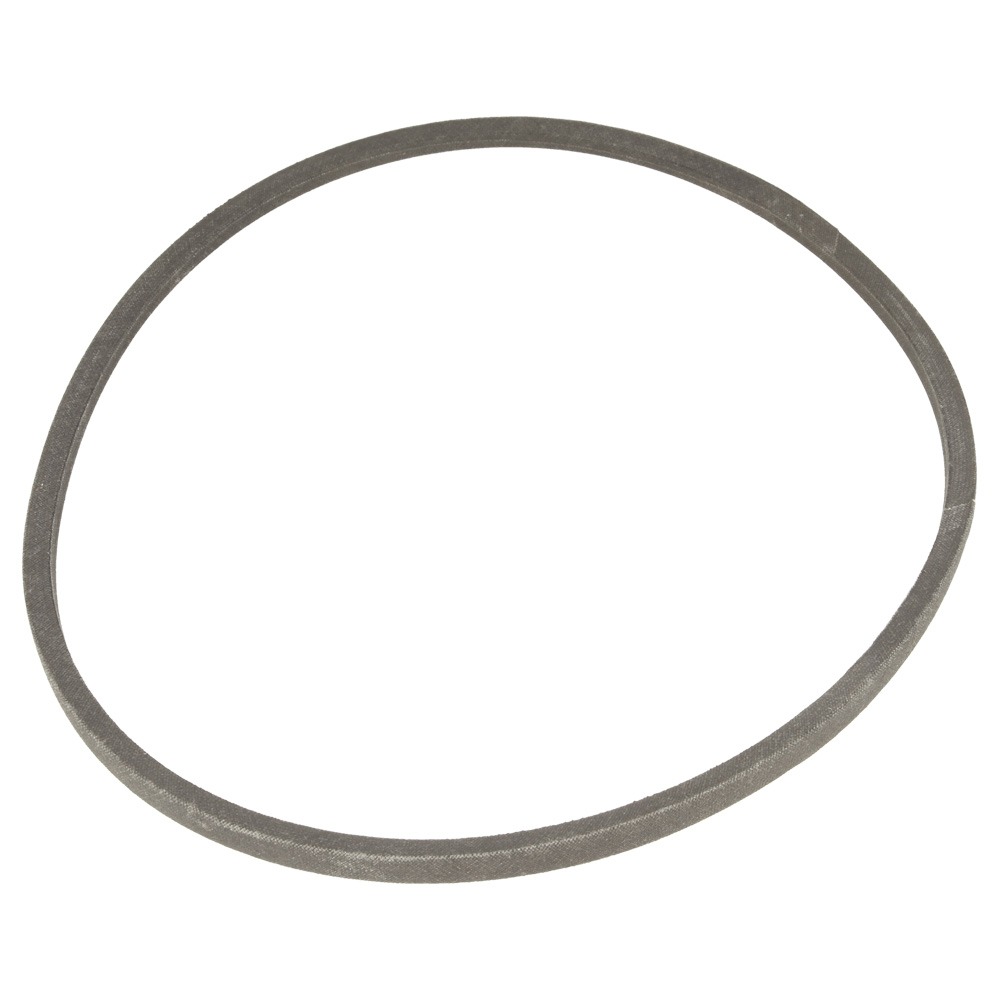

96	COZ29.5 755LI Available to backorder	Belt Z295	£17.38 £14.48
97	COJB/T 7757.2 11X2.65 Available to backorder	O Seal Ring	£1.24 £1.03
100	CO911.004 Available to backorder	Nut Cap M6	£1.14 £0.95
101	COFB/T 4329 2X33 Available to backorder	Spring Clip 2X33	£1.24 £1.03
103	CO106.061 Available to backorder	Idle Wheel Inner Cap	£2.29 £1.91
104	COGB/T 6183.1 M8 Available to backorder	Nut M8	£1.24 £1.03
105	COFB/T 955 14 Available to backorder	Spring Washer 143X215X03	£1.24 £1.03
106	CO718 Available to backorder	Clamp	£1.24 £1.03
107	CO106.063PTB Available to backorder	Walk Clutch Cover	£2.88 £2.40
108	CO106.065RAL3001 Available to backorder	Brake Clutch Cover	£2.88 £2.40
109	CO106C01.001 Available to backorder	Bumper	£26.88 £22.40
110	CO106.066RAL3001 Available to backorder	Quick Handle Red	£7.55 £6.29
111	CO106.067 Available to backorder	Pin	£1.49 £1.24
112	CO106.068 Available to backorder	Screw Bolt	£1.49 £1.24
113	CO106.069RAL3001 Available to backorder	Quick Handle Pad	£1.24 £1.03
