Cobra M56SPB - 22" Self Propelled Revised June 2020 Main Diagram

Name: Cobra M56SPB - 22" Self Propelled Revised June 2020 Main Diagram
SKU: m56spb_22_self_propelled_revised_june_2020_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra M56SPB - 22" Self Propelled Revised June 2020 Main Diagram

Description

Cobra M56SPB Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800606201 Available to backorder	Blade Locking Bolt	£2.40 £2.00
2	CO26300107302 In stock	Dishing Washer	£2.40 £2.00
2	CO2105200245A In stock	Pressing Plate Of Blade	£2.40 £2.00

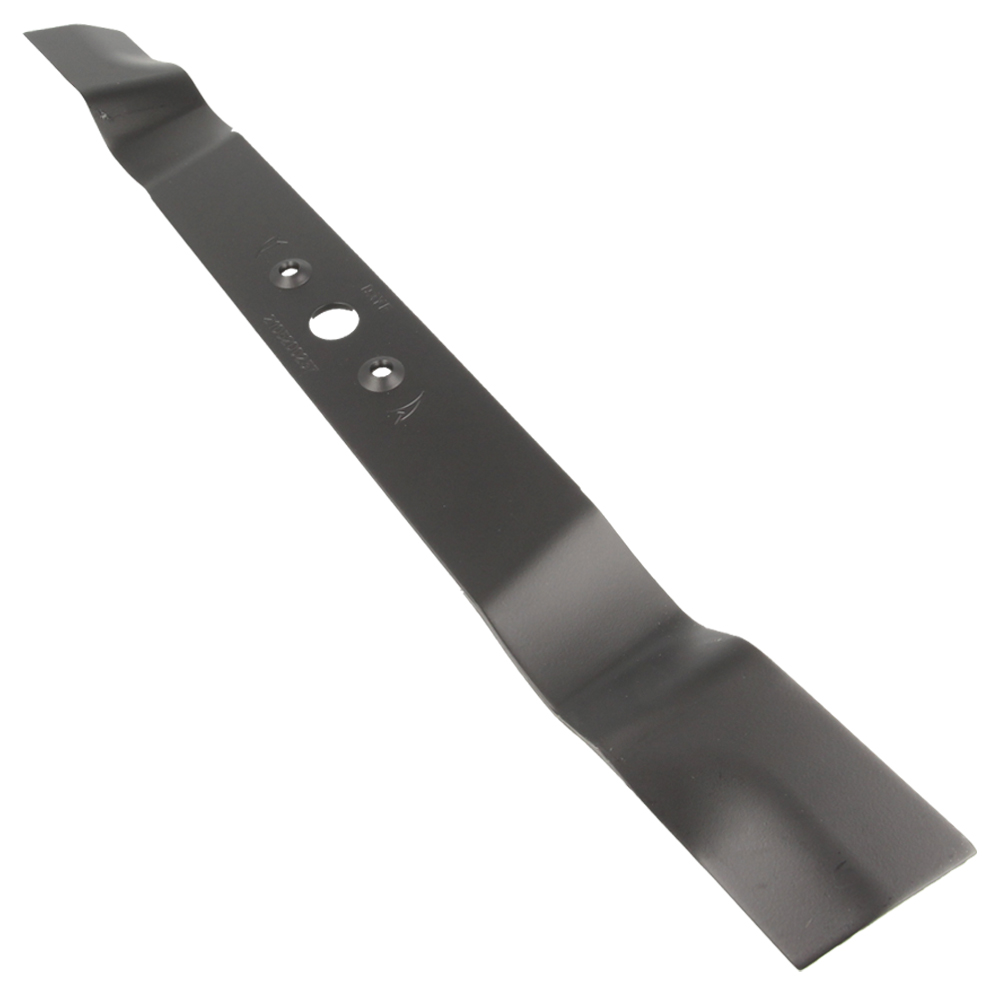

3	CO21052003412000A In stock	Blade	£23.92 £19.93
3	CO26300168301 Available to backorder	Blade	£22.80 £19.00
4	CO2105200251A Available to backorder	Blade Support	£7.54 £6.28
4	CO26300244801 Available to backorder	Blade Support	£7.18 £5.98
5	CO26900208901 Available to backorder	Blade Support Bush	£2.52 £2.10
5	CO2105400024A Available to backorder	Bushing Of Blade Support	£2.52 £2.10
6	CO26809000201 In stock	Flat Washer	£2.40 £2.00
7	CO25231800101 Available to backorder	Blade Support Bush	£2.40 £2.00
8	CO26800300502 Available to backorder	Locking Screw	£1.26 £1.05
9	CO26300400202 Available to backorder	Initiative Belt Wheel	£6.38 £5.32
10	CO25100127502 Available to backorder	Triangle Belt	£11.32 £9.43
11	CO26800500801 Available to backorder	Locking Nut	£1.26 £1.05
12	CO26800103701 Available to backorder	Self-Driving Screw	£1.44 £1.20
13	CO26800700701 Available to backorder	Flat Ring	£2.40 £2.00

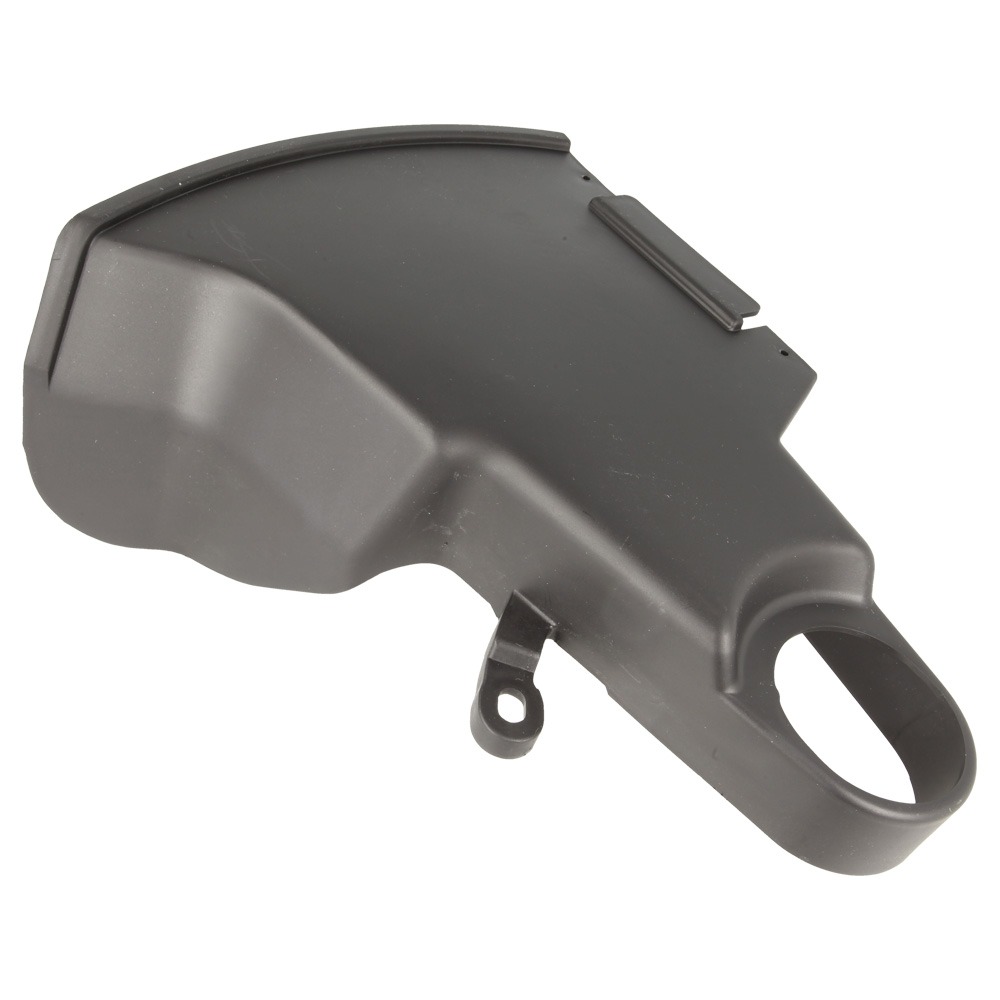

14	CO25248200103 Available to backorder	Belt Protecting Cover	£6.50 £5.42
15	CO23600105103 Available to backorder	Wheel Cover -1	£2.62 £2.18
16	CO26800502801 Available to backorder	Locking Nut	£1.44 £1.20
17	CO26800401601 Available to backorder	Bearing	£4.00 £3.33
18	CO25400204601 Available to backorder	Wheel Assy	£16.18 £13.48
19	CO26800706202 Available to backorder	Wave Washer	£2.52 £2.10
20	CO26800201901 Available to backorder	Trigger Nut	£1.20 £1.00
21	CO26300124401 In stock	Wheel Axis Fixed Ring	£2.40 £2.00
22	CO26800502401 Available to backorder	Locking Nut	£1.26 £1.05
23	CO26300149001 Available to backorder	Front Wheel Axis Assy	£19.51 £16.26
24	CO25234000103 Available to backorder	Axle Shaft Sleeve	£2.40 £2.00
25	CO26801113101 Available to backorder	Front Wheel Axis Spring	£2.40 £2.00
26	CO26300118902 Available to backorder	Frat Washer	£2.40 £2.00
27	CO26800705001 Available to backorder	Wave Washer	£2.52 £2.10
28	CO26800500501 Available to backorder	Locking Nut	£2.40 £2.00
29	CO25208700105 Available to backorder	11 Dust-Proof Wheel Cover	£4.00 £3.33
30	CO26800100501 Available to backorder	Self-Driving Screw	£1.26 £1.05
31	CO25229500101 Available to backorder	Wheel Gear Ring	£6.38 £5.32
32	CO25400204501 Available to backorder	Wheel Assy	£28.22 £23.52
33	CO23600105303 Available to backorder	Wheel Cover-1	£5.32 £4.43
34	CO26300187001 Available to backorder	Connecting Rod	£8.36 £6.97
36	CO25205800102 Available to backorder	Adjustment Board	£2.52 £2.10
37	CO26800202001 Available to backorder	Tooth Screw	£1.26 £1.05
38	CO26300118201 Available to backorder	Side-Discharge Fixing Board	£2.66 £2.22
39	CO26800607201 Available to backorder	Bolt	£2.52 £2.10
40	CO26200101101 Available to backorder	Shaft	£2.52 £2.10
41	CO26801105201 Available to backorder	Side Cover Board Spring	£2.52 £2.10
42	CO25209500102 Available to backorder	Side-Discharge Cover Board	£5.32 £4.43
43	CO25209600102 Available to backorder	Side-Discharge Protecting Cover	£8.90 £7.42
44	CO26800900201 Available to backorder	Split Washer	£2.40 £2.00
45	CO26900300103 In stock	Left Output Gear Assy	£7.00 £5.83
46	CO26800705102 In stock	Frat Washer	£2.40 £2.00
47	CO26800402301 Available to backorder	Bearing	£2.64 £2.20
48	CO26900203103 Available to backorder	Bearing Sleeve	£3.00 £2.50
49	CO26809000102 In stock	Column Pin	£2.40 £2.00
50	CO23050104202 Available to backorder	Gear Box Assy	£63.84 £53.20
51	CO26900300202 In stock	Right Output Gear Assy	£7.00 £5.83
52	CO26801114901 Available to backorder	Positioned Board	£2.40 £2.00
53	CO26800203001 Available to backorder	Cross Pan Self-Driving Screw	£1.26 £1.05
54	CO26300137301 Available to backorder	Rear Wheel Axis Assy	£19.99 £16.66
55	CO26800900301 Available to backorder	E Clip	£2.40 £2.00
56	CO26300107601 Available to backorder	Adjusting Washer	£2.52 £2.10

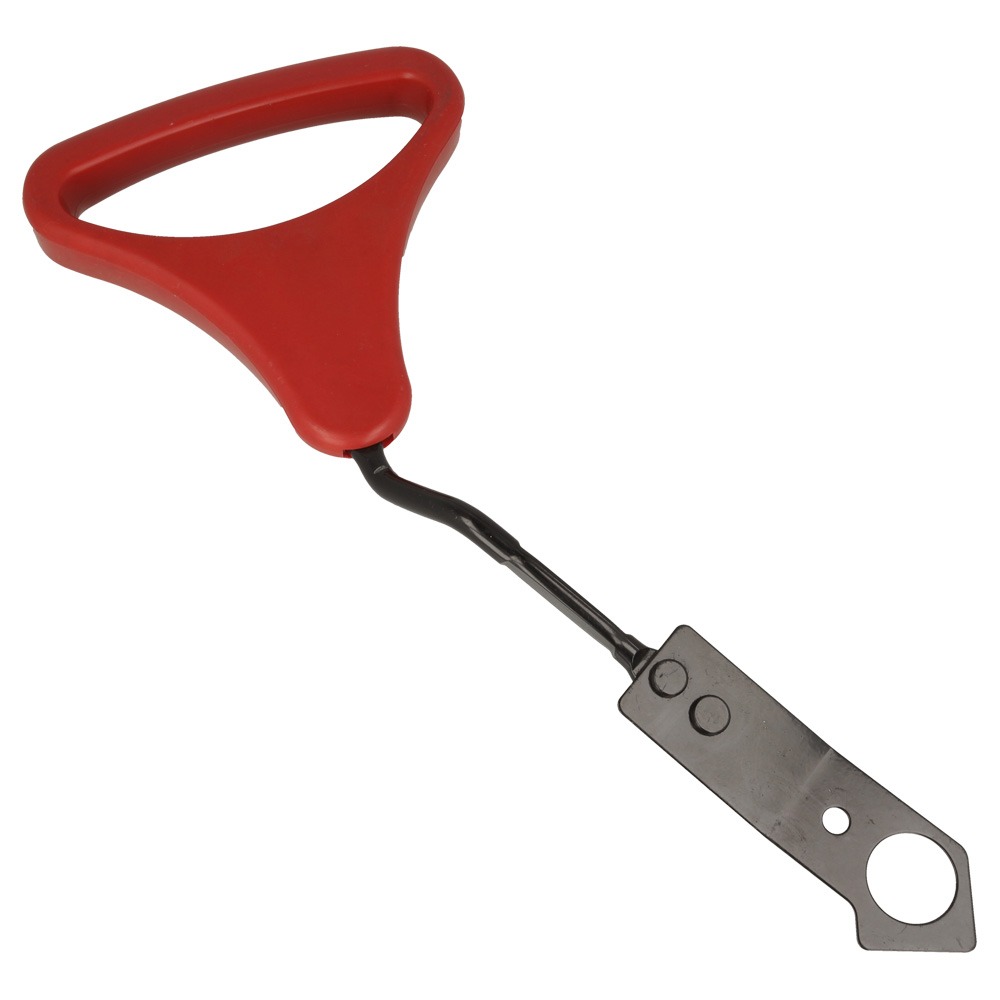

57	CO25500200602 Available to backorder	Height Adjustment Handle	£6.08 £5.07
58	CO26800606401 Available to backorder	Bolt	£2.62 £2.18
59	CO23600150501 Available to backorder	Handle Right Plank	£4.39 £3.66
60	CO26801112701 Available to backorder	Spring Of Right Knob	£2.52 £2.10
61	CO26300178001 Available to backorder	Long Rod	£2.52 £2.10
62	CO26801112601 Available to backorder	Spring Of Left Knob	£2.52 £2.10
63	CO23600150401 Available to backorder	Handle Leftt Plank	£4.39 £3.66
64	CO26800602501 Available to backorder	Bolt	£2.52 £2.10
65	CO26800302401 Available to backorder	Special Nut	£2.52 £2.10
66	CO26300210602 Available to backorder	Square Washer	£2.52 £2.10
68	CO26800501502 Available to backorder	Lid Nut	£1.20 £1.00
69	CO26800800202 Available to backorder	Spring Washer	£2.52 £2.10
70	CO26800601903 Available to backorder	Bolt	£2.62 £2.18
71	CO25261100101 Available to backorder	Cable Clip	£2.52 £2.10
72	CO25238500103 Available to backorder	Rear Cover Transparent Window	£2.54 £2.12
73	CO26800107101 Available to backorder	Self-Driving Screw	£2.52 £2.10
74	CO23000433801 Available to backorder	Rear Cover Assy	£10.98 £9.15
75	CO25205500103 Available to backorder	Lower Adjusting Gear Ring	£2.52 £2.10
76	CO26300177301 Available to backorder	Lower Handle Pole	£16.09 £13.41
77	CO26800104902 Available to backorder	Self-Driving Screw	£1.26 £1.05
78	CO26809004801 Available to backorder	Column Pin	£2.40 £2.00
79	CO25236400901 Available to backorder	Locking Handle	£2.52 £2.10
80	CO26300111901 Available to backorder	Press Board	£2.52 £2.10
81	CO26300130101 Available to backorder	Bolt	£2.40 £2.00
82	CO25205400103 Available to backorder	Upper Adjusting Gear Ring	£2.52 £2.10
83	CO25217800104 Available to backorder	Puling Cord Protecting Cover	£2.52 £2.10
84	CO29100117501 Available to backorder	Frame Out Cord Assy	£11.32 £9.43
85	CO29100116302 Available to backorder	Driven Cord Assy	£12.00 £10.00
86	COA26800501603 Available to backorder	Cap Nut	£1.20 £1.00
87	CO26800800303 Available to backorder	Spring Washer	£2.40 £2.00
88	CO26800700801 Available to backorder	Flat Washer	£1.20 £1.00
89	CO26300168401 Available to backorder	Cable Hook	£2.52 £2.10
90	CO26800607701 Available to backorder	Bolt	£2.62 £2.18
91	CO26800608201 Available to backorder	Bolt	£2.52 £2.10
92	CO29100103601 Available to backorder	Choke Handle Assy	£12.58 £10.48
93	CO25233600101 Available to backorder	Cord Fixed Board	£2.40 £2.00
94	CO26300177401 Available to backorder	Upper Handle Rod	£26.44 £22.03
95	CO25600102301 Available to backorder	Handle Protecting Sleeve	£2.66 £2.22
96	CO26300174002 Available to backorder	Drive Pulling Rod	£9.16 £7.63
97	CO23600155001 Available to backorder	Flameout Rod	£8.29 £6.91
98	CO25238400101 Available to backorder	Grass Catcher Handle	£2.54 £2.12
99	CO26800104601 In stock	Self-Driving Screw	£1.20 £1.00
100	CO25240900101 Available to backorder	Grass Catcher	£24.59 £20.49
101	CO26800103202 In stock	Self-Driving Screw	£1.20 £1.00
102	CO26300138201 Available to backorder	Collection Bag Plank	£19.51 £16.26
103	CO25100137901 Available to backorder	Collection Bag	£29.10 £24.25
104	CO25231500101 Available to backorder	Mulching Wedge	£11.36 £9.47
105	CO25231601301 Available to backorder	Wedge Locking Button	£2.52 £2.10
106	CO26801100501 Available to backorder	Spring	£2.52 £2.10
107	CO25231700101 Available to backorder	Locking Press Board	£2.52 £2.10
108	CO26300107801 Available to backorder	Wrench	£2.52 £2.10
109	CO26300107901 Available to backorder	Wrench Rod	£2.52 £2.10
