Cobra M53HSTPRO - TN2160SXAHHSTPRO Wheels Diagram

Name: Cobra M53HSTPRO - TN2160SXAHHSTPRO Wheels Diagram
SKU: m53hstpro_tn2160sxahhstpro_wheels-group
Price: 0.5 GBP
Availability: InStock

Part No. m53hstpro_tn2160sxahhstpro_wheels-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra M53HSTPRO - TN2160SXAHHSTPRO Wheels Diagram

Description

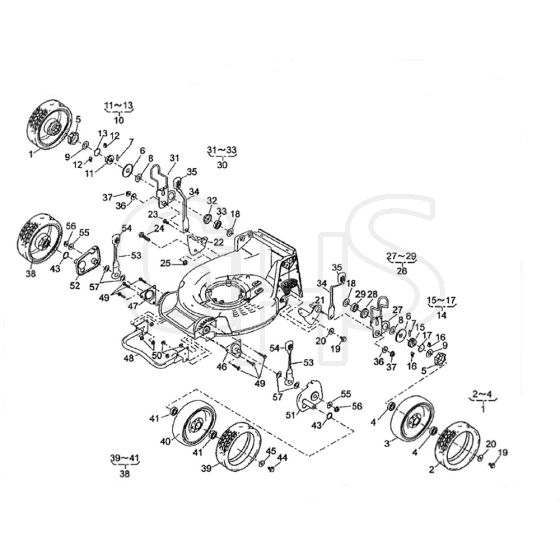

Cobra M53HSTPRO Rotary Mower Parts Diagram

	Part No.	Details
1	DA71041-144 Available to backorder	Wheel Assy	£149.16 £124.30
5	DA11086-119 Available to backorder	Stopper	£11.15 £9.29
6	DA61003-112 In stock	Thrust Plate	£5.63 £4.69
7	DA31034-137 In stock	Pin	£2.04 £1.70
8	DA68036-270 Available to backorder	Washer	£1.12 £0.93
9	DA68036-146 Available to backorder	Washer	£0.71 £0.59
10	DA71158-104 In stock	Ratchet Assy	£14.66 £12.22
14	DA71158-103 In stock	Ratchet Assy	£14.66 £12.22
15	DA11102-235 Available to backorder	Holder	£8.34 £6.95
16	DA31034-170 Available to backorder	Pin	£2.32 £1.93
17	DA68013-266 Available to backorder	Spring	£2.44 £2.03
18	DA68036-275 Available to backorder	Washer	£0.97 £0.81
21	DA11006-162 Available to backorder	Stay Cp	£38.28 £31.90
22	DA11006-152 Available to backorder	Stay Cp	£9.56 £7.97
23	DA342L0612 Available to backorder	Flange Tapping Bolt	£1.43 £1.19
24	DA31057-255 Available to backorder	Hexagon Bolt M8X25	£1.24 £1.03
25	CO584L0800 Available to backorder	U-Flange Nut	£2.46 £2.05
26	DA71122-110 Available to backorder	Adjuster Assy	£42.80 £35.67
27	DA11142-125 Available to backorder	Adjuster	£26.74 £22.28
30	DA71122-111 Available to backorder	Adjuster Assy	£42.80 £35.67
31	DA11142-126 Available to backorder	Adjuster	£26.74 £22.28
32	DA11102-228 Available to backorder	Holder	£5.14 £4.28
33	DA916B6202 Available to backorder	Bearing	£9.74 £8.12
34	DA11150-105-09 Available to backorder	Adjust Lever	£12.64 £10.53
37	DA569L0800 Available to backorder	Flange Nylon Nut	£1.14 £0.95
38	DA71041-145 Available to backorder	Wheel Assy	£147.84 £123.20
39	DA91086-116 Available to backorder	Tyre	£36.25 £30.21
41	DA916B6002 Available to backorder	Bearing	£10.57 £8.81
43	DA51113-119 Available to backorder	Ring	£0.60 £0.50
44	DA31057-181 In stock	Hexagon Bolt	£1.32 £1.10
46	DA71950-273 In stock	Stay Cp	£21.52 £17.93
47	DA71950-274 Available to backorder	Stay Cp	£20.77 £17.31
48	DA11153-112 Available to backorder	Bumper	£43.20 £36.00
49	CO335L0625 Available to backorder	Flange Bolt	£3.34 £2.78
50	DA569L0600 Available to backorder	Flange Nylon Nut	£0.91 £0.76
51	DA11142-127 Available to backorder	Adjuster	£20.98 £17.48
52	DA11142-128 Available to backorder	Adjuster	£20.98 £17.48
53	MD11150-109-09 In stock	Adjust Lever	£12.02 £10.02
54	DA36061-121 Available to backorder	Knob	£3.56 £2.97
55	DA68036-101 Available to backorder	Washer	£1.31 £1.09
57	DA68013-393 Available to backorder	Spring	£0.94 £0.78
