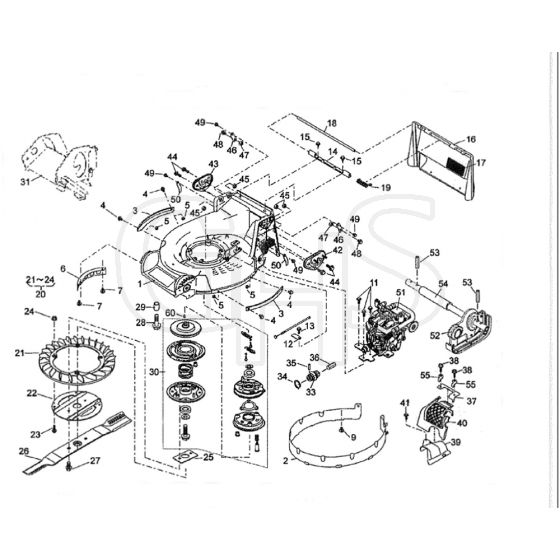

Cobra M53HSTPRO - TN2160SXAHHSTPRO Deck Assembly Diagram

Name: Cobra M53HSTPRO - TN2160SXAHHSTPRO Deck Assembly Diagram
SKU: m53hstpro_tn2160sxahhstpro_deck_assembly-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra M53HSTPRO - TN2160SXAHHSTPRO Deck Assembly Diagram

Description

Cobra M53HSTPRO Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
0	CO71950-240 Available to backorder	Mulching Blade Set (Not Illustrated)	£57.71 £48.09
0	DA71902-218 Available to backorder	Mulch Kit (Not Illustrated)	£147.36 £122.80
2	DA36068-204 Available to backorder	Guard	£76.44 £63.70
3	DA51090-117-09 Available to backorder	Protector	£9.60 £8.00
4	DA335L0616 Available to backorder	Flange Bolt	£1.38 £1.15
5	DA512L0600 Available to backorder	Hexagon Nut	£0.48 £0.40
6	CO36065-180 Available to backorder	Cover	£7.82 £6.52
12	DA11113-407 Available to backorder	Stay	£2.90 £2.42
14	DA11113-292 In stock	Stay	£8.28 £6.90
16	DA36068-196-46 In stock	Guard	£43.56 £36.30
17	CO36080-149 Available to backorder	Rubber Sheet	£2.50 £2.08
18	DA64014-324 In stock	Shaft	£4.68 £3.90
19	DA68013-336 In stock	Spring	£6.78 £5.65
21	DA51125-103 Available to backorder	Fan	£20.58 £17.15
22	DA11102-151 Available to backorder	Holder	£18.90 £15.75
23	DA31062-169 Available to backorder	Pre-Coat Lock Bolt	£1.20 £1.00
24	DA579L0600 Available to backorder	Flange Nut	£0.48 £0.40
25	DA61024-208 Available to backorder	Spacer	£10.52 £8.77
26	DA91014-205 In stock	Blade	£35.44 £29.53
27	DA31057-197 Available to backorder	Hexagon Bolt	£2.76 £2.30
28	DA31057-243 Available to backorder	Hexagon Bolt	£1.34 £1.12
29	DA61024-142 Available to backorder	Spacer	£0.47 £0.39
30	DA71067-106 Available to backorder	Brake Assy	£388.62 £323.85
33	DA91097-101 Available to backorder	Universal Joint	£35.70 £29.75
34	DA812V2000 Available to backorder	C-Snap Ring	£0.50 £0.42
35	DA717B0418 Available to backorder	Parellel Pin	£1.62 £1.35
36	CO64014-368 Available to backorder	Shaft	£2.33 £1.94
37	DA11050-181 Available to backorder	Fixing Plate	£6.84 £5.70
38	CO423L0820 Available to backorder	Socket Screw Flange	£1.03 £0.86
39	CO36065-453 Available to backorder	Cover	£7.00 £5.83
40	CO36065-454 Available to backorder	Cover	£11.99 £9.99
41	DA342L0616 Available to backorder	Flange Tapping Bolt	£1.44 £1.20
42	DA51116-149 Available to backorder	Handle Bracket	£37.80 £31.50
43	DA51116-150 Available to backorder	Handle Bracket	£37.80 £31.50
44	DA31057-255 In stock	Hexagon Bolt M8X25	Was £1.26 £1.05 Special Price £0.86 £0.72
46	DA11113-408 Available to backorder	Stay	£3.47 £2.89
47	DA512L0800 Available to backorder	Hexagon Nut	£0.48 £0.40
48	DA31057-181 Available to backorder	Hexagon Bolt	£5.52 £4.60
49	DA342L0612 Available to backorder	Flange Tapping Bolt	£1.38 £1.15
50	DA11113-415 Available to backorder	Stay	£2.56 £2.13
53	DA711V0522 Available to backorder	Spring Pin	£0.60 £0.50
54	DA11083-387 Available to backorder	Collar	£2.52 £2.10
60	HP94401-16150 In stock	Woodruff Key	£0.54 £0.45
