Cobra M51SPH - 20" Self Propelled Main Diagram

Description

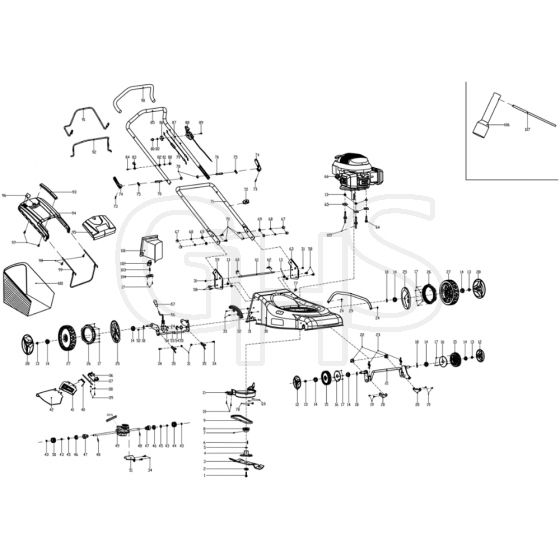

Cobra M51SPH Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800606201 Available to backorder	Blade Locking Bolt	£2.40 £2.00
2	CO26300107302 Available to backorder	Dishing Washer	£2.40 £2.00
3	CO26300155101 In stock	Blade	£20.38 £16.98
4	CO26300148301 Available to backorder	Blade Support	£7.20 £6.00
5	CO26900209601 Available to backorder	Blade Support Bush	£2.52 £2.10
6	CO26809004101 Available to backorder	Flat Pin	£2.52 £2.10
7	CO26800300502 Available to backorder	Locking Screw	£1.26 £1.05
8	CO26300403501 Available to backorder	Driving Belt Wheel	£5.71 £4.76

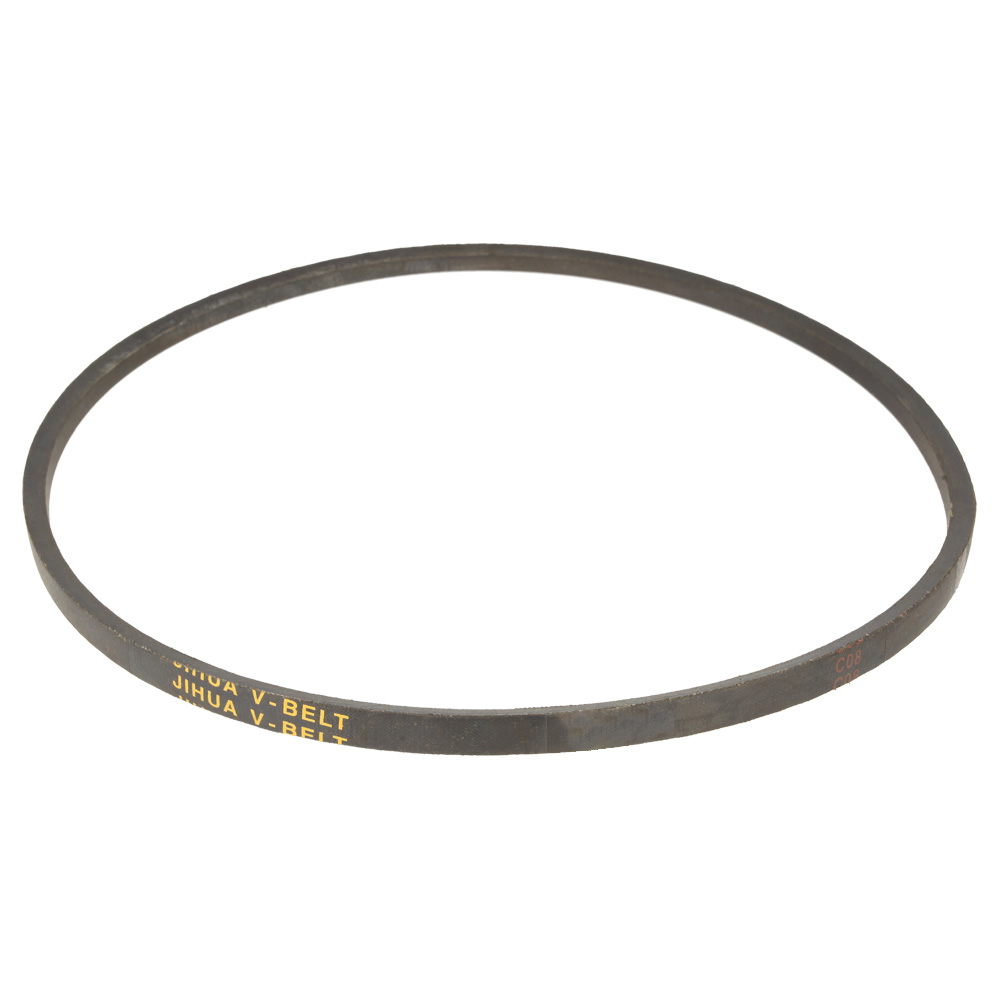

9	CO25100127202 Available to backorder	Triangle Belt	£10.06 £8.38
10	CO26800103701 Available to backorder	Self-Driving Screw	£1.44 £1.20
11	CO25288400101 Available to backorder	Belt Protecting Cover	£6.52 £5.43
12	CO23600301901 Available to backorder	Wheel Cover	£2.52 £2.10
13	CO26800502801 Available to backorder	Hexagon Flange Locking Nut	£1.44 £1.20
14	CO26800401601 Available to backorder	Bearing	£4.00 £3.33
15	CO25400204001 Available to backorder	Wheel Assy	£14.47 £12.06
16	CO25287100101 Available to backorder	Dust-Proof Wheel Cover	£3.44 £2.87
17	CO26800100501 Available to backorder	Self-Driving Screw	£1.26 £1.05
18	CO26800706202 Available to backorder	Wave Washer	£2.52 £2.10
19	CO26800201901 Available to backorder	Tooth Screw	£1.20 £1.00
20	CO26300134202 Available to backorder	Pressing Plate For Axle Fixed	£2.62 £2.18
21	CO26300132702 Available to backorder	Front Wheel Axis Assy	£16.18 £13.48
22	CO25202600101 In stock	Front Wheel Axis Fixing Ring	£2.40 £2.00
23	CO26801110001 Available to backorder	Front Wheel Axis Spring	£2.62 £2.18
24	CO26800500501 Available to backorder	Hexagon Locking Nut	£2.40 £2.00
25	CO25208700105 Available to backorder	11 Dust-Proof Wheel Cover	£4.00 £3.33
26	CO25229500101 Available to backorder	Wheel Gear Ring	£6.38 £5.32
27	CO25400204101 Available to backorder	Wheel Assy	£23.92 £19.93
28	CO23600302001 Available to backorder	Wheel Cover	£5.32 £4.43
29	CO26300133401 Available to backorder	Connecting Rod	£6.52 £5.43
31	CO26800502401 Available to backorder	Hexagon Flange Locking Nut	£1.26 £1.05
32	CO23100106501 Available to backorder	Gearing Board	£2.69 £2.24
33	CO26800202001 Available to backorder	Tooth Screw	£1.26 £1.05
34	CO26800611201 Available to backorder	Hexagon Flange Bolt	£2.62 £2.18

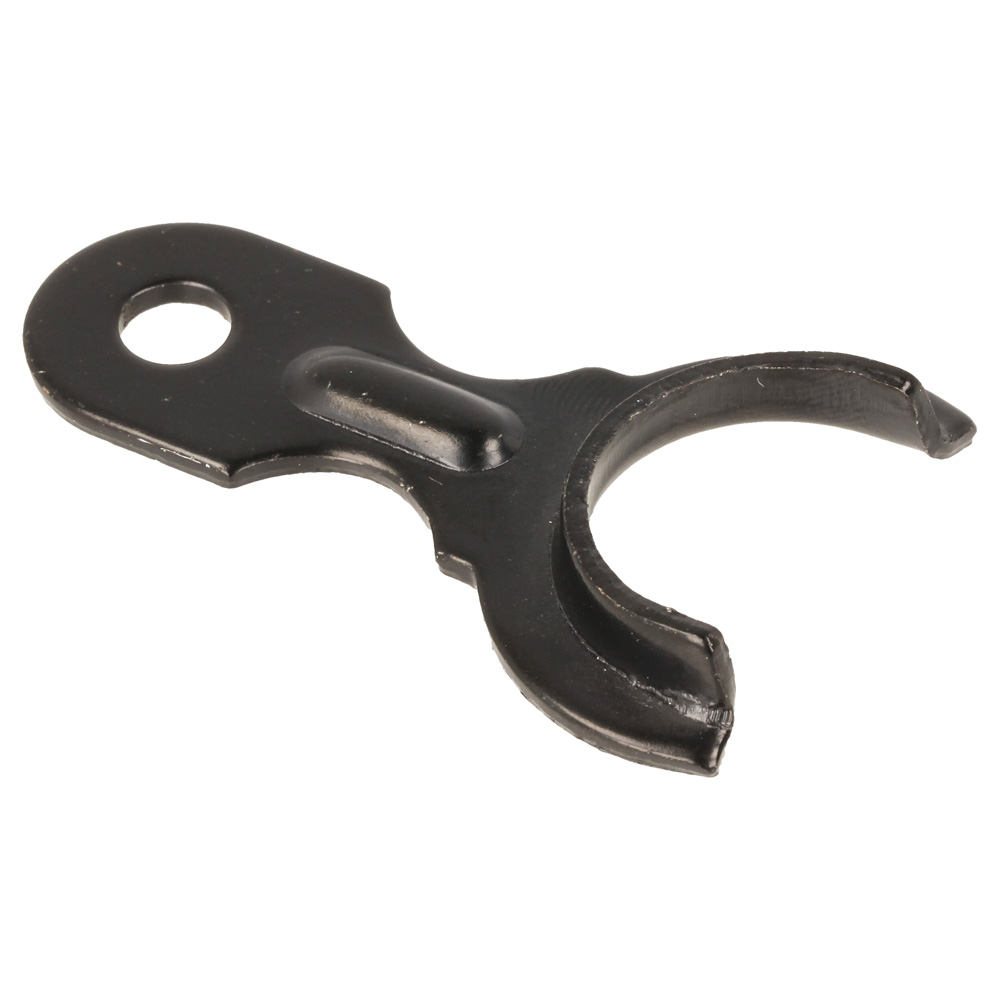

35	CO26300107001 Available to backorder	Axis Lock	£2.62 £2.18

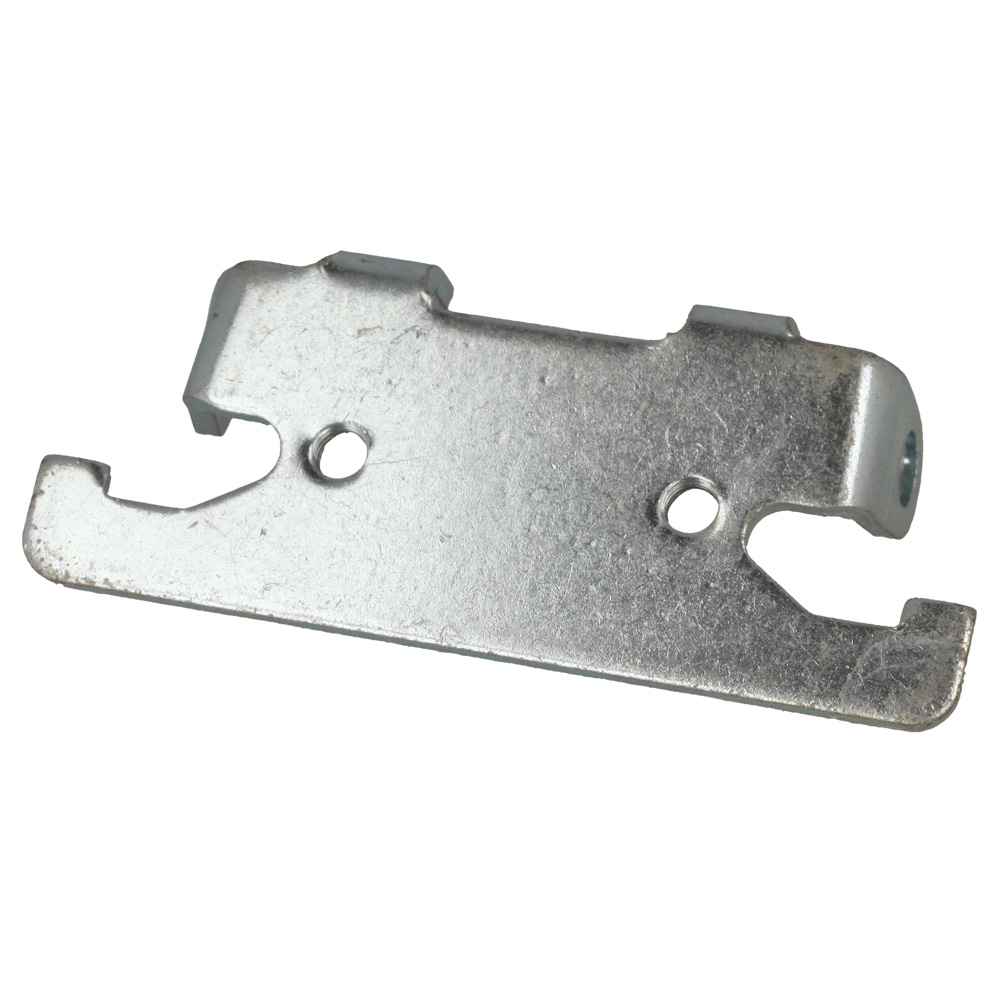

36	CO26300218303 Available to backorder	Side-Discharge Fixing Board	£2.40 £2.00
37	CO26200101901 Available to backorder	Side-Discharge Fixing Shaft	£2.40 £2.00
38	CO26800800402 Available to backorder	Spring Washer	£2.40 £2.00
39	CO26800201501 Available to backorder	Tooth Screw	£2.40 £2.00
40	CO26801113002 Available to backorder	Spring Of Side Cover Board	£2.62 £2.18
41	CO25231100102 Available to backorder	Side-Discharge Cover Board	£5.68 £4.73

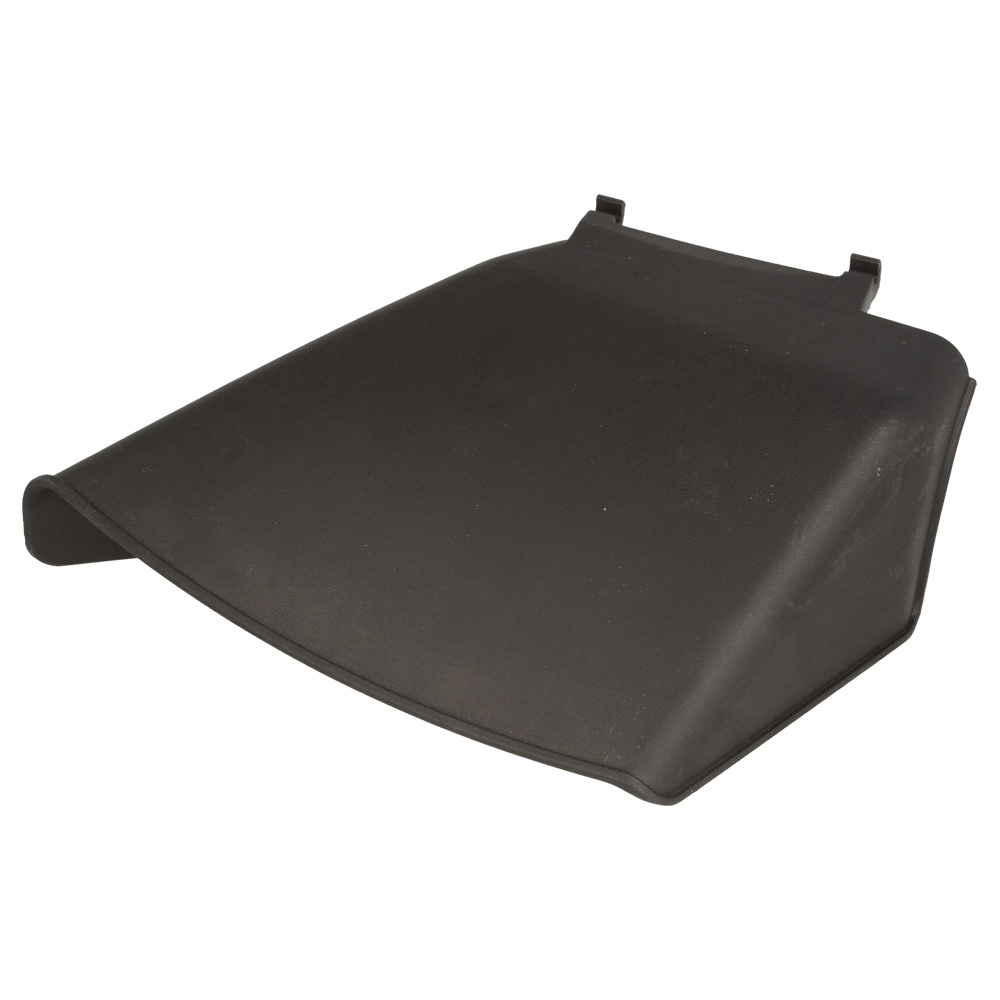

42	CO25231200103 Available to backorder	Side-Discharge Protecting Cover	£11.68 £9.73
43	CO26800900201 Available to backorder	Open Block Ring	£2.40 £2.00
44	CO26900300103 In stock	Left Output Gear Assy	£7.00 £5.83
45	CO26800705102 In stock	Flat Washer	£2.40 £2.00
46	CO26800402301 Available to backorder	Bearing	£2.64 £2.20
47	CO26900203103 Available to backorder	Bearing Sheath	£3.00 £2.50
48	CO26809000102 In stock	Column Pin	£2.40 £2.00
49	CO2100200173 Available to backorder	49A Gearbox Spring	£2.40 £2.00
49	CO23050203501 Available to backorder	Variable Gear Box Assy	£63.84 £53.20
50	CO26900300202 In stock	Right Output Gear Assy	£7.00 £5.83
51	CO26300257701 Available to backorder	Positioned Board	£2.62 £2.18
52	CO26800203001 Available to backorder	Cross Pan Screw	£1.26 £1.05
53	CO26300153401 Available to backorder	Rear Wheel Axis Assy	£18.25 £15.21
54	CO26800900301 Available to backorder	E Clip	£2.40 £2.00
55	CO26300107601 Available to backorder	Adjusting Washer	£2.52 £2.10
56	CO26300172502 Available to backorder	Handle Assy	£3.74 £3.12
57	CO25500103205 Available to backorder	Handle Sleeve	£2.52 £2.10
58	CO26800606401 Available to backorder	Hexagon Flange Bolt	£2.62 £2.18
59	CO23601014901 Available to backorder	Right Handle Bracket	£4.56 £3.80
60	CO26801112701 Available to backorder	Spring Of Right Knob	£2.52 £2.10
61	CO26300165601 Available to backorder	Long Rod	£2.52 £2.10
62	CO26801112601 Available to backorder	Spring Of Left Knob	£2.52 £2.10
63	CO23601014801 Available to backorder	Left Handle Blacket	£4.56 £3.80
64	CO26800612801 Available to backorder	Hexagon Bolt	£2.52 £2.10
65	CO26300210602 Available to backorder	Square Washer	£2.52 £2.10
67	CO26800501502 Available to backorder	Lid Nut	£1.20 £1.00
68	CO26800800202 Available to backorder	Spring Washer	£2.52 £2.10
69	CO26800700701 Available to backorder	Flat Washer	£2.40 £2.00
70	CO26800601903 Available to backorder	Bolt	£2.62 £2.18
71	CO23600173601 Available to backorder	Lower Handle Pole	£13.50 £11.25
72	CO25261100101 Available to backorder	Wire Clamp	£2.52 £2.10
73	CO26809004801 Available to backorder	Column Pin	£2.40 £2.00
74	CO25236401501 Available to backorder	Locking Handle	£2.52 £2.10
75	CO26300142002 Available to backorder	Pressing Plate	£2.62 £2.18
76	CO26300124501 Available to backorder	Locking Handle Bolt	£2.62 £2.18
77	CO25217800104 Available to backorder	Cord Protceting Sheath	£2.52 £2.10
78	CO26800500801 Available to backorder	Hexagon Lovcking Nut	£1.26 £1.05

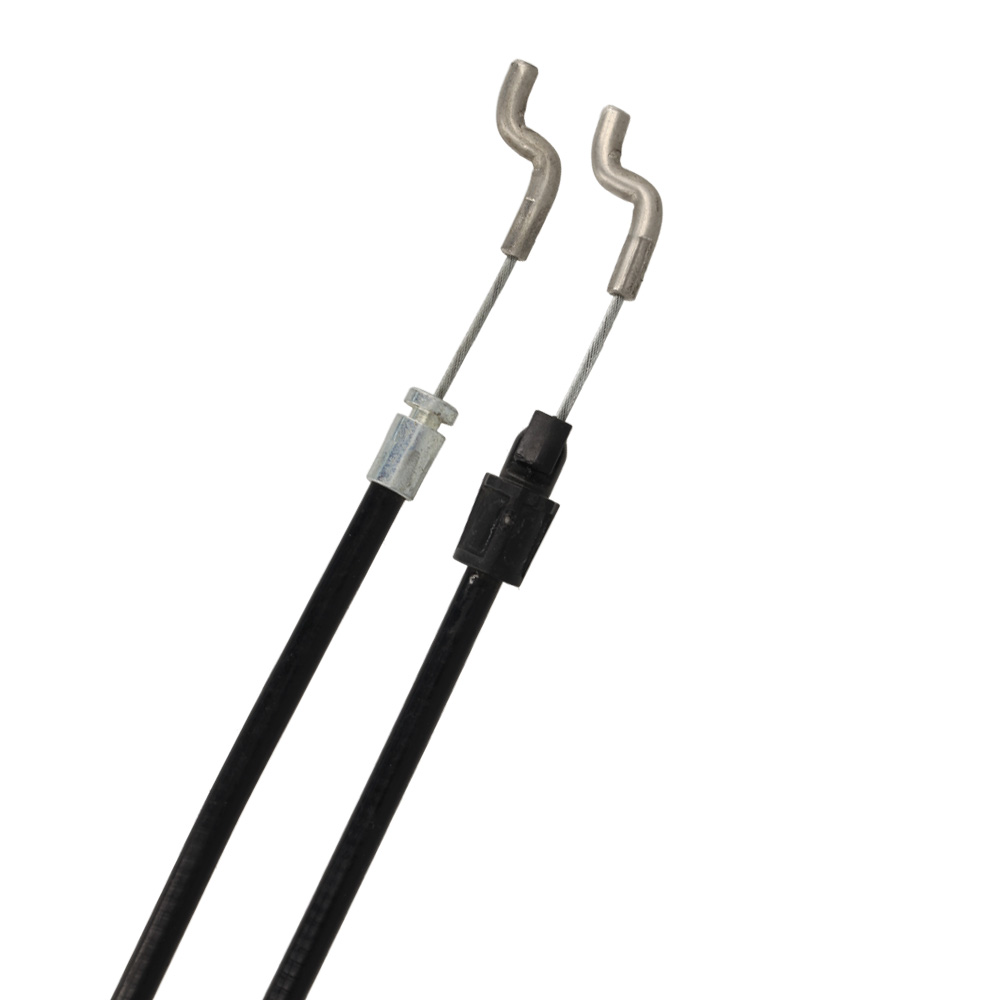

79	CO29100124901 Available to backorder	Driving Cord Assy	£10.80 £9.00
80	CO26800501603 Available to backorder	Lid Nut	£1.20 £1.00
81	CO26800800303 Available to backorder	Spring Washer	£2.40 £2.00
82	CO26800700801 Available to backorder	Flat Washer	£1.20 £1.00
83	CO26300168401 Available to backorder	Rope Guide	£2.52 £2.10
84	CO26800607701 Available to backorder	Hexagon Flange Bolt	£2.62 £2.18
85	CO23600163201 Available to backorder	Upper Handle Pole	£24.30 £20.25
86	CO25233600101 Available to backorder	Cord Fixing Board	£2.40 £2.00
87	CO29100128901 Available to backorder	Flameout Cord Assy	£10.06 £8.38
88	CO23000427401 Available to backorder	Choke Handle Assy	£11.32 £9.43
89	CO26800603601 Available to backorder	Bolt	£2.62 £2.18
90	CO25600102201 In stock	Handle Sheath	£4.44 £3.70
91	CO23600135201 Available to backorder	Choke Pulling Pole	£5.40 £4.50
92	CO26300256302 Available to backorder	Flameout Pulling Pole	£5.52 £4.60
93	CO25275500201 In stock	Grass Catcher Handle	£2.40 £2.00
94	CO25275300101 Available to backorder	Grass Catcher Cover	£18.40 £15.33
95	CO23000441301 Available to backorder	Rear Cover Assy	£8.99 £7.49
96	CO21071000080108A In stock	Wind Window Board	£2.40 £2.00
97	CO26800104601 In stock	Self Driving Screw	£1.20 £1.00
98	CO26800103202 In stock	Self Driving Screw	£1.20 £1.00
99	CO26300195901 Available to backorder	Grass Catcher Bracket	£18.25 £15.21
100	CO25100137841 Available to backorder	Grass Catcher	£28.03 £23.36
101	CO25231500101 Available to backorder	Locking Knob	£11.36 £9.47
102	CO25231601801 Available to backorder	Mulching Plug-In	£2.52 £2.10
103	CO26801100501 Available to backorder	Spring	£2.52 £2.10
104	CO25231700101 Available to backorder	Pressing Board Of Locking Button	£2.52 £2.10
105	CO26800305901 Available to backorder	Special Bolt	£2.52 £2.10
106	CO26300107801 Available to backorder	Wrench	£2.52 £2.10
107	CO26300107901 Available to backorder	Wrench Rod	£2.52 £2.10
