Cobra M51SPC Rotary Mower Parts Diagram

	Part No.	Details
1	CO26800606201 In stock	Blade Locking Bolt	£2.58 £2.15
2	CO2105200245A In stock	Pressing Plate Of Blade	£2.58 £2.15
2	CO26300107302 In stock	Dishing Washer	£2.58 £2.15
3	CO21052002622000A In stock	Blade	£21.84 £18.20
3	CO26300155101 In stock	Blade	£21.84 £18.20

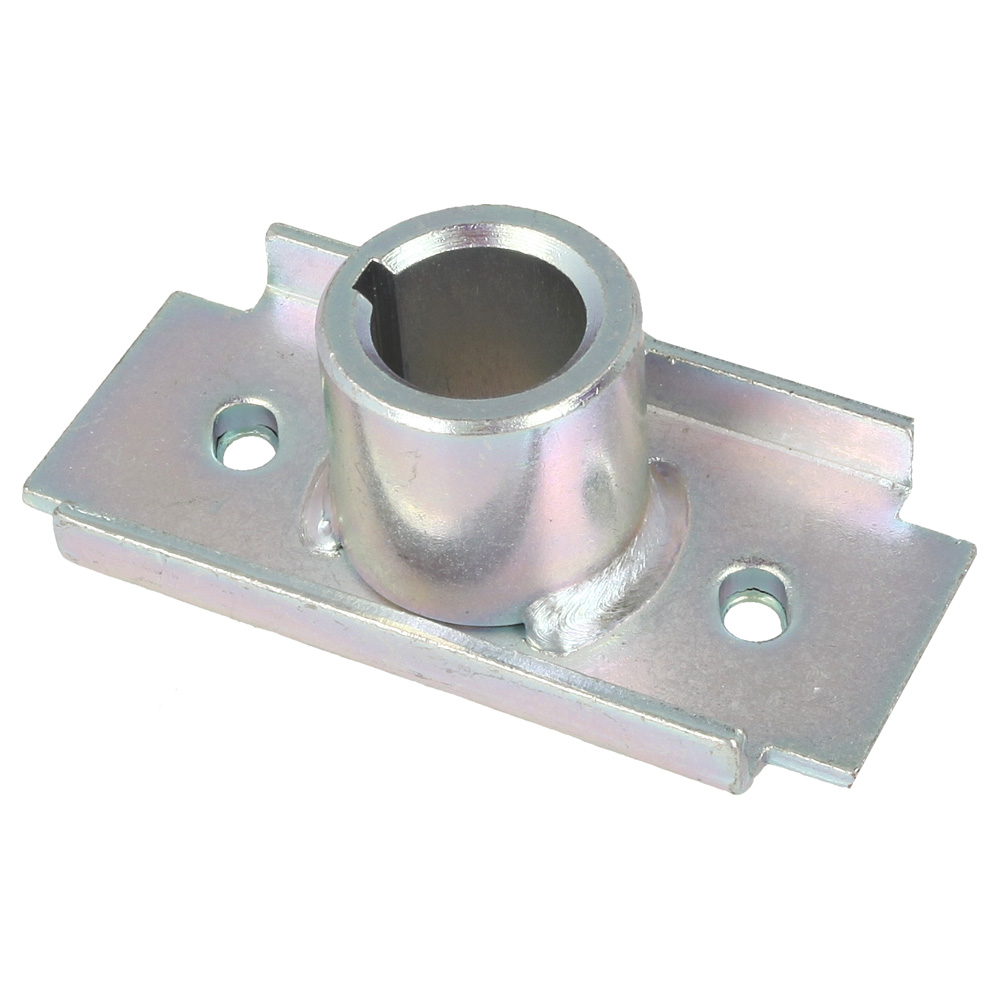

4	CO2105300043A Available to backorder	Blade Support	£10.09 £8.41
4	CO2105200251A In stock	Blade Support	£7.70 £6.42
5	CO26900209201 Available to backorder	Blade Support Bush	£2.48 £2.07
5	CO2105400024A Available to backorder	Bushing Of Blade Support	£2.48 £2.07
6	CO26809000201 In stock	Flat Pin	£2.58 £2.15
7	CO21051000163206A Available to backorder	Blade Support Bush	£2.48 £2.07
8	CO26800300502 Available to backorder	Screw	£1.24 £1.03
9	CO26300400202 Available to backorder	Driving Belt Wheel	£6.29 £5.24
10	CO25100126902 In stock	Triangle Belt	£10.27 £8.56
11	CO26800103701 In stock	Self-Driving Screw	£1.28 £1.07
12	CO25288400102 Available to backorder	Belt Protecting Cover	£6.72 £5.60
13	CO21011003670006B Available to backorder	Wheel Cover	£3.25 £2.71
14	CO26800502801 Available to backorder	Bolt	£1.24 £1.03
15	CO26800401601 In stock	Bearing	£4.30 £3.58
16	CO21011002660001A Available to backorder	Wheel Assy	£23.48 £19.57
17	CO26800100501 In stock	Self-Driving Screw	£1.28 £1.07
18	CO26800706202 In stock	Wave Washer	£2.48 £2.07
19	CO26800201901 Available to backorder	Screw	£1.24 £1.03
20	CO26300134202 Available to backorder	Axle Fixed Pressure Plate	£2.48 £2.07
21	CO26300132702 Available to backorder	Front Wheel Axis Assy	£16.74 £13.95
22	CO25202600101 In stock	Front Wheel Shaft Fixing Ring	£2.58 £2.15
23	CO26801110001 Available to backorder	Front Wheel Axis Spring	£2.48 £2.07
24	CO26800500501 Available to backorder	Hexagon Locking Nut	£2.48 £2.07
25	CO25208700105 Available to backorder	11"Dust-Proof Wheel Cover	£3.94 £3.28
26	CO25229500101 In stock	Wheel Gear Ring	£6.84 £5.70
27	CO25400204502 Available to backorder	Wheel Assy	£27.80 £23.17
28	CO23600105303 Available to backorder	Wheel Cover -1	£5.23 £4.36
29	CO2106200909A Available to backorder	Connecting Rod	£8.42 £7.02
31	CO26800502401 Available to backorder	Hexagon Flange Locking Bolt	£1.24 £1.03

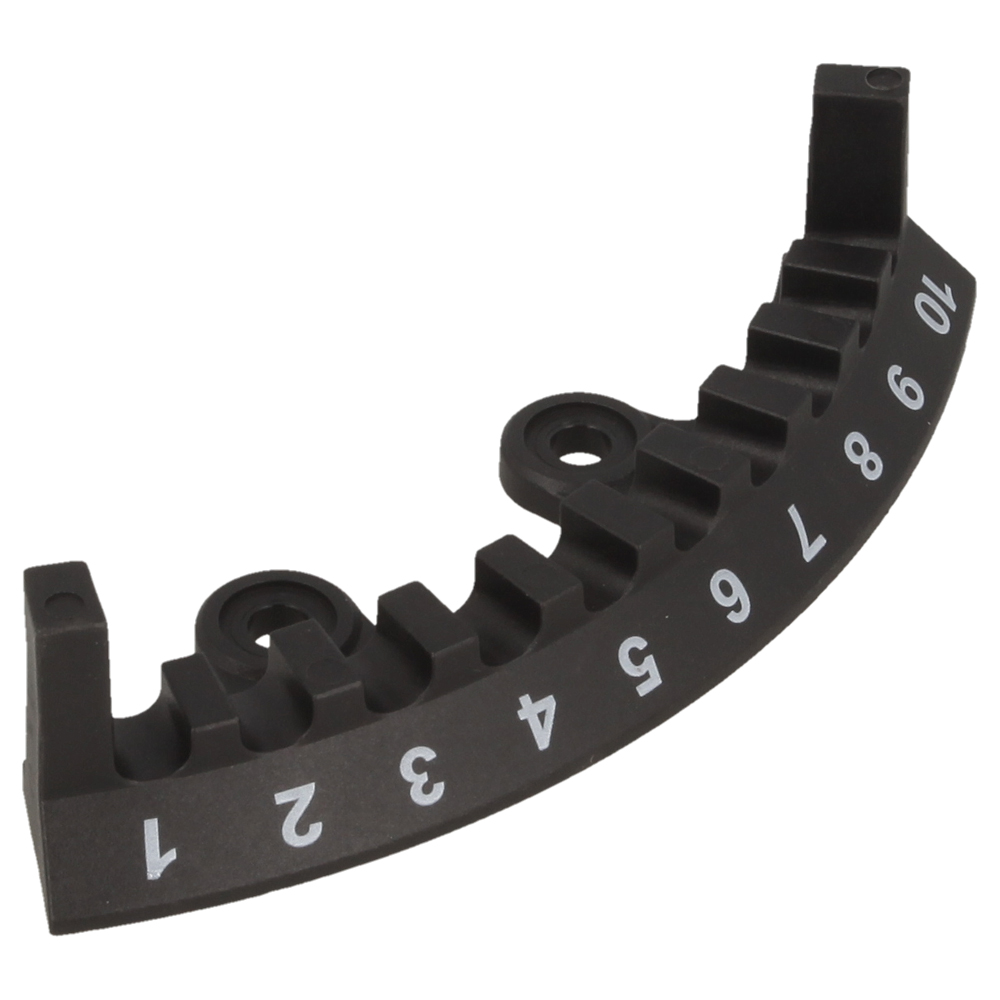

32	CO23100105302 Available to backorder	Gearing Board	£3.79 £3.16
33	CO26800202001 Available to backorder	Tooth Screw	£1.24 £1.03
34	CO26800611201 Available to backorder	Hexagon Flange Locking Bolt	£2.48 £2.07
35	CO26300107001 Available to backorder	Axis Card	£2.48 £2.07
36	CO26300218303 Available to backorder	Side-Discharge Fixing Board	£2.48 £2.07
37	CO26200101901 Available to backorder	Side-Discharge Fixing Shaft	£2.48 £2.07
38	CO26800800402 Available to backorder	Spring Washer	£2.48 £2.07
39	CO26800201501 Available to backorder	Tooth Screw	£2.48 £2.07

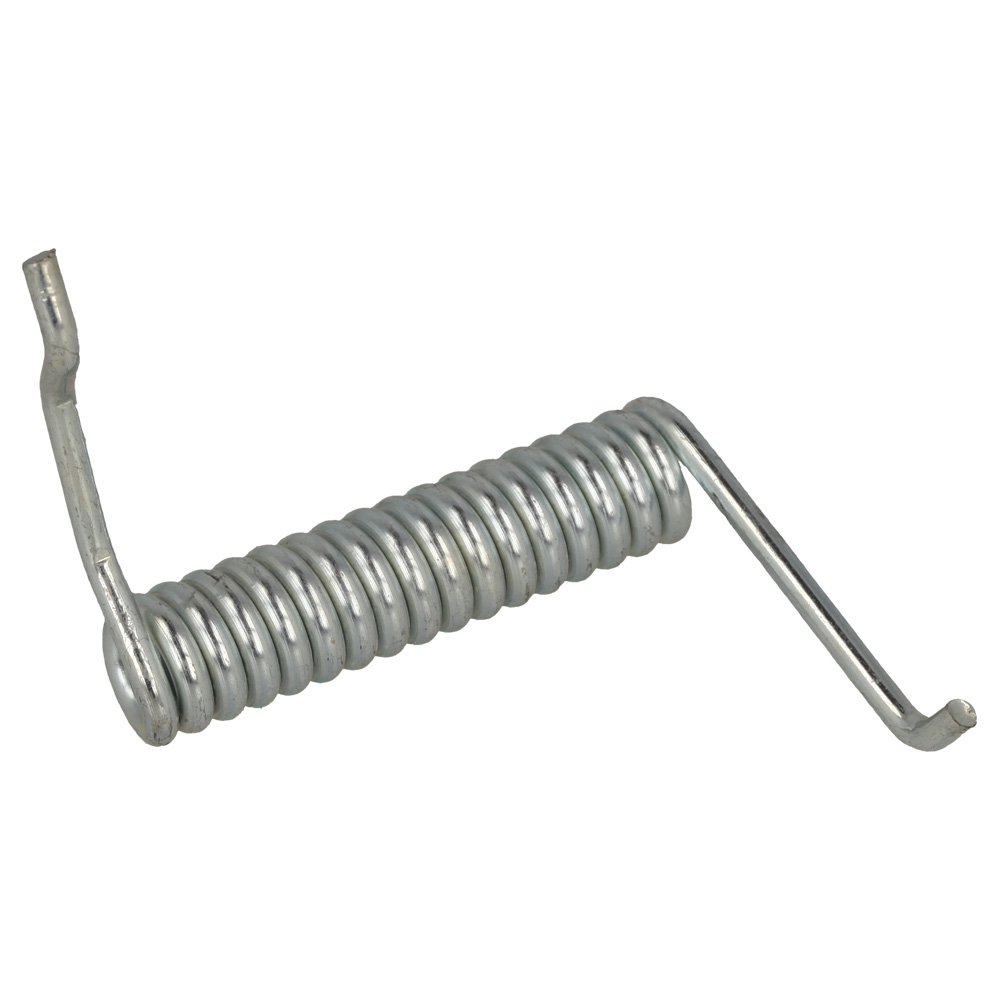

40	CO2109800066D Available to backorder	Spring Of Side Cover Board	£2.48 £2.07
41	CO25231100102 Available to backorder	Side-Discharge Cover Board	£5.88 £4.90
42	CO25231200103 Available to backorder	Side-Discharge Protecting Cover	£12.08 £10.07
43	CO26800900201 In stock	Open Block Ring	£2.58 £2.15
44	CO26900300103 In stock	Left Output Gear Assy	£7.50 £6.25
45	CO26800705102 In stock	Flat Washer	£2.58 £2.15
46	CO26800402302 In stock	Bearing	£2.66 £2.22
47	CO26900203103 In stock	Bearing Sheath	£3.18 £2.65
48	CO26809000102 In stock	Column Pin	£2.58 £2.15
49	CO23050204401 In stock	Variable Gear Box Assy	£50.56 £42.13
50	CO26900300203 In stock	Right Output Gear Assy	£7.50 £6.25
51	CO2103200007 Available to backorder	Positioned Board	£2.48 £2.07
52	CO26800203001 Available to backorder	Cross Pan Screw	£1.24 £1.03
53	CO2101500121A Available to backorder	Rear Wheel Axis Assy	£25.22 £21.02
54	CO26800900301 Available to backorder	Open Block Ring	£2.48 £2.07
55	CO26300107601 Available to backorder	Adjustment Washer	£2.48 £2.07
56	CO26300172502 Available to backorder	Handle Assy	£3.68 £3.07
57	CO21021000010108A Available to backorder	Handlebar Grip	£3.00 £2.50
58	COA26800606401 Available to backorder	Hexagon Flange Locking Bolt	£2.48 £2.07
59	CO21062004490108B Available to backorder	Right Handle Bracket	£6.62 £5.52
60	CO26801112701 Available to backorder	Spring Of Right Knob	£2.48 £2.07
61	CO26300165601 Available to backorder	Long Rod	£2.48 £2.07
62	CO26801112601 Available to backorder	Spring Of Left Knob	£2.48 £2.07
63	CO21062004480108B Available to backorder	Left Handle Blacket	£6.62 £5.52
64	CO26800305901 Available to backorder	Special Nut	£2.48 £2.07
65	COA26800601701 Available to backorder	Hexagon Bolt	£2.48 £2.07
66	CO26300210602 Available to backorder	Square Washer	£2.48 £2.07
67	CO60400107801 Available to backorder	Engine Assy	£211.68 £176.40
68	CO26800501502 Available to backorder	Nut	£1.24 £1.03
69	CO26800800202 Available to backorder	Spring Washer	£2.48 £2.07
70	CO26800700701 Available to backorder	Flat Washer	£2.48 £2.07
71	CO26800601903 Available to backorder	Nut	£2.48 £2.07
72	CO23600173601 Available to backorder	Lower Handle Pole	£13.97 £11.64
73	CO25261100102 In stock	Wire Clamp	£2.58 £2.15
74	CO26809004801 Available to backorder	Column Pin	£2.48 £2.07

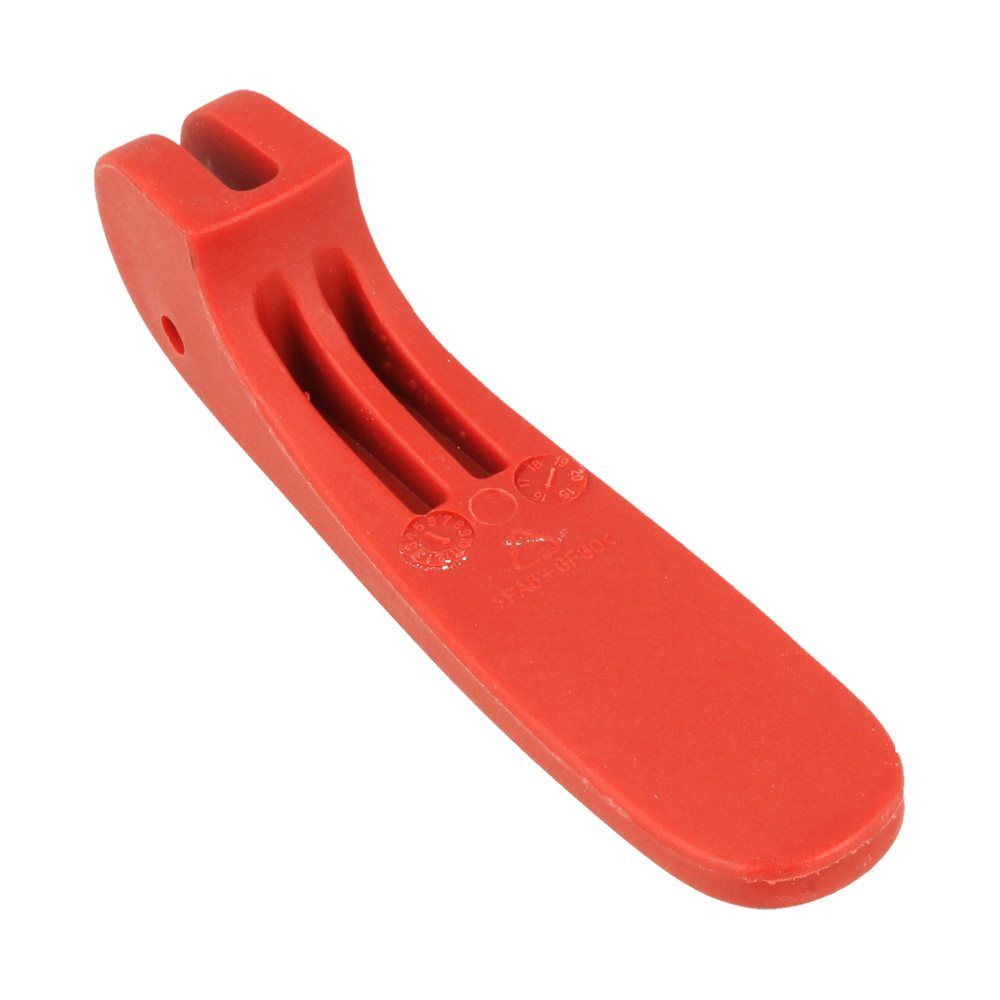

75	CO21061000270108A Available to backorder	Locking Handle	£2.48 £2.07
76	CO26300142002 Available to backorder	Pressing Plate	£2.48 £2.07
77	CO26300124501 Available to backorder	Locking Handle Bolt	£2.48 £2.07
78	CO25217800104 Available to backorder	Cord Protceting Sheath	£2.48 £2.07
79	CO26800500801 Available to backorder	Hexagon Nut	£1.24 £1.03
80	CO26800501603 In stock	Lid Nut	£1.28 £1.07
81	CO26800800303 Available to backorder	Spring Washer	£2.48 £2.07
82	CO26800700801 In stock	Flate Washer	£1.28 £1.07
83	CO2106300057B Available to backorder	Rope Guide	£2.48 £2.07
84	CO26800607701 Available to backorder	Hexagon Flange Locking Bolt	£2.48 £2.07

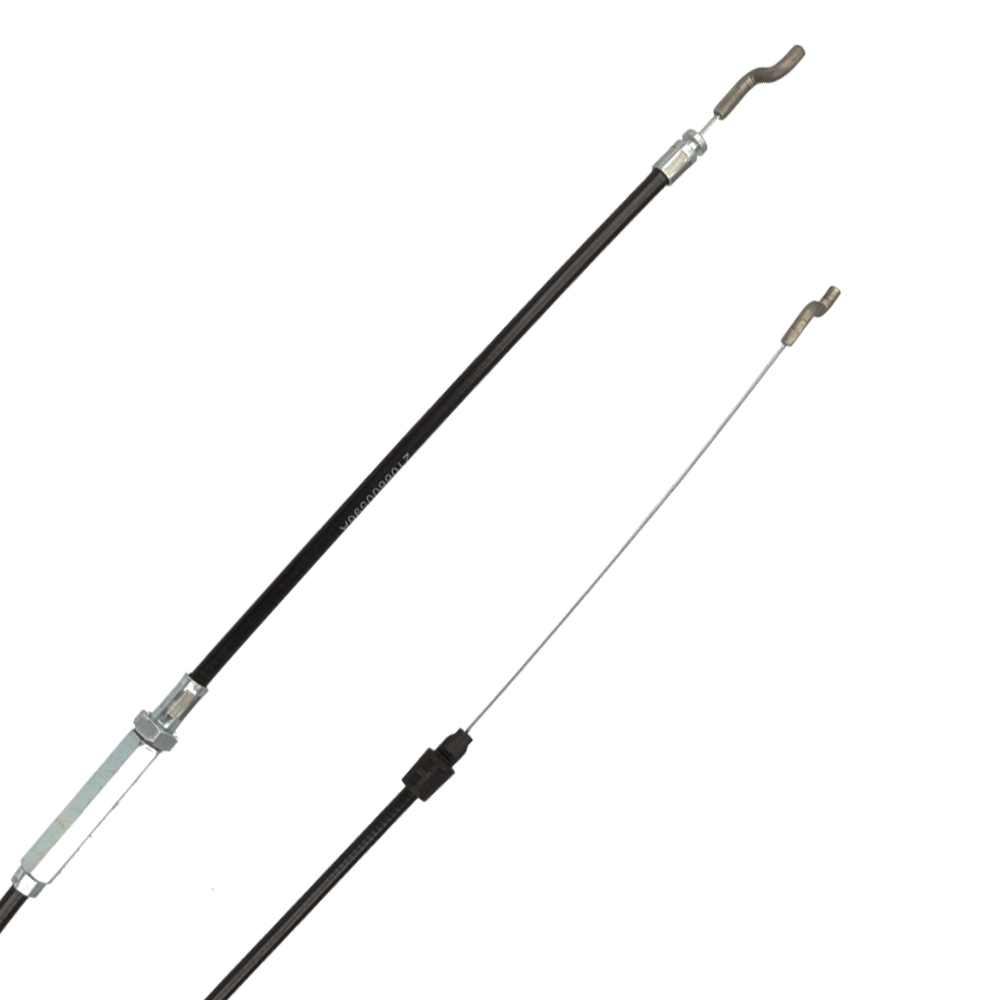

85	CO2106800596A Available to backorder	Flameout Cord Assy (2019 Alternative)	£9.91 £8.26

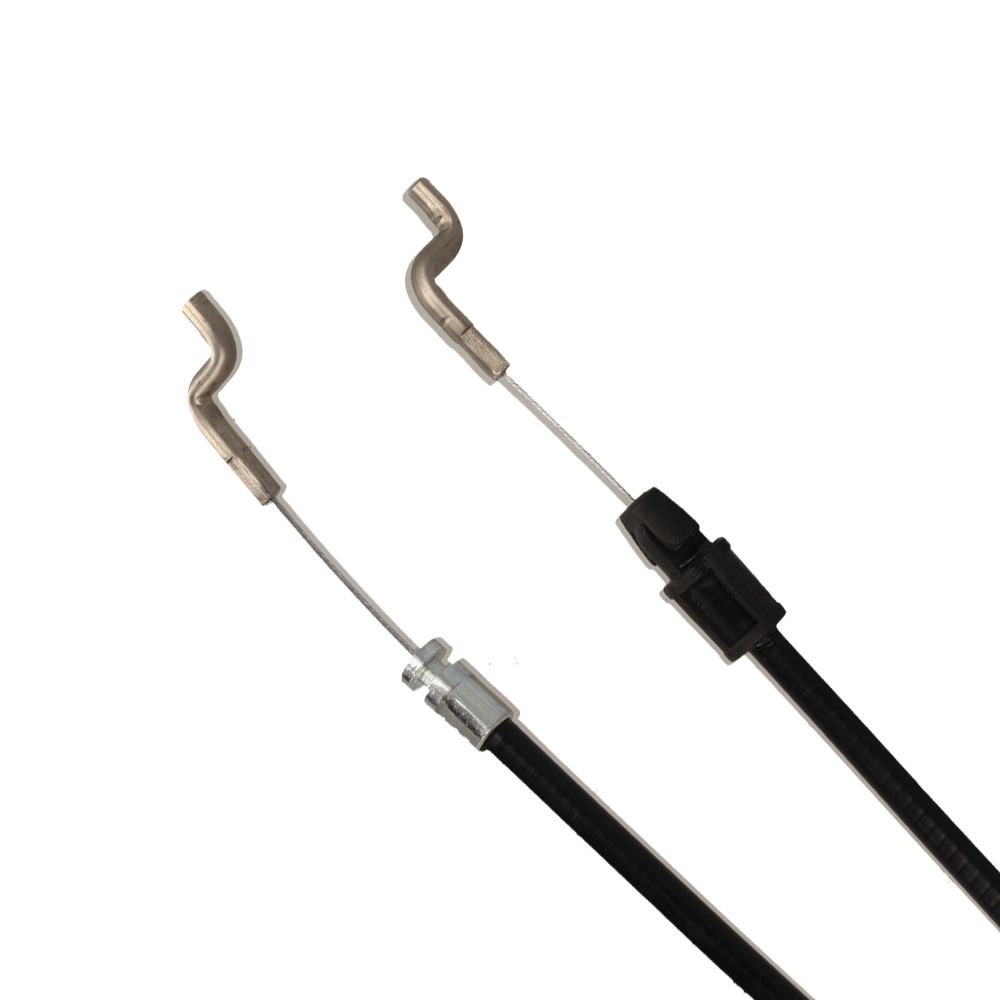

85	CO29100120102 In stock	Flameout Cord Assy	£9.91 £8.26
86	CO23600163201 Available to backorder	Upper Handle Pole	£23.94 £19.95
87	CO25233600102 In stock	Cord Fixing Board	£2.58 £2.15

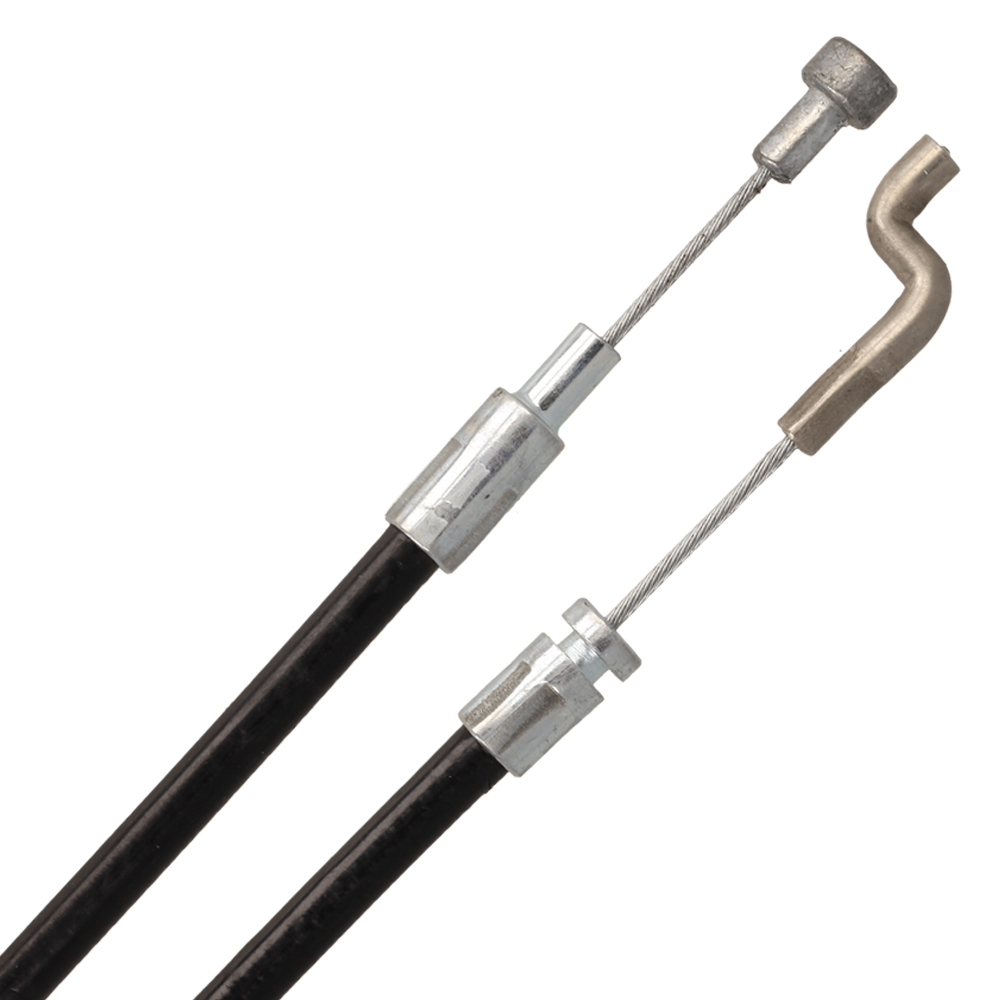

88	CO29100123101 In stock	Driving Cord Assy	£11.56 £9.63

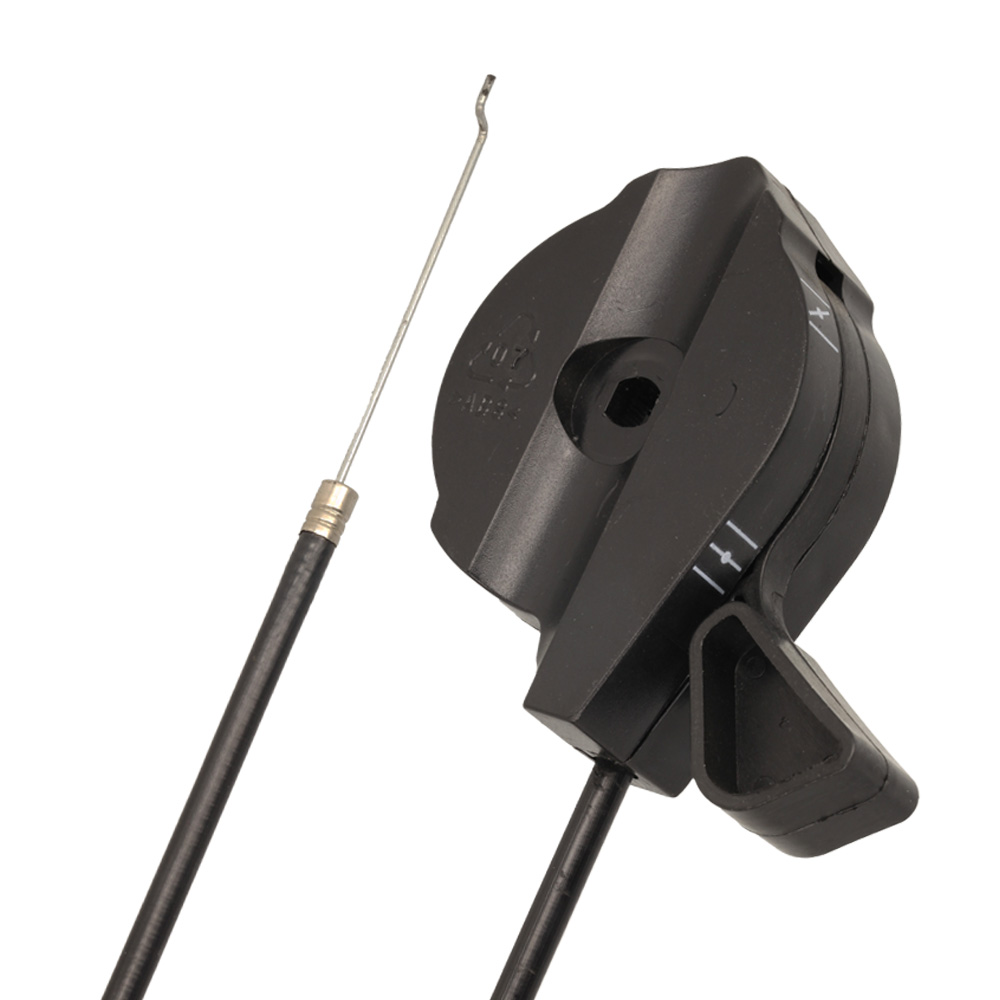

89	CO29100107301 In stock	Choke Cord Assy	£11.56 £9.63
90	CO26800603601 Available to backorder	Nut	£2.48 £2.07
91	CO25600102201 In stock	Handle Sheath	£4.70 £3.92
92	CO23600164101 Available to backorder	Choke Pulling Pole	£8.23 £6.86
93	CO21062003680108A Available to backorder	Flameout Pulling Pole	£8.11 £6.76
94	CO25238400101 Available to backorder	Grass Catcher Handle	£2.51 £2.09
95	CO25238200101 Available to backorder	Grass Catcher Cover	£22.45 £18.71
96	CO2100X00589 Available to backorder	Rear Cover Assy	£13.49 £11.24
97	CO26800104601 In stock	Self-Driving Screw	£1.28 £1.07
98	CO26800103202 In stock	Self-Driving Screw	£1.28 £1.07

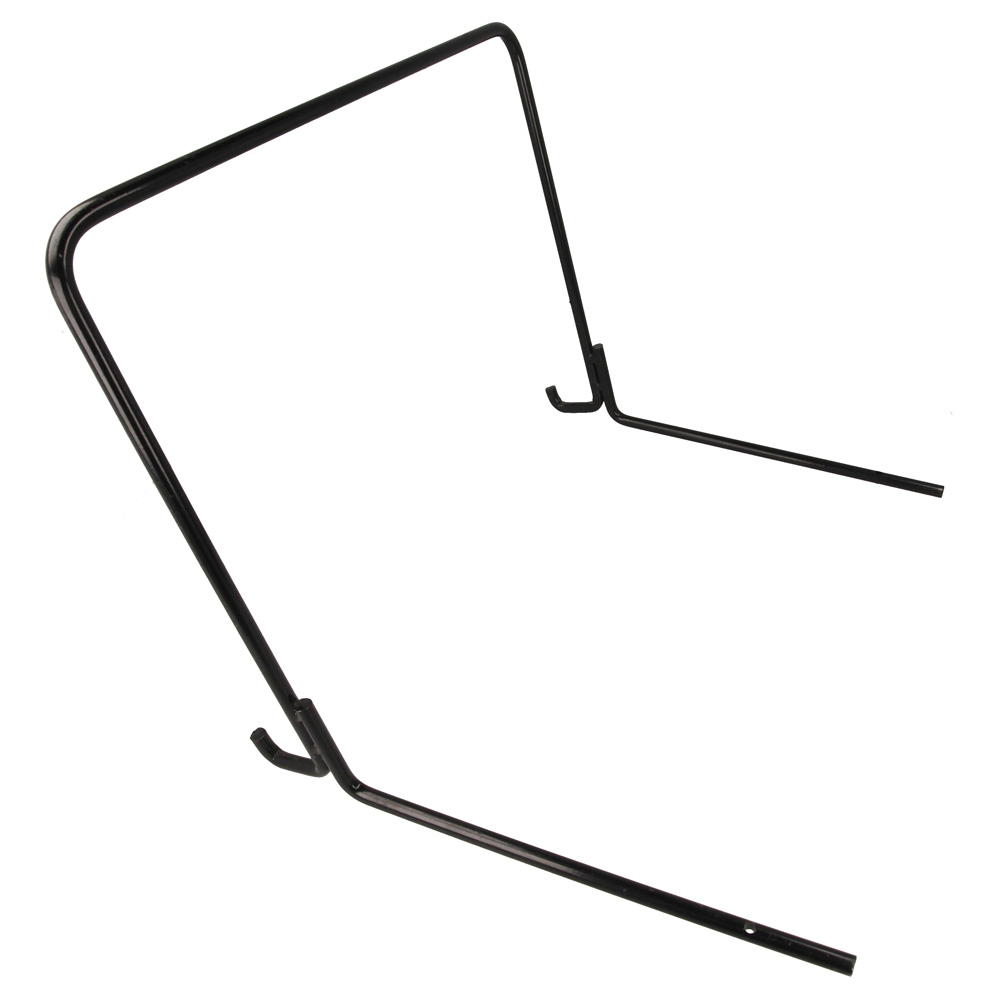

99	CO2107200037B Available to backorder	Grass Catcher Bracket	£17.98 £14.98
100	CO21077000462006C Available to backorder	Grass Catcher	£31.78 £26.48
101	CO25231500101 Available to backorder	Mulching Plug-In	£11.20 £9.33

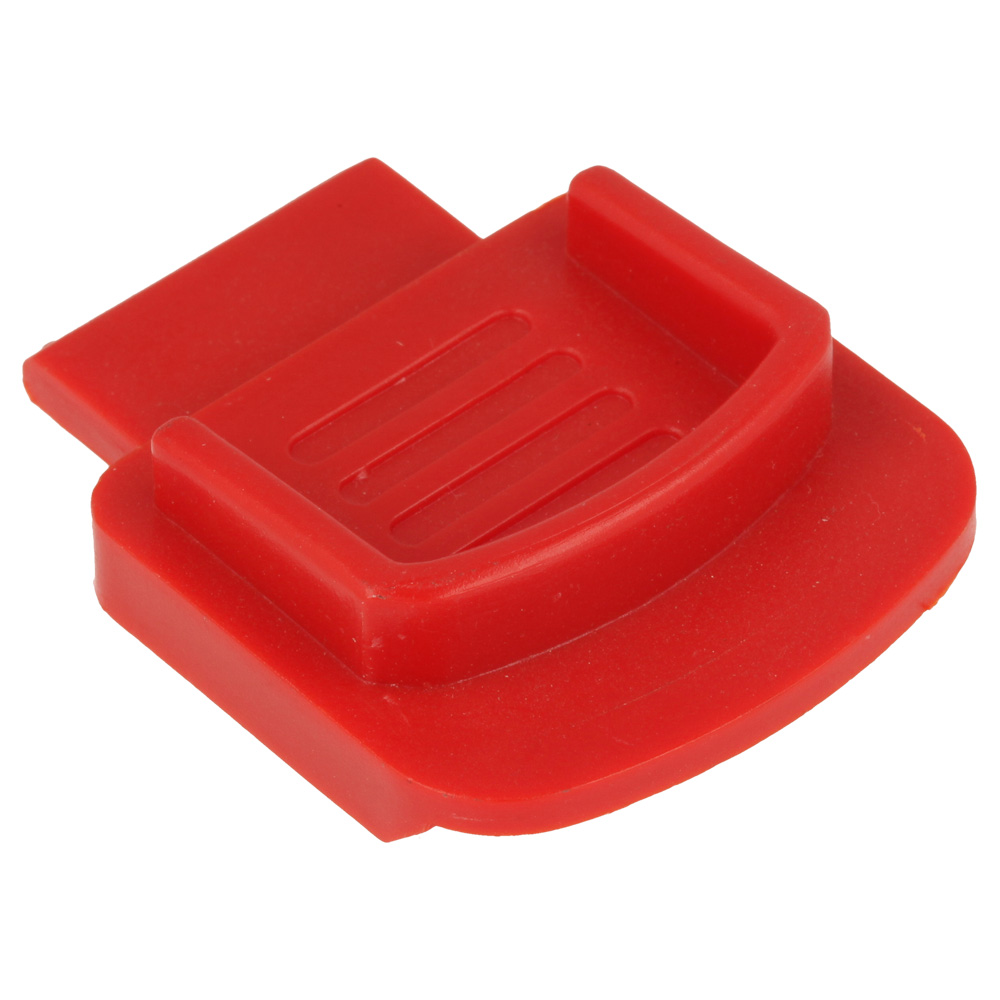

102	CO21041001153212A In stock	Locking Knob	£2.48 £2.07
103	CO26801100501 Available to backorder	Spring	£2.48 £2.07
104	CO25231700101 Available to backorder	Pressing Board Of Locking Button	£2.48 £2.07
105	CO26300107801 Available to backorder	Wrench	£2.48 £2.07
106	CO26300107901 Available to backorder	Wrench Rod	£2.48 £2.07
107	CO2109300055A Available to backorder	Nut	£2.48 £2.07
108	CO21041002560006A Available to backorder	Head Cover	£13.84 £11.53
109	COA26800700401 Available to backorder	Washer	£2.48 £2.07
110	COA26800100302 Available to backorder	Screw	£1.24 £1.03
