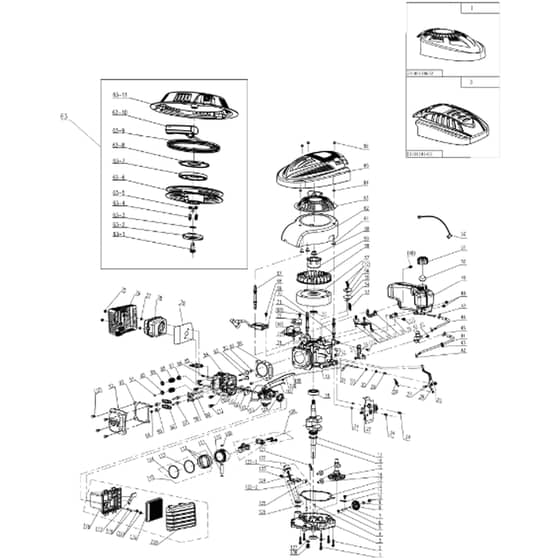

Cobra M51SPC - Lawn Mower Revised June 2020 Engine Diagram

Name: Cobra M51SPC - Lawn Mower Revised June 2020 Engine Diagram
SKU: m51spc_lawn_mower_revised_june_2020_engine-group
Price: 0.89 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra M51SPC - Lawn Mower Revised June 2020 Engine Diagram

Description

Cobra M51SPC Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800610001 Available to backorder	Hex Flange Bolt M8*50	£2.52 £2.10
2	CO25100129601 Available to backorder	Skeleton Oil Sealer	£7.64 £6.37
3	CO26400104201 Available to backorder	Tank Cover	£46.42 £38.68
4	CO26809001601 Available to backorder	Position Fixed Pin B8X14 Of Combination Box	£2.52 £2.10
5	CO26800702101 Available to backorder	Flat Washer	£2.52 £2.10
6	CO26900104402 Available to backorder	Speed Adjustment Gear Shaft	£2.52 £2.10
7	CO26800900701 Available to backorder	Shaft Steel Wire Block Ring	£2.52 £2.10
8	CO23057001301 Available to backorder	Speed Adjustment Gear Ass'Y	£3.84 £3.20
9	CO26800703201 Available to backorder	Flat Washer 6Φ6X15X05	£2.52 £2.10
10	CO25100121601 Available to backorder	Slide Bush	£2.52 £2.10
11	CO26300205101 Available to backorder	Single Hole Pressing Board	£2.52 £2.10
12	CO26800604101 Available to backorder	Hex Flange Bolt M5X20	£2.52 £2.10
13	CO25600100801 Available to backorder	Combinatio Box Sealing Washer	£7.39 £6.16
14	CO26300213301 Available to backorder	Column	£2.52 £2.10
15	CO23055000701 Available to backorder	Camshaft Ass'Y	£22.93 £19.11
16	CO23053001901 Available to backorder	Crankshaft Ass'Y	£36.60 £30.50
17	CO26800703102 Available to backorder	Washer 36X252X1	£2.52 £2.10
18	CO26800400202 Available to backorder	Rolling Bearing	£10.08 £8.40
19	CO26400104301 Available to backorder	Tank	£64.80 £54.00
20	CO25100129901 Available to backorder	Skeleton Oil Sealer	£6.53 £5.44
21	CO26900103201 Available to backorder	Sheath 1	£2.52 £2.10
22	CO23057001502 Available to backorder	Speed Adjustment Ass'Y	£6.18 £5.15
23	CO26800607601 Available to backorder	Hex Flange Bolt M6X30	£2.52 £2.10
24	CO26800608701 Available to backorder	Hex Flange Bolt M6X32	£2.52 £2.10
25	CO26800501901 Available to backorder	Hex Flange Bolt M6	£1.44 £1.20
26	CO26300214601 Available to backorder	Speed Adjustment Rocker	£2.52 £2.10
27	CO26800301101 Available to backorder	Speed Adjustment Screw	£2.52 £2.10
28	CO26801106801 Available to backorder	Speed Adjustment Spring	£2.40 £2.00
29	CO26900103401 Available to backorder	Spring Open Pin	£2.52 £2.10
30	CO25100123501 Available to backorder	Oil Sealer 6X11X4	£2.52 £2.10
31	CO26300122201 Available to backorder	Speed Adjustment Swing Pole	£2.52 £2.10
32	CO25100130702 Available to backorder	Aeration Pipe	£2.75 £2.29
33	CO26800500501 Available to backorder	Hexagonal Locking Bolt	£2.40 £2.00
34	CO26300211901 Available to backorder	Switch Bracket	£2.52 £2.10
35	CO26800702301 Available to backorder	Washer Sheath	£2.52 £2.10
36	CO26300212002 Available to backorder	Oil Crank Bracket	£3.55 £2.96
37	CO26800608001 Available to backorder	Hex Flange Bolt M6X16	£2.52 £2.10
38	CO26300212101 Available to backorder	Right Gasoline Tank Bracket	£2.52 £2.10
39	CO26300212201 Available to backorder	Left Gasoline Tank Bracket	£2.52 £2.10
40	CO23054000902 Available to backorder	Switch Ass'Y	£3.44 £2.87
41	CO26800201801 Available to backorder	Cross Head Column Screw	£2.52 £2.10
42	CO26900108001 Available to backorder	Oil Tube Clip B	£2.40 £2.00
43	CO26300206401 Available to backorder	Oil Tube Clip	£2.52 £2.10
44	CO25100130101 Available to backorder	Inlet Oil Tube1	£6.28 £5.23
45	CO26900107901 Available to backorder	Oil Tube Clip A	£2.52 £2.10
46	CO25100130401 Available to backorder	Inlet Oil Tube 2	£6.28 £5.23
47	CO25100131401 In stock	Fuel Filter Net	£2.40 £2.00
48	CO26800608301 Available to backorder	Hexagonal Flange Bolt M6X20	£2.52 £2.10
49	CO25800100303 Available to backorder	Oil Tank	£19.20 £16.00
50	CO25100124501 In stock	Tank Cover Sealing Washer	£2.40 £2.00

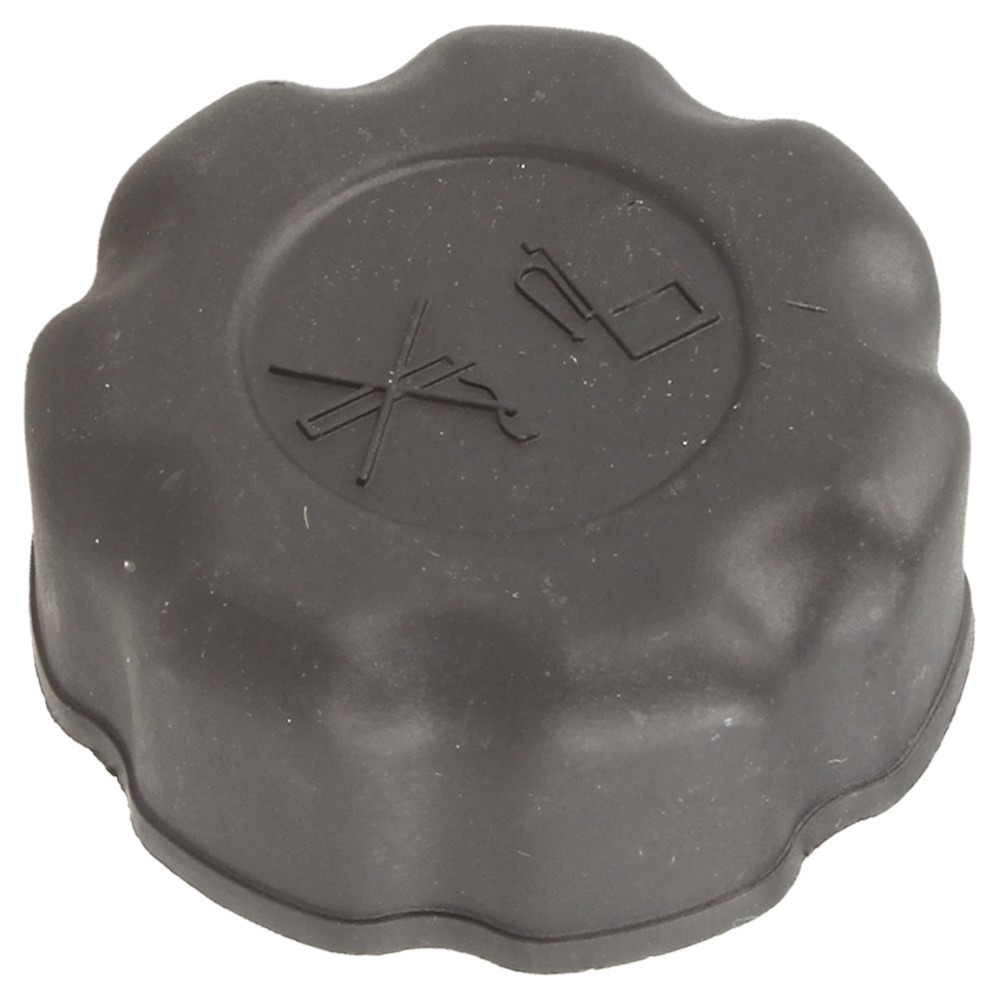

51	CO25100128103 In stock	Tank Cover	£4.20 £3.50
52	CO23058000402 Available to backorder	Flameout Wire Ass'Y	£2.52 £2.10
53	CO26900102001 Available to backorder	Filter Net	£2.52 £2.10
54	CO25100129701 Available to backorder	Breathing Vavle Plate	£2.52 £2.10
55	CO25100129801 Available to backorder	Breathing Sealing Washer	£2.52 £2.10
56	CO23052001201 Available to backorder	Breathing Cover	£2.52 £2.10
57	CO23061000401 Available to backorder	Aluminum Fly Wheel	£38.77 £32.31
58	CO25100128601 Available to backorder	Fan	£14.59 £12.16
59	CO26900106801 Available to backorder	Passive Tray	£4.82 £4.02
60	CO26800502701 Available to backorder	Hex Flange Bolt M14*15	£2.52 £2.10
61	CO26300211601 Available to backorder	Wind-Guiding Cover Sheath	£2.40 £2.00
62	CO25100128302 Available to backorder	Wind-Guiding Cover	£8.99 £7.49
63	CO23052002801 In stock	Starter Ass'Y	£23.40 £19.50
64	CO26800502201 Available to backorder	Hex Nut Gb/T6170-200	£2.52 £2.10
65	CO23100101401 Available to backorder	3# Engine Cover（Silvery）	£18.37 £15.31
66	CO26800501603 Available to backorder	Lid Shape Nut M6	£1.20 £1.00
67	CO26800617901 Available to backorder	Screw Bolt A	£2.52 £2.10
68	CO26800607801 Available to backorder	Flange Bolt M6X20	£2.52 £2.10
69	CO23062000801 In stock	Ignation Ass'Y	£24.12 £20.10
70	CO26800618001 Available to backorder	Screw Bolt C	£2.52 £2.10
71	CO26800617701 Available to backorder	Screw Bolt B	£2.52 £2.10
72	CO23058000202 Available to backorder	Frameout Switch Ass'Y	£5.65 £4.71
73	CO23058001401 Available to backorder	Brake Controller Ass'Y	£10.31 £8.59
74	CO26800703001 Available to backorder	Washer Sheath	£2.52 £2.10
75	CO26800502401 Available to backorder	Metal Hexagonal Flange Locking Bolt M6	£1.26 £1.05
76	CO23060000501 Available to backorder	Muffler Sheath Ass'Y	£7.84 £6.53
77	CO25100130601 Available to backorder	Muffler Heat Insulation Washer	£2.52 £2.10
78	CO23060000401 Available to backorder	Muffler Ass'Y	£22.18 £18.48
79	CO25600100101 Available to backorder	Muffler Sealing Washer	£4.14 £3.45
80	CO25600100701 Available to backorder	Cylinder Head Sealing Washer	£7.78 £6.48
81	CO26809001501 Available to backorder	Cylinder Head Position Fixing Pin	£2.52 £2.10
82	CO26300213102 Available to backorder	Intake Valve	£5.93 £4.94
83	CO26300213202 Available to backorder	Exhaust Valve	£8.29 £6.91
84	CO26400102201 Available to backorder	Cylinder Head Ass'Y	£39.17 £32.64
85	2688 In stock	Spark Plug F7Rtc	Was £1.44 £1.20 Special Price £1.07 £0.89
86	CO26800605601 Available to backorder	Screwbolt M6*92	£1.44 £1.20
87	CO26300207401 Available to backorder	Oil Retaining Cover	£2.52 £2.10
88	CO26801109801 Available to backorder	Value Spring	£2.52 £2.10
89	CO26900102401 Available to backorder	Airinnet Spring Seat	£2.52 £2.10
90	CO26900102501 Available to backorder	Airoutlet Spring Seat	£2.52 £2.10
91	CO26400100801 Available to backorder	Top Cat	£2.52 £2.10
92	CO25100123701 Available to backorder	Cylinder Head Cover Sealing Washer	£2.40 £2.00
93	CO26300207001 Available to backorder	Cylinder Cover	£2.99 £2.49
94	CO26800502601 Available to backorder	Valve Locking Nut	£2.52 £2.10
95	CO26800502501 Available to backorder	Adjustment Nut	£2.52 £2.10
96	CO26300214201 Available to backorder	Valve Spring Rocker	£2.52 £2.10
97	CO26800605401 Available to backorder	Adjustment Bolt	£2.52 £2.10
98	CO26300213501 Available to backorder	Pushing Rod Guidebar	£9.43 £7.86
99	CO26300213401 Available to backorder	Pushing Rod Ass'Y	£2.52 £2.10
100	CO25100131101 Available to backorder	Cylinder Head And Air Innet Pipe Sealing Washer	£2.52 £2.10
101	CO25100121201 Available to backorder	Air Innet Pipe	£2.40 £2.00
102	CO25100130901 Available to backorder	Airinnet Pipe And Carburetor Sealing Washer	£3.00 £2.50

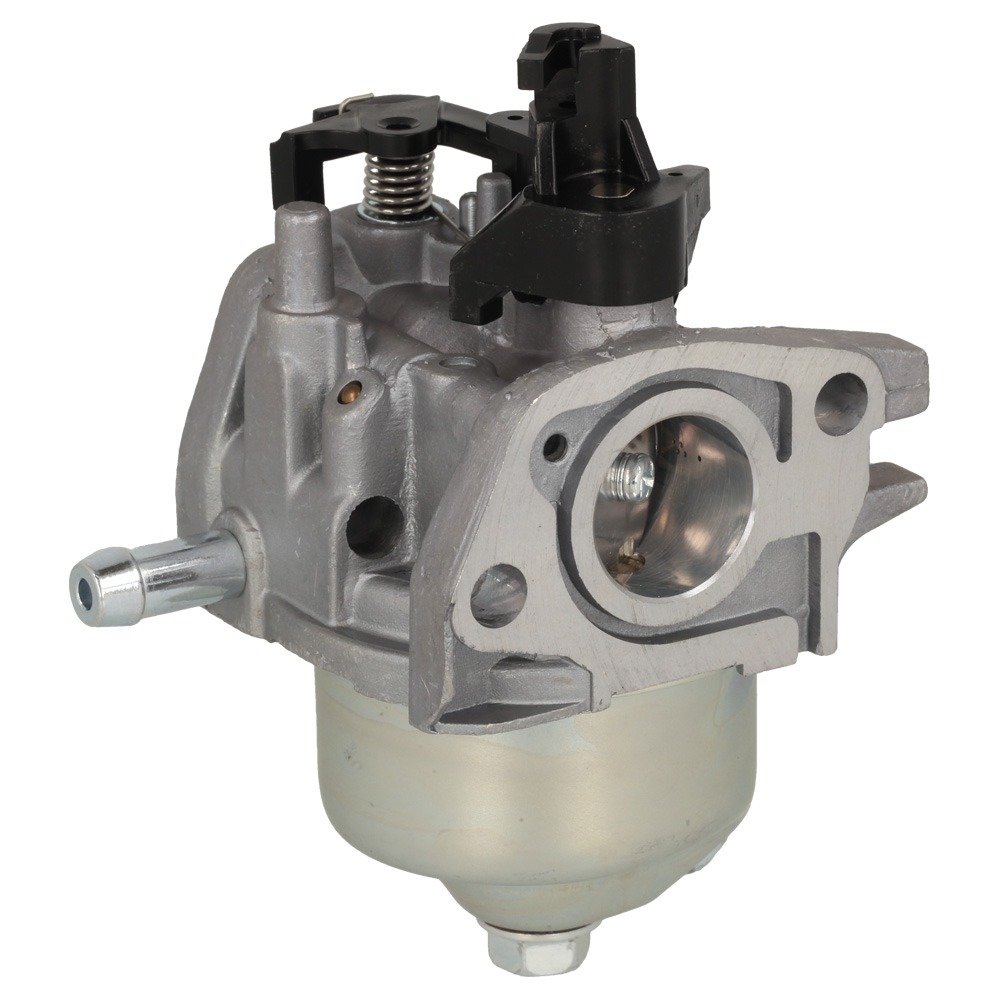

103	CO23056001601 Available to backorder	Carburetor Ass'Y	£43.58 £36.32
104	CO25600100301 Available to backorder	Empty Filer Sealing Washer	£2.40 £2.00
105	CO26900108801 Available to backorder	Valve Rod	£2.52 £2.10
106	CO26801106601 Available to backorder	Accelerograph Spring	£2.40 £2.00
107	CO26900108201 Available to backorder	Choke Valve Push Rod	£2.52 £2.10
108	CO23054000701 Available to backorder	Connecting Rod Ass'Y	£15.72 £13.10
109	CO26900106301 Available to backorder	Piston Pin Spring	£2.52 £2.10
110	CO26400102501 Available to backorder	Piston	£17.35 £14.46
111	CO26900106201 Available to backorder	Piston Pin	£3.30 £2.75
115	CO23054000501 Available to backorder	Piston Ring Assembly	£11.56 £9.63
116	CO25100128401 Available to backorder	Air Filter Base	£6.11 £5.09
117	CO25100129001 Available to backorder	Air Filter Inner Cover	£2.52 £2.10
118	CO26300211501 Available to backorder	Air Filter Sheath	£2.52 £2.10
119	CO25100131601 In stock	Filter Core Ass'Y	£7.44 £6.20
120	CO25100128502 Available to backorder	Air Filter Upper Cover	£4.39 £3.66
121	CO25100129501 Available to backorder	Rubber Washer	£2.52 £2.10
123	CO26800608201 Available to backorder	Hex Flange Bolt M6X50	£2.52 £2.10
124	CO25100134501 Available to backorder	O Type Ring 25X29	£2.52 £2.10
125	CO25100202201 Available to backorder	Spacer	£2.52 £2.10
126	CO25100123202 Available to backorder	O Type Ring 20X24	£2.40 £2.00
127	CO26300205601 Available to backorder	Drain Plug	£2.52 £2.10
128	CO26300225901 Available to backorder	Drain Plug Washer	£2.52 £2.10
1221	CO25236000101 Available to backorder	122-1 Oil Dipstick	£3.64 £3.03
1222	CO25236100101 Available to backorder	122-2 Oil Adding Pipe	£2.52 £2.10
