Cobra M51SPB - 20" Self Propelled Main Diagram

Name: Cobra M51SPB - 20" Self Propelled Main Diagram
SKU: m51spb_20_self_propelled_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

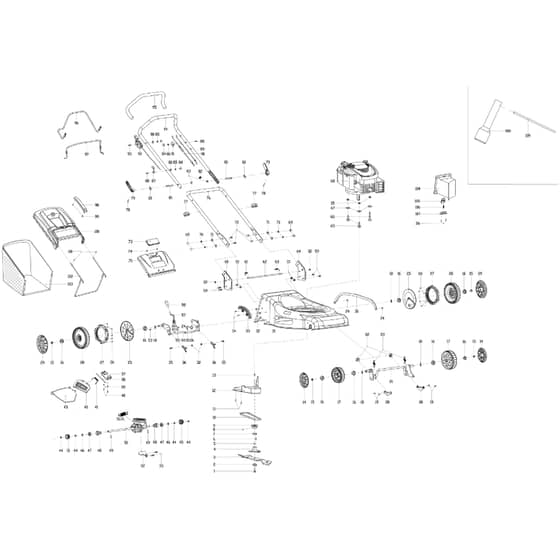

Cobra M51SPB - 20" Self Propelled Main Diagram

Description

Cobra M51SPB Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800606201 Available to backorder	Blade Fixed Bolt	£2.40 £2.00
2	CO26300107302 Available to backorder	Dishing Washer	£2.40 £2.00
3	CO26300155101 In stock	Blade	£20.38 £16.98
4	CO26300244801 Available to backorder	Blade Support	£7.18 £5.98
5	CO26900208901 Available to backorder	Blade Support Bush	£2.52 £2.10
6	CO26809000201 In stock	Flat Washer	£2.40 £2.00
7	CO25231800101 Available to backorder	Blade Support Bush	£2.40 £2.00
8	CO26800300502 Available to backorder	Locking Screw	£1.26 £1.05
9	CO26300400202 Available to backorder	Initiative Belt Wheel	£6.38 £5.32
10	CO25100126902 Available to backorder	Triangle Belt	£9.58 £7.98
11	CO26800103701 Available to backorder	Self-Driving Screw	£1.44 £1.20

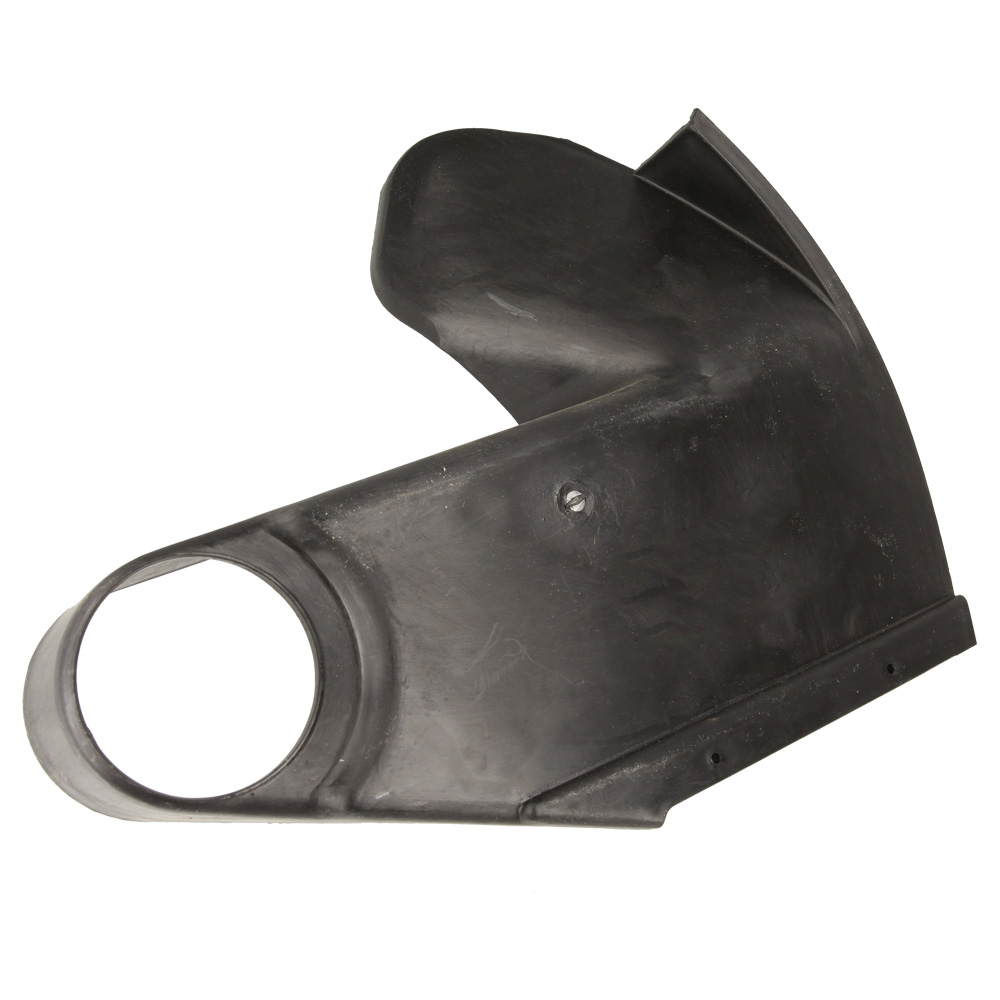

12	CO25203000102 Available to backorder	Belt Wheel Protecting Cover	£6.83 £5.69
13	CO26800104401 Available to backorder	Self-Driving Screw	£2.52 £2.10
14	CO23600105103 Available to backorder	Wheel Cover-1	£2.62 £2.18
15	CO26800502801 Available to backorder	Bolt	£1.44 £1.20
16	CO26800401601 Available to backorder	Bearing	£4.00 £3.33
17	CO25400204601 Available to backorder	Wheel Assy	£16.18 £13.48
18	CO26800706202 Available to backorder	Wave Washer	£2.52 £2.10
19	CO26800201901 Available to backorder	Trigger Nut	£1.20 £1.00
20	CO26300134202 Available to backorder	Wheel Axis Positioned Board	£2.62 £2.18
21	CO26300132702 Available to backorder	Front Wheel Axis Assy	£16.18 £13.48
22	CO25202600101 In stock	Front Wheel Axis Fixed Ring	£2.40 £2.00
23	CO26801110001 Available to backorder	Front Wheel Axis Spring	£2.62 £2.18
24	CO26800500501 Available to backorder	Locking Bolt	£2.40 £2.00
25	CO25208700105 Available to backorder	11 Dust-Proof Wheel Cover	£4.00 £3.33
26	CO26800100501 Available to backorder	Self-Driving Screw	£1.26 £1.05
27	CO25229500101 Available to backorder	Wheel Gear Ring	£6.38 £5.32
28	CO25400204501 Available to backorder	Wheel Assy	£28.22 £23.52
29	CO23600105303 Available to backorder	Wheel Cover-1	£5.32 £4.43
30	CO26300133401 Available to backorder	Connecting Rod	£6.52 £5.43
32	CO26800502401 Available to backorder	Bolt	£1.26 £1.05
33	CO23100106501 Available to backorder	Adjustment Board	£2.69 £2.24
34	CO26800202001 Available to backorder	Trigger Nut	£1.26 £1.05
35	CO26800611201 Available to backorder	Bolt	£2.62 £2.18
36	CO26300107001 Available to backorder	Axis Lock	£2.62 £2.18
37	CO26300218302 Available to backorder	Side-Discharge Fixing Board	£2.52 £2.10
38	CO26200101901 Available to backorder	Side-Discharge Positioned Shaft	£2.40 £2.00
39	CO26800800402 Available to backorder	Spring Washer	£2.40 £2.00
40	CO26800201501 Available to backorder	Trigger Nut	£2.40 £2.00
41	CO26801113002 Available to backorder	Side Cover Board Spring	£2.62 £2.18
42	CO25231100102 Available to backorder	Side-Discharge Cover Board	£5.68 £4.73
43	CO25306600101 Available to backorder	Side-Discharge Protecting Cover	£11.68 £9.73
44	CO26800900201 Available to backorder	Split Washer	£2.40 £2.00
45	CO26900300103 In stock	Left Output Gear Assy	£7.00 £5.83
46	CO26800705102 In stock	Frat Washer	£2.40 £2.00
47	CO26800402301 Available to backorder	Bearing	£2.64 £2.20
48	CO26900203103 Available to backorder	Bearing Sleeve	£3.00 £2.50
49	CO26809000102 In stock	Column Pin	£2.40 £2.00
50	CO23050200201 Available to backorder	Adjustment Box Assy	£63.36 £52.80
51	CO26900300202 In stock	Right Output Gear Assy	£7.00 £5.83
52	CO26300258201 Available to backorder	Positioned Board	£2.62 £2.18
53	CO26800203001 Available to backorder	Cross Pan Self-Driving Screw	£1.26 £1.05
54	CO26300153401 Available to backorder	Rear Wheel Axis Assy	£18.25 £15.21
55	CO26800900301 Available to backorder	E Clip	£2.40 £2.00
56	CO26300107601 Available to backorder	Adjusting Washer	£2.52 £2.10
57	CO26300172502 Available to backorder	Handle Assy	£3.74 £3.12
58	CO25500103213 Available to backorder	Handle Sheath	£2.52 £2.10
59	CO26800606401 Available to backorder	Bolt	£2.62 £2.18
60	CO23600150301 Available to backorder	Handle Right Plank	£4.56 £3.80
61	CO26801112701 Available to backorder	Spring Of Right Knob	£2.52 £2.10
62	CO26300165601 Available to backorder	Long Rod	£2.52 £2.10
63	CO26801112601 Available to backorder	Spring Of Left Knob	£2.52 £2.10
64	CO23600150201 Available to backorder	Handle Leftt Plank	£4.56 £3.80
65	CO26800602501 Available to backorder	Bolt	£2.52 £2.10
66	CO26800609401 Available to backorder	Bolt	£2.52 £2.10
67	CO26300210602 Available to backorder	Square Washer	£2.52 £2.10
69	CO26800501502 Available to backorder	Cap Nut	£1.20 £1.00
70	CO26800800202 Available to backorder	Spring Washer	£2.52 £2.10
71	CO26800700701 Available to backorder	Flat Washer	£2.40 £2.00
72	CO26800601903 Available to backorder	Bolt	£2.62 £2.18
73	CO25238500103 Available to backorder	Rear Cover Transparent Window	£2.54 £2.12
74	CO26800107101 Available to backorder	Self-Driving Screw	£2.52 £2.10
75	CO23000438101 Available to backorder	Rear Cover Assy	£8.36 £6.97
76	CO23600173601 Available to backorder	Down Handle Rod	£13.50 £11.25
77	CO25261100101 Available to backorder	Cable Clip	£2.52 £2.10
78	CO26809004801 Available to backorder	Column Pin	£2.40 £2.00
79	CO25236400901 Available to backorder	Locking Handle	£2.52 £2.10
80	CO26300142002 Available to backorder	Press Board	£2.62 £2.18
81	CO26300124501 Available to backorder	Bolt	£2.62 £2.18
82	CO25217800104 Available to backorder	Puling Cord Protecting Cover	£2.52 £2.10
83	CO26800500801 Available to backorder	Locking Bolt	£1.26 £1.05
84	COA26800501603 Available to backorder	Cap Nut	£1.20 £1.00
85	CO26800800303 Available to backorder	Spring Washer	£2.40 £2.00
86	CO26800700801 Available to backorder	Flat Washer	£1.20 £1.00
87	CO26300168401 Available to backorder	Cable Hook	£2.52 £2.10
88	CO26800607701 Available to backorder	Bolt	£2.62 £2.18
89	CO29100124801 In stock	Frame Out Cord Assy	£9.60 £8.00
90	CO29100116202 In stock	Driven Cord Assy	£10.80 £9.00
91	CO25233600101 Available to backorder	Cord Fixed Board	£2.40 £2.00

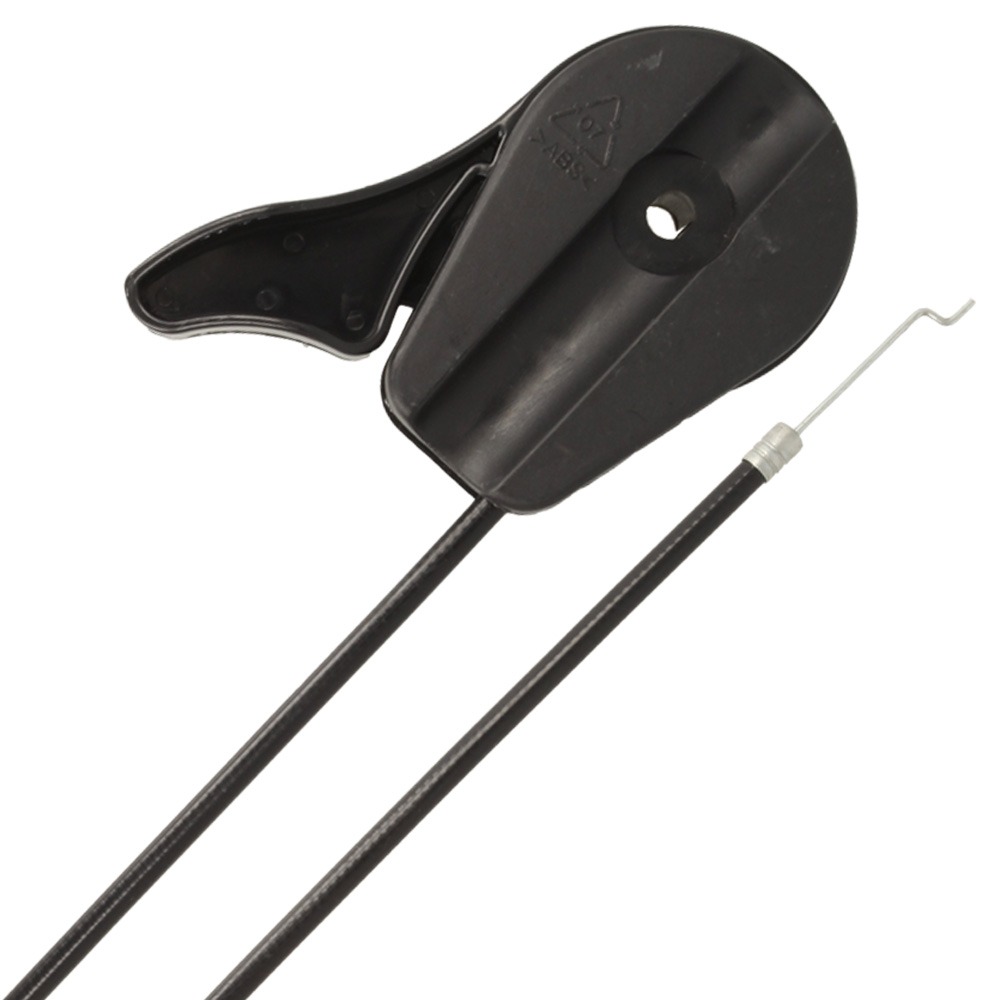

92	CO29100102902 Available to backorder	Choke Handle Assy	£10.80 £9.00
93	CO26800608201 Available to backorder	Bolt	£2.52 £2.10
94	CO23600163201 Available to backorder	Upper Handle Rod	£24.30 £20.25
95	CO25600102201 In stock	Handle Protecting Sleeve	£4.44 £3.70
96	CO23600164101 Available to backorder	Drive Pulling Rod	£7.96 £6.63
97	CO23600163801 Available to backorder	Flameout Rod	£4.43 £3.69
98	CO25238400101 Available to backorder	Grass Catcher Handle	£2.54 £2.12
99	CO26800104601 In stock	Self-Driving Screw	£1.20 £1.00
100	CO25238200101 Available to backorder	Grass Catcher	£22.79 £18.99
101	CO26800103202 In stock	Self-Driving Screw	£1.20 £1.00
102	CO26300165701 Available to backorder	Collection Bag Plank	£18.25 £15.21
103	CO25100148401 Available to backorder	Collection Bag	£19.03 £15.86
104	CO25231500101 Available to backorder	Mulching Wedge	£11.36 £9.47
105	CO25231601301 Available to backorder	Wedge Locking Button	£2.52 £2.10
106	CO26801100501 Available to backorder	Spring	£2.52 £2.10
107	CO25231700101 Available to backorder	Locking Press Board	£2.52 £2.10
108	CO26300107801 Available to backorder	Wrench	£2.52 £2.10
109	CO26300107901 Available to backorder	Wrench Rod	£2.52 £2.10
