Cobra M46SPH Rotary Mower Parts Diagram

	Part No.	Details
0	CO26800903502 Available to backorder	* Bearing Clip	£2.48 £2.07
1	CO26800606201 In stock	Blade Locking Bolt	£2.58 £2.15
2	CO26300107302 In stock	Dishing Washer	£2.58 £2.15
3	CO26300239301 In stock	Blade	£19.27 £16.06
4	CO26300154701 Available to backorder	Blade Support	£7.43 £6.19
5	CO26900209601 Available to backorder	Blade Support Bush	£2.48 £2.07
6	CO26809004101 Available to backorder	Flat Pin	£2.48 £2.07
7	CO26300113501 Available to backorder	Long Rod	£2.48 £2.07
8	CO26800300502 Available to backorder	Locking Screw	£1.24 £1.03
10	CO25100203302 In stock	Triangle Belt	£8.98 £7.48
11	CO26800103701 In stock	Self-Driving Screw	£1.28 £1.07
12	CO26800202001 Available to backorder	Tooth Screw	£1.24 £1.03
13	CO25205200101 In stock	Belt Protecting Cover	£6.96 £5.80
14	CO26800502401 Available to backorder	Hexagon Flange Locking Bolt	£1.24 £1.03
15	CO23600105002 Available to backorder	Wheel Cover	£2.48 £2.07
16	CO26800502801 Available to backorder	Hexagon Flange Locking Bolt	£1.24 £1.03
17	CO26800401601 In stock	Bearing	£4.30 £3.58
18	CO25400200105 In stock	Wheel Assy	£12.20 £10.17
19	CO26800706202 In stock	Wave Washer	£2.48 £2.07
20	CO26800201901 Available to backorder	Tooth Screw	£1.24 £1.03
21	CO26300134202 Available to backorder	Pressing Plate For Axle Fixed	£2.48 £2.07
22	CO26300114401 Available to backorder	Front Wheel Axis Assy	£16.74 £13.95
23	CO25202600101 In stock	Front Wheel Axle Fixing Ring	£2.58 £2.15
24	CO26800500501 Available to backorder	Hexagon Locking Nut	£2.48 £2.07
26	CO26800100501 In stock	Self-Driving Screw	£1.28 £1.07
27	CO25229900102 Available to backorder	Wheel Gear Ring	£5.44 £4.53
28	CO25400202003 Available to backorder	Wheel Assy	£14.26 £11.88
29	CO23600105103 In stock	Wheel Cover	£2.48 £2.07
30	CO26300115201 Available to backorder	Connecting Rod	£7.43 £6.19
31	CO26801102201 Available to backorder	Connecting Rod Tension Spring	£2.94 £2.45
32	CO25217800104 Available to backorder	Cord Protceting Sheath	£2.48 £2.07
33	CO23601011201 Available to backorder	Deck	£114.60 £95.50
34	CO23100106401 Available to backorder	Gearing Board	£2.63 £2.19
35	CO26300124401 In stock	Axle Fixing Ring	£2.58 £2.15
36	CO26800900201 In stock	Open Block Ring	£2.58 £2.15
37	CO26900300103 In stock	Left Output Gear Assy	£7.50 £6.25
38	CO26800705102 In stock	Flat Washer	£2.58 £2.15
39	CO26800402301 In stock	Bearing	£2.84 £2.37
40	CO26900203103 In stock	Bearing Sheath	£3.18 £2.65
41	CO26809000102 In stock	Column Pin	£2.58 £2.15
42	CO23050200201 In stock	Variable Gear Box Assy	£65.56 £54.63
43	CO26900300202 In stock	Right Output Gear Assy	£7.50 £6.25
44	CO26800603701 Available to backorder	Hexagon Flange Bolt	£2.48 £2.07
45	CO26300258201 Available to backorder	Positioned Board	£2.48 £2.07
46	CO26800900301 Available to backorder	E Clip	£2.48 £2.07
47	CO26300114501 Available to backorder	Rear Wheel Axis Assy	£16.74 £13.95
48	CO26300107601 Available to backorder	Adjusting Washer	£2.48 £2.07
50	CO25500103214 Available to backorder	Handle Sheath	£4.54 £3.78
51	CO26800606401 Available to backorder	Hexagon Flange Bolt	£2.48 £2.07
53	CO23601011101 Available to backorder	Right Handle Bracket	£4.20 £3.50
54	CO26801110101 Available to backorder	Torsional Spring Of Rear Cover	£2.48 £2.07
55	CO23601011001 Available to backorder	Left Handle Bracket	£4.20 £3.50
56	CO26800612801 Available to backorder	Bolt	£2.48 £2.07
57	CO26300210602 Available to backorder	Square Washer	£2.48 £2.07
59	CO26800501502 Available to backorder	Lid Nut	£1.24 £1.03
60	CO26800800202 Available to backorder	Spring Washer	£2.48 £2.07
61	CO26800700701 Available to backorder	Flat Washer	£2.48 £2.07
62	CO26800601903 Available to backorder	Bolt	£2.48 £2.07
63	CO23600173601 Available to backorder	Lower Handle Pole	£13.97 £11.64
64	CO25261100101 Available to backorder	Wire Clamp	£2.48 £2.07
65	CO26809004801 Available to backorder	Column Pin	£2.48 £2.07
66	CO25202800102 Available to backorder	Locking Handle	£2.48 £2.07
67	CO26300142002 Available to backorder	Pressing Plate	£2.48 £2.07
68	CO26300124501 Available to backorder	Locking Handle Bolt	£2.48 £2.07
69	CO26800500801 Available to backorder	Hexagon Flangebolt	£1.24 £1.03
70	CO29100117302 In stock	Flameout Cord Assy	£10.27 £8.56
71	CO29100115602 In stock	Driving Cord Assy	£11.56 £9.63
72	CO26800800303 Available to backorder	Spring Washer	£2.48 £2.07
73	CO26300168401 Available to backorder	Rope Guide	£2.48 £2.07
74	CO25233600101 In stock	Cord Fixing Board	£2.58 £2.15
75	CO26800700801 In stock	Flat Washer	£1.28 £1.07
76	CO26800501603 In stock	Lid Nut	£1.28 £1.07
77	CO26800607701 Available to backorder	Bolt	£2.48 £2.07
78	CO26800603601 Available to backorder	Bolt	£2.48 £2.07

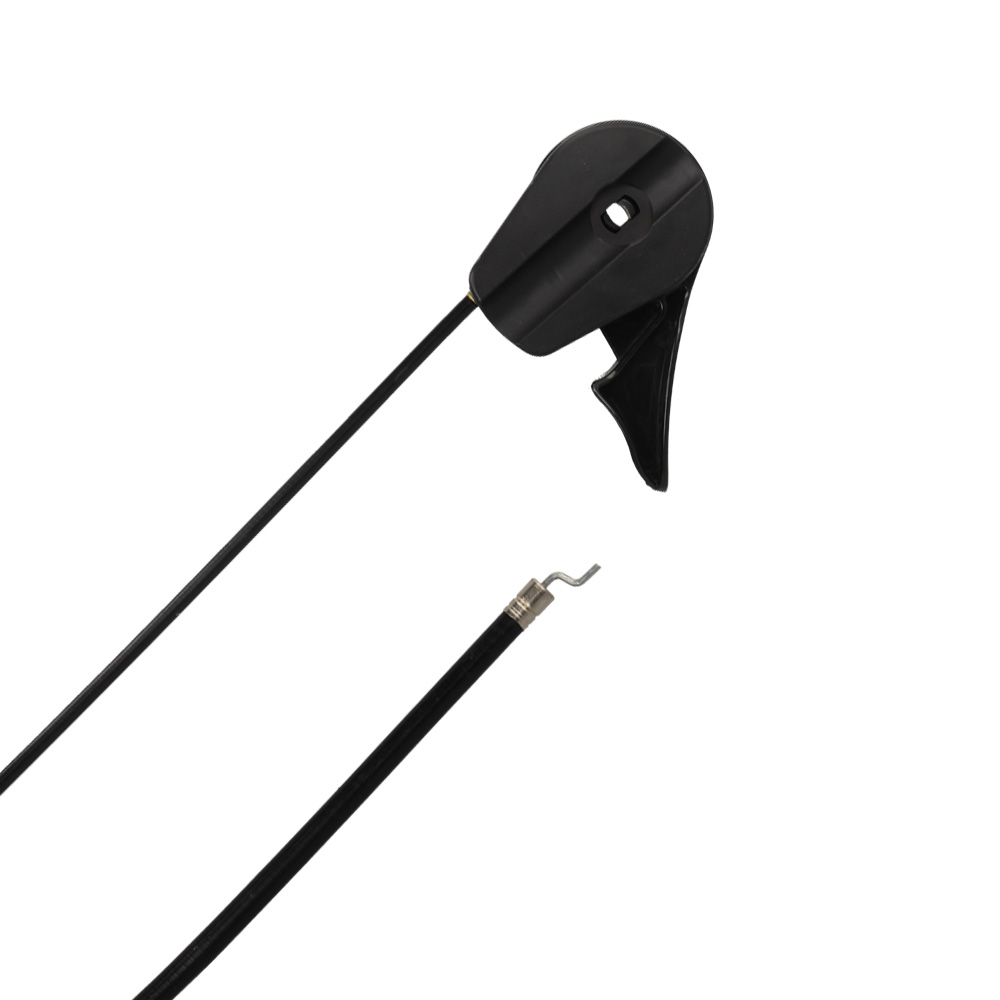

79	CO23000427501 Available to backorder	Choke Handle Assy	£16.12 £13.43
80	CO23600163001 Available to backorder	Upper Handle	£20.42 £17.02
81	CO25600102201 In stock	Handle Sheath	£4.70 £3.92
82	CO23600164101 Available to backorder	Choke Pulling Pole	£8.23 £6.86
83	CO23600163601 Available to backorder	Opc Lever	£5.17 £4.31

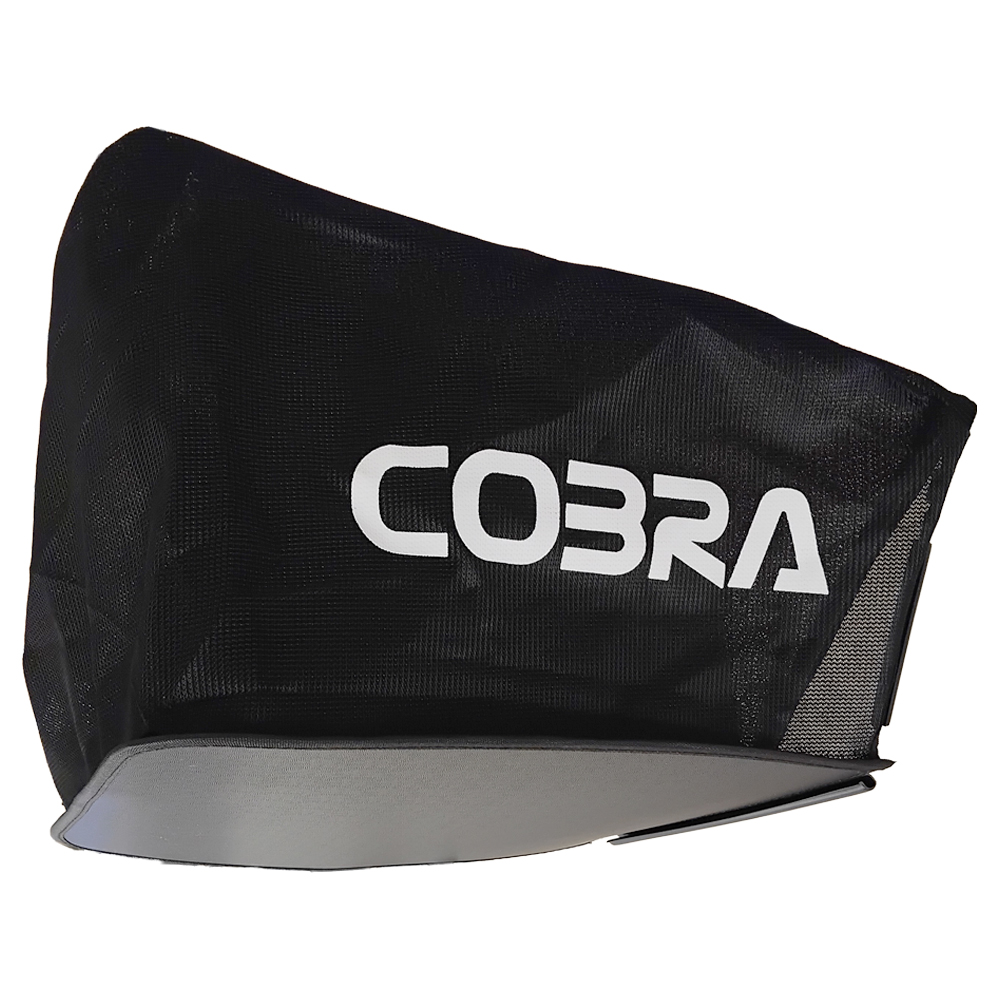

85	CO25100126724 Available to backorder	Grass Catcher	£26.38 £21.98
86	CO26300114002 In stock	Grass Catcher Frame	£17.98 £14.98
87	CO25205600101 Available to backorder	Rear Cover Assy	£8.29 £6.91
88	CO26300118902 Available to backorder	Flat Washer	£2.48 £2.07
89	CO26809003801 Available to backorder	Open Pin	£2.48 £2.07
90	CO26300107801 Available to backorder	Wrench	£2.48 £2.07
91	CO26300107901 Available to backorder	Wrench Rod	£2.48 £2.07
