Cobra M46SPCVX - Lawn Mower Mar 2025 Main Diagram

Name: Cobra M46SPCVX - Lawn Mower Mar 2025 Main Diagram
SKU: m46spcvx_lawn_mower_mar_2025_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra M46SPCVX - Lawn Mower Mar 2025 Main Diagram

Description

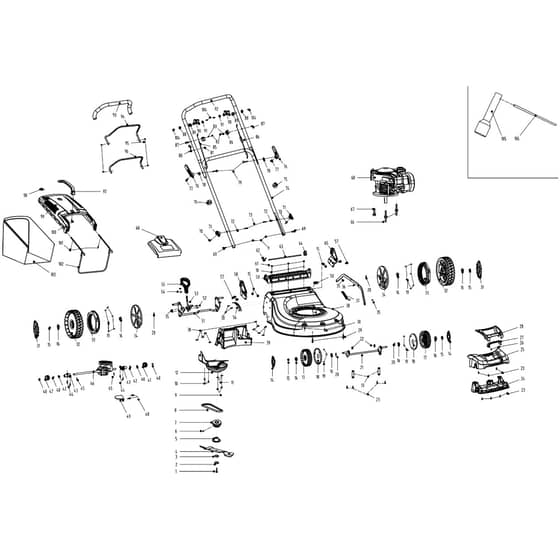

Cobra M46SPCVX Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO2105300159A Available to backorder	Blade Fastening Bolt	£1.90 £1.58
2	CO2105300001C Available to backorder	Belleville Washers	£2.40 £2.00
3	CO2105200367A Available to backorder	Friction Knife Holder Pressure Plate	£2.87 £2.39
4	CO21052003402000A In stock	Blade	£18.00 £15.00
5	CO2105500009A Available to backorder	Stamping Knife Seat	£9.58 £7.98
6	CO2109300249A Available to backorder	Hexagon Socket Set Screws With Cylindrical Point	£1.25 £1.04
7	CO21031005570082A Available to backorder	Active Pulley	£4.02 £3.35
8	CO2102600018A Available to backorder	V-Belt	£5.22 £4.35
9	CO3031309002 Available to backorder	Hexagon Lock Nut	£1.26 £1.05
10	COA26800105502 Available to backorder	Self-Tapping Screws	£2.52 £2.10
11	CO3051303001 Available to backorder	Flat Washers	£1.26 £1.05
12	CO21041011680001B Available to backorder	Belt Guard	£6.31 £5.26
13	CO2101200094A Available to backorder	Front Axle Fixing Plate	£1.25 £1.04
14	CO21011002970006N Available to backorder	Inch Wheel Cover	£2.41 £2.01
15	CO30323060035000 Available to backorder	Hexagon Flange Lock Nut	£1.25 £1.04
16	CO2101300065A Available to backorder	Angular Bearings	£2.40 £2.00
17	CO21011005230001A Available to backorder	Wheel	£9.86 £8.22
18	CO21011005240001A Available to backorder	Dustproof Wheel Cover	£1.72 £1.43
19	CO3011301010 Available to backorder	Self-Tapping Screws	£1.26 £1.05
20	CO26800706202 Available to backorder	Wave Washers	£2.52 £2.10
21	CO2101300252A Available to backorder	Front Axle Assembly	£22.81 £19.01
22	CO2101800009A Available to backorder	Shock Absorber Spring	£1.25 £1.04
23	CO3011301013 Available to backorder	Self-Tapping Screws	£1.25 £1.04
24	CO21041012100108B Available to backorder	Mask Base	£6.14 £5.12
25	CO21041012070006A Available to backorder	Head Mask	£8.03 £6.69
26	CO3011301018 Available to backorder	Self-Tapping Screws	£1.25 £1.04
27	CO21041012090006A Available to backorder	Handle Cover	£1.43 £1.19
28	CO21041012080006A Available to backorder	Mask Handle	£3.28 £2.73
29	CO3011305003 Available to backorder	Hexagon Flange Tapping Screws	£1.25 £1.04
30	CO3011301029 Available to backorder	Cross Recessed Pan Head Self Tapping Screws	£1.25 £1.04
31	CO21011006890006A Available to backorder	10" Wheel Cover	£3.67 £3.06
32	CO21011005340001A Available to backorder	10 Inch Wheels	£14.10 £11.75
33	CO2101100535A Available to backorder	10 Inch Gear Ring	£5.68 £4.73
34	CO21011005360001A Available to backorder	10 Inch Dustproof Wheel Cover	£4.48 £3.73
35	CO30313090035000 Available to backorder	Hexagon Lock Nut	£1.25 £1.04
36	CO2106201268A Available to backorder	Link	£9.00 £7.50
37	CO2109800285A Available to backorder	Connecting Rod Tension Spring	£1.78 £1.48
39	CO21071001420001A Available to backorder	Grass Outlet Bracket	£10.90 £9.08
40	CO3043301001 Available to backorder	Split Retaining Ring	£1.25 £1.04
41	CO2104400013E Available to backorder	Left Output Gear Assembly	£7.33 £6.11
42	COA26800705102 Available to backorder	Flat Gasket	£1.25 £1.04
43	CO21011005530001A Available to backorder	Rear Bushing	£1.96 £1.63
44	COA26800104301 Available to backorder	Self-Tapping Screws	£1.25 £1.04
45	CO3082301003 Available to backorder	Cylindrical Pins	£1.25 £1.04
46	CO2102300207A Available to backorder	Gearbox Assembly	£69.62 £58.02
47	CO2104400014E Available to backorder	Right Output Gear Assembly	£7.33 £6.11
48	CO30913050015000 Available to backorder	Hexagonal Flange Bolts	£1.25 £1.04
49	CO2102300154A Available to backorder	Positioning Plate	£2.52 £2.10
50	CO2106201269A Available to backorder	Cable Protection Cover	£1.25 £1.04
51	CO2101500304A Available to backorder	Rear Axle Assembly	£22.81 £19.01
52	COA26800203001A Available to backorder	Cross Recessed Pan Head Screws	£1.25 £1.04
53	CO2106201270A Available to backorder	Handle Assembly	£4.48 £3.73
54	CO3021301002 Available to backorder	Countersunk Screw	£1.25 £1.04
55	CO21061002880001A Available to backorder	Heightening Handle Assembly	£33.74 £28.12
56	CO2106201262A Available to backorder	Shift Plate	£3.16 £2.63
57	CO30913070165000 Available to backorder	Hexagonal Flange Bolts	£1.25 £1.04
58	CO21062012710108A Available to backorder	Armrest Right Bracket	£6.42 £5.35
59	CO21071001430001A Available to backorder	Rear Cover Plate	£2.70 £2.25
60	CO21041003300001B Available to backorder	Rear Cover	£8.66 £7.22
61	CO2109600031A Available to backorder	Plug	£1.25 £1.04
62	CO2109800286A Available to backorder	Right-Hand Torsion Spring	£1.25 £1.04
63	CO2109300272A Available to backorder	Long Pole	£2.87 £2.39
64	CO2109800287A Available to backorder	Left-Hand Torsion Spring	£1.25 £1.04
65	CO21062012730108A Available to backorder	Armrest Left Bracket	£6.25 £5.21
66	CO2103300257A Available to backorder	Special Bolts	£1.96 £1.63
67	CO2109900066A Available to backorder	Triangular Self-Tapping Bolts	£1.25 £1.04
69	CO2106300422A Available to backorder	Lower Handrail Screw	£1.60 £1.33
70	CO2106300258A Available to backorder	Cylindrical Pins	£1.26 £1.05
71	CO21041007290108B Available to backorder	Locking Knob	£1.32 £1.10
72	CO2109800200A Available to backorder	Lower Armrest Spring	£1.26 £1.05
73	CO2106300416A Available to backorder	Pin	£2.12 £1.77
74	CO21063005320001A Available to backorder	Lower Handrail	£21.20 £17.67
75	CO21061000013201A Available to backorder	Cable Clip	£2.52 £2.10
76	CO21061007230108A Available to backorder	Locking Handle	£2.12 £1.77
77	CO2109300018C In stock	Quick Wrench Shaft	£3.04 £2.53
78	CO30512050025000 Available to backorder	Large Washer	£1.25 £1.04
79	CO2106300348A Available to backorder	Flat Head Bolts	£1.78 £1.48
80	CO2106300288A Available to backorder	Hanging Hook	£1.25 £1.04
81	CO3031309009 Available to backorder	Hexagon Lock Nut	£1.25 £1.04
82	CO2109300356A Available to backorder	Cap Nut	£1.20 £1.00
83	CO3051303003 Available to backorder	Flat Washers	£1.20 £1.00
84	CO21061000043201A Available to backorder	Cable Fixing Block	£2.40 £2.00
85	CO2106800898A Available to backorder	Flame-Out Cable Assembly	£6.60 £5.50
86	CO2106800896A Available to backorder	Drive Cable Assembly	£6.42 £5.35
87	CO3091307003 Available to backorder	Hexagon Flange Bolts	£1.20 £1.00
88	CO21061001113201N Available to backorder	Curved Gasket	£1.26 £1.05
89	CO21061007140001A Available to backorder	Tie Rod Bracket	£1.26 £1.05
90	CO21061005993201A Available to backorder	Self-Propelled Cable Hanging Block	£1.43 £1.19
91	CO21061007290001A Available to backorder	Tie Rod Bracket Cover	£1.26 £1.05
92	CO21063005330001A Available to backorder	Upper Handrail	£24.12 £20.10
93	CO2106100842A Available to backorder	Handrail Cover	£4.54 £3.78
94	CO21063005350001A Available to backorder	Drive Rod	£7.98 £6.65
95	CO2109300058A Available to backorder	Self-Tapping Screws	£1.26 £1.05
96	CO21063005340108A Available to backorder	Flame-Out Lever	£6.25 £5.21
97	CO21071000730001N Available to backorder	Grass Basket Handle	£2.52 £2.10
98	CO21071000080108A In stock	Wind Window Plate	£2.40 £2.00
99	CO21071000720001A Available to backorder	Grass Basket Cover	£18.25 £15.21
100	CO3011301004 Available to backorder	Self-Tapping Screws	£1.26 £1.05
101	CO3011301005 Available to backorder	Self-Tapping Screws	£1.25 £1.04
102	CO2107200065A Available to backorder	Grass Bag Holder	£12.32 £10.27
103	CO21077000462006C Available to backorder	Grass Bag	£32.26 £26.88
104	CO3011301006 Available to backorder	Self-Tapping Screws	£1.25 £1.04
105	CO2012200002A Available to backorder	Socket Wrench	£2.52 £2.10
106	CO2012100004A Available to backorder	Socket Wrench Bar	£2.52 £2.10
