Cobra M46SPC - Lawn Mower Revised June 2020 Main Diagram

Description

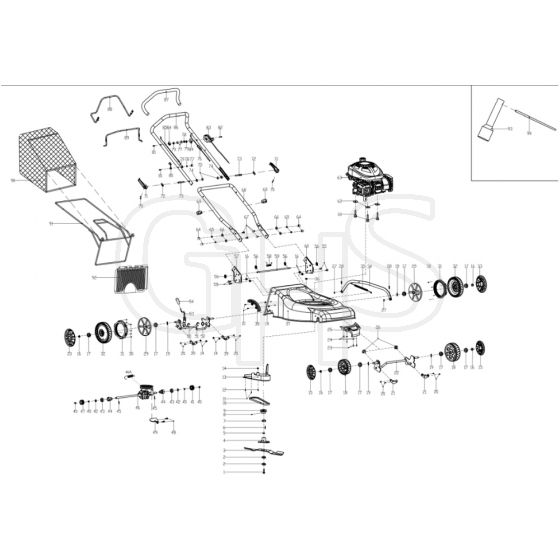

Cobra M46SPC Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800606201 Available to backorder	Bolt	£2.40 £2.00
2	CO2105200245A In stock	Pressing Plate Of Blade	£2.40 £2.00
2	CO26300107302 In stock	Washer	£2.40 £2.00
3	CO26300100302 In stock	Blade	£17.98 £14.98
3	CO21052003402000A In stock	Blade	£18.00 £15.00
4	CO2105200251A In stock	Blade Support	£7.54 £6.28
4	CO26300168101 In stock	Blade Holder	£7.18 £5.98
5	CO2105400024A Available to backorder	Bushing Of Blade Support	£2.52 £2.10
5	CO26900209301 Available to backorder	Blade Holder Bushing	£2.52 £2.10
6	CO26809000201 In stock	Flat Key	£2.40 £2.00
7	CO25231900101 Available to backorder	Screw	£1.26 £1.05
8	CO26800300502 Available to backorder	Screw	£1.26 £1.05
9	CO26300400202 Available to backorder	Drive Belt	£6.38 £5.32
10	CO25100203302 In stock	V-Belt	£8.38 £6.98
11	CO26800103701 Available to backorder	Screw	£1.44 £1.20
12	CO26800202001 Available to backorder	Screw	£1.26 £1.05
13	CO25205200101 In stock	Belt Protecting Cover	£6.50 £5.42
14	CO26800502401 Available to backorder	Nut	£1.26 £1.05
15	CO23600105002 Available to backorder	Wheel Cover	£2.52 £2.10
16	CO26800502801 Available to backorder	Nut	£1.44 £1.20
17	CO26800401601 In stock	Bearing	£4.00 £3.33
18	CO25400200105 In stock	轮子总成(Dym1401-02)	£11.95 £9.96
19	CO26800706202 Available to backorder	Wheel	£2.52 £2.10
20	CO26800201901 Available to backorder	Washer	£1.20 £1.00
21	CO26300134202 Available to backorder	Wheel Axle Fixed Board	£2.62 £2.18
22	CO26300114401 Available to backorder	Front Wheel Axle Assy	£16.99 £14.16
23	CO26800100302 Available to backorder	Bolt	£1.44 £1.20
24	CO26800700401 Available to backorder	Washer	£2.52 £2.10
25	CO23600303101 Available to backorder	Front Panel	£9.54 £7.95
26	CO25202600101 In stock	Wheel Axle Fixed Circle	£2.40 £2.00
28	CO26809003801 Available to backorder	Pin	£2.52 £2.10
29	CO25208000104 Available to backorder	Dustproof Wheel Cover	£2.52 £2.10
30	CO26800100501 Available to backorder	Bolt	£1.26 £1.05
31	CO25229900201 Available to backorder	Wheel Gear	£5.52 £4.60
32	CO25400202003 Available to backorder	Wheel	£14.47 £12.06
33	CO23600105103 Available to backorder	Wheel Cover	£2.62 £2.18
34	CO26300115202 Available to backorder	Connection Rod	£6.60 £5.50
35	CO26801102201 Available to backorder	Spring	£2.99 £2.49
36	CO25217800104 Available to backorder	Cable Protecting Sheild	£2.52 £2.10
38	CO25304700102 Available to backorder	Position Plate	£2.52 £2.10
39	CO26300124401 In stock	Wheel Axle Fixed Circle	£2.40 £2.00
40	CO26800900201 Available to backorder	Pin	£2.40 £2.00
42	CO26800705102 In stock	Washer	£2.40 £2.00
41	CO26900300103 In stock	Left Wheel Output Assy	£7.00 £5.83
43	CO26800402301 In stock	Bearing	£2.64 £2.20
44	CO26900203103 Available to backorder	Bearing Bush	£3.00 £2.50
45	CO26809000102 In stock	Round Pin	£2.40 £2.00
46	CO23000534301 In stock	46A Gearbox Spring	£2.40 £2.00
46	CO23050204401 In stock	Gearbox	£47.18 £39.32
47	CO26900300203 In stock	Right Wheel Output Gear	£7.00 £5.83
48	CO26800611201 Available to backorder	Bolt	£2.62 £2.18
49	CO26300257701 Available to backorder	Guide Plate	£2.62 £2.18
50	CO26800900301 Available to backorder	E Clip	£2.40 £2.00
51	CO26300188301 Available to backorder	Rear Wheel Axle Assy	£16.99 £14.16
52	CO26300107601 Available to backorder	Washer	£2.52 £2.10
53	CO26300188401 Available to backorder	Handle Assy	£2.88 £2.40
54	CO25500103201 Available to backorder	Handle Cover	£4.44 £3.70
55	CO26800606401 Available to backorder	Bolt	£2.62 £2.18
56	CO26800903502 Available to backorder	Bearing Splint	£2.52 £2.10
57	CO23601011101 Available to backorder	Right Handle Support	£4.26 £3.55
58	CO26801110101 Available to backorder	Spring	£2.52 £2.10
59	CO26300113501 Available to backorder	Long Rod	£2.52 £2.10
60	CO23601011001 Available to backorder	Left Handle Support	£4.26 £3.55
61	CO26800601701 Available to backorder	Bolt	£2.40 £2.00
62	CO26300210602 Available to backorder	Washer	£2.52 £2.10
63	CO60400101304 Available to backorder	Engine	£182.88 £152.40
64	CO26800501502 Available to backorder	Nut	£1.20 £1.00
65	CO26800800202 Available to backorder	Washer	£2.52 £2.10
66	CO26800700701 Available to backorder	Washer	£2.40 £2.00
67	CO26800601903 Available to backorder	Bolt	£2.62 £2.18
68	CO23600173601 Available to backorder	Lower Handle	£13.50 £11.25
69	CO25261100102 In stock	Cable Clamp	£2.40 £2.00
70	CO26809004801 Available to backorder	Round Pin	£2.40 £2.00
71	CO25202800102 Available to backorder	Locking Pin	£2.52 £2.10
72	CO26300142002 Available to backorder	Clamping Piece	£2.62 £2.18
73	CO26300124501 Available to backorder	Bolt	£2.62 £2.18
74	CO26300118902 Available to backorder	Washer	£2.40 £2.00
75	CO26800500801 Available to backorder	Nut	£1.26 £1.05
76	CO29100115602 In stock	Drive Cable Assy	£10.80 £9.00
76	CO29100116202 In stock	Drive Cable Assy	£10.80 £9.00
77	CO26800501603 Available to backorder	Bolt	£1.20 £1.00
78	CO26800800303 Available to backorder	Washer	£2.40 £2.00
79	CO26800700801 Available to backorder	Washer	£1.20 £1.00
80	CO26300168401 Available to backorder	Cable Guide	£2.52 £2.10
81	CO26800607701 Available to backorder	Bolt	£2.62 £2.18
82	CO26800603601 Available to backorder	Bolt	£2.62 £2.18
83	CO29100107901 In stock	Throttle Cable	£10.80 £9.00
84	CO25233600102 Available to backorder	Cable Fixed Block	£2.40 £2.00
85	CO29100117801 In stock	Flamout Handle	£9.60 £8.00
86	CO23600163001 Available to backorder	Upper Handle	£20.72 £17.27
87	CO25600102201 In stock	Handle Cover	£4.44 £3.70
88	CO23600164101 Available to backorder	Drive Handle	£7.96 £6.63
89	CO23600163601 Available to backorder	Opc Lever	£5.00 £4.17
90	CO25100126727 In stock	Collection Bag	£25.50 £21.25
91	CO26300114002 Available to backorder	Collection Bag Support	£18.25 £15.21
92	CO25205600102 Available to backorder	Rear Cover	£13.58 £11.32
93	CO26300107801 Available to backorder	Wrench	£2.52 £2.10
94	CO26300107901 Available to backorder	Wrench Handle	£2.52 £2.10
