Cobra M46SPB - 18" Self Propelled Main Diagram

Name: Cobra M46SPB - 18" Self Propelled Main Diagram
SKU: m46spb_18_self_propelled_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra M46SPB - 18" Self Propelled Main Diagram

Description

Cobra M46SPB Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800606201 Available to backorder	Blade Locking Bolt	£2.40 £2.00
2	CO26300107302 Available to backorder	Dishing Washer	£2.40 £2.00
3	CO26300239301 In stock	Blade	£18.00 £15.00
4	CO26300152502 Available to backorder	Blade Support	£7.20 £6.00
5	CO26900209301 Available to backorder	Blade Support Bush	£2.52 £2.10
6	CO26809000201 In stock	Flat Pin	£2.40 £2.00

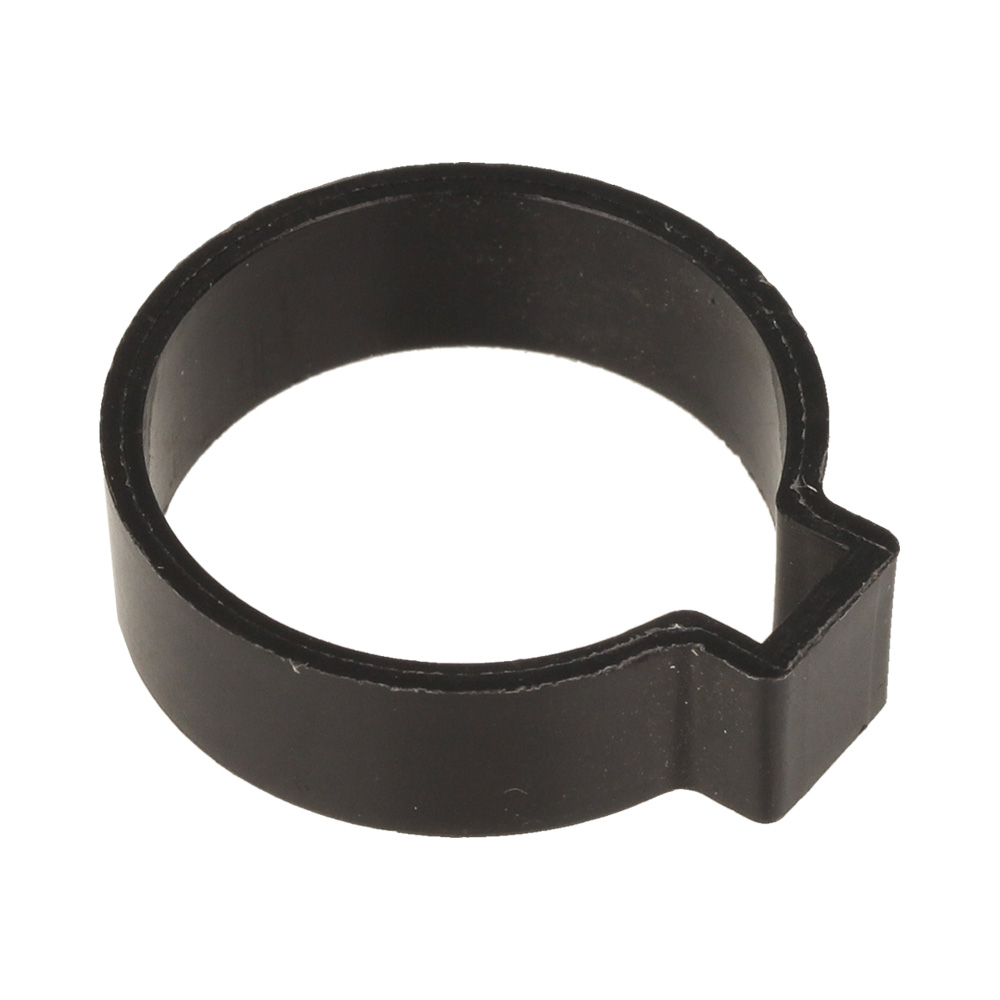

7	CO25231800101 Available to backorder	Blade Support Bush	£2.40 £2.00
8	CO26800300502 Available to backorder	Screw	£1.26 £1.05
9	CO26300400202 Available to backorder	Driving Belt Wheel	£6.38 £5.32
10	CO25100203302 Available to backorder	Triangle Belt	£8.38 £6.98
11	CO26800103701 Available to backorder	Self-Driving Screw	£1.44 £1.20
12	CO26800202001 Available to backorder	Tooth Screw	£1.26 £1.05
13	CO25205200101 In stock	Belt Protecting Cover	£6.50 £5.42
14	CO26800502401 Available to backorder	Locking Nut	£1.26 £1.05
15	CO23600105002 Available to backorder	Wheel Cover -1	£2.52 £2.10
16	CO26800502801 Available to backorder	Nut	£1.44 £1.20
17	CO26800401601 Available to backorder	Bearing	£4.00 £3.33
18	CO25400200105 In stock	Wheel Assy	£11.95 £9.96
19	CO26800703601 Available to backorder	Wave Washer	£2.52 £2.10
20	CO26300115401 Available to backorder	Fixed Axle Wire	£2.62 £2.18
21	CO26300114401 Available to backorder	Front Wheel Axis Assy	£16.99 £14.16
22	CO25202600101 In stock	Front Wheel Axle Fixing Ring	£2.40 £2.00
23	CO26300118902 Available to backorder	Frat Washer	£2.40 £2.00
24	CO26809003801 Available to backorder	Open Block Pin	£2.52 £2.10
25	CO25208000102 Available to backorder	Dustproof Wheel Cover	£2.52 £2.10
26	CO26800103202 In stock	Self-Driving Screw	£1.20 £1.00
27	CO25229900102 Available to backorder	Wheel Gear Ring	£5.52 £4.60
28	CO25400202002 Available to backorder	Wheel Assy	£12.01 £10.01

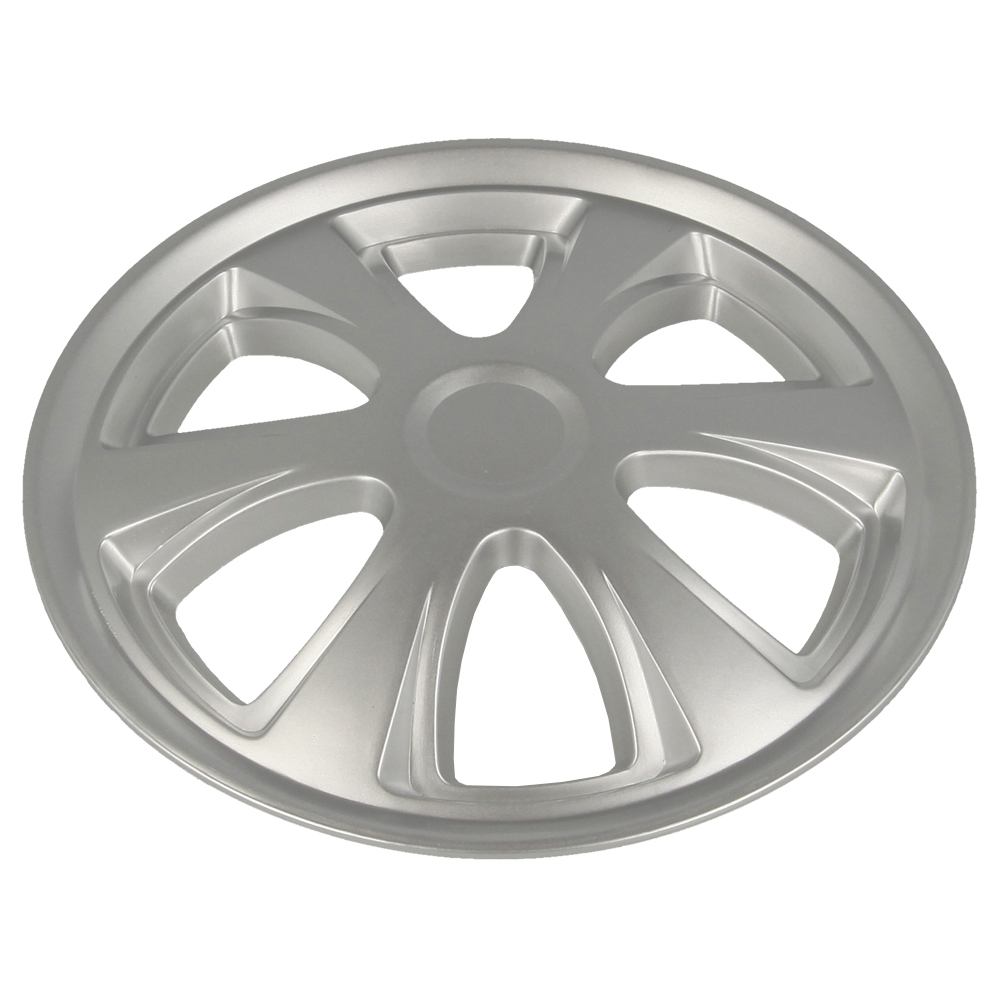

29	CO23600105103 Available to backorder	Wheel Cover -1	£2.62 £2.18
30	CO26300115201 Available to backorder	Connecting Rod	£7.54 £6.28
31	CO26801102201 Available to backorder	Connecting Rod Spring	£2.99 £2.49
32	CO25217800104 Available to backorder	Cord Protceting Sheath	£2.52 £2.10
34	CO25214200102 Available to backorder	Quadrant	£2.52 £2.10
35	CO26800201901 Available to backorder	Tooth Screw	£1.20 £1.00
36	CO26300124401 In stock	Axle Fixing Ring	£2.40 £2.00
37	CO26800900201 Available to backorder	Open Block Ring	£2.40 £2.00
38	CO26900300103 In stock	Left Output Gear Assy	£7.00 £5.83
39	CO26800705102 In stock	Frat Washer	£2.40 £2.00
40	CO26800402301 Available to backorder	Bearing	£2.64 £2.20
41	CO26900203103 Available to backorder	Bearing Sleeve	£3.00 £2.50
42	CO26809000102 In stock	Column Pin	£2.40 £2.00
43	CO23000534301 In stock	43A Gearbox Spring	£2.40 £2.00
43	CO23050200201 Available to backorder	Adjustment Box Assy	£63.36 £52.80
44	CO26900300202 In stock	Right Output Gear Assy	£7.00 £5.83
45	CO26800611201 Available to backorder	Bolt	£2.62 £2.18

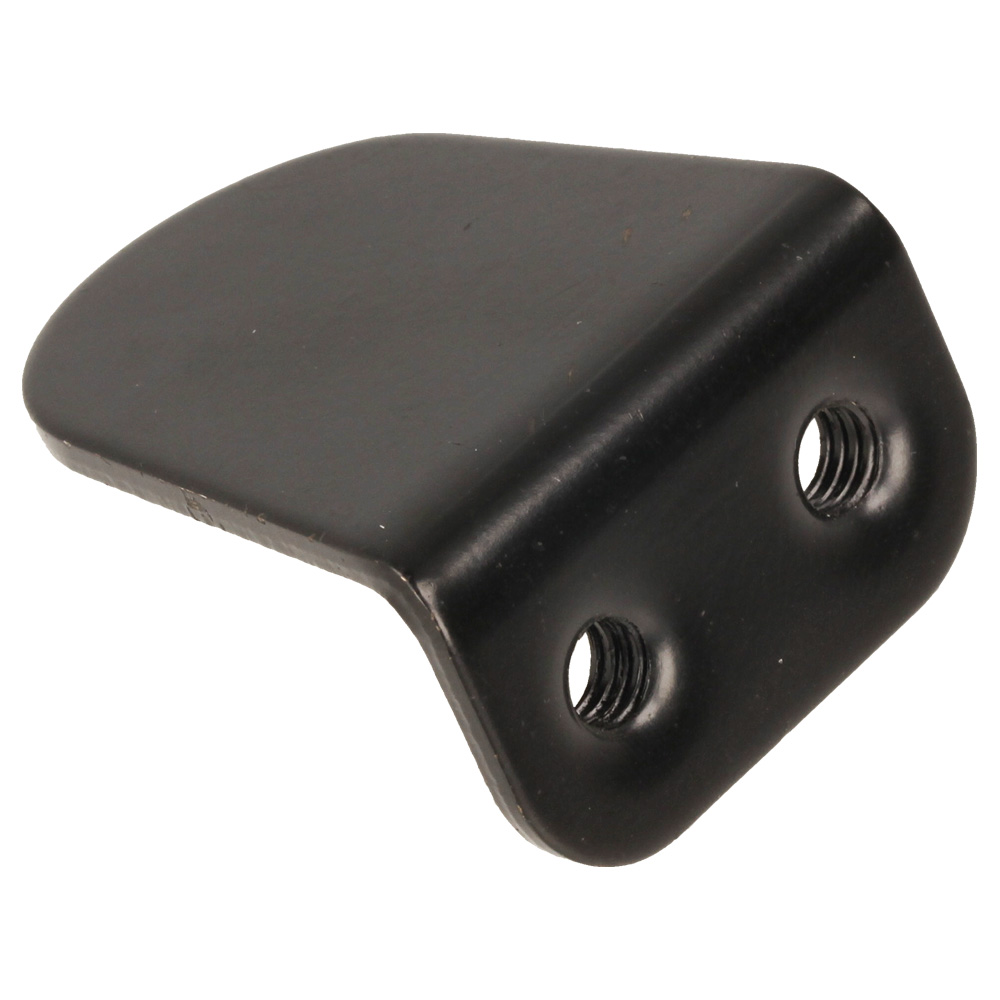

46	CO26300258201 Available to backorder	Position Board	£2.62 £2.18
47	CO26800900301 Available to backorder	E Clip	£2.40 £2.00
48	CO26300114501 Available to backorder	Rear Wheel Axis Assy	£16.99 £14.16
49	CO26300107601 Available to backorder	Adjusting Washer	£2.52 £2.10

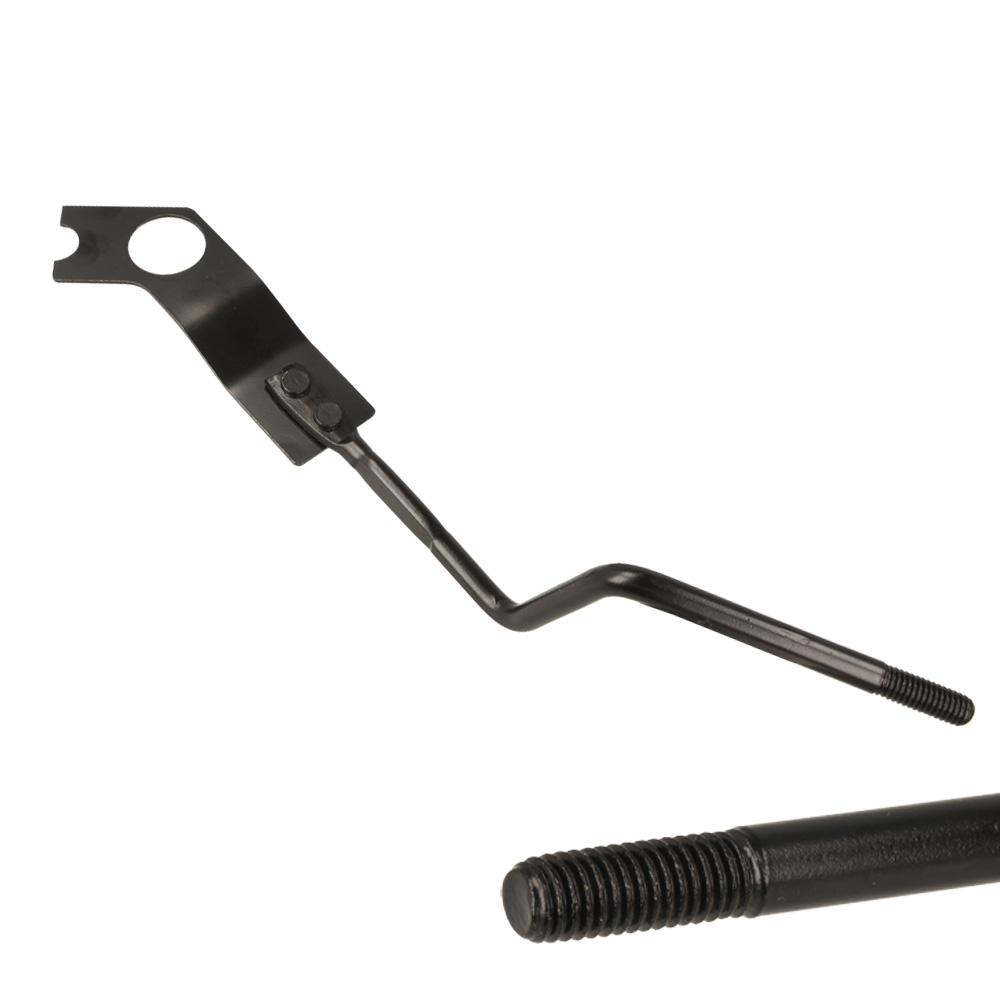

50	CO26300115003 Available to backorder	Handle Assy	£3.36 £2.80
51	CO25500103201 Available to backorder	Handle Sheath	£4.44 £3.70
52	CO26800606401 Available to backorder	Bolt	£2.62 £2.18
53	CO26800903502 Available to backorder	Bearing Clamp	£2.52 £2.10
54	CO23600103902 Available to backorder	Handle Right Plank	£4.26 £3.55
55	CO26801110101 Available to backorder	Tension Spring Of Raer Cover	£2.52 £2.10
56	CO26300113501 Available to backorder	Long Rod	£2.52 £2.10
57	CO23600103802 Available to backorder	Handle Leftt Plank	£4.26 £3.55
58	CO26800602501 Available to backorder	Bolt	£2.52 £2.10
59	CO26300210602 Available to backorder	Square Washer	£2.52 £2.10
61	CO26800501502 Available to backorder	Lid Nut	£1.20 £1.00
62	CO26800800202 Available to backorder	Spring Washer	£2.52 £2.10
63	CO26800700701 Available to backorder	Flat Washer	£2.40 £2.00
64	CO26800601903 Available to backorder	Bolt	£2.62 £2.18
65	CO23600173601 Available to backorder	Down Handle Rod	£13.50 £11.25
66	CO25261100101 Available to backorder	Cable Clip	£2.52 £2.10
67	CO26809002701 Available to backorder	Column Pin	£2.52 £2.10
68	CO25202800102 Available to backorder	Locking Handle	£2.52 £2.10
69	CO26300142002 Available to backorder	Press Board	£2.62 £2.18
70	CO26300124501 Available to backorder	Bolt	£2.62 £2.18
71	CO26800500801 Available to backorder	Locking Bolt	£1.26 £1.05
72	CO29100117301 Available to backorder	Frame Out Cord Assy	£4.76 £3.97
73	CO29100116202 In stock	Driven Cord Assy	£10.80 £9.00
73	CO29100115602 In stock	Driven Cord Assy	£10.80 £9.00
74	CO26800800303 Available to backorder	Spring Washer	£2.40 £2.00
75	CO26300168401 Available to backorder	Cable Hook	£2.52 £2.10
76	CO25233600101 Available to backorder	Cord Fixed Board	£2.40 £2.00
77	CO26800700801 Available to backorder	Flat Washer	£1.20 £1.00
78	COA26800501603 Available to backorder	Lid Nut	£1.20 £1.00
79	CO26800607701 Available to backorder	Bolt	£2.62 £2.18
80	CO26800603601 Available to backorder	Bolt	£2.62 £2.18
81	CO29100129701 Available to backorder	Choke Handle Assy	£10.78 £8.98
82	CO23600163001 Available to backorder	Upper Handle	£20.72 £17.27
83	CO25600102201 In stock	Handle Sheath	£4.44 £3.70
84	CO23600164101 Available to backorder	Driving Lever	£7.96 £6.63
85	CO23600163601 Available to backorder	Opc Lever	£5.00 £4.17
86	CO25100126724 Available to backorder	Collection Bag	£25.50 £21.25
87	CO26300114002 Available to backorder	Collection Bag Plank	£18.25 £15.21
88	CO25205600101 Available to backorder	Rear Cover	£8.42 £7.02
89	CO26300161201 Available to backorder	Wrench	£2.52 £2.10
90	CO26300107901 Available to backorder	Wrench Rod	£2.52 £2.10
