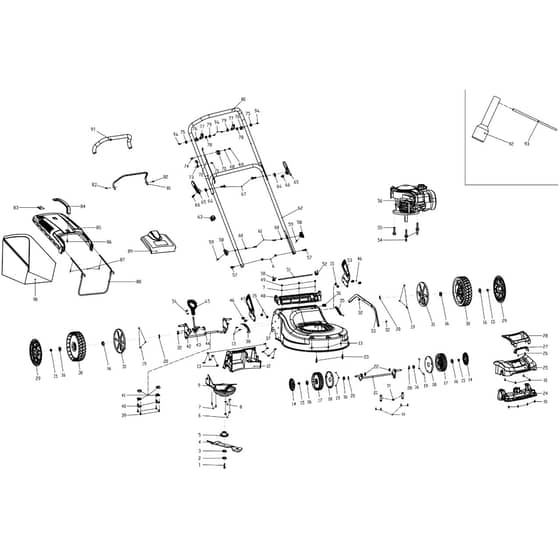

Cobra M46CVX Rotary Mower Parts Diagram

	Part No.	Details
1	CO2105300159A Available to backorder	Blade Fastening Bolt	£1.88 £1.57
2	CO2105300001C Available to backorder	Belleville Washers	£2.48 £2.07
3	CO2105200367A Available to backorder	Friction Knife Holder Pressure Plate	£2.88 £2.40
4	CO21052003402000A In stock	Blade	£19.27 £16.06
5	CO2105500009A Available to backorder	Stamping Knife Seat	£9.58 £7.98
6	CO3031309002 Available to backorder	Hexagon Lock Nut	£5.15 £4.29
7	COA26800105502 Available to backorder	Self-Tapping Screws	£1.24 £1.03
8	CO3051303001 Available to backorder	Flat Washers	£1.24 £1.03
9	CO21041011680001B Available to backorder	Belt Guard	£6.31 £5.26
10	CO3011301013 Available to backorder	Self-Tapping Screws	£1.24 £1.03
11	CO2101200094A Available to backorder	Front Axle Fixing Plate	£1.24 £1.03
12	CO21071001420001A Available to backorder	Grass Outlet Bracket	£10.88 £9.07
13	CO3011301029 Available to backorder	Cross Recessed Pan Head Self Tapping Screws	£1.24 £1.03
14	CO21011002970006N Available to backorder	6 Inch Wheel Cover	£2.40 £2.00
15	CO30323060035000 Available to backorder	Hexagon Flange Lock Nut	£1.24 £1.03
16	CO2101300065A Available to backorder	Angular Bearings	£4.14 £3.45
17	CO21011005230001A Available to backorder	Wheel	£9.85 £8.21
18	CO21011005240001A Available to backorder	Dustproof Wheel Cover	£1.72 £1.43
19	CO3011301010 Available to backorder	Self-Tapping Screws	£1.24 £1.03
20	CO26800706202 In stock	Wave Washers	£2.48 £2.07
21	CO2101300252A Available to backorder	Front Axle Assembly	£22.80 £19.00
22	CO2101800009A Available to backorder	Shock Absorber Spring	£1.24 £1.03
23	CO3011305003 Available to backorder	Hexagon Flange Tapping Screws	£1.24 £1.03
24	CO21041012100108B Available to backorder	Mask Base	£6.12 £5.10
25	CO21041012070006A Available to backorder	Head Mask	£8.03 £6.69
26	CO3011301018 Available to backorder	Self-Tapping Screws	£1.24 £1.03
27	CO21041012090006A Available to backorder	Handle Cover	£1.43 £1.19
28	CO21041012080006A Available to backorder	Mask Handle	£3.26 £2.72
29	CO21011006890006A Available to backorder	10" Wheel Cover	£3.66 £3.05
30	CO21011005340001A Available to backorder	10 Inch Wheels	£14.09 £11.74
31	CO21011006090001A Available to backorder	Dustproof Wheel Cover	£3.20 £2.67
32	CO30313090035000 Available to backorder	Hexagon Lock Nut	£1.24 £1.03
33	CO2106201268A Available to backorder	Link	£9.00 £7.50
34	CO3021301002 Available to backorder	Countersunk Screw	£1.24 £1.03
35	CO2109800285A Available to backorder	Connecting Rod Tension Spring	£1.78 £1.48
36	CO2103600038A Available to backorder	Plug	£1.24 £1.03
38	CO2106201262A Available to backorder	Shift Plate	£3.14 £2.62
39	COA26800104301 Available to backorder	Self-Tapping Screws	£1.24 £1.03
40	CO2101200085A Available to backorder	Axle Fixing Plate	£1.32 £1.10
41	CO21091000633201A Available to backorder	Axle Bushing	£1.24 £1.03
42	CO2101500303A Available to backorder	Rear Axle Assembly	£19.82 £16.52
43	CO2106201270A Available to backorder	Handle Assembly	£4.46 £3.72
44	COA26800203001A Available to backorder	Cross Recessed Pan Head Screws	£1.24 £1.03
45	CO21061002880001A Available to backorder	Heightening Handle Assembly	£33.74 £28.12
46	CO30913070165000 Available to backorder	Hexagonal Flange Bolts	£1.24 £1.03
47	CO21062012710108A Available to backorder	Armrest Right Bracket	£6.41 £5.34
48	CO21071001430001A Available to backorder	Rear Cover Plate	£2.69 £2.24
49	CO2109600031A Available to backorder	Plug	£1.24 £1.03
50	CO2109800286A Available to backorder	Right-Hand Torsion Spring	£1.24 £1.03
51	CO2109300272A Available to backorder	Long Pole	£2.88 £2.40
52	CO2109800287 Available to backorder	Left-Hand Torsion Spring	£1.24 £1.03
53	CO21062012730108A Available to backorder	Armrest Left Bracket	£6.25 £5.21
54	CO2109900067A Available to backorder	Special Bolts	£1.94 £1.62
55	CO2109900066A Available to backorder	Triangular Self-Tapping Bolts	£1.24 £1.03
57	CO2106300422A Available to backorder	Lower Handrail Screw	£1.66 £1.38
58	CO21041007290108B Available to backorder	Locking Knob	£1.32 £1.10
59	CO2106300258A Available to backorder	Cylindrical Pins	£1.24 £1.03
60	CO2109800200A Available to backorder	Lower Armrest Spring	£1.24 £1.03
61	CO2106300416A Available to backorder	Pin	£2.14 £1.78
62	CO21063005320001A Available to backorder	Lower Handrail	£21.20 £17.67
63	CO21061000013201A Available to backorder	Cable Clip	£2.48 £2.07
64	CO30512050025000 Available to backorder	Large Washer 8	£1.24 £1.03
65	CO21061007230108A Available to backorder	Locking Handle	£2.14 £1.78
66	CO2109300018C In stock	Quick Wrench Shaft	£1.28 £1.07
67	CO2106300348A Available to backorder	Flat Head Bolts	£1.78 £1.48
68	CO3051303003 Available to backorder	Flat Washers	£1.24 £1.03

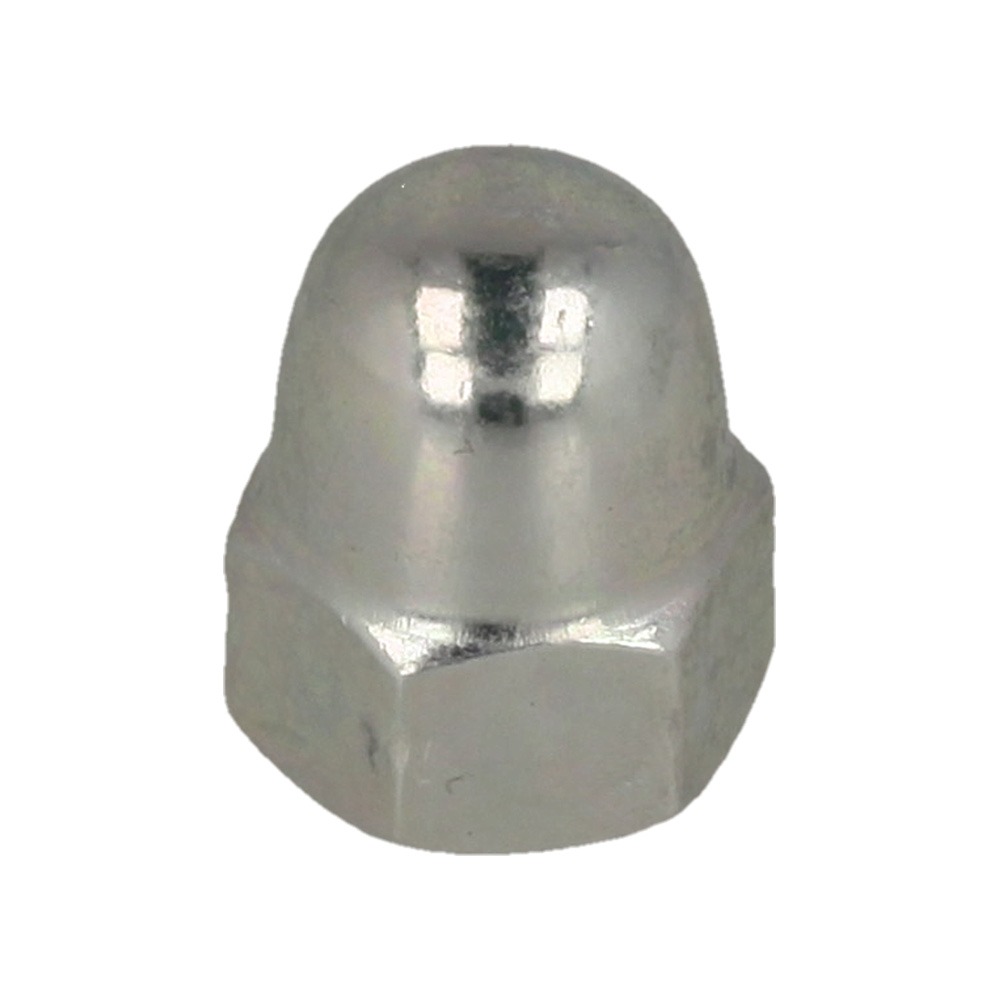

69	CO2109300356A Available to backorder	Cap Nut	£1.24 £1.03
70	CO21061000043201A In stock	Cable Fixing Block	£2.58 £2.15
71	CO3031309009 Available to backorder	Hexagon Lock Nut	£1.24 £1.03
72	CO2106800898A Available to backorder	Flame-Out Cable Assembly	£6.60 £5.50
73	CO2106300288A Available to backorder	Hanging Hook	£1.24 £1.03
74	CO3091307003 Available to backorder	Hexagon Flange Bolts	£1.24 £1.03
75	CO21061001113201N Available to backorder	Curved Gasket	£1.24 £1.03
76	CO21061007140001A Available to backorder	Tie Rod Bracket	£1.24 £1.03
77	CO21061005993201A Available to backorder	Self-Propelled Cable Hanging Block	£1.43 £1.19
78	CO21061007300001A Available to backorder	Tie Rod Bracket Washer	£1.24 £1.03
79	CO21061007290001A Available to backorder	Tie Rod Bracket Cover	£1.24 £1.03
80	CO21063005330001A Available to backorder	Upper Handrail	£24.12 £20.10
81	CO21063005340108A Available to backorder	Flame-Out Lever	£6.25 £5.21
82	CO2109300058A Available to backorder	Self-Tapping Screws	£1.24 £1.03
83	CO21071000080108A In stock	Wind Window Plate	£2.58 £2.15
84	CO21071000730001N Available to backorder	Grass Basket Handle	£2.48 £2.07
85	CO21071000720001A Available to backorder	Grass Basket Cover	£17.98 £14.98
86	CO3011301004 Available to backorder	Self-Tapping Screws	£1.24 £1.03
87	CO3011301005 Available to backorder	Self-Tapping Screws	£1.24 £1.03
88	CO2107200065A Available to backorder	Grass Bag Holder	£12.31 £10.26

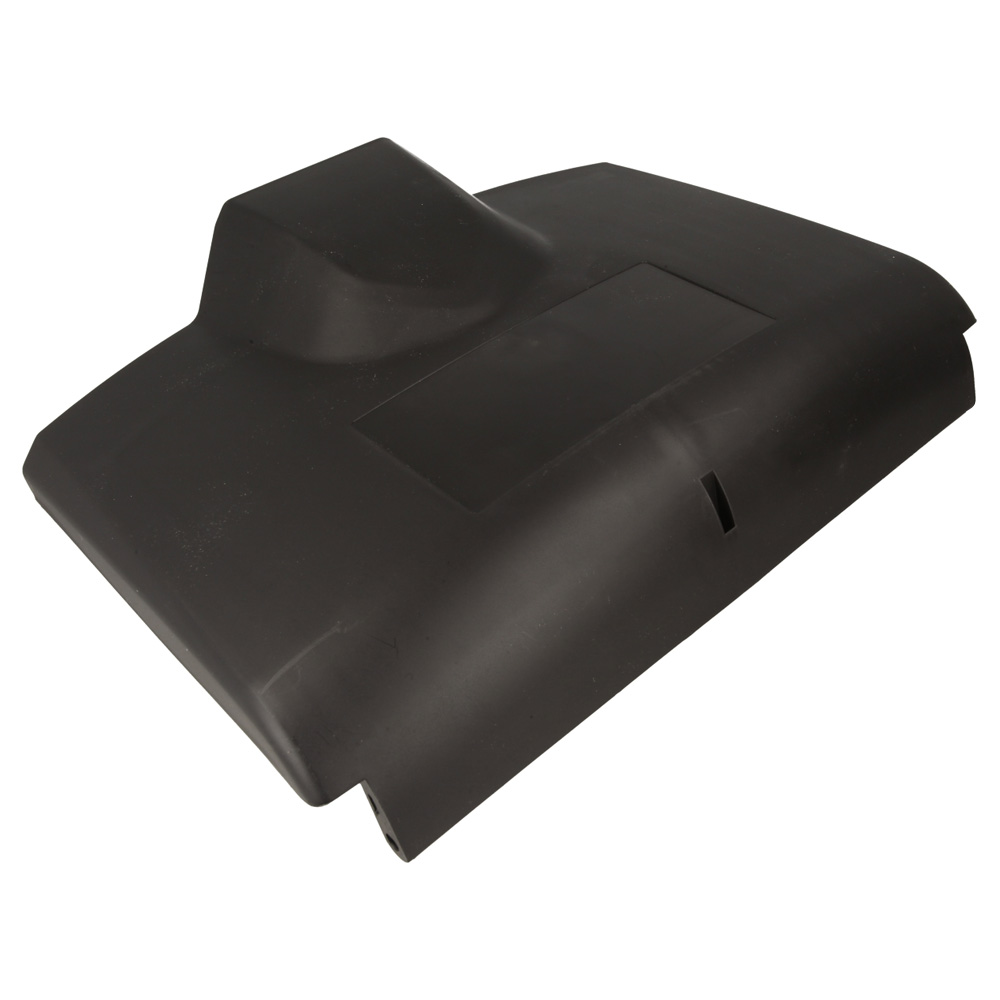

89	CO21041003300001B Available to backorder	Rear Cover	£8.65 £7.21
90	CO21077000462006C Available to backorder	Grass Bag	£31.78 £26.48
91	CO2106100842A Available to backorder	Handrail Cover	£4.54 £3.78
92	CO2012200002 Available to backorder	Socket Wrench	£3.20 £2.67
93	CO2012100004 Available to backorder	Socket Wrench Bar	£1.66 £1.38
94	CO3011301006 Available to backorder	Self-Tapping Screws	£1.24 £1.03
