Cobra M41C - 16" Powered Lawn Mower Feb 2019 Engine Diagram

Name: Cobra M41C - 16" Powered Lawn Mower Feb 2019 Engine Diagram
SKU: m41c_16_powered_lawn_mower_feb_2019_engine-group
Price: 1.00 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra M41C - 16" Powered Lawn Mower Feb 2019 Engine Diagram

Description

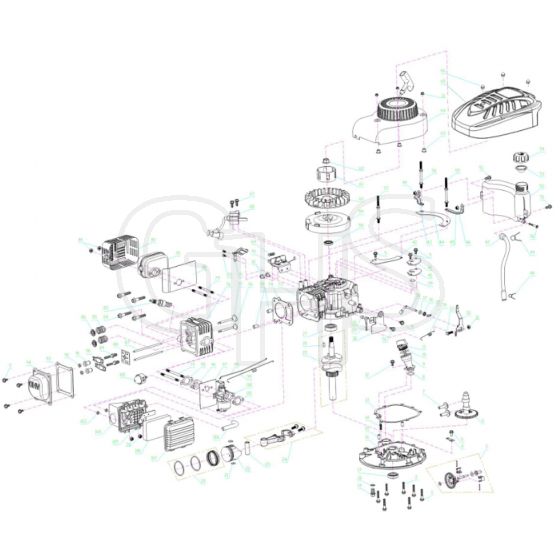

Cobra M41C Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800607701	Hexagonal Flange Bolt M6*35	Out of stock	£2.62 £2.18
2	CO26800612101	Hexagonal Flange Bolt M6*40	Out of stock	£2.52 £2.10
3	CO2032300088A	Speed Adjustment Gear Assy	Out of stock	£3.38 £2.82
4	CO26300223101	Press Board	Out of stock	£2.52 £2.10
5	CO26800604101	Hexagonal Flange Bolt- Big Series	Out of stock	£2.52 £2.10
6	CO2032300087A	Nylon Camshaft	Out of stock	£9.13 £7.61
7	CO26900109201	Tappet Valve	Out of stock	£2.52 £2.10
8	CO25100137602	O Type Ring	Out of stock	£2.52 £2.10
9	CO25235100102	Oil Adding Pipe	Out of stock	£2.52 £2.10
10	CO25100123303	O Type Ring	Out of stock	£2.62 £2.18
11	CO25235200101	Oil Dipstick	Out of stock	£3.64 £3.03
12	CO26800611201	Hexagonal Flange Bolt	Out of stock	£2.52 £2.10
13	CO2031600064A	Crankcase Cover Gasket	Out of stock	£3.38 £2.82
14	CO2031600017A	Rubber Washer	Out of stock	£2.52 £2.10
15	CO26809003501	Position Fixed Pin	Out of stock	£2.52 £2.10
17	CO25100123402	Oil Sealing	Out of stock	£2.88 £2.40
18	CO26300225901	Drain Plug Washer	Out of stock	£2.52 £2.10
19	CO26300205601	Oil Drain Plug	Out of stock	£2.52 £2.10
20	CO2032300009A	Piston Ring Assy	Out of stock	£11.51 £9.59
21	CO26900109001	Piston Pin Clip Spring	Out of stock	£2.52 £2.10
22	CO2032300008A	Piston	Out of stock	£11.51 £9.59
23	CO26900108901	Piston Pin	Out of stock	£2.66 £2.22
24	CO23054001503	Connecting Rod Assy	Out of stock	£11.93 £9.94
25	CO23053001101	Crankshaft Assy	Out of stock	£41.18 £34.32
26	CO26809003901	Semicircle Key	Out of stock	£2.52 £2.10
27	CO26800401101	Ball Bearing	Out of stock	£5.65 £4.71
28	CO26300211501	Air Filter Sheath	Out of stock	£2.52 £2.10
29	CO26300220001	Spring Board	Out of stock	£2.52 £2.10
30	CO26300220501	Speed Adjustment Board	Out of stock	£2.52 £2.10
31	CO26800501901	Hexagonal Flange Nut	Out of stock	£1.26 £1.05
32	CO26300220401	Speed Adjustment Rocker	Out of stock	£2.52 £2.10
33	CO26800301101	Speed Adjustment Screw	Out of stock	£2.52 £2.10
34	CO26801110701	Speed Adjustment Spring	In stock	£2.52 £2.10
35	CO26900103401	Spring Open Pin	Out of stock	£2.52 £2.10
36	CO25100135802	Oil Sealing	Out of stock	£2.52 £2.10
37	CO26800702101	Washer	Out of stock	£2.52 £2.10
38	CO26900109501	Speed Adjustment Rod	Out of stock	£2.52 £2.10
39	CO2031100008A	Breathing Valve Plate	Out of stock	£2.52 £2.10
40	CO2031600021A	Breathing Sealing Washer	Out of stock	£2.52 £2.10
41	CO2031300102A	Breathing Cover	Out of stock	£2.52 £2.10
42	CO26300151201	Protecting Board 2	Out of stock	£2.52 £2.10
43	CO26300219801	Left Fuel Tank Bracket	Out of stock	£2.52 £2.10
44	CO26300220301	Fuel Tank Bracket	Out of stock	£2.86 £2.38
45	CO26300219901	Right Fuel Tank Bracket	Out of stock	£2.52 £2.10
46	CO26800502401	Hexagonal Flange Locking Nut M6	Out of stock	£1.26 £1.05
47	CO25100151101	Fuel Hose	Out of stock	£6.28 £5.23
48	CO26900108001	Fuel Hose Clamp B	Out of stock	£2.52 £2.10
49	CO26900107901	Fuel Hose Clamp A	Out of stock	£2.52 £2.10
50	CO25100131401	Fuel Filter	Out of stock	£2.52 £2.10
51	CO26800608001	Hexagonal Flange Bolt M6*16	Out of stock	£2.52 £2.10
52	CO25800100703	Fuel Tank	Out of stock	£11.11 £9.26
53	CO25100141901	Fuel Tank Sealing Washer	Out of stock	£2.52 £2.10
54	CO25234100102	Fuel Tank Cap	Out of stock	£2.52 £2.10
55	CO26800617701	Double Head Screw B	Out of stock	£2.52 £2.10
56	CO26800617801	Double Head Screw C	Out of stock	£2.52 £2.10
57	CO26800617601	Double Head Screw A	Out of stock	£2.52 £2.10
58	CO25100135902	Oil Sealing	Out of stock	£2.52 £2.10
59	CO23061001101	Flywheel	Out of stock	£27.70 £23.08
60	CO25235000101	Fan	Out of stock	£12.66 £10.55
61	CO26900109301	Start Cup	Out of stock	£4.92 £4.10
62	CO26800610501	Hexagonal Flange Nut M12*125	Out of stock	£2.52 £2.10
63	CO26300211601	Wind-Guiding Cover	Out of stock	£2.52 £2.10
64	CO2030200003A	Starter Assy	In stock	£21.90 £18.25
65	CO25247500102	Engine Cover	Out of stock	£10.90 £9.08
66	CO26800501603	Cap Nut	Out of stock	£1.44 £1.20
67	CO26800612201	Hexagonal Flange Bolt	Out of stock	£2.52 £2.10
68	CO2038900018B	Ignition Assy	Out of stock	£20.24 £16.87
69	CO26801113701	Controller Spring	Out of stock	£2.52 £2.10
70	CO23058001201	Brake Controller Assy	Out of stock	£9.43 £7.86
71	CO26300149901	Protecting Board 1	Out of stock	£2.52 £2.10
72	CO26800201002	Machine Screw	Out of stock	£1.26 £1.05
74	CO25100135601	Cylinder Head Gasket	Out of stock	£5.48 £4.57
75	CO26809001501	Pisition Fixed Pin	Out of stock	£2.52 £2.10
76	CO26300219301	Exhaust Valve	Out of stock	£5.99 £4.99
77	CO26300219401	Intake Valve	Out of stock	£5.12 £4.27
79	CO26800610103	Carburetor Bolt	Out of stock	£2.80 £2.33
80	CO2037200019B	Muffler Sealing Washer	Out of stock	£3.32 £2.77
81	CO2037500001A	Muffler Assy	Out of stock	£18.76 £15.63
82	CO23060001101	Muffler Guard Assy	Out of stock	£5.71 £4.76
83	2688	Spark Plug	In stock	Was £2.18 £1.82 Special Price £1.20 £1.00
84	CO26800605001	Hexagonal Flange Bolt	Out of stock	£2.52 £2.10
85	CO26801112001	Valve Spring	Out of stock	£2.52 £2.10
86	CO26900109101	Valve Spring Retainer	Out of stock	£2.52 £2.10
87	CO26300219501	Pushing Rod Assy	Out of stock	£2.52 £2.10
88	CO26300219602	Pushing Rod Guide Plate	Out of stock	£9.43 £7.86
89	CO26800605401	Adjustment Bolt	Out of stock	£2.52 £2.10
90	CO26300206201	Rocker Arm	Out of stock	£2.52 £2.10
91	CO26800503901	Adjustment Nut	Out of stock	£2.52 £2.10
92	CO26800504001	Lock Nut	Out of stock	£2.52 £2.10
93	CO25100135701	Cylinder Head Cover Gasket	Out of stock	£2.52 £2.10
94	CO26300218702	Cylinder Head Cover	Out of stock	£4.70 £3.92
95	CO2036600014B	Intake Gasket	Out of stock	£2.62 £2.18
96	CO2036100009A	Inlet Air Pipe	Out of stock	£2.62 £2.18
97	CO2036600012B	Carburetor Gasket	Out of stock	£2.62 £2.18
98	CO26300220101	Throttle Valve Pulling Pole	Out of stock	£2.52 £2.10
99	CO26801110601	Spring	Out of stock	£2.62 £2.18
100	CO2036400003A	Carburetor Assy	Out of stock	£34.61 £28.84
101	CO2036600013B	Air Cleaner Gasket	Out of stock	£2.62 £2.18
103	CO26809003101	Gasket Cover	Out of stock	£2.62 £2.18
104	CO20361000290001C	Air Filter Base	Out of stock	£2.52 £2.10
105	CO20361000300001B	Air Filter Inner Cover	Out of stock	£2.52 £2.10
106	CO25100137001	Foam Core	In stock	£5.26 £4.38
107	CO25234400101	Air Filter Upper Cover	In stock	£5.52 £4.60
108	CO25100135002	Breather Hose	Out of stock	£2.52 £2.10
