Cobra M40SPC - Lawn Mower Revised June 2020 Main Diagram

Ref. Img. Part No. Details
  1 Bolt CO26800606201
Bolt
Out of stock
£2.40 £2.00

  2 Washer CO26300107302
Washer
Out of stock
£2.52 £2.10

  2 Pressing Plate Of Blade CO2105200245A
Pressing Plate Of Blade
Out of stock
£2.52 £2.10

  3 Blade CO26300100401
Blade
In stock
£16.12 £13.43

  3 Blade CO21052003052000A
Blade
In stock
£16.36 £13.63

  4 Blade Support CO2105200251A
Blade Support
In stock
£7.54 £6.28

  4 Blade Holder CO26300168101
Blade Holder
Out of stock
£7.54 £6.28

  5 Bushing Of Blade Support CO2105400024A
Bushing Of Blade Support
Out of stock
£2.52 £2.10

  5 Blade Holder Bushing CO26900209401
Blade Holder Bushing
Out of stock
£12.46 £10.38

  6 Pin CO26809000201
Pin
Out of stock
£2.62 £2.18

  7 Blade Bushing CO25231800101
Blade Bushing
Out of stock
£2.52 £2.10

  8 Screw CO26800300502
Screw
Out of stock
£1.26 £1.05

  9 Drive Belt CO26300400202
Drive Belt
Out of stock
£6.38 £5.32

  10 V-Belt CO25100202002
V-Belt
Out of stock
£8.80 £7.33

  11 Screw CO26800103701
Screw
In stock
£1.26 £1.05

  12 Screw CO26800202001
Screw
Out of stock
£1.26 £1.05

  13 Belt-Protect Cover CO25211800101
Belt-Protect Cover
Out of stock
£6.83 £5.69

  14 Nut CO26800502401
Nut
Out of stock
£1.26 £1.05

  15 Wheel Cover CO23600105002
Wheel Cover
Out of stock
£2.52 £2.10

  16 Nut CO26800502801
Nut
Out of stock
£1.26 £1.05

  17 Bearing CO26800401601
Bearing
In stock
£4.20 £3.50

  18 Wheel CO25207600102
Wheel
Out of stock
£11.95 £9.96

  19 Screw CO26800100501
Screw
In stock
£1.26 £1.05

  20 Washer CO26800706202
Washer
Out of stock
£2.52 £2.10

  21 Wheel Axle Fixed Wire CO26300115401
Wheel Axle Fixed Wire
Out of stock
£2.52 £2.10

  22 Front Axle Assy CO26300115501
Front Axle Assy
Out of stock
£16.99 £14.16

  23 Front Panel CO23600303101
Front Panel
Out of stock
£9.54 £7.95

  24 Washer CO26800700401
Washer
Out of stock
£2.52 £2.10

  25 Screw CO26800105602
Screw
Out of stock
£2.52 £2.10

  26 Wheel Axle Fixed Circle CO25202600101
Wheel Axle Fixed Circle
Out of stock
£2.62 £2.18

  27 Flat Key CO26300118902
Flat Key
Out of stock
£2.52 £2.10

  28 Pin CO26809003801
Pin
Out of stock
£2.52 £2.10

  29 Dust Proof Wheel Cover CO25208000104
Dust Proof Wheel Cover
Out of stock
£2.52 £2.10

  30 Wheel Ring Gear CO25229900201
Wheel Ring Gear
Out of stock
£5.52 £4.60

  31 Wheel CO25400202003
Wheel
Out of stock
£14.47 £12.06

  32 Wheel Cover CO23600105103
Wheel Cover
Out of stock
£2.52 £2.10

  33 Connecting Rod CO26300150002
Connecting Rod
Out of stock
£7.45 £6.21

  34 Spring CO26801102201
Spring
Out of stock
£2.99 £2.49

  35 Cable Shield CO25217800104
Cable Shield
Out of stock
£2.52 £2.10

  37 Position Plate CO25214200103
Position Plate
Out of stock
£2.52 £2.10

  38 Screw CO26800201901
Screw
Out of stock
£1.26 £1.05

  39 Wheel Axle Fixed Circle CO26300124401
Wheel Axle Fixed Circle
In stock
£2.52 £2.10

  40 Pin CO26800900201
Pin
Out of stock
£2.62 £2.18

  42 Flat Key CO26800705102
Flat Key
Out of stock
£2.62 £2.18

  41 Left Output Gear CO26900300103
Left Output Gear
In stock
£7.20 £6.00

  43 Bearing CO26800402301
Bearing
In stock
£2.77 £2.31

  44 Bearing Cover CO26900203103
Bearing Cover
Out of stock
£3.23 £2.69

  45 Round Pin CO26809000102
Round Pin
Out of stock
£2.62 £2.18

  46 46A Gearbox Spring CO23000534301
46A Gearbox Spring
Out of stock
£2.62 £2.18

  46 Gearbox CO23050204201
Gearbox
Out of stock
£58.08 £48.40

  47 Right Output Gear CO26900300203
Right Output Gear
Out of stock
£7.20 £6.00

  48 Screw CO26800611201
Screw
Out of stock
£2.52 £2.10

  49 Guide Plate CO26300258201
Guide Plate
Out of stock
£2.52 £2.10

  50 E Clip CO26800900301
E Clip
Out of stock
£2.52 £2.10

  51 Rear Wheel Axle CO26300319501
Rear Wheel Axle
Out of stock
£16.21 £13.51

  52 Washer CO26300107601
Washer
Out of stock
£2.52 £2.10

  53 Handle CO26300188401
Handle
Out of stock
£2.88 £2.40

  54 Handle Cover CO25500103201
Handle Cover
Out of stock
£4.60 £3.83

  55 Screw CO26800606401
Screw
Out of stock
£2.52 £2.10

  56 Bearing Splint CO26800903502
Bearing Splint
Out of stock
£2.52 £2.10

  57 Right Handle Support CO23601011101
Right Handle Support
Out of stock
£4.26 £3.55

  58 Spring CO26801110101
Spring
Out of stock
£2.52 £2.10

  59 Long Rod CO26300171301
Long Rod
Out of stock
£2.52 £2.10

  60 Left Handle Support CO23601011001
Left Handle Support
Out of stock
£4.26 £3.55

  61 Screw CO26800601701
Screw
Out of stock
£2.52 £2.10

  62 Washer CO26300210602
Washer
Out of stock
£2.52 £2.10

  63 Engine CO60400101304
Engine
Out of stock
£182.88 £152.40

  64 Nut CO26800501502
Nut
Out of stock
£1.26 £1.05

  65 Washer CO26800800202
Washer
Out of stock
£2.52 £2.10

  66 Washer CO26800700701
Washer
Out of stock
£2.52 £2.10

  67 Bolt CO26800601903
Bolt
Out of stock
£2.52 £2.10

  68 Lower Handle CO23600198201
Lower Handle
Out of stock
£12.65 £10.54

  69 Clamp CO25261100102
Clamp
Out of stock
£2.52 £2.10

  70 Round Pin CO26809004801
Round Pin
Out of stock
£2.52 £2.10

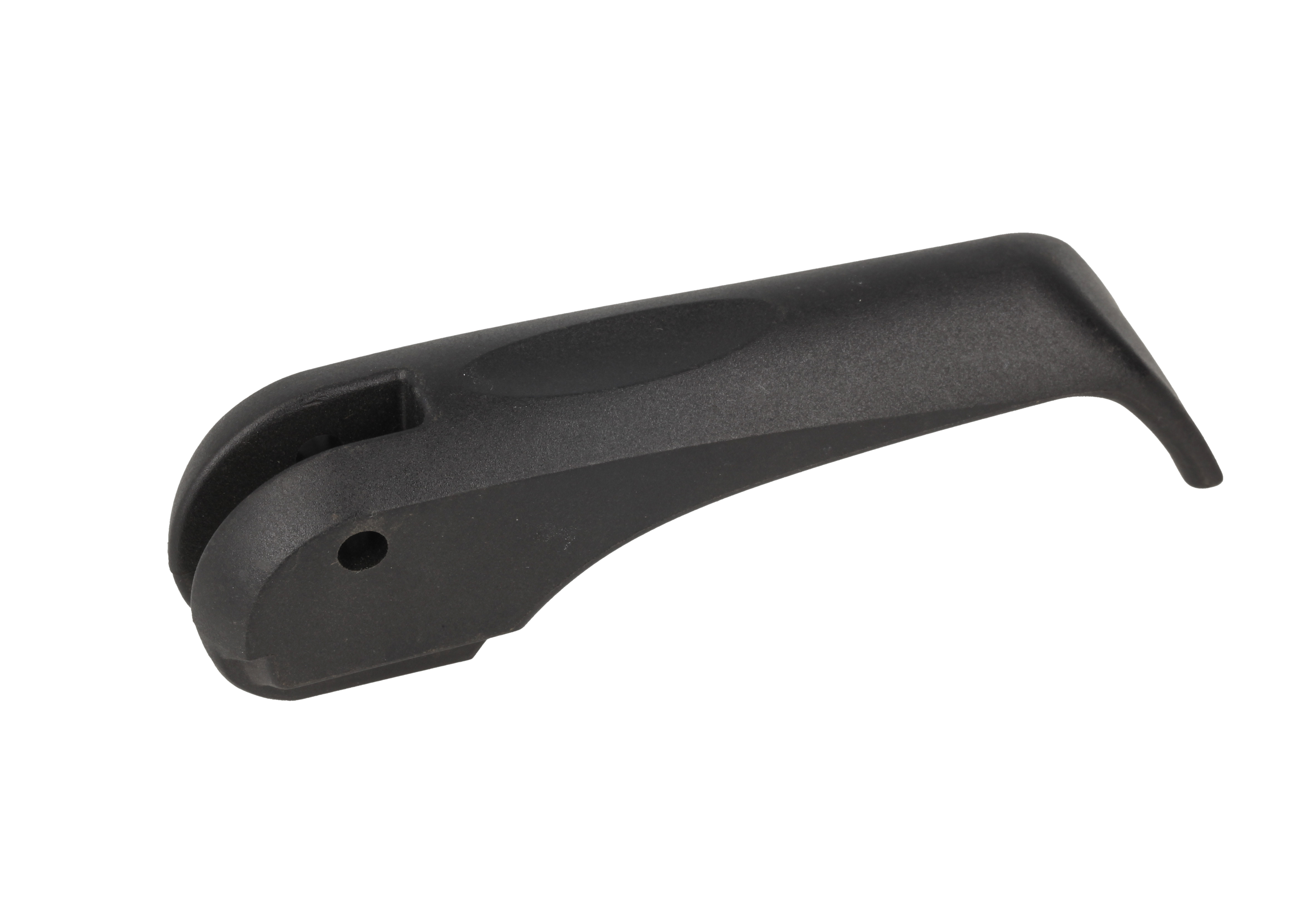

  71 Locking Handle CO25202800102
Locking Handle
Out of stock
£2.52 £2.10

  72 Clamping Piece CO26300142002
Clamping Piece
Out of stock
£2.52 £2.10

  73 Screw CO26300124501
Screw
Out of stock
£2.52 £2.10

  74 Nut CO26800500801
Nut
Out of stock
£1.26 £1.05

  75 Flameout Cable Assy CO29100115801
Flameout Cable Assy
In stock
£10.06 £8.38

  76 Drive Cable CO29100116102
Drive Cable
Out of stock
£11.32 £9.43

  77 Nut CO26800501603
Nut
Out of stock
£1.44 £1.20

  78 Washer CO26800800303
Washer
Out of stock
£2.52 £2.10

  79 Washer CO26800700801
Washer
Out of stock
£2.52 £2.10

  80 Cable Guide CO26300168401
Cable Guide
Out of stock
£2.52 £2.10

  81 Bolt CO26800607701
Bolt
Out of stock
£2.62 £2.18

  82 Cable Fixed Block CO25233600102
Cable Fixed Block
Out of stock
£2.62 £2.18

  83 Throttle Handle CO29100108101
Throttle Handle
Out of stock
£11.32 £9.43

  84 Bolt CO26800603601
Bolt
Out of stock
£2.52 £2.10

  85 Upper Handle CO23600163001
Upper Handle
Out of stock
£20.72 £17.27

  86 Drive Handle CO23600164101
Drive Handle
Out of stock
£8.36 £6.97

  87 Opc Lever CO23600163601
Opc Lever
Out of stock
£5.26 £4.38

  88 Collection Bag CO25100137317
Collection Bag
Out of stock
£24.25 £20.21

  89 Collection Bag Support CO26300319801
Collection Bag Support
Out of stock
£16.99 £14.16

  90 Rear Cover CO25207800101
Rear Cover
Out of stock
£6.35 £5.29

  91 Wrench CO26300107801
Wrench
Out of stock
£2.52 £2.10

  92 Wrench Handle CO26300107901
Wrench Handle
Out of stock
£2.52 £2.10


Description

Cobra M40SPC Rotary Mower Parts Diagram
