Cobra M40SPB - 16" Self Propelled Main Diagram

Name: Cobra M40SPB - 16" Self Propelled Main Diagram
SKU: m40spb_16_self_propelled_main-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra M40SPB - 16" Self Propelled Main Diagram

Description

Cobra M40SPB Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800606501 In stock	Blade Locking Bolt	£2.40 £2.00
2	CO26300107302 Available to backorder	Dishing Washer	£2.40 £2.00
3	CO26300267001 Available to backorder	Blade	£15.60 £13.00
4	CO26300152502 Available to backorder	Blade Support	£7.20 £6.00
5	CO26900209101 Available to backorder	Blade Support Bush	£2.52 £2.10
6	CO26809000201 In stock	Flat Pin	£2.40 £2.00
7	CO26800300502 Available to backorder	Screw	£1.26 £1.05
8	CO26300400202 Available to backorder	Driving Belt Wheel	£6.38 £5.32
9	CO25100202002 Available to backorder	Triangle Belt	£8.38 £6.98
10	CO26800103701 Available to backorder	Self-Driving Screw	£1.44 £1.20
11	CO26800202001 Available to backorder	Tooth Screw	£1.26 £1.05
12	CO25211800101 Available to backorder	Belt Protecting Cover	£6.50 £5.42
13	CO26800502401 Available to backorder	Locking Nut	£1.26 £1.05
14	CO23600304501 Available to backorder	Wheel Cover -1	£2.62 £2.18
15	CO26800502801 Available to backorder	Nut	£1.44 £1.20
16	CO26800401601 Available to backorder	Bearing	£4.00 £3.33
17	CO25318800101 Available to backorder	Wheel Assy	£11.40 £9.50
18	CO25319000101 Available to backorder	Dustproof Wheel Cover	£2.52 £2.10
19	CO26800100501 Available to backorder	Self-Driving Screw	£1.26 £1.05
20	CO26800706202 Available to backorder	Wave Washer	£2.52 £2.10
21	CO26300115401 Available to backorder	Fixed Axle Wire	£2.62 £2.18
22	CO26300115501 Available to backorder	Front Wheel Axis Assy	£16.99 £14.16
23	CO25202600101 In stock	Front Wheel Axle Fixing Ring	£2.40 £2.00
24	CO26300118902 Available to backorder	Frat Washer	£2.40 £2.00
25	CO26809003801 Available to backorder	Open Block Pin	£2.52 £2.10
26	CO25208000102 Available to backorder	Dustproof Wheel Cover	£2.52 £2.10
27	CO25229900102 Available to backorder	Wheel Gear Ring	£5.52 £4.60
28	CO25400202003 Available to backorder	Wheel Assy	£14.47 £12.06
29	CO23600304601 Available to backorder	Wheel Cover -1	£2.82 £2.35
30	CO26300150001 Available to backorder	Connecting Rod	£7.45 £6.21
31	CO26801102201 Available to backorder	Connecting Rod Spring	£2.99 £2.49
32	CO25217800104 Available to backorder	Cord Protceting Sheath	£2.52 £2.10
34	CO25214200102 Available to backorder	Quadrant	£2.52 £2.10
35	CO26800201901 Available to backorder	Tooth Screw	£1.20 £1.00
36	CO26300124401 In stock	Axle Fixing Ring	£2.40 £2.00
37	CO26800900201 Available to backorder	Open Block Ring	£2.40 £2.00
38	CO26900300103 In stock	Left Output Gear Assy	£7.00 £5.83
39	CO26800705102 In stock	Frat Washer	£2.40 £2.00
40	CO26800402301 Available to backorder	Bearing	£2.64 £2.20
41	CO26900203103 Available to backorder	Bearing Sleeve	£3.00 £2.50
42	CO26809000102 In stock	Column Pin	£2.40 £2.00
43	CO23000534301 In stock	43A Gearbox Spring	£2.40 £2.00
43	CO23050203301 Available to backorder	Adjustment Box Assy	£51.48 £42.90
44	CO26900300202 In stock	Right Output Gear Assy	£7.00 £5.83

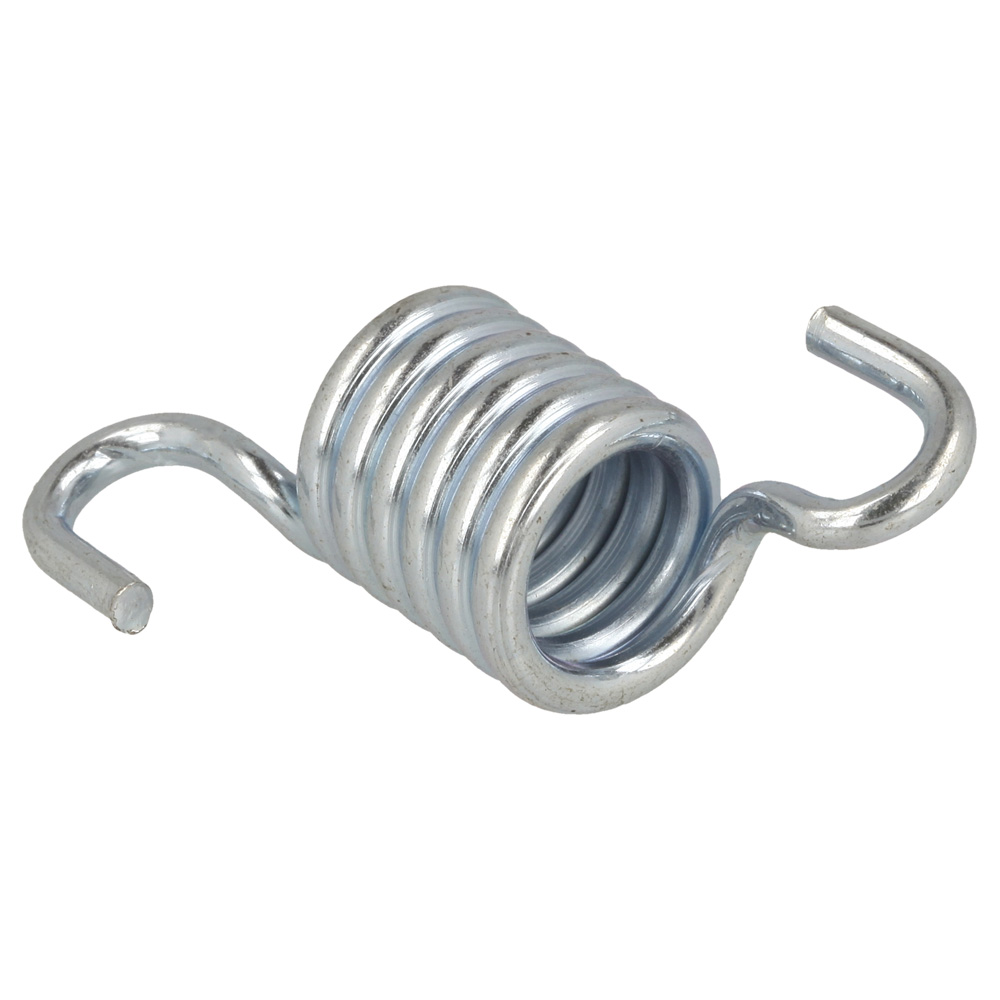

45	CO26801113402 Available to backorder	Gearbox Tension Spring	£2.40 £2.00
46	CO26800900301 Available to backorder	E Clip	£2.40 £2.00
47	CO26300114901 Available to backorder	Rear Wheel Axis Assy	£16.21 £13.51
48	CO26300107601 Available to backorder	Adjusting Washer	£2.52 £2.10
49	CO26300115003 Available to backorder	Handle Assy	£3.36 £2.80
50	CO25500103201 Available to backorder	Handle Sheath	£4.44 £3.70
51	CO26800606401 Available to backorder	Bolt	£2.62 £2.18
52	CO26800903502 Available to backorder	Bearing Clamp	£2.52 £2.10
53	CO23600103902 Available to backorder	Handle Right Plank	£4.26 £3.55
54	CO26801110101 Available to backorder	Tension Spring Of Raer Cover	£2.52 £2.10
55	CO26300171301 Available to backorder	Long Rod	£2.40 £2.00
56	CO23600103802 Available to backorder	Handle Leftt Plank	£4.26 £3.55
57	CO26800602501 Available to backorder	Bolt	£2.52 £2.10
58	CO26300210602 Available to backorder	Square Washer	£2.52 £2.10
60	CO26800501502 Available to backorder	Lid Nut	£1.20 £1.00
61	CO26800800202 Available to backorder	Spring Washer	£2.52 £2.10
62	CO26800700701 Available to backorder	Flat Washer	£2.40 £2.00
63	CO26800601903 Available to backorder	Bolt	£2.62 £2.18
64	CO26300177201 Available to backorder	Down Handle Rod	£15.04 £12.53
65	CO25261100101 Available to backorder	Cable Clip	£2.52 £2.10
66	CO26809004801 Available to backorder	Column Pin	£2.40 £2.00
67	CO25202800102 Available to backorder	Locking Handle	£2.52 £2.10
68	CO26300142002 Available to backorder	Press Board	£2.62 £2.18
69	CO26300124501 Available to backorder	Bolt	£2.62 £2.18
70	CO26800500801 Available to backorder	Locking Bolt	£1.26 £1.05
71	CO29100117201 Available to backorder	Frame Out Cord Assy	£10.06 £8.38
72	CO29100116102 In stock	Driven Cord Assy	£10.80 £9.00
73	COA26800501603 Available to backorder	Lid Nut	£1.20 £1.00
74	CO26800800303 Available to backorder	Spring Washer	£2.40 £2.00
75	CO26800700801 Available to backorder	Flat Washer	£1.20 £1.00
76	CO26300168401 Available to backorder	Cable Hook	£2.52 £2.10
77	CO26800607701 Available to backorder	Bolt	£2.62 £2.18
78	CO25233600101 Available to backorder	Cord Fixed Board	£2.40 £2.00
79	CO29100132301 Available to backorder	Choke Handle Assy	£10.80 £9.00
80	CO26800603601 Available to backorder	Bolt	£2.62 £2.18
81	CO23600163001 Available to backorder	Upper Handle	£20.72 £17.27

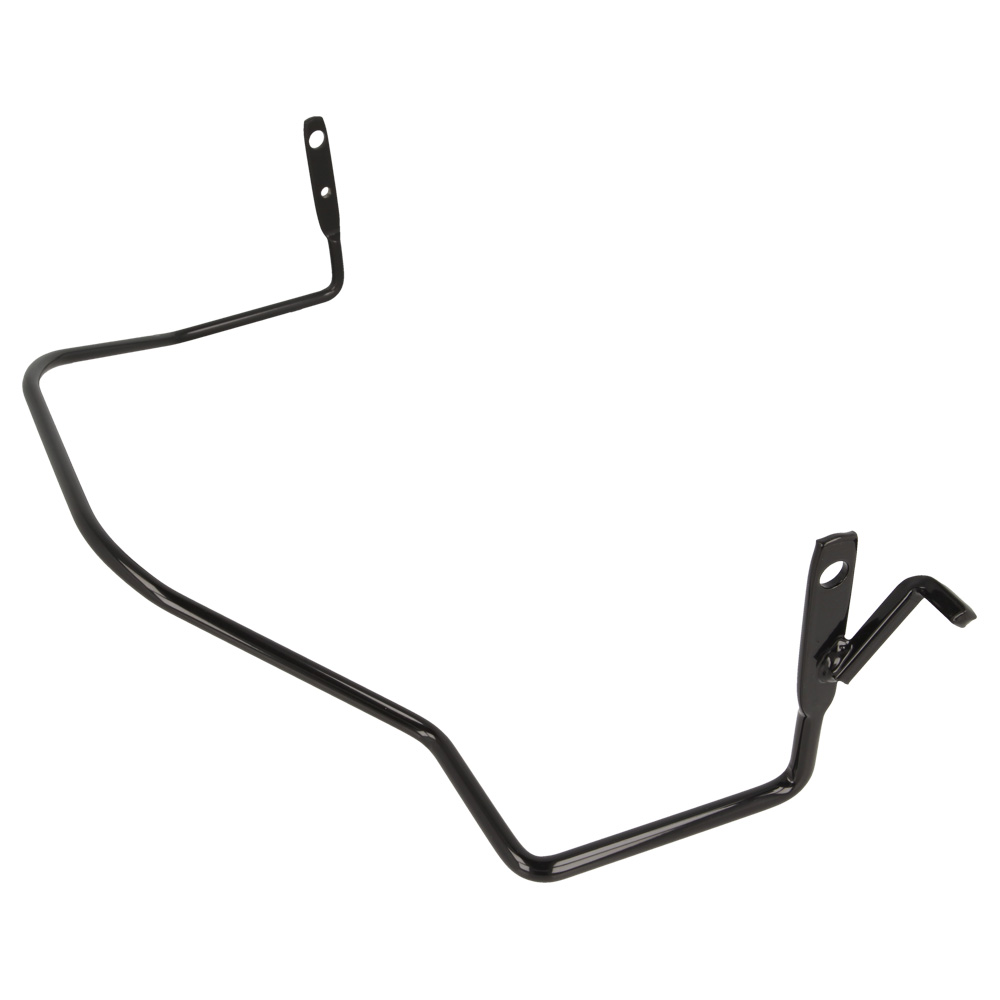

82	CO23600164101 Available to backorder	Drive Pulling Rod	£7.96 £6.63
83	CO23600163601 Available to backorder	Opc Lever	£5.00 £4.17
84	CO25100137302 Available to backorder	Collection Bag	£20.44 £17.03
85	CO26300116102 Available to backorder	Collection Bag Plank	£17.38 £14.48
86	CO25207800101 Available to backorder	Rear Cover	£6.35 £5.29
87	CO26300161201 Available to backorder	Wrench	£2.52 £2.10
88	CO26300107901 Available to backorder	Wrench Rod	£2.52 £2.10
