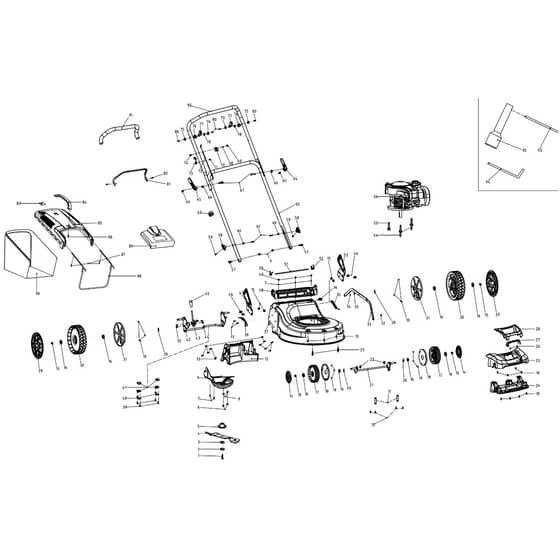

Cobra M40CVX Rotary Mower Parts Diagram

	Part No.	Details
1	CO2105300159A Available to backorder	Blade Fastening Bolt	£1.88 £1.57
2	CO2105300001C Available to backorder	Belleville Washers	£2.48 £2.07
3	CO2105200367A Available to backorder	Friction Knife Holder Pressure Plate	£2.88 £2.40

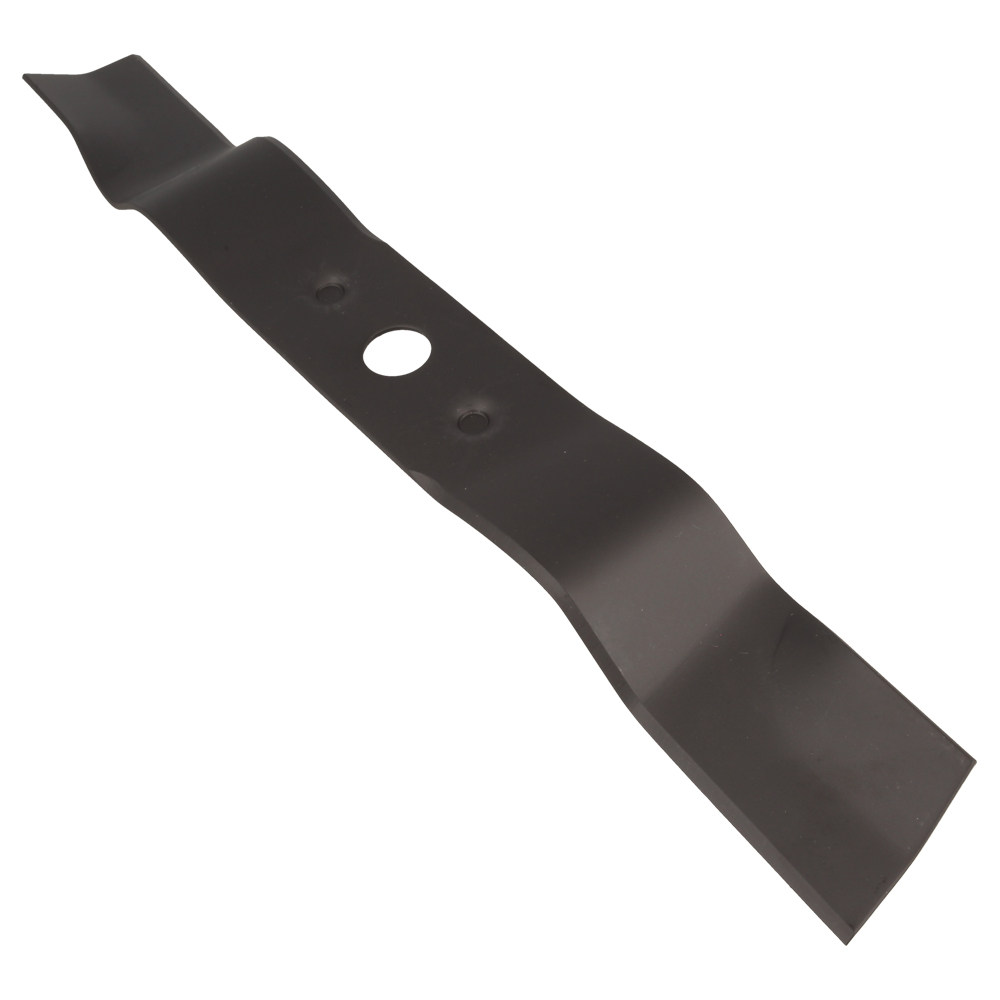

4	CO21052003392000A Available to backorder	Blade	£16.12 £13.43
5	CO2105500009A Available to backorder	Stamping Knife Seat	£9.58 £7.98
6	CO3031309002 Available to backorder	Hexagon Lock Nut	£5.15 £4.29
7	COA26800105502 Available to backorder	Self-Tapping Screws	£1.24 £1.03
8	CO3051303001 Available to backorder	Flat Washers	£1.24 £1.03
9	CO21041011820001A Available to backorder	Belt Guard	£3.89 £3.24
10	CO3011301013 Available to backorder	Self-Tapping Screws	£1.24 £1.03
11	CO2101200094A Available to backorder	Front Axle Fixing Plate	£1.24 £1.03
12	CO21071001450001A Available to backorder	Grass Outlet Bracket	£14.38 £11.98
13	CO3011301029 Available to backorder	Cross Recessed Pan Head Self Tapping Screws	£1.24 £1.03
14	CO21011002970006N Available to backorder	6 Inch Wheel Cover	£2.40 £2.00
15	CO30323060035000 Available to backorder	Hexagon Flange Lock Nut	£1.24 £1.03
16	CO2101300065A Available to backorder	Angular Bearings	£4.14 £3.45
17	CO21011001710001A Available to backorder	6-Inch Plastic Wheels	£6.94 £5.78

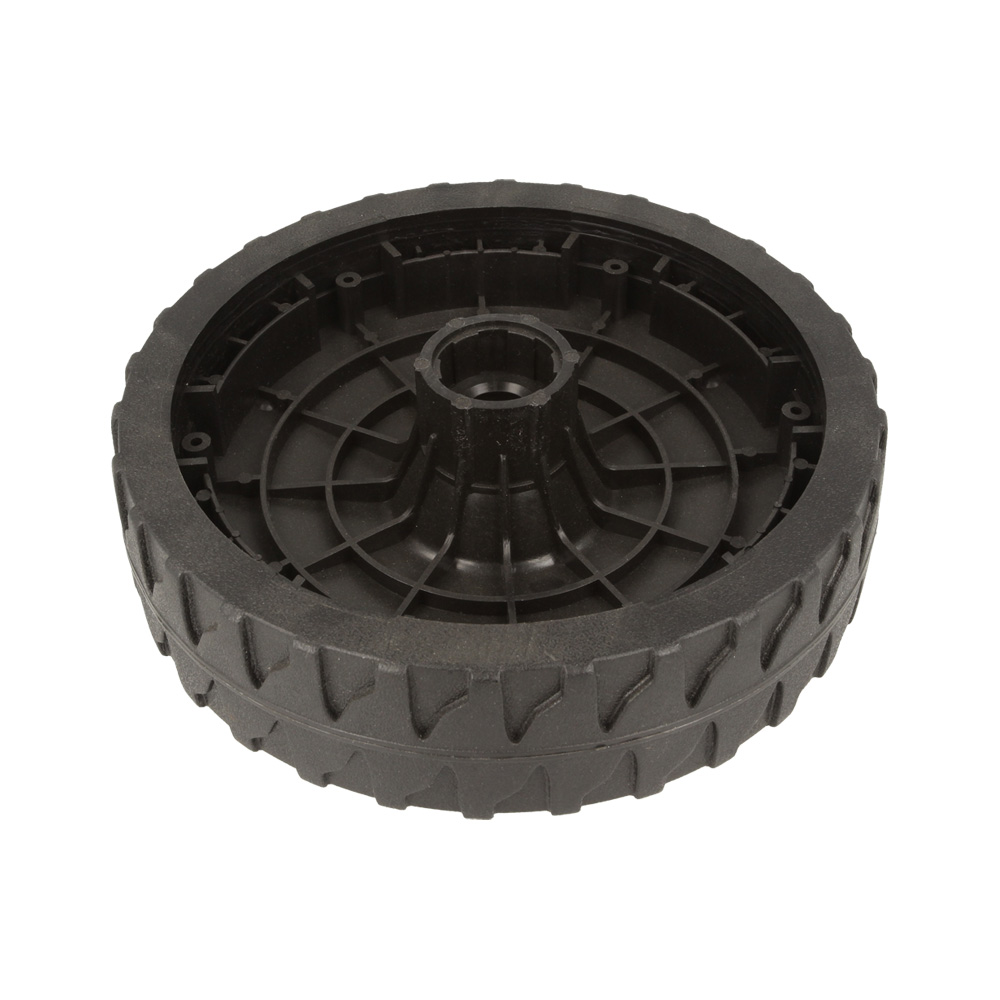

18	CO21011001730001A Available to backorder	6 Inch Dustproof Wheel Cover	£4.01 £3.34
19	CO3011301010 Available to backorder	Self-Tapping Screws	£1.24 £1.03
20	CO26800706202 In stock	Wave Washers	£2.48 £2.07
21	CO2101300250A Available to backorder	Front Axle Assembly	£18.17 £15.14
22	CO2101800009A Available to backorder	Shock Absorber Spring	£1.24 £1.03
23	CO3011305003 Available to backorder	Hexagon Flange Tapping Screws	£1.24 £1.03
24	CO21041012060108B Available to backorder	Mask Base	£7.34 £6.12
25	CO21041012030006A Available to backorder	Head Mask	£7.80 £6.50
26	CO3011301018 Available to backorder	Self-Tapping Screws	£1.24 £1.03
27	CO21041012090006A Available to backorder	Handle Cover	£1.43 £1.19
28	CO21041012040006A Available to backorder	Mask Handle	£3.04 £2.53
29	CO21011002980006N Available to backorder	8 Inch Wheel Cover	£2.88 £2.40
30	CO21011000900001C Available to backorder	Wheel	£9.91 £8.26
31	CO21011001460001A Available to backorder	Dustproof Wheel Cover	£3.12 £2.60
32	CO30313090035000 Available to backorder	Hexagon Lock Nut	£1.24 £1.03
33	CO2106201261A Available to backorder	Link	£8.48 £7.07
34	COA26800705001 Available to backorder	Wave Washers	£1.24 £1.03
35	CO2109800285A Available to backorder	Connecting Rod Tension Spring	£1.78 £1.48
36	CO2109600021A Available to backorder	Plug	£1.24 £1.03
38	CO2106201262A Available to backorder	Shift Plate	£3.14 £2.62
39	COA26800104301 Available to backorder	Self-Tapping Screws	£1.24 £1.03
40	CO2101200085A Available to backorder	Axle Fixing Plate	£1.32 £1.10
41	CO21091000633201A Available to backorder	Axle Bushing	£1.24 £1.03
42	CO2101500301A Available to backorder	Rear Axle Assembly	£17.71 £14.76
43	CO2106201263A Available to backorder	Handle Assembly	£5.05 £4.21
44	COA26800203001A Available to backorder	Cross Recessed Pan Head Screws	£1.24 £1.03
45	CO21061008530001A Available to backorder	Handle Gloves	£1.72 £1.43
46	CO30913070165000 Available to backorder	Hexagonal Flange Bolts	£1.24 £1.03
47	CO21062012640108A Available to backorder	Armrest Right Bracket	£6.25 £5.21
48	CO21041011720001A Available to backorder	Rear Cover Plate (Dym1634-02)	£2.63 £2.19
49	CO2109600031A Available to backorder	Plug	£1.24 £1.03
50	CO2109800286A Available to backorder	Right-Hand Torsion Spring	£1.24 £1.03
51	CO2109300271A Available to backorder	Long Pole	£2.14 £1.78
52	CO2109800287A Available to backorder	Left-Hand Torsion Spring	£1.24 £1.03
53	CO21062012650108A Available to backorder	Armrest Left Bracket	£6.41 £5.34
54	CO2109900067A Available to backorder	Special Bolts	£1.94 £1.62
55	CO2109900066A Available to backorder	Triangular Self-Tapping Bolts	£1.24 £1.03

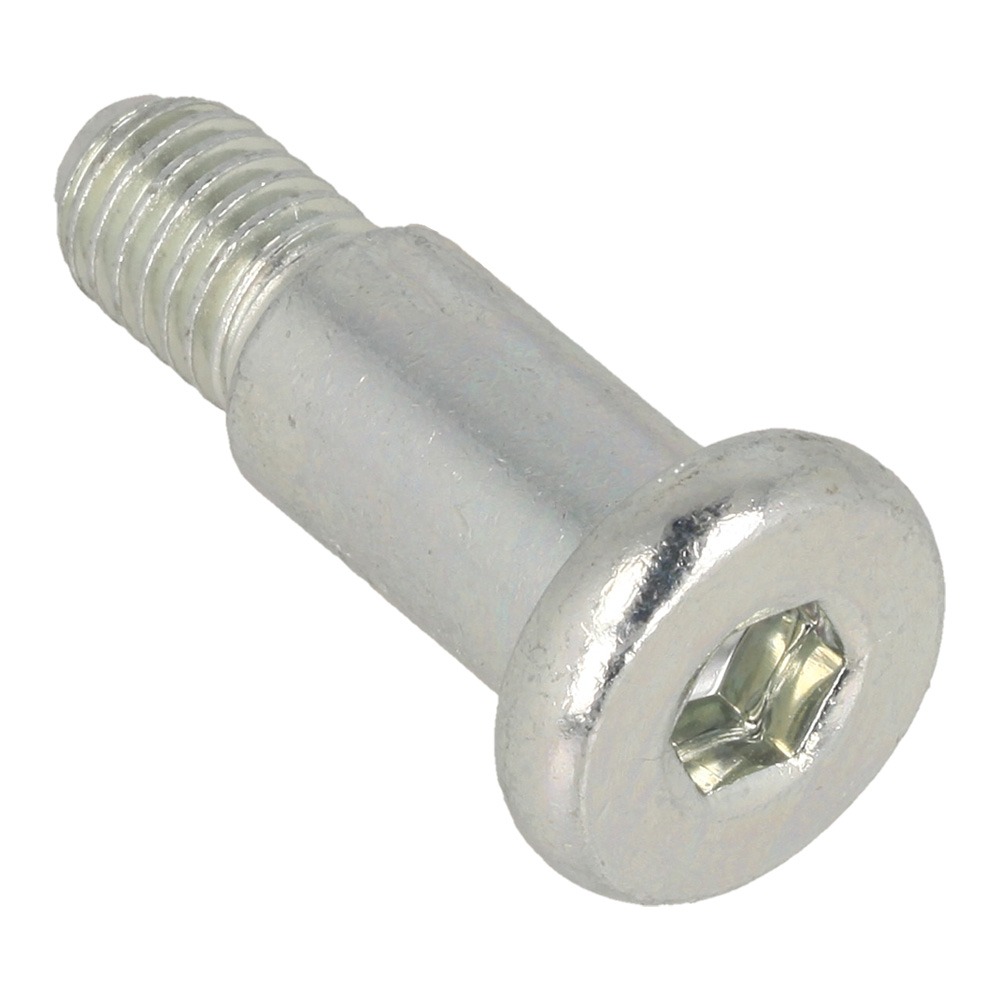

57	CO2106300422A Available to backorder	Lower Handrail Screw	£1.66 £1.38
58	CO21041007290108B Available to backorder	Locking Knob	£1.32 £1.10
59	CO2106300258A Available to backorder	Cylindrical Pins	£1.24 £1.03
60	CO2109800200A Available to backorder	Lower Armrest Spring	£1.24 £1.03
61	CO2106300416A Available to backorder	Pin	£2.14 £1.78
62	CO21063005260001A Available to backorder	Lower Handrail	£19.37 £16.14
63	CO21061000013201A Available to backorder	Cable Clip	£2.48 £2.07
64	CO2109300018C In stock	Quick Wrench Shaft	£1.28 £1.07
65	CO21061007230108A Available to backorder	Locking Handle	£2.14 £1.78
66	CO30512050025000 Available to backorder	Large Washer	£1.24 £1.03
67	CO2106300348A Available to backorder	Flat Head Bolts	£1.78 £1.48

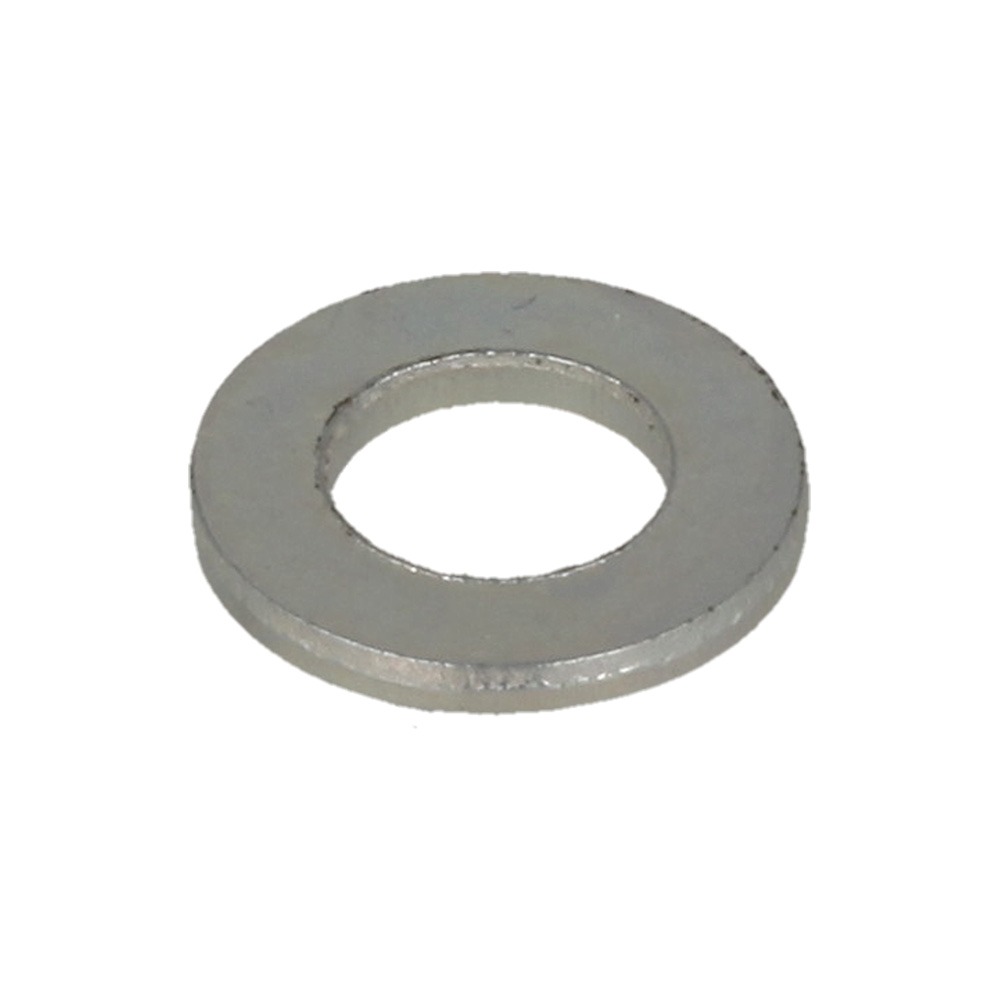

68	CO3051303003 Available to backorder	Flat Washers	£1.24 £1.03
69	CO26800501603 In stock	Cap Nut	£1.28 £1.07
70	CO21061000043201A In stock	Cable Fixing Block	£2.58 £2.15
71	CO3031309009 Available to backorder	Hexagon Lock Nut	£1.24 £1.03
72	CO2106800895A Available to backorder	Flame-Out Cable Assembly	£6.41 £5.34
73	CO2106300288A Available to backorder	Hanging Hook	£1.24 £1.03
74	CO3091307003 Available to backorder	Hexagon Flange Bolts	£1.24 £1.03
75	CO21061001113201N Available to backorder	Curved Gasket	£1.24 £1.03
76	CO21061007140001A Available to backorder	Tie Rod Bracket	£1.24 £1.03
77	CO21061005993201A Available to backorder	Self-Propelled Cable Hanging Block	£1.43 £1.19
78	CO21061007300001A Available to backorder	Tie Rod Bracket Washer	£1.24 £1.03
79	CO21061007290001A Available to backorder	Tie Rod Bracket Cover	£1.24 £1.03
80	CO3011301006 Available to backorder	Self-Tapping Screws	£1.24 £1.03
81	CO21062012860108A Available to backorder	Flame-Out Lever	£6.25 £5.21
82	CO2109300058A Available to backorder	Self-Tapping Screws	£1.24 £1.03
83	CO21071000080108A In stock	Wind Window Plate	£2.58 £2.15
84	CO21071000730001N Available to backorder	Grass Basket Handle	£2.48 £2.07
85	CO21071000740001A Available to backorder	Grass Basket Cover	£16.49 £13.74
86	CO3011301004 Available to backorder	Self-Tapping Screws	£1.24 £1.03
87	CO3011301005 Available to backorder	Self-Tapping Screws	£1.24 £1.03
88	CO2107200061A Available to backorder	Grass Bag Holder	£11.75 £9.79
89	CO21041003310001B Available to backorder	Rear Cover	£11.57 £9.64
90	CO21077000842006A Available to backorder	Grass Bag	£26.92 £22.43
91	CO2106100320A Available to backorder	Handrail Cover	£5.80 £4.83
92	CO21063005270001A Available to backorder	Upper Handrail	£22.74 £18.95
93	CO2012100004A Available to backorder	Socket Wrench Bar	£2.48 £2.07
94	CO2129300010A Available to backorder	Hexagon Wrench	£2.88 £2.40
95	CO2012200002A Available to backorder	Socket Wrench	£2.48 £2.07
