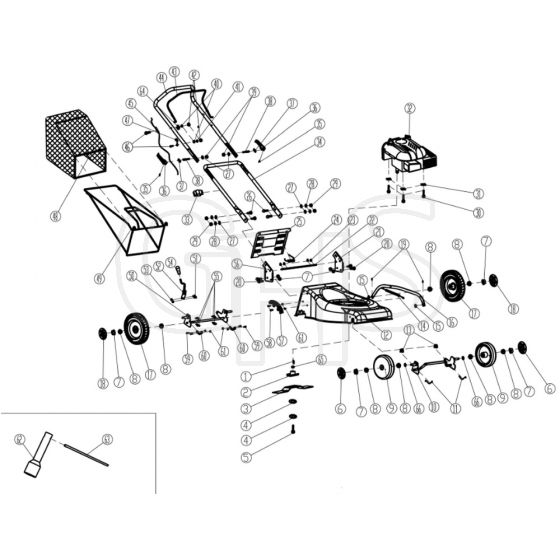

Cobra M40C Rotary Mower Parts Diagram

	Part No.	Details
1	CO26809000201 In stock	Flat Washer	£2.58 £2.15
2	CO2105200251A In stock	Blade Support	£7.70 £6.42
2	CO26300168101 In stock	Blade Support	£7.70 £6.42
3	CO26300100401 In stock	16“ Blade	£16.69 £13.91
3	CO21052003052000A In stock	Blade	£16.69 £13.91
4	CO26300107302 In stock	Dishing Washer	£2.58 £2.15
4	CO2105200245A In stock	Pressing Plate Of Blade	£2.58 £2.15
5	CO26800606201 In stock	Blade Locking Bolt	£2.58 £2.15
6	CO25230400201 Available to backorder	7”Wheel Cover-4	£2.48 £2.07
7	CO26800502801 Available to backorder	Nut	£1.24 £1.03
8	CO25207900101 Available to backorder	Shaft Sleeve	£2.48 £2.07
9	CO25230800101 Available to backorder	6“Idler Wheel-3	£11.77 £9.81
10	CO26300115501 Available to backorder	Front Wheel Axis Assy	£16.74 £13.95
11	CO26300115401 Available to backorder	Front Wheel Axis Fixing Steel Wire	£2.48 £2.07
13	CO25202600101 In stock	Front Wheel Axis Fixed Ring	£2.58 £2.15
14	CO26801102201 Available to backorder	Connecting Rod Spring	£2.94 £2.45
15	CO26300118901 Available to backorder	Flat Washer	£2.48 £2.07
16	CO26300150001 Available to backorder	Connecting Rod	£7.34 £6.12
17	CO25230200101 Available to backorder	8"Front Wheel -3	£14.26 £11.88
18	CO25230600201 Available to backorder	8"Wheel Cover-4	£2.48 £2.07
19	CO26809003801 Available to backorder	Open Block Ring	£2.48 £2.07
20	CO26800606401 Available to backorder	Hexagon Flange Bolt	£2.48 £2.07
21	CO23600103802 Available to backorder	Left Handle Blacket	£4.20 £3.50
22	CO26300115801 Available to backorder	Long Rod	£2.48 £2.07
23	CO26800903501 Available to backorder	Bearing Clamp	£2.48 £2.07
25	CO25207800101 Available to backorder	Rear Cover	£6.25 £5.21
26	CO26800601902 Available to backorder	Bolt	£2.48 £2.07
27	CO26800700701 Available to backorder	Flate Washer	£2.48 £2.07
28	CO26800800201 Available to backorder	Spring Washer	£2.48 £2.07
29	CO26800501501 Available to backorder	Lid Nut	£1.24 £1.03
30	CO26800601701 Available to backorder	Hexagon Bolt	£2.48 £2.07
31	CO26300210602 Available to backorder	Square Washer	£2.48 £2.07
33	CO25217700101 Available to backorder	Wire Clamp	£2.48 £2.07
34	CO26300146901 Available to backorder	Lower Handle Pole	£17.03 £14.19
35	CO26809002701 Available to backorder	Column Pin	£2.48 £2.07
36	CO25202800102 Available to backorder	Locking Handle	£2.48 £2.07
37	CO26300142001 Available to backorder	Pressing Plate	£2.48 £2.07
38	CO26300124501 Available to backorder	Locking Handle Bolt	£2.48 £2.07
39	CO26800500801 Available to backorder	Hexagon Locking Bolt	£1.24 £1.03
40	CO26800700801 In stock	Flate Washer	£1.28 £1.07
41	CO26800800301 Available to backorder	Spring Washer	£2.48 £2.07
42	CO26800501601 Available to backorder	Lid Nut	£1.24 £1.03
43	CO23600163601 Available to backorder	Flameout Pulling Pole	£5.17 £4.31
44	CO26300164001 Available to backorder	Upper Handle Pole	£20.42 £17.02
45	CO29100115801 In stock	Flameout Cord Assy	£10.27 £8.56
46	CO26800607701 Available to backorder	Hexagon Flange Bolt	£2.48 £2.07
47	CO26300164701 Available to backorder	Rope Guide	£2.48 £2.07
48	CO25100142001 Available to backorder	Grass Catcher	£23.89 £19.91
49	CO26300147001 Available to backorder	Grass Catcher Bracket	£17.98 £14.98
50	CO26300120101 Available to backorder	Rear Wheel Axis Assy	£15.97 £13.31
51	CO26800202902 Available to backorder	Tooth Screw	£2.48 £2.07
52	CO26300152201 Available to backorder	Handle Assy	£3.64 £3.03
53	CO26800501101 Available to backorder	Hexagon Locking Bolt	£1.24 £1.03
54	CO25202900101 Available to backorder	Handle Sheath	£4.54 £3.78
55	CO25235300101 Available to backorder	Wheel Axis Sheath	£2.48 £2.07
56	CO23600103902 Available to backorder	Right Handle Blacket	£4.20 £3.50
57	CO25214200102 Available to backorder	Quadrant	£2.48 £2.07
58	CO26800202001 Available to backorder	Tooth Screw	£1.24 £1.03
59	CO26800201901 Available to backorder	Tooth Screw	£1.24 £1.03
60	CO26300124401 In stock	Rear Wheel Axis Fixed Ring	£2.58 £2.15
61	CO26800502401 Available to backorder	Hexagon Flange Locking Bolt	£1.24 £1.03
62	CO26300107801 Available to backorder	Wrench	£2.48 £2.07
63	CO26300107901 Available to backorder	Wrench Pole	£2.48 £2.07
64	CO25233600101 In stock	Cord Fixing Board	£2.58 £2.15
65	CO26300158701 Available to backorder	Blade Support Bush	£2.48 £2.07
66	CO26800703601 Available to backorder	Wave Washer	£2.48 £2.07
