Cobra M40B - 16" Push Main Diagram

Name: Cobra M40B - 16" Push Main Diagram
SKU: m40b_16_push_main-group
Price: 1.03 GBP
Availability: InStock

Part No. m40b_16_push_main-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

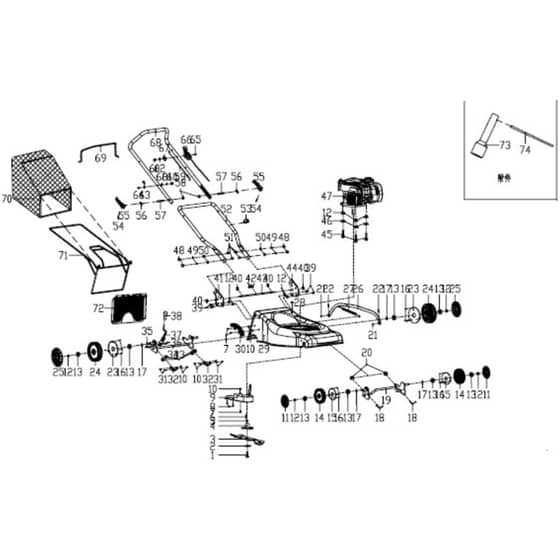

Cobra M40B Rotary Mower Parts Diagram

	Part No.	Details
1	CO26800606501 Available to backorder	Blade Locking Bolt	£2.58 £2.15
2	CO26300107302 In stock	Dishing Washer	£2.58 £2.15
3	CO26300267001 In stock	Blade	£16.69 £13.91
4	CO26300152502 In stock	Blade Support	£7.70 £6.42
5	CO26900209101 Available to backorder	Blade Support Bush	£2.48 £2.07
6	CO26809000201 In stock	Flat Pin	£2.58 £2.15
7	CO26800103701 In stock	Self-Driving Screw	£1.28 £1.07
8	CO26800202001 Available to backorder	Tooth Screw	£1.24 £1.03
9	CO25211800101 In stock	Belt Protecting Cover	£6.96 £5.80
10	CO26800502401 Available to backorder	Bolt	£1.24 £1.03

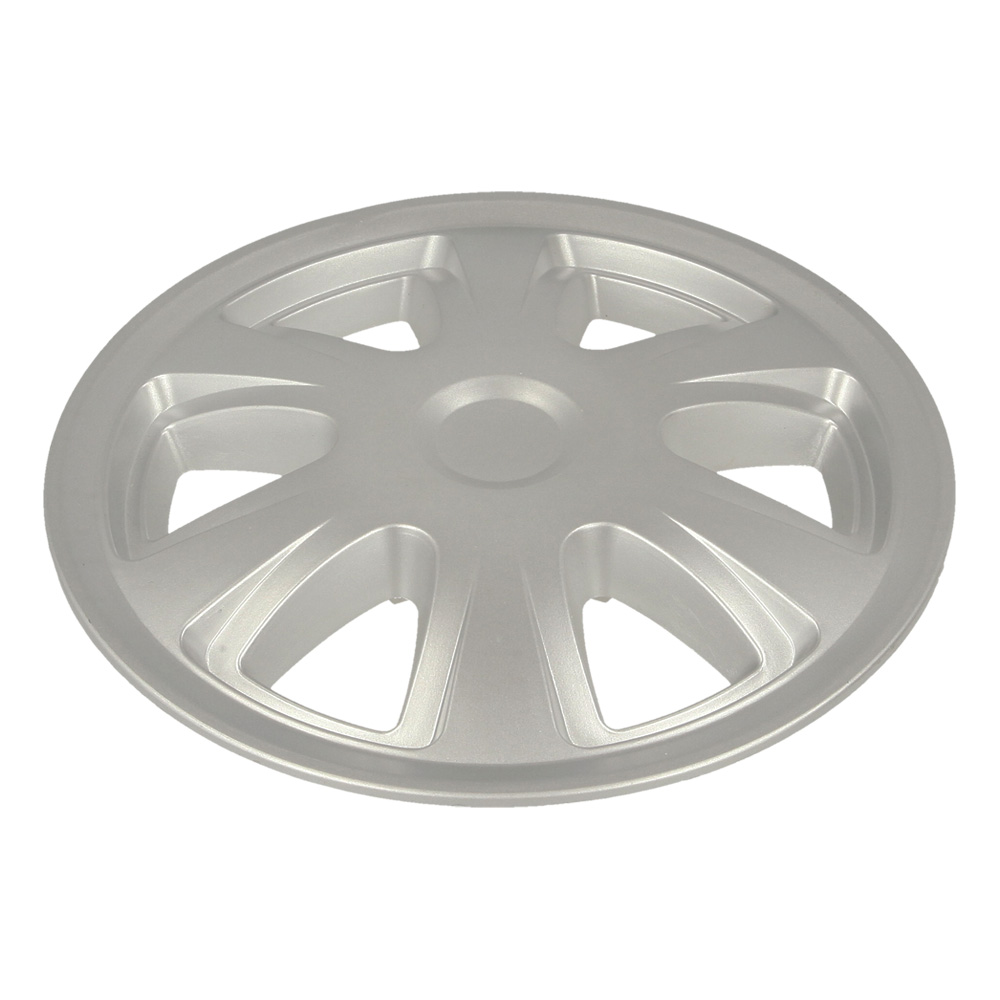

11	CO23600304501 Available to backorder	Wheel Cover -1	£2.48 £2.07
12	CO26800502801 Available to backorder	Bolt	£1.24 £1.03
13	CO26800401601 In stock	Bearing	£4.30 £3.58
14	CO25318800101 Available to backorder	Wheel Assy	£11.77 £9.81
15	CO25319000101 Available to backorder	Dustproof Wheel Cover	£2.48 £2.07
16	CO26800100501 In stock	Self-Driving Screw	£1.28 £1.07
17	CO26800706202 In stock	Wave Washer	£2.48 £2.07

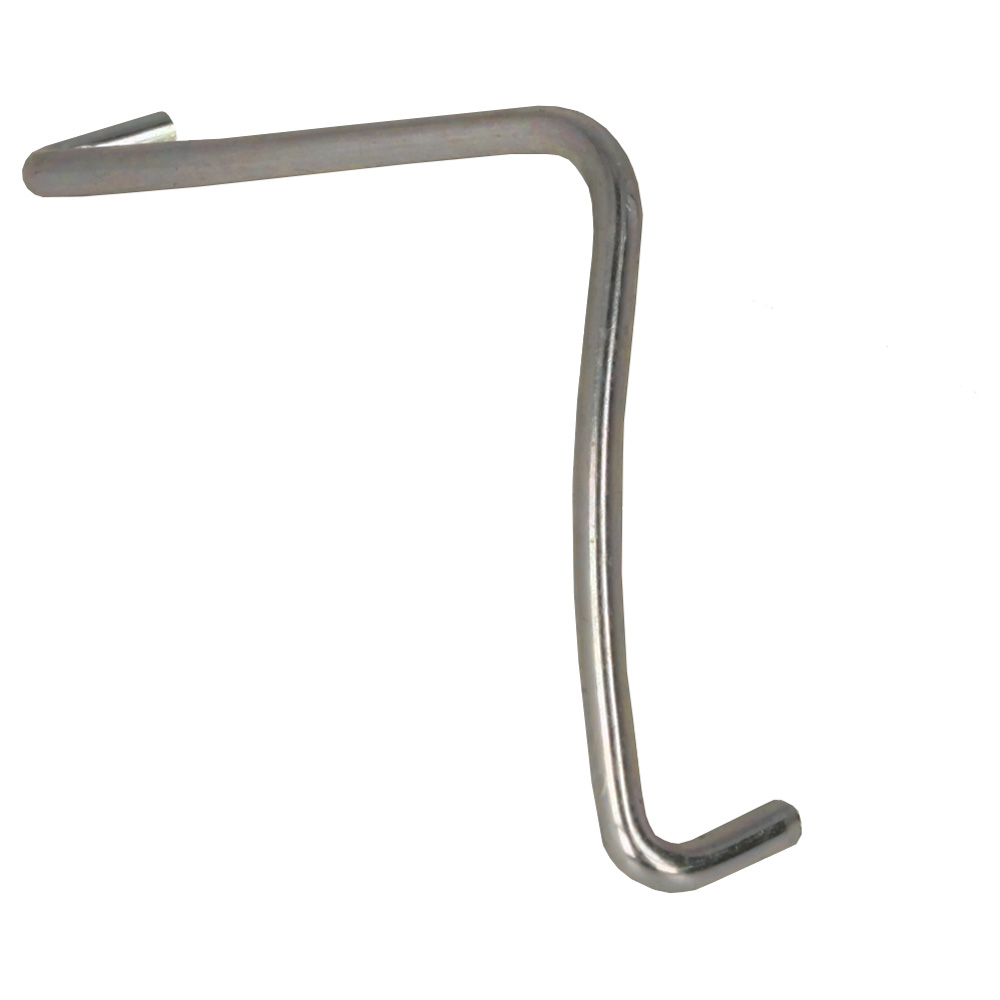

18	CO26300115401 Available to backorder	Fixed Axle Wire	£2.48 £2.07
19	CO26300115501 Available to backorder	Front Wheel Axis Assy	£16.74 £13.95
20	CO25202600101 In stock	Front Wheel Axis Fixing Ring	£2.58 £2.15
21	CO26300118902 Available to backorder	Frat Washer	£2.48 £2.07
22	CO26809003801 Available to backorder	Open Block Pin	£2.48 £2.07
23	CO25287100101 Available to backorder	Dustproof Wheel Cover	£3.40 £2.83

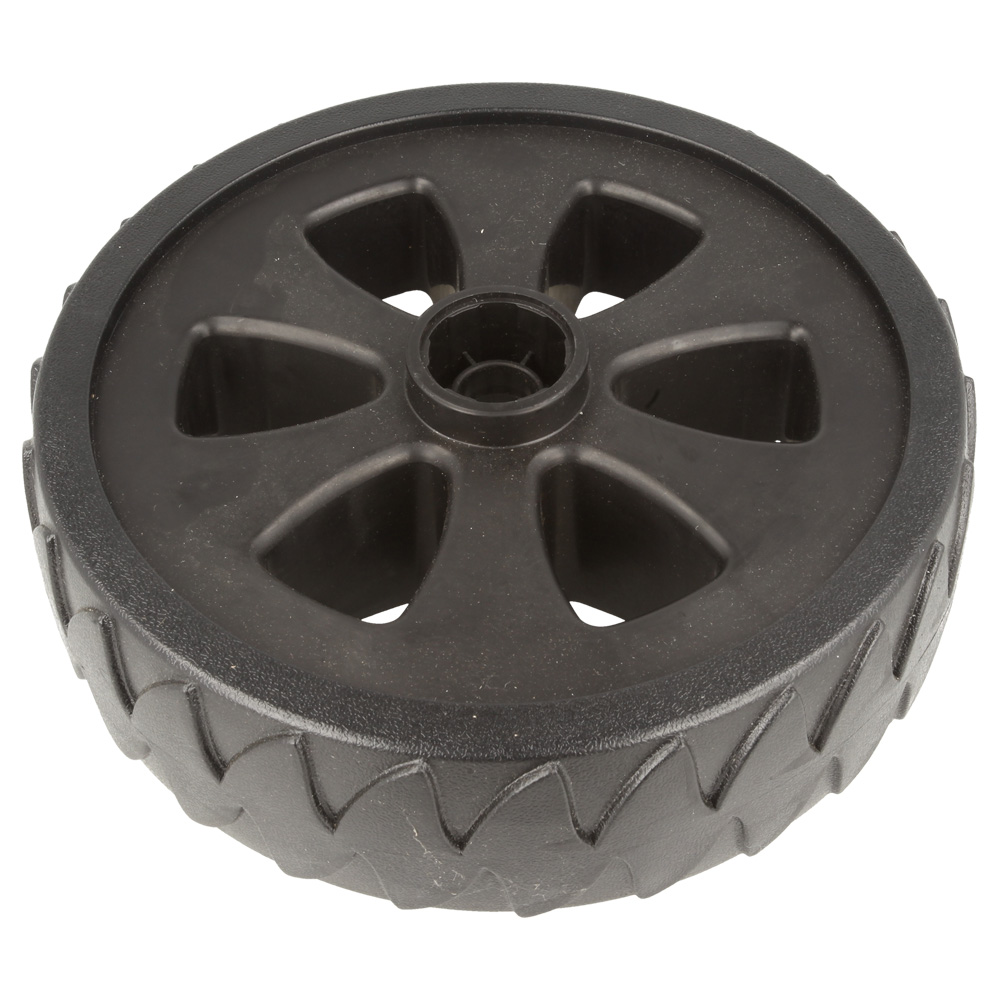

24	CO25400200802 Available to backorder	Wheel Assy	£15.94 £13.28
25	CO23600304601 Available to backorder	Wheel Cover -1	£2.48 £2.07
26	CO26300150001 Available to backorder	Connecting Rod	£7.34 £6.12
27	CO26801102201 Available to backorder	Connecting Rod Spring	£2.94 £2.45
28	CO25217800104 Available to backorder	Cord Protceting Sheath	£2.48 £2.07
30	CO25214200102 Available to backorder	Quadrant	£2.48 £2.07
31	CO26800201901 Available to backorder	Tooth Screw	£1.24 £1.03
32	CO26300124401 In stock	Axle Fixing Ring	£2.58 £2.15
33	CO25235300101 Available to backorder	Wheel Axis Sheath	£2.48 £2.07
34	CO26300120101 Available to backorder	Rear Wheel Axis Assy	£15.97 £13.31
35	CO26800202902 Available to backorder	Tooth Screw	£2.48 £2.07
36	CO26800501101 Available to backorder	Locking Nut	£1.24 £1.03
37	CO26300124602 Available to backorder	Hand Assy	£3.40 £2.83
38	CO25500103201 Available to backorder	Hand Sheath	£4.54 £3.78
39	CO26800606401 Available to backorder	Bolt	£2.48 £2.07
40	CO26800903502 Available to backorder	Bearing Clamp	£2.48 £2.07
41	CO23600103902 Available to backorder	Handle Right Plank	£4.20 £3.50
42	CO26801110101 Available to backorder	Torsional Spring Of Rear Cover	£2.48 £2.07

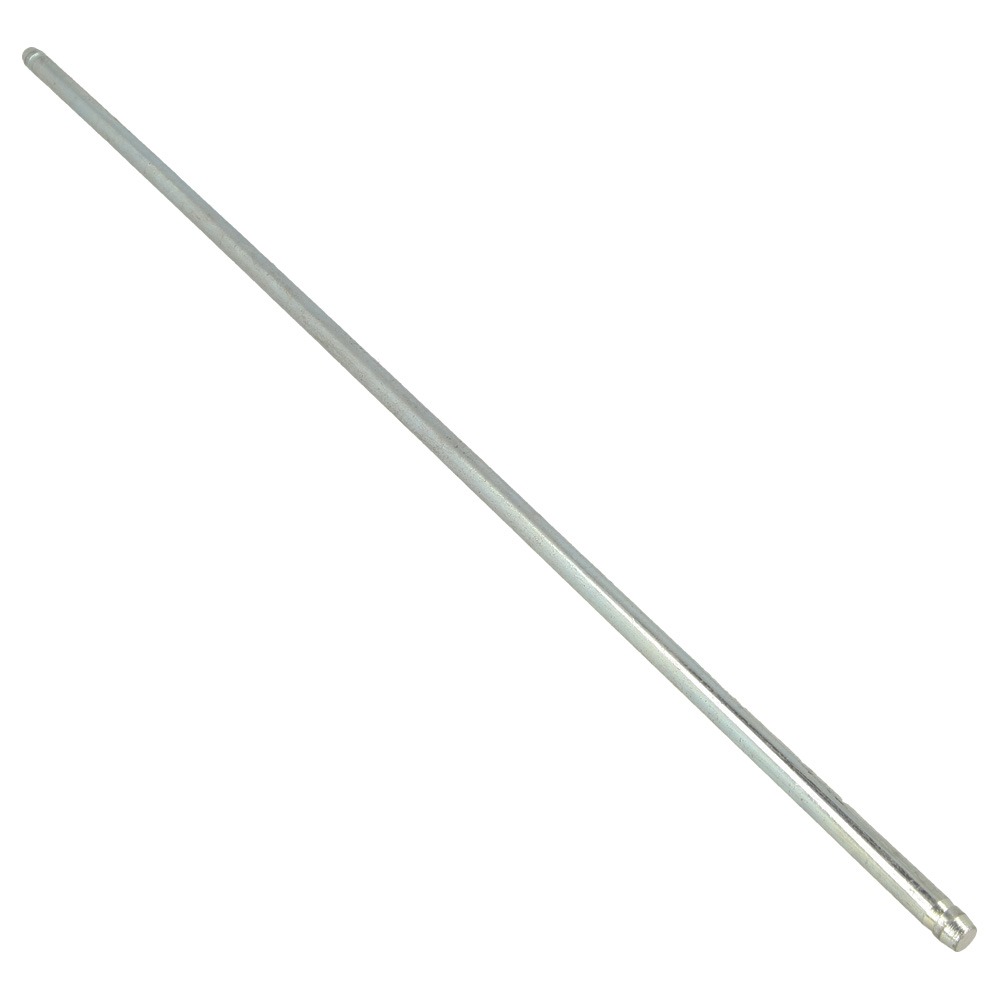

43	CO26300171301 Available to backorder	Long Rod	£2.48 £2.07
44	CO23600103802 Available to backorder	Handle Left Plank	£4.20 £3.50
45	CO26800602501 Available to backorder	Bolt	£2.48 £2.07
46	CO26300210602 Available to backorder	Square Washer	£2.48 £2.07
48	CO26800501502 Available to backorder	Lid Nut	£1.24 £1.03
49	CO26800800202 Available to backorder	Spring Washer	£2.48 £2.07
50	CO26800700701 Available to backorder	Flate Washer	£2.48 £2.07
51	CO26800601903 Available to backorder	Bolt	£2.48 £2.07
52	CO26300177201 In stock	Down Handle Rod	£15.56 £12.97
53	CO25261100101 Available to backorder	Cable Clip	£2.48 £2.07
54	CO26809004801 Available to backorder	Column Pin	£2.48 £2.07
55	CO25202800102 Available to backorder	Locking Handle	£2.48 £2.07
56	CO26300142002 Available to backorder	Press Board	£2.48 £2.07
57	CO26300124501 Available to backorder	Bolt	£2.48 £2.07
58	CO26800500801 Available to backorder	Bolt	£1.24 £1.03
59	CO29100117201 In stock	Frame Out Cord Assy	£10.27 £8.56
60	COA26800501603 Available to backorder	Lid Nut	£1.24 £1.03
61	CO26800800303 Available to backorder	Spring Washer	£2.48 £2.07
62	CO26800700801 In stock	Flate Washer	£1.28 £1.07
63	CO26300168401 Available to backorder	Cable Hook	£2.48 £2.07
64	CO26800607701 Available to backorder	Bolt	£2.48 £2.07
65	CO25233600101 In stock	Cord Fixing Board	£2.58 £2.15
66	CO29100132301 Available to backorder	Choke Handle Assy	£11.15 £9.29
67	CO26800603601 Available to backorder	Bolt	£2.48 £2.07
68	CO23600163001 Available to backorder	Upper Handle	£20.42 £17.02

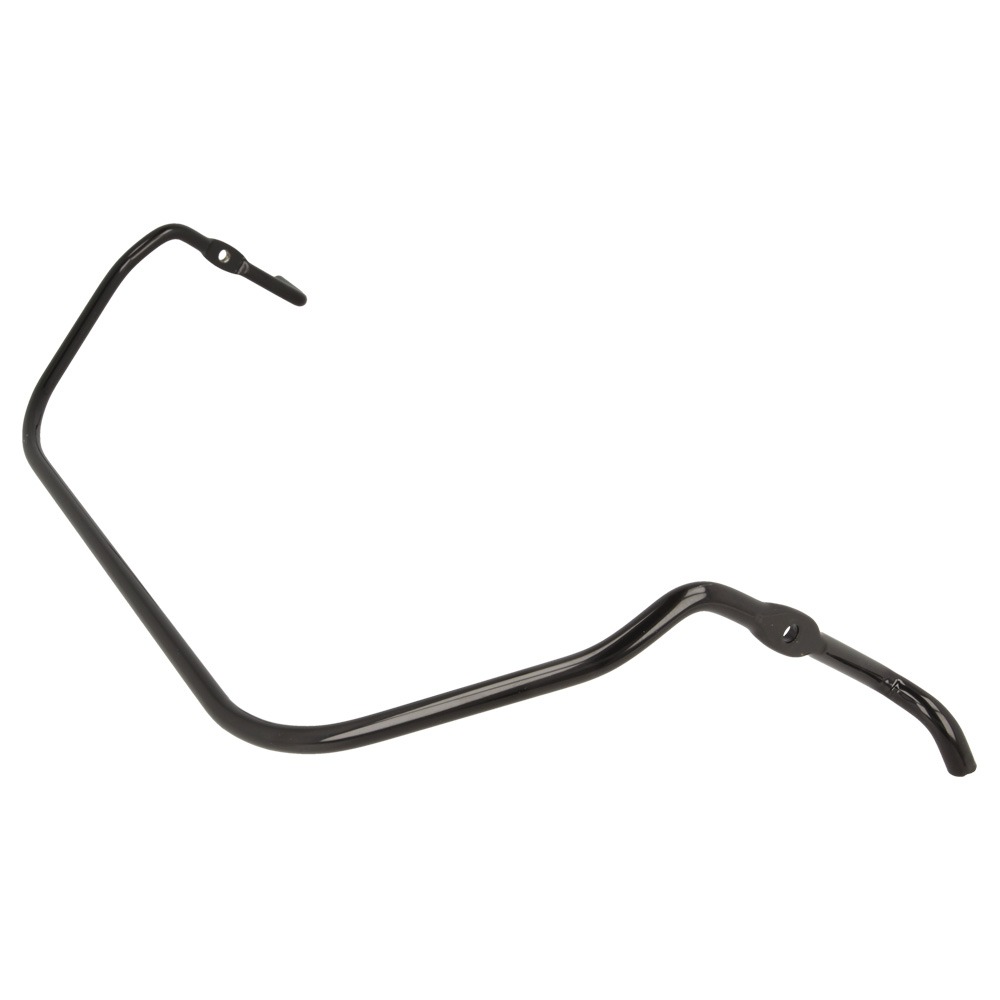

69	CO23600163601 Available to backorder	Opc Lever	£5.17 £4.31
70	CO25100137315 Available to backorder	Grass Catcher	£23.89 £19.91
71	CO26300116102 Available to backorder	Grass Catcher Bracket	£17.98 £14.98
72	CO25207800101 Available to backorder	Rear Cover	£6.25 £5.21
73	CO26300161201 Available to backorder	Wrench	£2.48 £2.07
74	CO26300107901 Available to backorder	Wrench Rod	£2.48 £2.07
