Cobra LTX92HR2L - Tractor Jan 2025 Cutting Deck Diagram

Name: Cobra LTX92HR2L - Tractor Jan 2025 Cutting Deck Diagram
SKU: ltx92hr2l_tractor_jan_2025_cutting_deck-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LTX92HR2L - Tractor Jan 2025 Cutting Deck Diagram

Description

Cobra LTX92HR2L Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COB1077W08025 Available to backorder	Bolt	£2.52 £2.10
2	COB6006W00000 Available to backorder	Spring Washer	£2.52 £2.10
3	COB5091B00000 Available to backorder	Flat Washer	£1.25 £1.04
4	COT0920320000 Available to backorder	Pulley Assembly	£33.35 £27.79
5	COB0041W00000 Available to backorder	Ball Bearing	£4.64 £3.87
6	COBE00LW00000 Available to backorder	Flat Key	£1.25 £1.04
7	COT066032X000 Available to backorder	Pulley Shaft	£20.86 £17.38
8	COT066032XX00 Available to backorder	Belt Pulley Seat	£41.71 £34.76
9	COB2028W00000 Available to backorder	Nut	£2.52 £2.10
10	COB1010W08025 Available to backorder	Bolt	£1.25 £1.04
11	COT066032Y000 Available to backorder	Dust Cover	£1.25 £1.04
12	COB9020B00000 Available to backorder	Lock Ring	£1.25 £1.04
13	COBE004W00000 Available to backorder	Flat Key	£1.20 £1.00

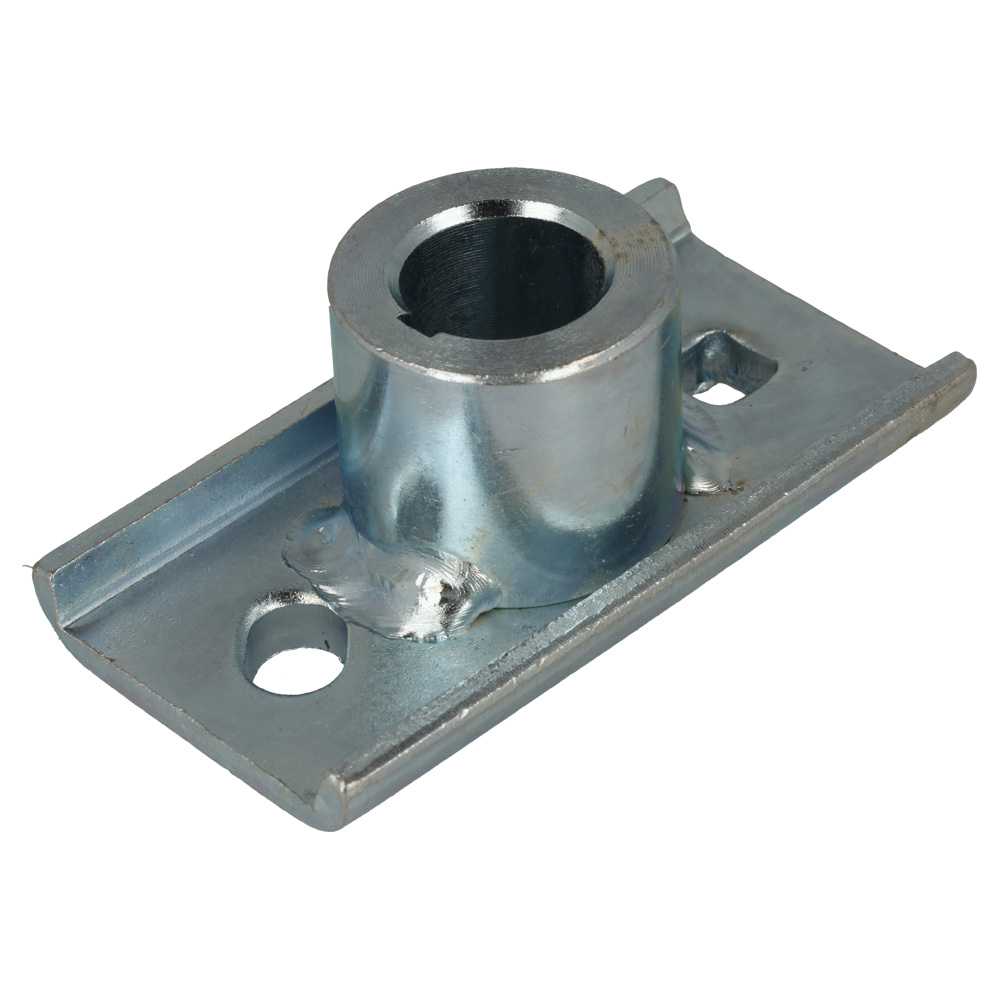

14	COT0660380000 Available to backorder	Blade Holder Assembly	£8.48 £7.07

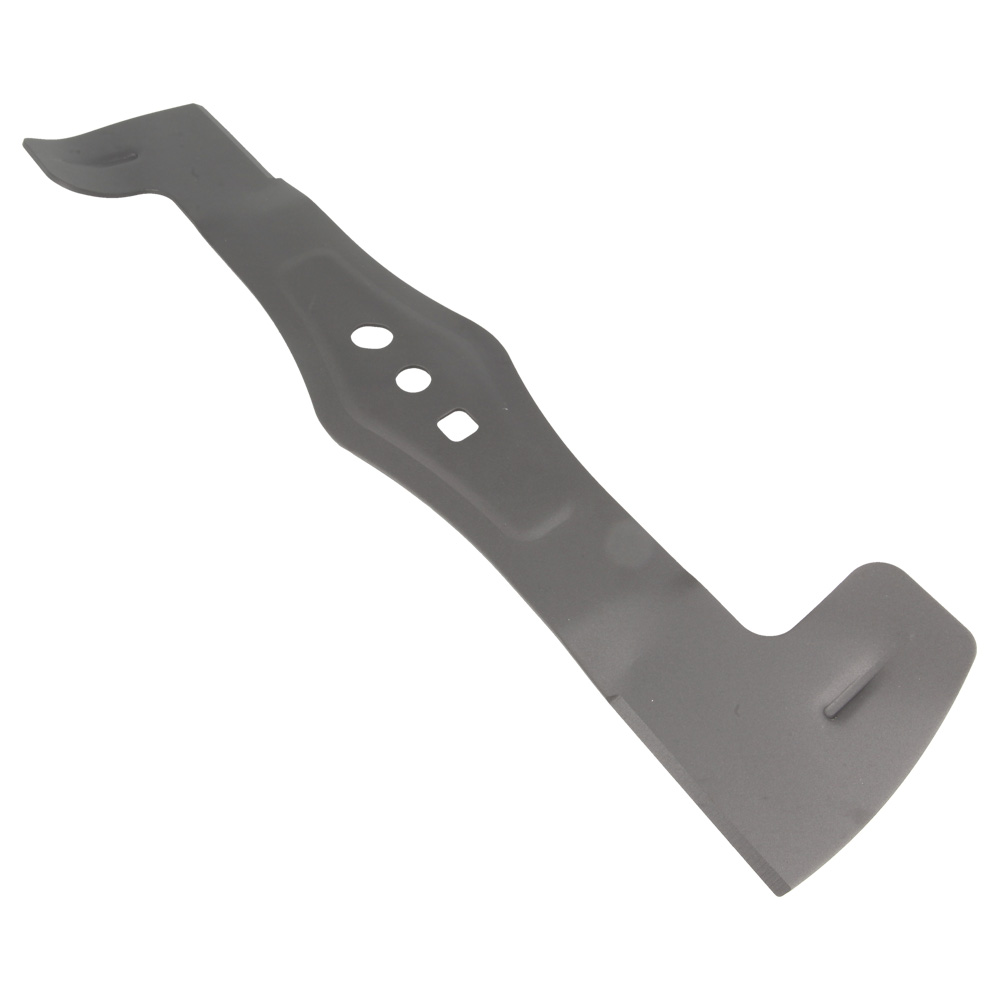

15	COT09203A0000 Available to backorder	Left Blade	£39.31 £32.76
16	COG3520000000 In stock	Blade Washer	£1.98 £1.65
17	COB1001B00032 Available to backorder	Blade Bolt	£2.40 £2.00

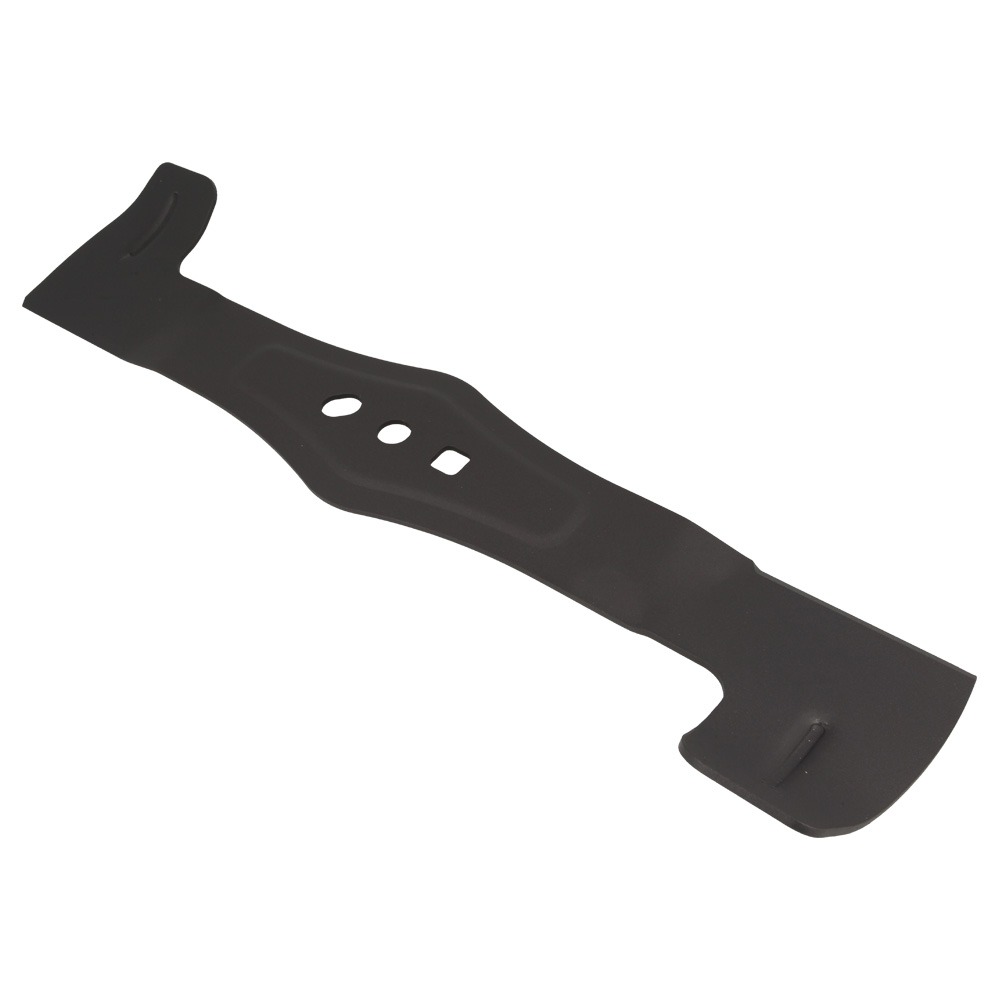

18	COT09203B0000 Available to backorder	Right Blade	£38.00 £31.67
19	COBA0213X0000 Available to backorder	Belt	£84.83 £70.69
20	COB1043W08040 Available to backorder	Bolt	£1.25 £1.04
21	COB5005W00000 Available to backorder	Flat Washer	£2.52 £2.10
22	COT0920390000 Available to backorder	Idler Assembly	£28.70 £23.92
23	COT0920370000 Available to backorder	Sleeve	£2.99 £2.49
24	COB1098W08070 Available to backorder	Bolt	£1.61 £1.34
25	COB2020W00000 Available to backorder	Nut	£2.52 £2.10
26	COT09209V5000 Available to backorder	Cleaning Connector	£1.25 £1.04
27	COT0920310057 Available to backorder	Deck	£400.38 £333.65
28	COT09203C0000 Available to backorder	Bolt	£1.38 £1.15
29	COT09209V6000 Available to backorder	4-Inch Guide Wheel	£15.34 £12.78
30	COB5033W00000 Available to backorder	Flat Washer	£2.52 £2.10
31	COB1097B08055 Available to backorder	Bolt	£1.25 £1.04
32	COB5064B00000 Available to backorder	Flat Washer	£1.25 £1.04
33	COT0920340000 Available to backorder	Tensioning Wheel Assembly	£32.44 £27.03
34	COT0920380000 Available to backorder	Sleeve	£1.32 £1.10
35	COT0920350000 Available to backorder	Tensioning Wheel Swing Arm Assembly	£12.55 £10.46
36	COT0920360000 Available to backorder	Fixed Plate	£27.56 £22.97
37	COT09203D0000 Available to backorder	Spring	£2.18 £1.82
38	COT09203G0000 Available to backorder	Bolt	£2.24 £1.87
39	COB2059W00000 Available to backorder	Nut	£1.25 £1.04
40	COT09203E0000 Available to backorder	Fixed Plate	£12.78 £10.65
41	COB1060W06016 Available to backorder	Bolt	£2.52 £2.10
42	COB1100BL8025 Available to backorder	Bolt	£1.25 £1.04
43	COT066032XLH0 Available to backorder	Axle	£20.86 £17.38
44	COB1001BLH032 Available to backorder	Blade Bolt	£1.25 £1.04
45	COB1076W08035 Available to backorder	Bolt	£1.25 £1.04
