Cobra LTX66HRL - Tractor Jan 2025 Seat Diagram

Name: Cobra LTX66HRL - Tractor Jan 2025 Seat Diagram
SKU: ltx66hrl_tractor_jan_2025_seat-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LTX66HRL - Tractor Jan 2025 Seat Diagram

Description

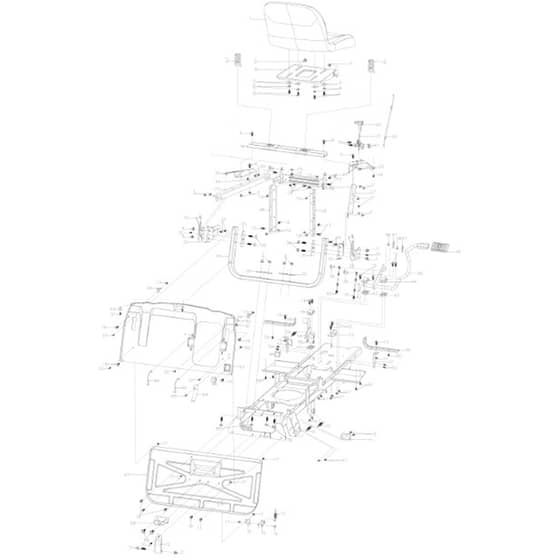

Cobra LTX66HRL Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COT066061YY00 Available to backorder	Seat	£202.21 £168.51
2	COT06602VX000 Available to backorder	Seat Vibration Damping Springs	£3.05 £2.54
3	COB2028W00000 Available to backorder	Nut	£2.52 £2.10
4	COT066062X000 Available to backorder	Seat Fixing Plate	£30.66 £25.55
5	COB5037W00000 Available to backorder	Flat Washer	Was £2.40 £2.00 Special Price £1.73 £1.44
6	COB1079W08020 Available to backorder	Bolt	£1.25 £1.04
8	COB6006W00000 Available to backorder	Spring Washers	£2.52 £2.10
9	COT06602S0000 Available to backorder	Brake Spring	£1.25 £1.04
10	COT06602M0000 Available to backorder	Tensioning Spring	£5.57 £4.64
11	COT06602Y7000 Available to backorder	Fixed Plate	£2.52 £2.10
12	COT06607C0000 Available to backorder	Spring	£1.25 £1.04
13	COB1060W06016 Available to backorder	Bolt	£2.52 £2.10
14	COT06607B0000 Available to backorder	Bolt	£1.38 £1.15
15	COT0660790000 Available to backorder	Grass Box Limit Hooks	£3.55 £2.96
16	COT06607A0000 Available to backorder	Fix Plate	£2.30 £1.92
17	COB2008W00000 Available to backorder	Nut	£2.62 £2.18
18	COT06602DX000 Available to backorder	Seat Vibration Dampening Spring Retainer	£24.70 £20.58
19	COB1058W06012 Available to backorder	Bolt	£2.52 £2.10
20	COG53L110000W Available to backorder	Variable Speed Handle	£2.52 £2.10
21	COT066042B000 Available to backorder	Speed Governor	£20.18 £16.82
22	COT0660290000 Available to backorder	Throttle Cable	£5.45 £4.54
23	COT066023X057 Available to backorder	Gear Shift Lever Panel.	£14.96 £12.47
24	COB3036B00000 Available to backorder	Screws	£2.52 £2.10
25	COT06604K0000 Available to backorder	Bolt	£2.46 £2.05
26	COT0660240000 Available to backorder	Support Plate	£19.60 £16.33
27	COT0660280000 Available to backorder	Seat Linkage Rod	£16.56 £13.80
28	COT0660270000 Available to backorder	Support Rods	£9.91 £8.26
29	COB1010W08020 Available to backorder	Bolt	£1.25 £1.04
30	COT0660220057 Available to backorder	Hegiht Adjustment Panel	£12.84 £10.70
31	COT066025L000 Available to backorder	Left Bracket For Grass Bag	£12.55 £10.46
32	COB30B1B19X00 Available to backorder	Screw	£1.25 £1.04
33	COT066026L000 Available to backorder	Left Connecting Plate For Seat Linkage Rod	£7.63 £6.36
34	COT06602C0000 Available to backorder	Seat Frame Support Bracket	£50.62 £42.18
35	COT06602B0000 Available to backorder	Frame Connection Reinforcement Plate	£2.41 £2.01
36	COB1010W08045 Available to backorder	Bolt	£2.52 £2.10
37	COT066026R000 Available to backorder	Right Connecting Plate For Seat Linkage Rod	£7.63 £6.36
38	COT066025R000 Available to backorder	Right Bracket For Grass Bag	£12.55 £10.46
39	COT06604V0000 Available to backorder	Pin	£1.25 £1.04
40	COT06604XY000 Available to backorder	Brake Cable	£10.78 £8.98
41	COT06604W0000 Available to backorder	Self-Propelled Clutch Cable	£12.14 £10.12
42	COB800CB00000 Available to backorder	Pin	£1.25 £1.04
43	COT06604M0000 Available to backorder	Brake Pedal Pad	£1.25 £1.04
44	COT06604G0000 Available to backorder	Brake Pedal Retainer Plate	£1.85 £1.54
45	COT06604EX000 Available to backorder	Brake Pedal Rods	£35.64 £29.70
46	COT06604F0010 Available to backorder	Brake Pedal	£1.78 £1.48
47	COBB011W00000 Available to backorder	Pin	£1.25 £1.04
48	COB5019W00000 In stock	Flat Washer	£1.22 £1.02
49	COT06602GR000 Available to backorder	Footrest Right Fixing Plate	£7.80 £6.50
50	COB3022B00000 Available to backorder	Screws	£1.25 £1.04
51	COT06602F0000 Available to backorder	Footrest Support Plate	£1.56 £1.30
52	COB30B1B18000 Available to backorder	Screws	£1.25 £1.04
53	COT06603W1000 Available to backorder	Blade Clutch Cable Fixing Plate	£1.78 £1.48
54	COT06603WL00W Available to backorder	Reverse Mowing Pedal Assembly	£10.37 £8.64
55	COB9030B00000 Available to backorder	Circlip	£1.25 £1.04
56	COT06603WM000 Available to backorder	Reverse Gear Cutting Return Spring	£1.25 £1.04
57	COT06603WK000 Available to backorder	Reverse Mowing Switch Fixing Plate	£4.30 £3.58
58	COT06602GL000 Available to backorder	Footrest Left Fixing Plate	£7.39 £6.16
59	COT06602A0000 Available to backorder	Upper Cover Fixing Plate	£11.35 £9.46
60	COS1050000000 Available to backorder	Gear Shift Plate Fixing Bushing Ii	£1.25 £1.04
61	COB3033B00000 Available to backorder	Screws	£1.25 £1.04
62	COB2007W00000 Available to backorder	Nut	£2.40 £2.00
63	COT06602H0057 Available to backorder	Upper Panel	£56.04 £46.70
64	COT06602K0000 Available to backorder	Grass Bag Safty Switch Plate	£1.78 £1.48
65	COB3006W00000 Available to backorder	Screws	£1.25 £1.04
66	COT06603WA000 Available to backorder	Wire Clip	£1.25 £1.04
67	COT06602JX057 Available to backorder	Lower Panel	£47.28 £39.40
68	COT06602T0000 Available to backorder	Fixed Plate	£5.39 £4.49
69	COB1130W08025 Available to backorder	Screws	£1.25 £1.04
70	COB1078W08020 Available to backorder	Bolt	£2.52 £2.10
71	COB1081W08050 Available to backorder	Bolt	£1.25 £1.04
72	COT06602Y6000 Available to backorder	Drive Axle Fixing Plate	£7.80 £6.50
73	COB2016W00000 Available to backorder	Nut	£1.26 £1.05
