Cobra LTX66HRL - Tractor Jan 2025 Cutting Deck Diagram

Name: Cobra LTX66HRL - Tractor Jan 2025 Cutting Deck Diagram
SKU: ltx66hrl_tractor_jan_2025_cutting_deck-group
Price: 1 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra LTX66HRL - Tractor Jan 2025 Cutting Deck Diagram

Description

Cobra LTX66HRL Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COBA021000000 Available to backorder	Tie	£57.88 £48.23
2	COB1077W08025 Available to backorder	Bolt	£2.52 £2.10
3	COB6006W00000 Available to backorder	Spring Washers (Ref: 3 & 33)	£2.52 £2.10
4	COB5091B00000 Available to backorder	65Mn Spring Washer	£1.25 £1.04
5	COT0660310000 Available to backorder	Blade Pulley Assembly	£30.82 £25.68
6	COBE00LW00000 Available to backorder	Flat Key	£1.25 £1.04
7	COT066032X000 Available to backorder	Blade Pulley Shaft	£20.86 £17.38
8	COB0041W00000 Available to backorder	Bearing	£4.64 £3.87
9	COB2028W00000 Available to backorder	Nut	£2.52 £2.10
10	COT066032XX00 Available to backorder	Blade Pulley Shaft	£41.71 £34.76
11	COT066032Y000 Available to backorder	Dust Cover	£1.25 £1.04
12	COB9020B00000 Available to backorder	Shaft Snap Ring	£1.25 £1.04
13	COBB010W00000 Available to backorder	Pin	£1.25 £1.04
14	COB5019W00000 In stock	Flat Washer	£1.22 £1.02
15	COT0660570000 Available to backorder	Steering Linkage Busing	£1.25 £1.04
16	COT066037X000 Available to backorder	Hex Shaft Directional Joint	£2.52 £2.10
17	COB2020W00000 Available to backorder	Nut	£2.52 £2.10
18	COB2009W00000 Available to backorder	Nut	£2.62 £2.18
19	COT06603A0000 Available to backorder	Tensioning Brake Interlock Rod	£6.82 £5.68
20	COB2024W00000 Available to backorder	Nut	£1.25 £1.04
21	COB5085W00000 Available to backorder	Flat Washer	£1.25 £1.04
22	COT0660332X00 Available to backorder	Cutter Tensioner Arm	£33.00 £27.50

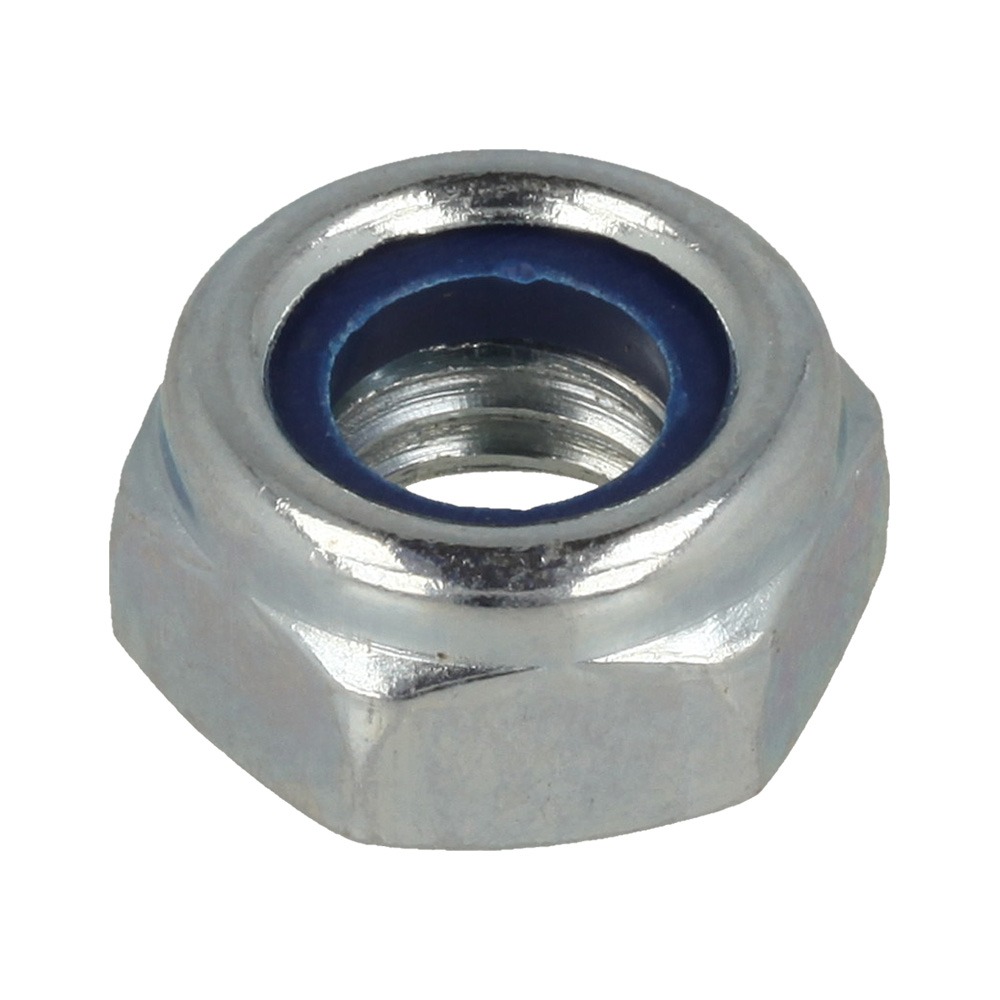

23	COB2005W00000 In stock	Nut	£1.20 £1.00
24	COT066034XN00 Available to backorder	Cutter Tensioner Mounting Plate	£6.71 £5.59
25	COB1098W08070 Available to backorder	Bolt	£1.61 £1.34
26	COB5005W00000 Available to backorder	Flat Washer	£2.52 £2.10
27	COT0660331X00 Available to backorder	Blade Tensioner	£20.51 £17.09
28	COT066033X000 Available to backorder	Bushing	£4.30 £3.58
29	COT066035X000 Available to backorder	Brake Plate	£9.29 £7.74
30	COT0660360000 Available to backorder	Support Sleeve	£3.90 £3.25
31	COB1004W10060 Available to backorder	Bolt	£1.61 £1.34
32	COT066031X000 Available to backorder	Fixed Plate	£5.74 £4.78
34	COB1010W08035 Available to backorder	Bolt	£1.25 £1.04
35	COT06603WG000 Available to backorder	Cutter Belt Brake Tension Spring	£1.27 £1.06
36	COT06603P0057 Available to backorder	Blade	£163.97 £136.64
37	COT06603EL000 Available to backorder	Front - Deck Left Fixing Plate	£4.37 £3.64
38	COT06603ER000 Available to backorder	Front - Deck Right Fixing Plate	£3.55 £2.96
39	COT06603WC000 Available to backorder	Belt Limiting Screw	£1.27 £1.06
40	COT06603FL000 Available to backorder	Rear - Deck Left Fixing Plate	£7.63 £6.36
41	COT06603FR000 Available to backorder	Rear - Deck Left Fixing Plate	£5.28 £4.40
42	COB1010W08020 Available to backorder	Bolt	£1.25 £1.04
43	COB1060W06016 Available to backorder	Bolt	£2.52 £2.10

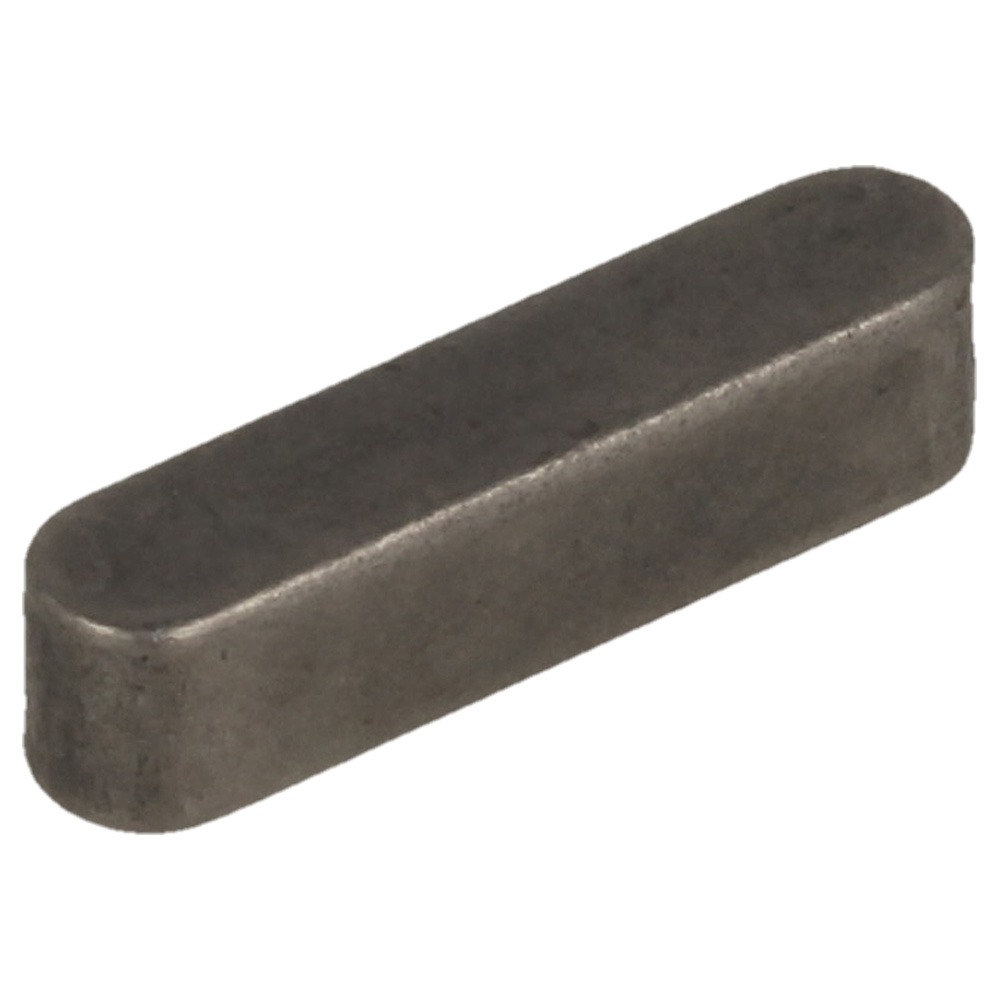

44	COBE004W00000 Available to backorder	Flat Key	£1.20 £1.00
45	COT0660380000 Available to backorder	Blade Adoptor Assembly	£8.48 £7.07
46	COT0660390000 Available to backorder	Blade	£36.72 £30.60
47	COB600CB00000 Available to backorder	Spring Gasket	£1.25 £1.04
48	COB1001B00032 Available to backorder	Bolt	£2.40 £2.00
49	COT066034X000 Available to backorder	Fixed Plate	£10.84 £9.03
50	COB1064W06025 Available to backorder	Bolt	£2.52 £2.10
51	COT06603RS010 Available to backorder	Side Discharge Grass Cylinder Base	£23.16 £19.30
52	COB3044W00000 Available to backorder	Screws	£2.52 £2.10
53	COT06603T7000 Available to backorder	Safety Plate Shaft	£1.25 £1.04
54	COT06603T6000 Available to backorder	Safety Plate Spring	£1.25 £1.04
55	COT06603T5013 Available to backorder	Safety Plate	£1.25 £1.04
56	COT06603T4000 Available to backorder	Side-Discharge Brackets	£5.16 £4.30
57	COT06603T1010 Available to backorder	Side-Discharge Cover	£9.29 £7.74
58	COT06603T2000 Available to backorder	Spring	£1.25 £1.04
59	COT06603U0010 Available to backorder	Side-Discharge Guide Plate	£14.27 £11.89
60	COB1063W06022 Available to backorder	Bolt	£2.52 £2.10
61	COT06603Q0010 Available to backorder	Blade Belt Cover	£6.48 £5.40
62	COG32X0000200 Available to backorder	Quick Coupling Assembly For Washing	£1.25 £1.04
63	COB2025B00000 Available to backorder	Nut	£1.26 £1.05
64	COB2008W00000 Available to backorder	Nut	£2.62 £2.18
65	COB9045B00000 Available to backorder	Bolt	£1.25 £1.04
66	COT06603T3000 Available to backorder	Shaft	£1.25 £1.04
67	COB3064B00000 Available to backorder	Screws	£1.25 £1.04
68	COB1003W08030 Available to backorder	Bolt	£1.25 £1.04
69	COB1010W08025 Available to backorder	Bolt	£1.25 £1.04
