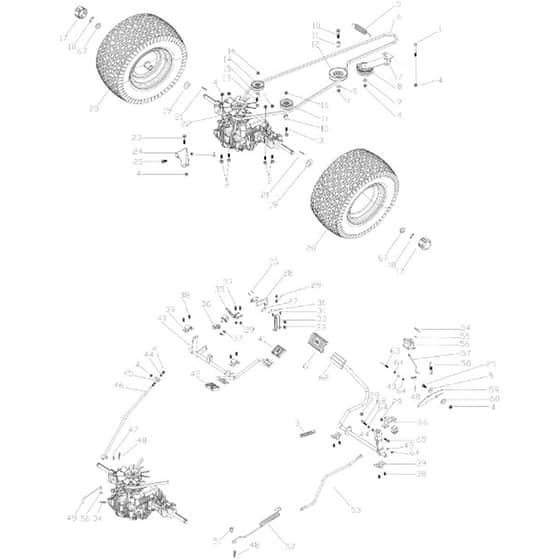

Cobra LTX102HR2L - Tractor Jan 2025 Transmission Assembly Diagram

Description

Cobra LTX102HR2L Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COB1098B08060 Available to backorder	Bolt	£1.61 £1.34
2	COB1081W08065 Available to backorder	Bolt	£1.25 £1.04
3	COT09201V3000 Available to backorder	Spring	£1.78 £1.48
4	COB2028W00000 Available to backorder	Nut	£2.52 £2.10
5	COT09201T0000 Available to backorder	Spring	£2.81 £2.34
6	COBA0212X0000 Available to backorder	Belt	£68.56 £57.13
7	COT0920140000 Available to backorder	Swing Arm Assembly	£19.72 £16.43
8	COT0920160000 Available to backorder	Tensioning Wheel Assembly	£24.12 £20.10
9	COB5005W00000 Available to backorder	Flat Washer	£2.52 £2.10
10	COB1080W08050 Available to backorder	Bolt	£2.52 £2.10
11	COT0920180000 Available to backorder	Sleeve	£3.05 £2.54
12	COT0920390000 Available to backorder	Idler Assembly	£28.70 £23.92
13	COB1094W10050 Available to backorder	Bolt	£1.25 £1.04
14	COT09201K0000 Available to backorder	Idler Assembly	£20.40 £17.00
15	COT09201L0000 Available to backorder	Sleeve	£2.70 £2.25
16	COB2005W00000 In stock	Nut	£1.20 £1.00
17	COT09201V403M Available to backorder	Wheel Cover	£1.25 £1.04
18	COB9034B00000 Available to backorder	E-Type Snap Spring	£1.25 £1.04
19	COB5092W00000 Available to backorder	Flat Washer	£1.25 £1.04
20	COT09201Q0000 Available to backorder	Wheel	£139.03 £115.86
21	COBE001W00000 Available to backorder	Flat Key	£2.40 £2.00
22	COT09201XX000 Available to backorder	Transmission	£874.58 £728.82
23	COB1043W08040 Available to backorder	Bolt	£1.25 £1.04
24	COT09201U0000 Available to backorder	Fixed Plate	£8.77 £7.31
25	COB1100B08025 Available to backorder	Bolt	£1.25 £1.04
26	COB30B1W24000 Available to backorder	Screw	£1.25 £1.04
27	COT09201YA000 Available to backorder	Switch Pressure Plate	£3.34 £2.78
28	COT09201Y6000 Available to backorder	Fiexed Plate	£1.78 £1.48
29	COB2016W00000 Available to backorder	Nut	£1.26 £1.05
30	COB2057W00000 Available to backorder	Nut	£1.25 £1.04
31	COB30B1W18X00 Available to backorder	Screw	£1.25 £1.04
32	COT09201Y7000 Available to backorder	Micro Switch Support Bracket	£2.64 £2.20
33	COB1060W06016 Available to backorder	Bolt	£2.52 £2.10
34	COBB011W00000 Available to backorder	Split Pin	£1.25 £1.04
35	COT09201J0000 Available to backorder	Fixed Plate	£5.45 £4.54
36	COT09201F0000 Available to backorder	Reverse Gear Switch Pressure Plate	£1.25 £1.04
37	COB3022B00000 Available to backorder	Screw	£1.25 £1.04
38	COB3006W16000 Available to backorder	Screw	£1.25 £1.04
39	COT09204GX000 Available to backorder	T92 Pedal Pressure Plate	£3.38 £2.82
41	COT06602Y5010 Available to backorder	Pedal (Ref: 41 & 42)	£1.32 £1.10
43	COB6005W00000 Available to backorder	Spring Washer	£1.26 £1.05
44	COB2020W00000 Available to backorder	Nut	£2.52 £2.10
45	COT09201G0000 Available to backorder	Hexagonal Joint	£3.28 £2.73
46	COT09201A0000 Available to backorder	Tie Rod Assembly	£15.76 £13.13
47	COB5019W00000 In stock	Flat Washer	£1.22 £1.02
48	COBB010W00000 Available to backorder	Split Pin	£1.25 £1.04
49	COT09201V2000 Available to backorder	Lever	£1.67 £1.39
50	COB5004W00000 Available to backorder	Flat Washer	£1.25 £1.04
51	COT09201W0000 Available to backorder	Pin	£1.85 £1.54
52	COT09201V0000 Available to backorder	Spring	£1.25 £1.04
53	COT0920190000 Available to backorder	Lever	£9.68 £8.07
54	COT09201Y3000 Available to backorder	Limit Wire Clamp	£1.25 £1.04
55	COT09201Y4000 Available to backorder	Pin	£1.25 £1.04
56	COT09209V100W Available to backorder	Brake Lever	£1.25 £1.04
57	COT09201Y1000 Available to backorder	Parking Push Rod	£1.72 £1.43
